Used 1045.9 sq.ft. GEA APV model 8WP- B2-2 heat exchanger with a 250 gallon horizontal liquid separation tank unitized on a carbon steel base. 316 stainless steel plates. The heat exchanger is rated ...

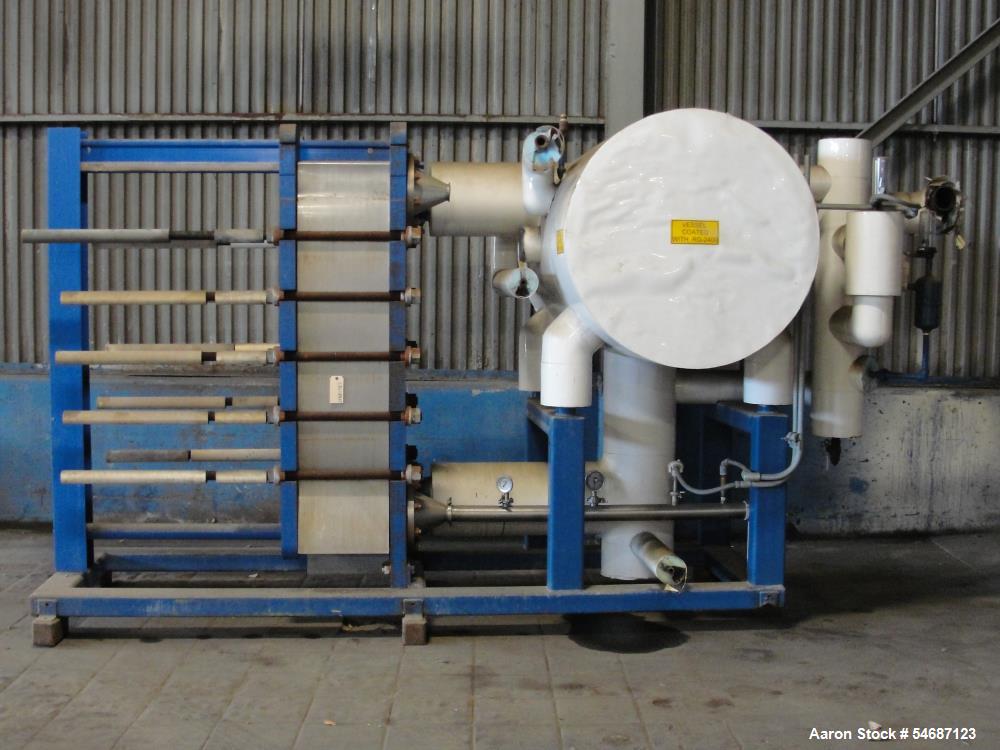

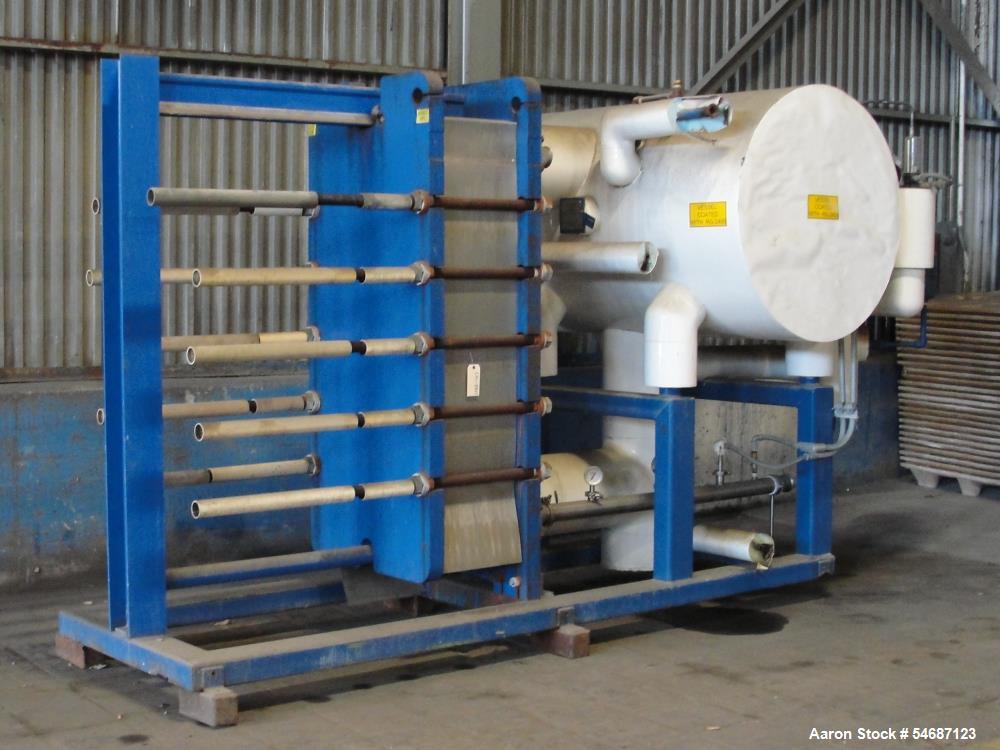

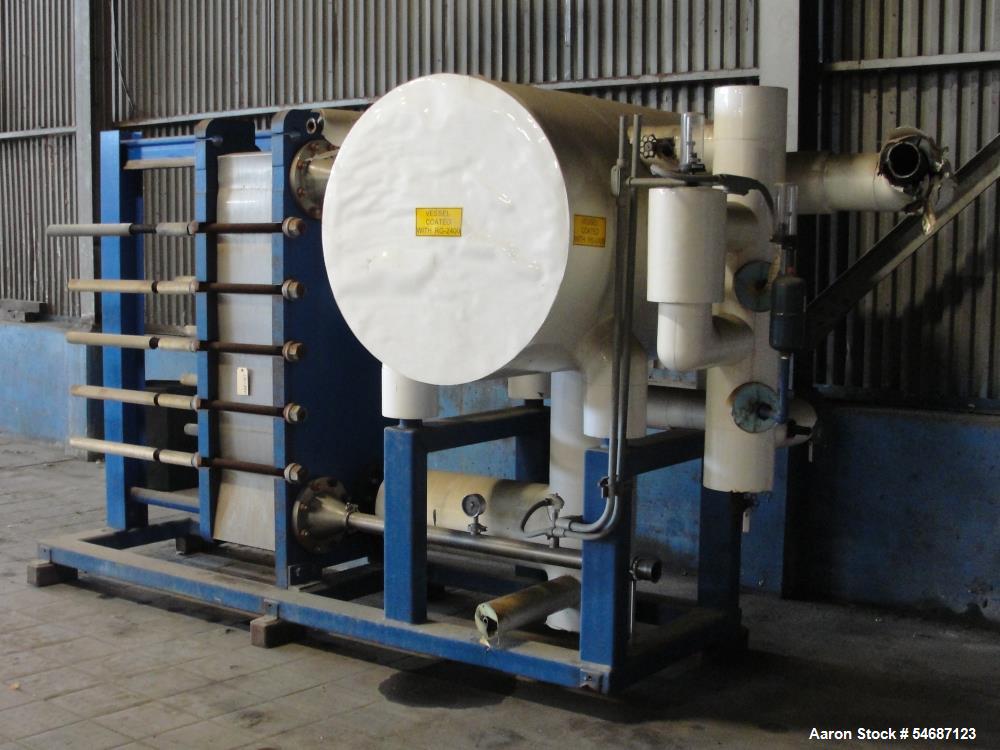

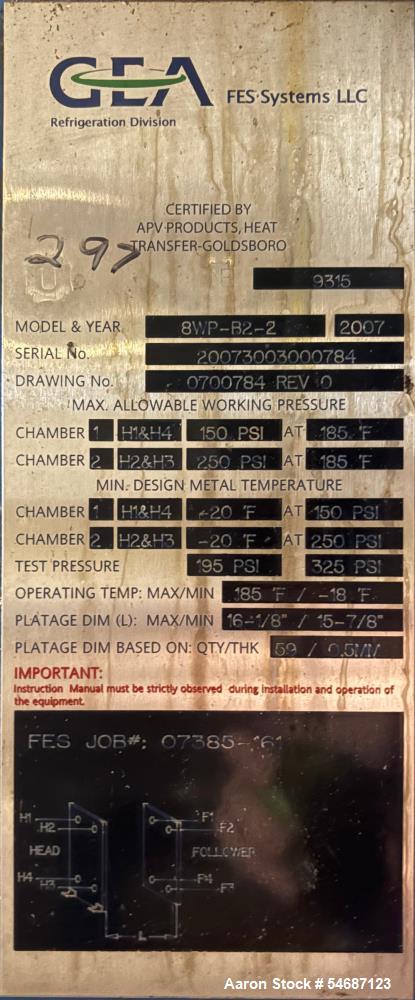

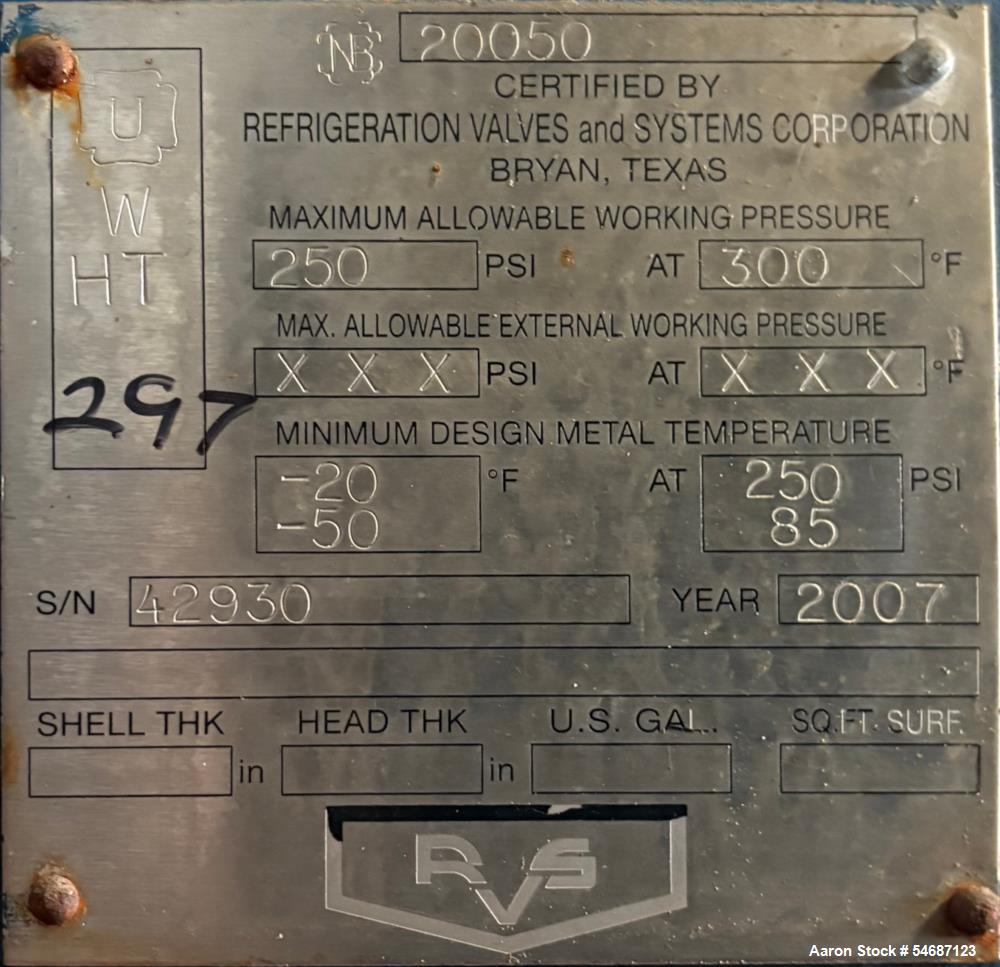

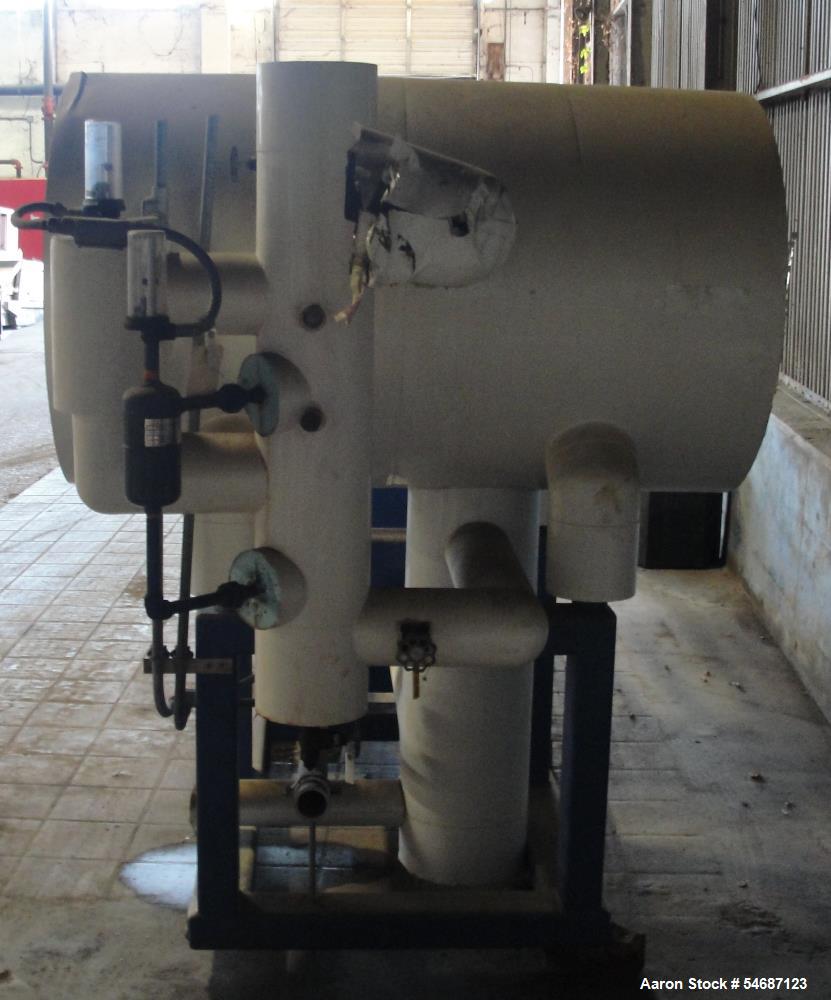

Used-1045.9 sq.ft. GEA APV model 8WP- B2-2 heat exchanger with a 250 gallon horizontal liquid separation tank unitized on a carbon steel base. 316 stainless steel plates. The heat exchanger is rated for 150 psi @ -20 to 185F for chamber 1 and 250 psi@ -20 to 185F for chamber 2. The national board number for the heat exchanger is 9315. The liquid separator tank is rated for 250 psi @ -20 to 300F. Its national board number is 20050. This unit was part of an ammonia refrigeration system. Overall dimensions are 68.5" wide by 170" long by 90" tall.
