Used Plate Type Heat Exchangers

Stock# 47577007

Used- Lot of (7) Paul Mueller Company Heat Transfer Plates. Dimple jacket style; Made from stainless steel or higher alloy; Approximate OAD: 59" X 39" +2.5" for connection ports X 1" thick; Jacket area dimensions: 54" X 35", or 14.34 square feet per plate; Designed for 50 PSI/F.V. @350; NB registered.

Stock# 52862018

Used- GEA Plate Heat Exchanger, Model NT50M-CYFS-150. (10) Reported stainless steel plates, rated 150 psi at 20 to 365 degrees F. 1-1/2" inlet/outlet. National Board# 1993, Serial# ENA-111/50356, built 2013.

Stock# 53304009

Used- Plate & Frame Heat Exchanger.

Stock# 50410002

Unused- Alfa Laval Alfa Nova Fusion-Bonded Plate Heat Exchanger, Model 52-20H, 100% Stainless Steel. Approximate 11 Square Feet. Gasket free copper free, 20 plates, approximate 4" x 20". 1" Diameter internal thread product ports, 3/4" external cooling or heating ports. Temperature S: -196 degrees C. (-302.8 F.)/225 C. (437 F.). Pressure S: (S4S3) -1 bar (-14.5 psi)/26-30 bar (377-435 psi), (S2S1) -1 bar (-14.5 psi)/21-25 bar (304-362 psi). Pressure T: (S4S3) 45 bar (652 psi), (S2S1) 37 bar (536 psi). Serial# 43659870, Built 2015.

Stock# 50410007

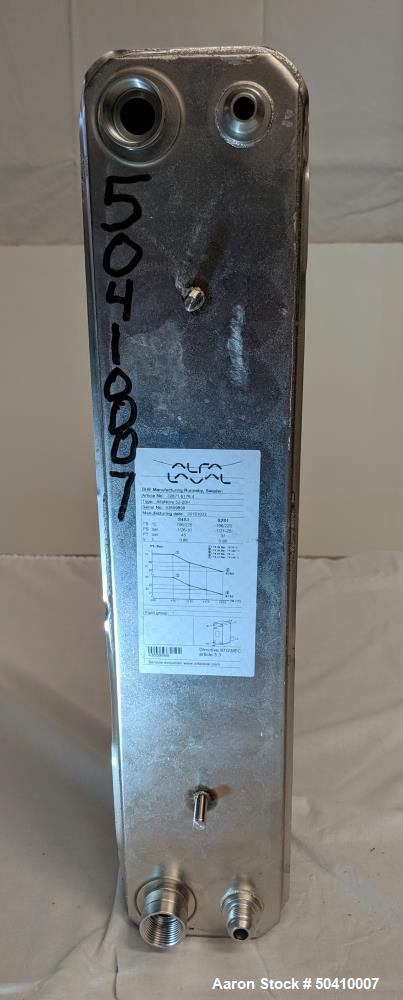

Unused- Alfa Laval Alfa Nova Fusion-Bonded Plate Heat Exchanger, Model 52-20H, 100% Stainless Steel. Approximate 11 Square Feet. Gasket free copper free, 20 plates, approximate 4" x 20". 1" Diameter internal thread product ports, 3/4" external cooling or heating ports. Temperature S: -196 degrees C. (-302.8 F.)/225 C. (437 F.). Pressure S: (S4S3) -1 bar (-14.5 psi)/26-30 bar (377-435 psi), (S2S1) -1 bar (-14.5 psi)/21-25 bar (304-362 psi). Pressure T: (S4S3) 45 bar (652 psi), (S2S1) 37 bar (536 psi). Serial# 43659868, Built 2015.

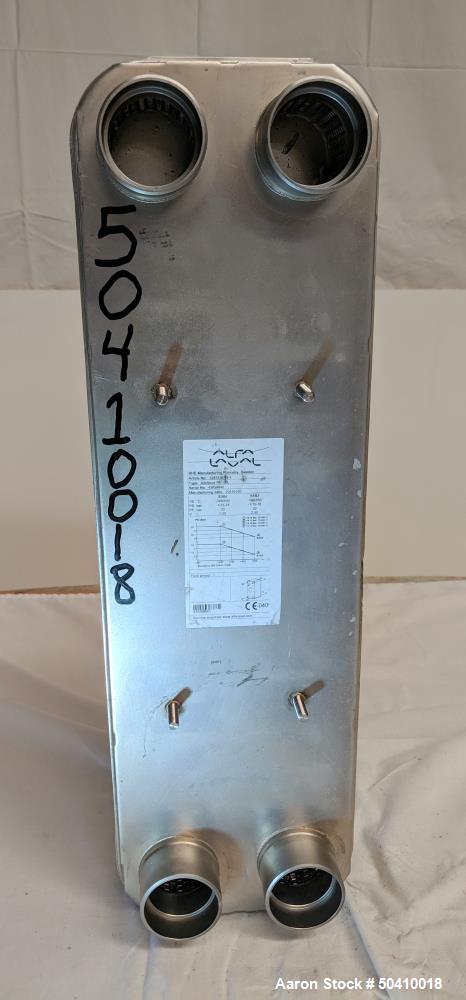

Stock# 50410018

Unused- Alfa Laval Alfa Nova Fusion-Bonded Plate Heat Exchanger, Model 76L-20L, 100% Stainless Steel. Approximate 24 square feet. Gasket free copper free, 20 plates, approximate 7" x 24". 1" Diameter internal thread product ports, 3/4" external cooling or heating ports. Temperature S: -196 degrees C. (-302.8 F.)/550 C. Pressure S: (S4S3) -1 bar (-14.5 psi)/15-18 bar, (S2S1) -1 bar (-14.5 psi)/15-18 bar. Pressure T: (S4S3) 33 bar, (S2S1) 33 bar. Serial# 43659840, Built 2015.

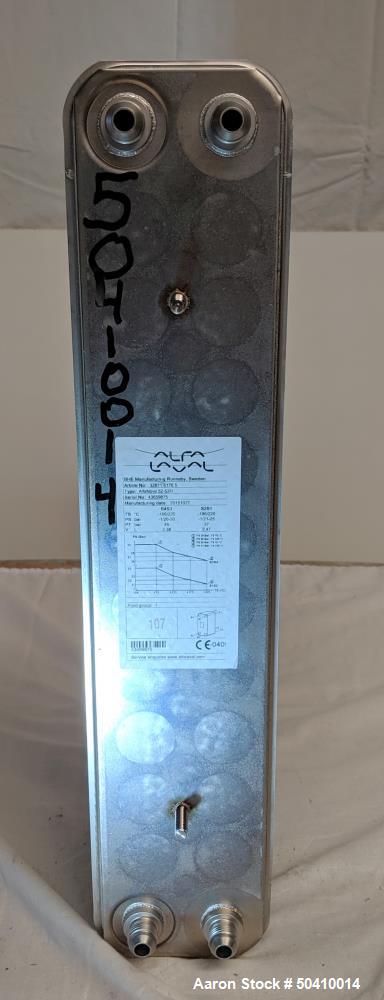

Stock# 50410014

Unused- Alfa Laval Alfa Nova Fusion-Bonded Plate Heat Exchanger, Model 52-52H, 100% Stainless Steel. Approximate 28 square feet. Gasket free copper free, 52 plates, approximate 4" x 20". 1" Diameter internal thread product ports, 3/4" external cooling or heating ports. Temperature S: -196 degrees C. (-302.8 F.)/225 C. (437 F.). Pressure S: (S4S3) -1 bar (-14.5 psi)/26-30 bar (377-435 psi), (S2S1) -1 bar (-14.5 psi)/21-25 bar (304-362 psi). Pressure T: (S4S3) 45 bar (652 psi), (S2S1) 37 bar (536 psi). Serial# 43659875, Built 2015.

Stock# 53179001

Used- Alfa-Laval Plate Heat Exchanger, Model M10-MFG. 137.3 Square Feet. (58) 304 Stainless Steel plates, approximately 253mm wide x 34" long x 0.40mm thick plates. Rated 100psi at -20 to 190 degrees F. Mounted in expandable frame with (3) legs. Serial# 30105-61105.

Stock# 53234006

Unused- Tranter Super Charger Plate Heat Exchanger, Model GLD-013-H-5-NR112, Stainless Steel. 151.56 Square Feet surface area. Rated 150 psi at -20 to 302 degrees F. Mounted on expandable frame. Serial# 01SC7304, Built 2022.

Stock# 49600003

Used- Alfa Laval / Young Touchstone Plate Heat Exchanger, Model YTP220L-M2. 297.1 Square Feet. (117) 357mm x 0.50mm plates. Rated 100 psi at -20 to 230 degrees F. Serial# 30105-71779.

Stock# 51094005

Used- Tranter GX Series Superchanger Plate Heat Exchanger, 316 Stainless Steel Plates. 677.27 Square Feet Surface Area, Model GXP-042-H-5-NR-145. Rated 150 psi at -20 to 200 degrees F. Serial # 01SC0361, National Board # 61778. Built 2014.

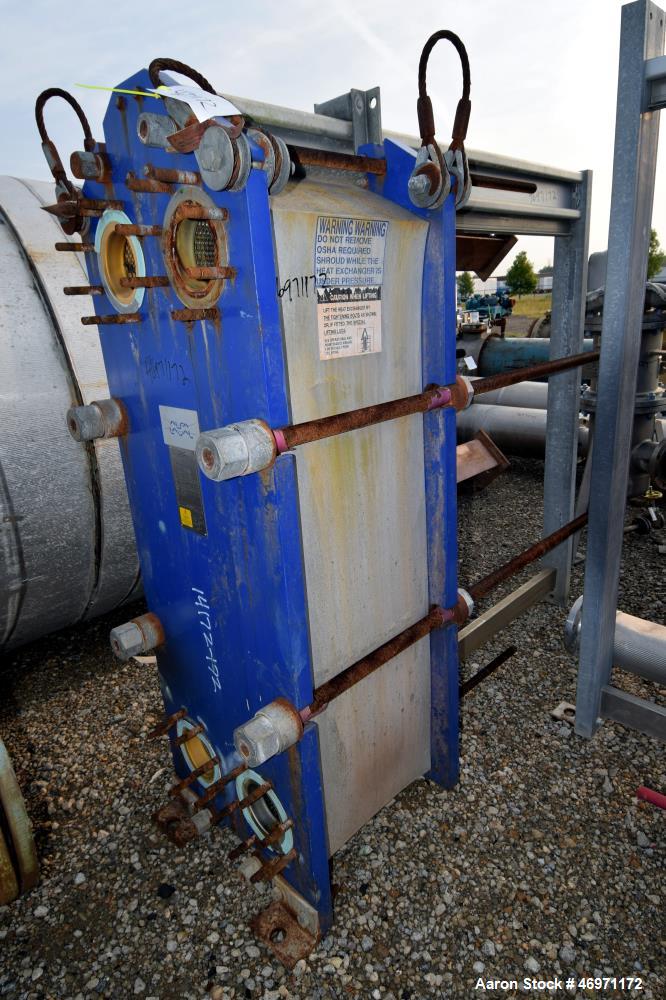

Stock# 46971172

Used- Alfa Laval Plate Heat Exchanger, 720.88 Square Feet, Model M15-MFG. Approximate (110) 0.5mm 316 stainless steel plates. Rated 150 psi at -20 to 230 degrees F. Mounted on an expandable carbon steel frame. Serial # 30110-69743, National Board # 26100. Built 2007.

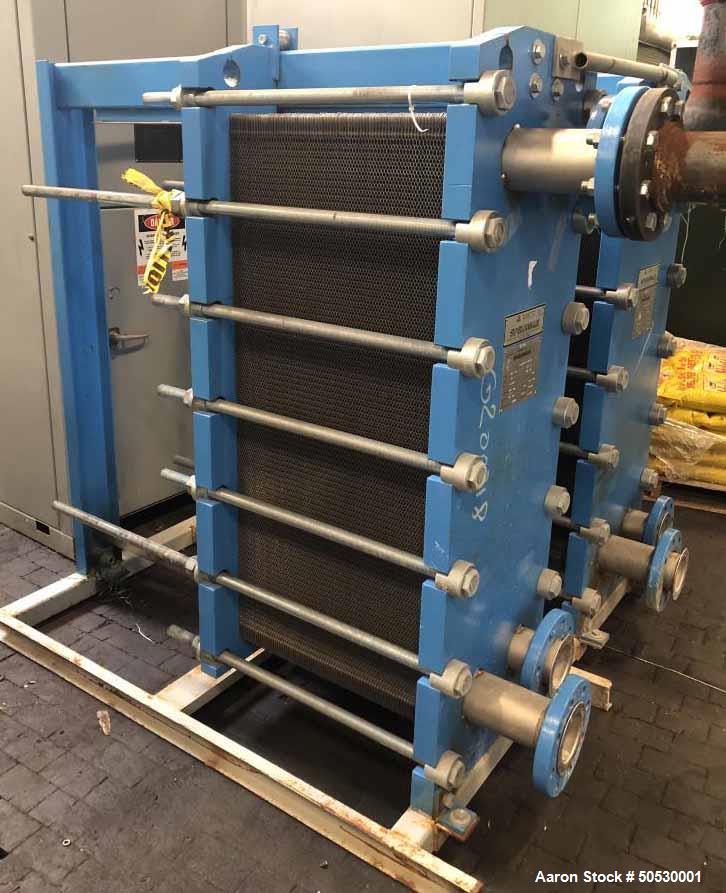

Stock# 50530001

Used- Tranter Plate Heat Exchanger, Approximate 753.04 Square Feet Surface Area, Model GXD-042-H-6-SP-161. Plates rated 300 psi at -20 to 150 Degrees F. Mounted on an expandable carbon steel frame. National Board # 56286, Serial # SV 876. Built 2011.

Stock# 50136023

Used- APV Plate Heat Exchanger, Model SR6GLMGS10. Approximately 837 Square Feet, 316 Stainless Steel. Approximate (139) 316 stainless steel plates, approximately 49.44" (1256mm) long x 12.36" (314mm) wide. Rated 150 psi at -20 to 275 degrees F. (4) 4" Inlets/outlets. Mounted on an expandable frame. National Board # 2505. Serial # 41064.1. Built 1999.

Stock# 50136024

Used- APV Plate Heat Exchanger, Model SR6GLMGS10. Approximately 837 Square Feet, 316 Stainless Steel. Approximate (139) 316 stainless steel plates, approximately 49.44" (1256mm) long x 12.36" (314mm) wide. Rated 150 psi at -20 to 275 degrees F. (4) 4" Inlets/outlets. Mounted on an expandable frame. National Board # 2506, Serial # 41064.2. Built 1999.

Stock# 47768010

Used- Tranter Superchanger Plate Heat Exchanger, Approximate 878.8 Square Feet Surface Area, Model 06-T16-UP-146. Approximate (146) 29" wide x 68" tall 316 stainless steel plates rated 150 psi at 20 to 200 degrees F. (2) 6" Diameter, (2) 8" diameter inlet & outlets. Mounted on an expandable carbon steel frame. Serial # SC-16071. Shop order # 71975. Built 1996. No National Board #, unit is U stamped.

Stock# 47768011

Used- Tranter Superchanger Plate Heat Exchanger, Approximate 878.8 Square Feet Surface Area, Model 06-T16-UP-146. Approximate (146) 29" wide x 68" tall 316 stainless steel plates rated 150 psi at 20 to 200 degrees F. (2) 6" Diameter, (2) 8" diameter inlet & outlets. Mounted on an expandable carbon steel frame. Missing manufacturers tag.

Stock# 47768002

Used- Tranter Superchanger Plate Heat Exchanger, Approximate 878.8 Square Feet Surface Area, Model 06-T16-UP-146. Approximate (146) 29" wide x 68" tall 316 stainless steel plates rated 150 psi at 20 to 200 degrees F. (2) 6" Diameter, (2) 8" diameter inlet & outlets. Mounted on an expandable carbon steel frame. Serial #SC-22880. Shop order # 83735. Built 1999. No National Board #. Unit is U stamped.

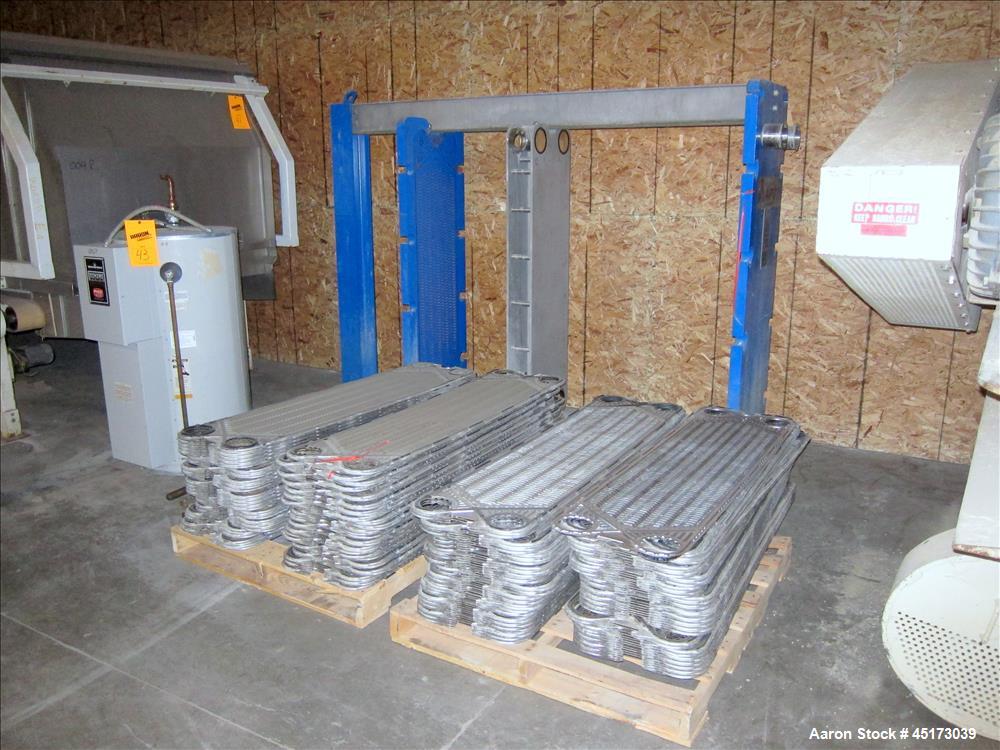

Stock# 45173039

Used- APV Plate Heat Exchanger, Model R5 M-10, Approximately 1064 Square Feet. Approximately (194) 316 stainless steel plates 16" wide x 53-1/2" long plate. Designed 200 psig at 284 degrees F. 4" Inlets and outlets. Maximum frame capacity 253 plates. Mounted on an expandable frame. Serial # G208000600. Built 2008. ** SALE SUBJECT TO SELLER'S APPROVAL **

Stock# 50136027

Used- APV Plate Heat Exchanger, Model TR9GLMGS11, Approximately 1500 Square Feet, 316 Stainless Steel. Approximate (261) .5 mm 316 stainless steel plates, approximately 40.67" (1033mm) long x 16.10" (409mm) wide. Rated 150 psi at 5 to 275 degrees F. (4) 8" Inlets/outlets. Mounted on an expandable frame. Serial # 44404.2. Built 1999.

Stock# 50136022

Used- APV Plate Heat Exchanger, Model TR9GLMGS 11. Approximately 1500 Square Feet, 316 Stainless Steel. Approximate (261) .5mm 316 stainless steel plates, approximately 40.67" (1033mm) long x 16.10" (409mm) wide. Rated 150 psi at 5 to 275 degrees F. (4) 8" Inlets/outlets. Mounted on an expandable frame. Serial # 44404.1. Built 1999.

Stock# 49506004

Used- Krones Thermowave Plate Heat Exchanger, Approximate 1,534 Square Feet, Type TL 500 FBXV. (10) Chambers each rated 10 bar (145 psi) at 100 degrees C. (212 F.). (307) 254 SMO High-alloy austenitic stainless steel plates approximate 18" wide x 60" tall. Includes (2) spacers, (20) 3-1/4" inlets/outlets. Mounted on an expandable stainless steel frame. Serial# 31891. Built 2008.

Stock# 53073001

Used-Technical Heat Transfer Duplex Pump Package, consisting of a plate and frame heat exchanger, Model S110-IS-146; 1,860 square foot heat transfer area; 146 plates, rated 150 PSI at 284 degrees F. Mounted on a structural steel frame cooling skid including: 20 gallon expansion tank; Electrical control package; (2) 10 hp glycol pumps, 390 GPM at 25 psi and (2) 20 hp process water pumps, 390 GPM at 50 psi. 3000lbs. Built 2012.

Stock# 48211002

Used- Cherry Burrell Thermaflex Plate Heat Exchanger, Approximate 2040 Square Feet, Model 655 STH, 316 Stainless Steel. Approximately (279) 19-1/2" wide x 54" tall 316 stainless steel plates in 2 sections. Hydraulic Closure. Openings (8) 4", (4) 3". Mounted on 304 stainless steel frame. Serial# 91017XA.

Stock# 45695009

Used- GEA Ahlborn GMBH Varitherm Plate Heat Exchanger, Model VT20 L0CIN, Approximate 2500 Square Feet, Stainless Steel. (356) Approximate 13" wide x 39" tall plates rated 87 psi at 212 degrees F. (1) Spacer with 2" tri-clamp connections. Expandable frame with 3" tri-clamp connections. Serial# 170/5924. Built 1995.

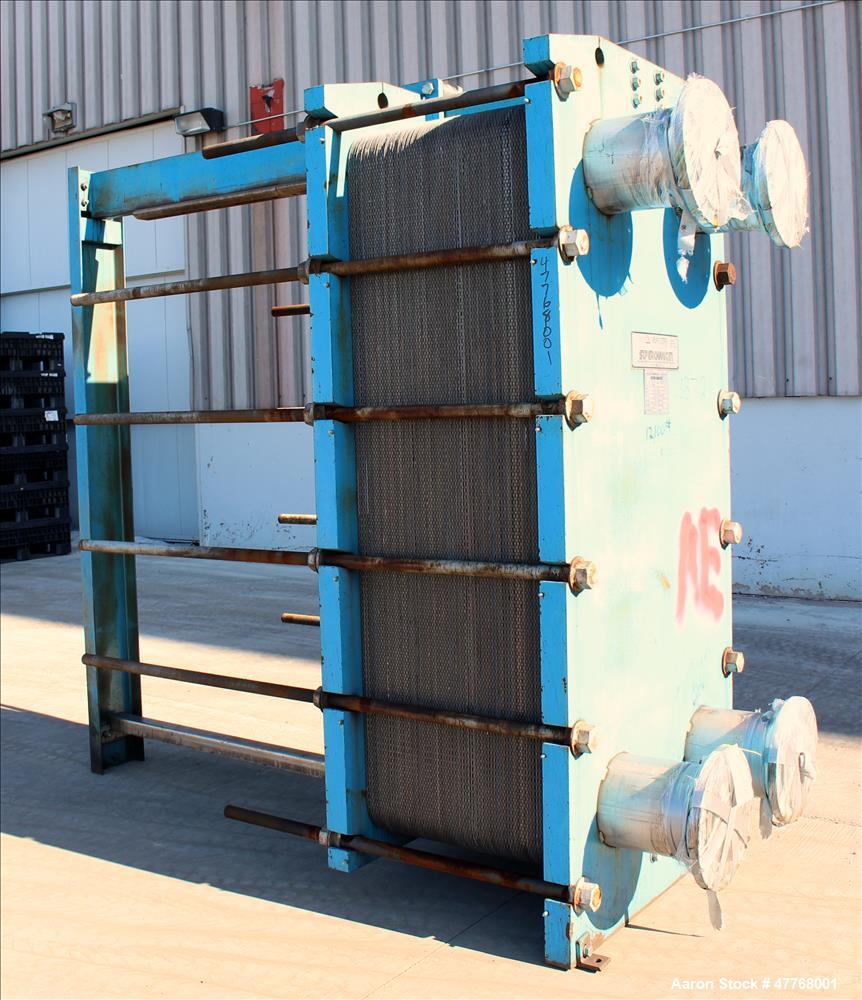

Stock# 47768001

Used- Tranter UXP Series Superchanger Plate Heat Exchanger, Approximate 2506.94 Square Feet Surface Area, Model UXP-802-M-8-HP-139. Approximate (139) 42" wide x 96" tall stainless steel plates rated 110 psi at -20 to 200 degrees F. (4) 10" Diameter inlet and outlets. Mounted on an expandable carbon steel frame. Serial #SU-980, National Board# 54892. Built 2010.

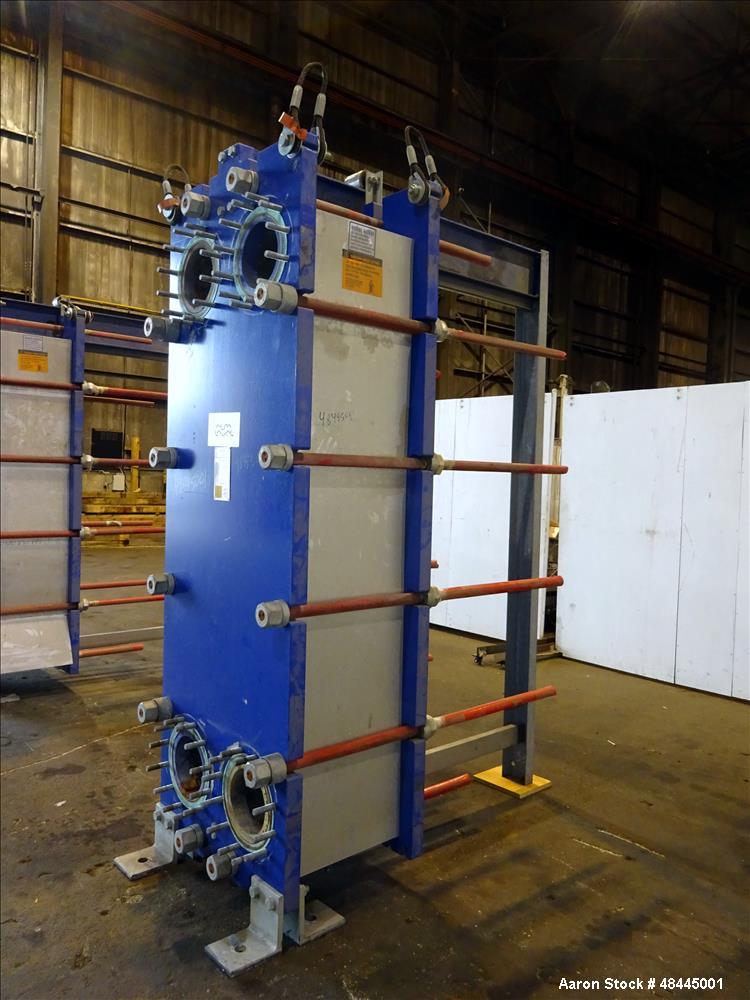

Stock# 48445001

Used- Alfa Laval Plate Type Heat Exchanger, Model MX25-BFG, 2906 Square Feet, Vertical. (182) Approximate 24" wide x 85" tall x 0.40mm 304 stainless steel plates rated 150 psi at 150 degrees F. (2) 8" Inlets, (2) 8" outlets. Mounted on expandable frame with carbon steel end plates. Serial# 30110-65665, National Board# 24802. Built 2006.

Stock# 48445002

Used- Alfa Laval Plate Type Heat Exchanger, Model MX25-BFG. 2906 Square Feet, Vertical. (182) Approximate 24" wide x 85" tall x 0.40mm 304 stainless steel plates rated 150 psi at -20 to 150 degrees F. (2) 8" Inlets, (2) 8" outlets. Mounted on expandable frame with carbon steel end plates. Serial # 30110-65664. National Board # 24801. Built 2006.

Stock# 47768009

Used- Tranter Superchanger Plate Heat Exchanger, Approximate 3421.8 Square Feet Surface Area, Model UX-816-140. Approximate (139) 40" wide x 92" tall 316 stainless steel plates rated 125 psi at 38 to 200 degrees F. (4) 10" Diameter inlet and outlets. Mounted on an expandable carbon steel frame. No manufacturers tag.

Stock# 11453484

Used-3,908 sq ft Tranter Superchanger Plate Heat Exchanger, model UFX-85-6-SP-401, stainless steel plates, rated 230 psi at 250 f, 12" inlet/outlet, built 2000

Stock# 11453485

Used-3,908 sq ft Tranter Superchanger Plate Heat Exchanger, model UFX-85-6-SP-401, stainless steel plates, rated 230 psi at 250 f, 12" inlet/outlet, built 2000

Stock# 49613001

Used- Polaris Plate Heat Exchanger, 304 Stainless Steel. Approximate 3,960.25 Square Feet. (294) 304 Stainless steel plates. Rated 150 psi at 284 degree F. (4) 12" diameter inlet/outlets. Flow rate 3200 gallons per minute. Maximum # of plates 348. Mounted on a painted carbon steel expandable frame. Serial #11739. Built 2010.

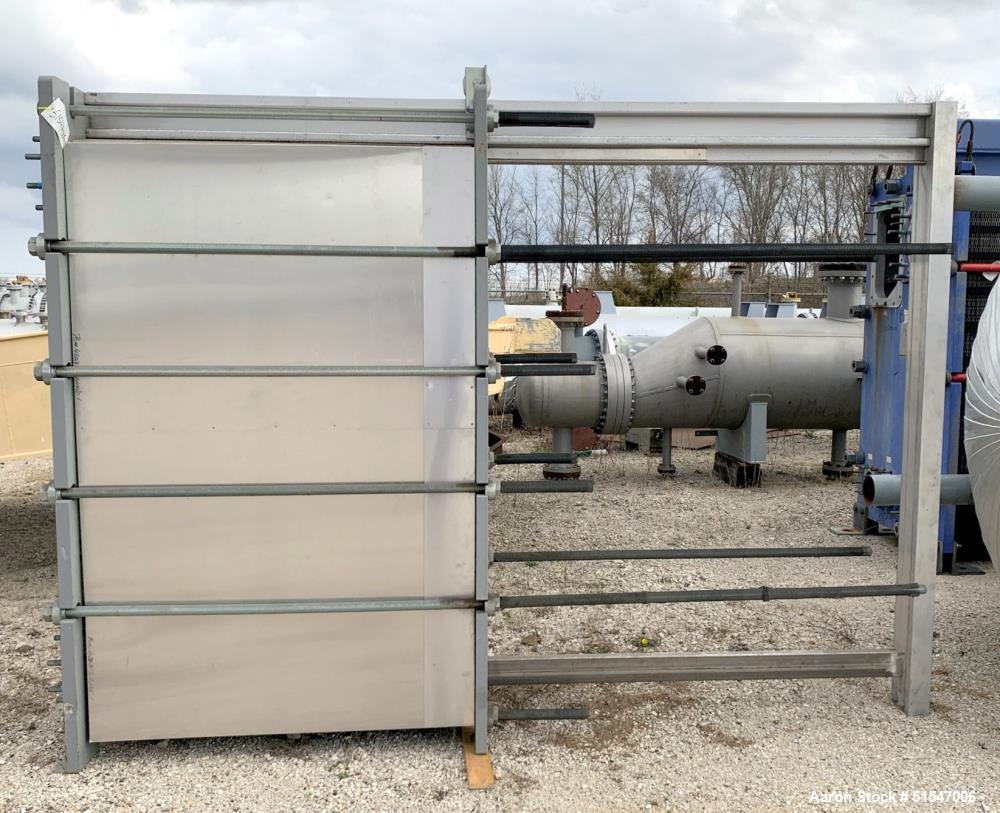

Stock# 51547006

Unused- Bell & Gossett Gasketed Plate Heat Exchanger, Model P86. Approximately 4,400 Square Feet Surface Area, 304 Stainless Steel. Approximately (461) 304 Stainless Steel 4mm Plates. Rated 150 PSI at +32 to 284 Degrees F. Mounted on an Expandable Frame. Certified by Xylem, Serial # 173269-02, National Board # 229793, Built 2012. Part# 5-433-23-461-001.

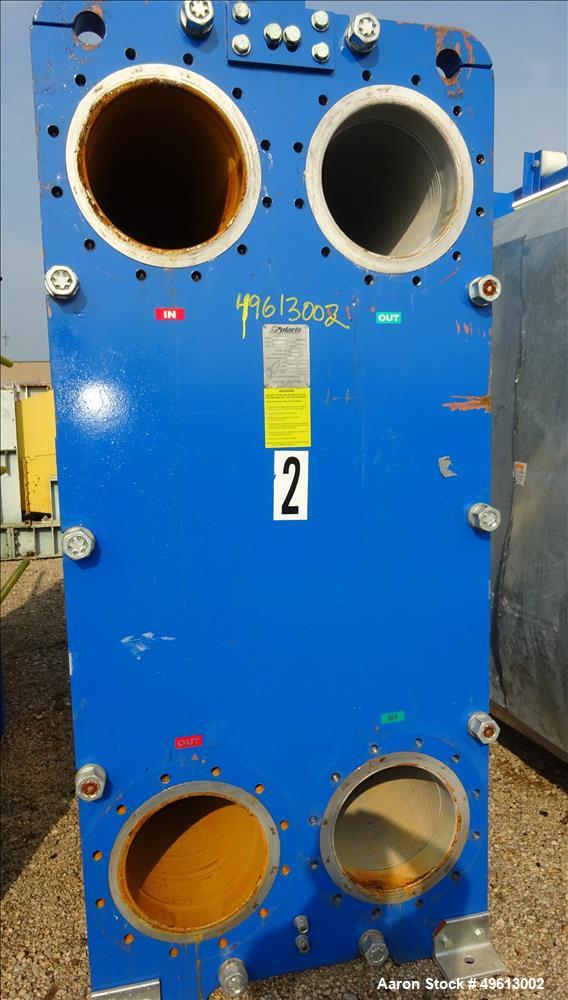

Stock# 49613002

Used- Polaris Plate Heat Exchanger, 304 Stainless Steel. Approximate 4,448.50 Square Feet. (330) 304 Stainless steel plates. Rated 150 psi at 284 degrees F. (4) 12" diameter inlet/outlets. Flow rate 3600 gallons per minute. Maximum # of plates 348. Mounted on a painted carbon steel expandable frame. Serial# 11738. Built 2010.

Stock# 49613003

Used- Polaris Plate Heat Exchanger, 304 Stainless Steel. Approximate 4,448.50 Square Feet. (330) 304 Stainless steel plates. Rated 150 psi @ 284 degrees F. (4) 12" diameter inlet/outlets. Flow rate 3600 gallons per minute. Maximum # of plates 348. Mounted on a painted carbon steel expandable frame. Serial# 12370, Built 2010.

Stock# 50083011

Used- Alfa Laval AlfaVap Plate Exchanger, 4,604 Square Feet, Model AlfaVap 500-TFR. (163) Sets of approximate 39" wide x 80" tall 316 stainless steel plates. Designed 44 psi at -20 to 248 degrees F. product inlet and outlets, steam inlet, condensate outlets. Mounted on a carbon steel expandable frame. Serial # 30113-93635, National Board # 32122. Built 2012.
