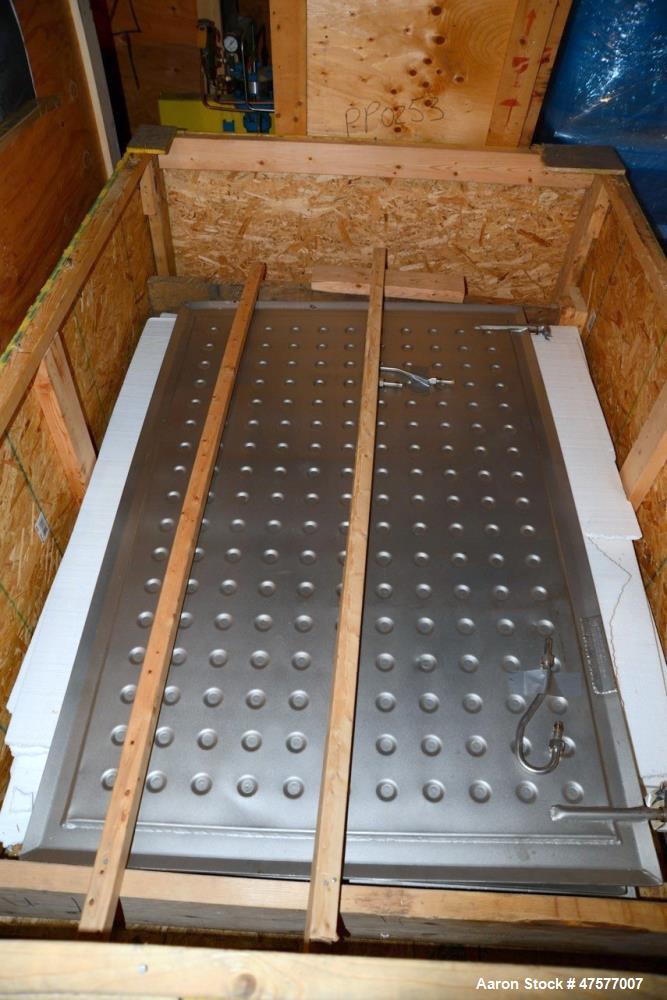

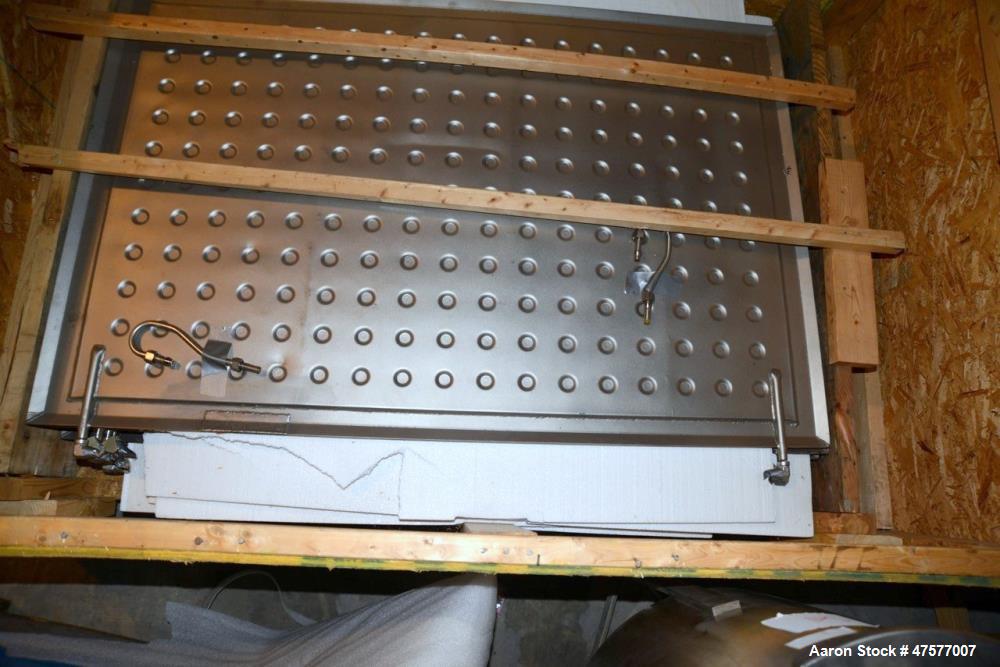

Used Lot of (7) Paul Mueller Dimple Jacket Heat Transfer Plates – Stainless Steel | 14.34 ft² Each | 50 PSI @ 350°F

Manufacturer Information:

• Brand: Paul Mueller Company

• Type: Dimple Jacket Heat Transfer Plates

• Material: Stainless Steel or Higher Alloy

• Condition: Used

• Quantity: 7 Plates

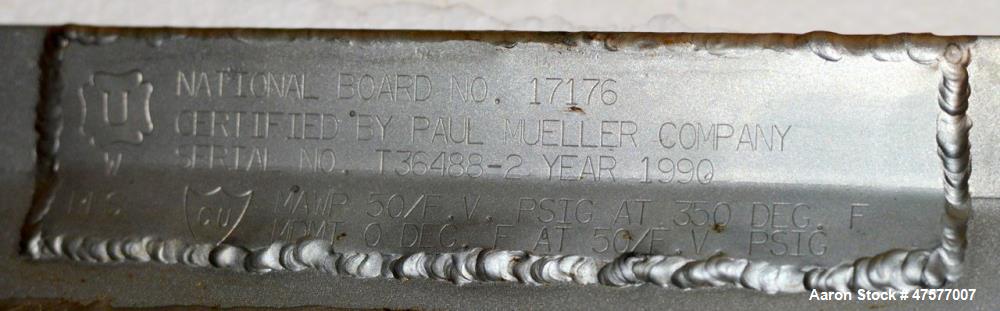

• Registration: National Board (NB) Registered

Description:

This Used Lot of (7) Paul Mueller Heat Transfer Plates features dimple jacket-style thermal panels made from stainless steel or higher alloy, designed for efficient heat transfer in a variety of thermal processing applications. Each panel provides 14.34 square feet of jacket area and is NB registered, certified for use at 50 PSI/F.V. @ 350°F.

These high-efficiency plates are ideal for retrofit or custom heat exchange designs and offer a compact, sanitary, and reliable solution for both heating and cooling in food, beverage, chemical, or pharmaceutical applications.

Specifications (Per Plate):

• Type: Dimple Jacket Heat Transfer Plate

• Material: Stainless Steel or Higher Alloy

• Overall Dimensions (OAD): 59" L x 39" W x 1" Thick (+2.5" for Connection Ports)

• Jacket Area Dimensions: 54" L x 35" W

• Heat Transfer Surface Area: Approx. 14.34 ft² per plate

• Design Pressure/Temp: 50 PSI / Full Vacuum @ 350°F

• Mounting/Integration: Weld or clamp-on (field modifiable)

• Quantity: 7

• Registration: NB (National Board) Registered

Features:

• Dimple jacket design for efficient and even heat transfer

• Constructed of corrosion-resistant stainless steel or higher-grade alloys

• NB registered for compliance with pressure vessel regulations

• Rated for full vacuum and 50 PSI operation at high temperatures

• Flat plate design allows easy mounting on tanks, walls, or process vessels

• Lightweight, durable, and thermally responsive

• Suitable for sanitary and clean-in-place (CIP) systems

• Versatile configuration for heating, cooling, or process temperature control

Applications:

• Tanks & Vessels: Fermenters, reactors, blenders, mix tanks

• Process Cooling & Heating: Water, glycol, steam, thermal oil

• Food & Beverage: Brewing, dairy, wine, juice, and distillation

• Chemical & Pharmaceutical: Jacketed process and holding tanks

• Heat Recovery Systems: Plate-based heat exchangers

• Modular Thermal Panels: Custom skid-mounted or wall-mounted systems

• Retrofitting: Upgrade jacketless tanks or extend surface area

• Freeze Protection & Steam Tracing: On piping and vessels

• Process & Pilot Plants: Flexible heat transfer systems

• OEM & Fabrication Shops: Integration into new designs

What might this be used for?

• Retrofitting existing tanks or vessels for heating or cooling

• Adding thermal control to fermentation or mixing systems

• Integrating into modular heat recovery or recirculation systems

• Supporting brewing, distilling, or food manufacturing operations

• Expanding the thermal surface of non-jacketed tanks

• Providing precise heating or chilling in a sanitary process line

• Replacing damaged or underperforming jacketed panels

• Quick deployment for custom fabrication or pilot plant systems

• Cost-effective thermal upgrades in pharmaceutical or chemical facilities

• Serving as cooling panels in refrigerated environments
