Used Inline Automatic Powder Auger Fillers

Stock# 70342022

Used-Mateer-Burt Neotron Filling System, Model 3020. Capable of running powders, liquids, creams, and pastes. Currently set up for filling 2-ounce and 4-ounce containers of liquid. Capacity rated for 90 containers per minute, depending on container size and product. Unit includes 144" long by 3-1/2" wide tabletop chain conveyor with guide rails and variable speed drive. Features bottom-up fill design, auxiliary agitation, and FMC Syntron vibratory product settler. Liquid filling component includes (4) nozzles each measuring 3/8" diameter, 1/-1/2" center line. Manufactured in 1991. Last used in nutritional supplement facility

Stock# 70176013

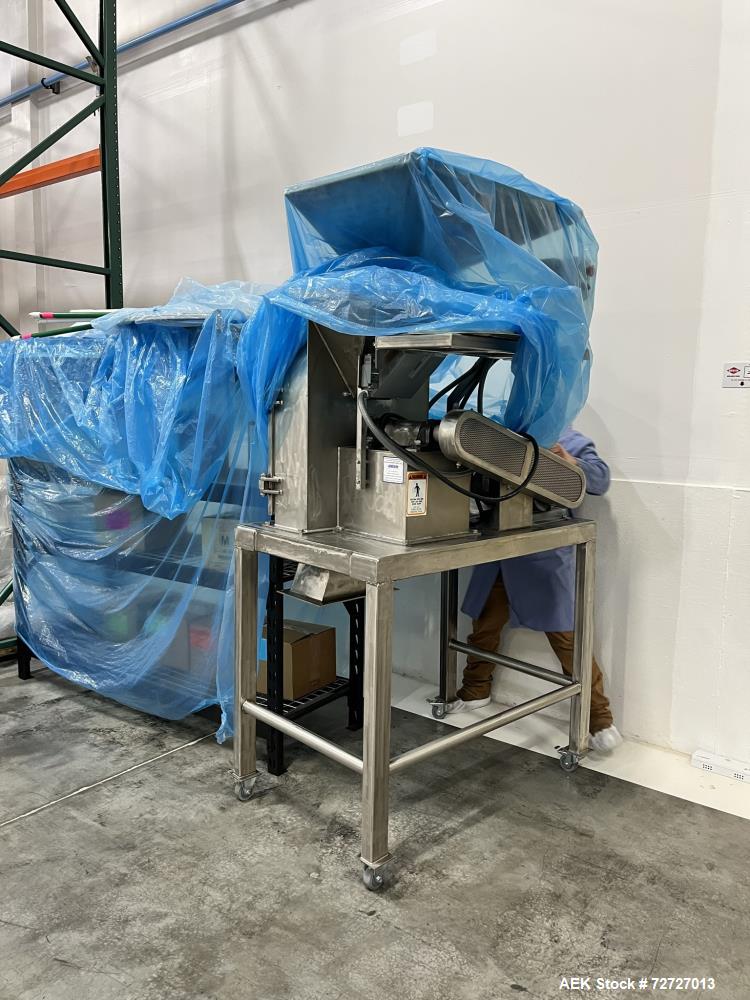

Used-SpeeDee Model 3500S Stainless steel Auger Filler with load cell conveyor. The bottles would come in, sit on the load cell on the conveyor. The auger would fill to the desired weight then shut off and the conveyor would release the bottle. The hopper is 21.25" diameter x 20" deep. The top of the hopper has a 6" diameter inlet, a 8" long x 5" wide covered inlet on the other side, as well as a level sensor. The auger is tapered from 1.5" down to 0.75" diameter with a 0.75" inside (1" outside) diameter discharge. It also has agitation to keep the product from sticking to the sides. The discharge has a removable attachment on it that you could put a vacuum to to keep the dust down. The unit is height adjustable with a ratchet crank on the bottom of the column. Mounted on casters. The conveyor is 96" long x 8.25" wide. It has double guide rails on each side and sits on casters. Last used in nutritional facility. Electrics: 3/60/240V.
