Used Other Complete Packaging Lines

Stock# 71212001

Used- Pouch Packaging line. Capacity 2 x 80 trays / minute. Line consists of Hassia model TC55 Chipboard hooded tray former for top load packing, Rovema model BC260 pouch packager discharging to top load tray, Hassia top load glue seal closer, and tray/carton collation section for operator case packing. Rovema pouch size range Foil width (80 - 380mm), max length (500 mm) .

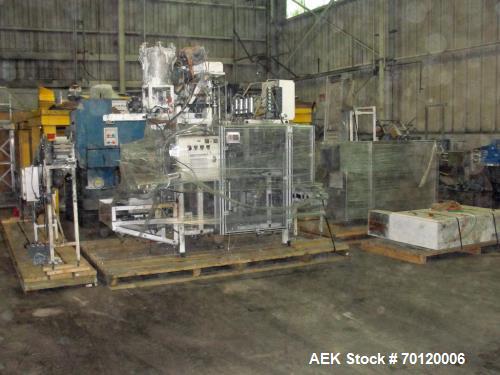

Stock# 70120006

Used-Cartridge Filling Line for adhesives, sealants, greases, pastes & putties which includes Prosys HVF L410X Linear Automatic four head cartridge filler for 10.1 to 10.5 ounce plasticor fiber cartridges, cartridge feeder, end puck feeder, interconnecting conveyor and Nordale Mark 2 endload cartoner. Production speed 70 to 80 per minute. Unit is powered by 480v, 3 phase. The filling machine is electric/ pneumatic operated. Designed for nonhazardous location. The filler is controlled by a programmable logic controller. Empty cartridges are manually loaded into the load station to be automatically inserted into the filler conveyor. The conveyor indexes the cartridges through the machine for filling and cap insertion. Built in 2000. End load cartoner is Nordale MKII.

Stock# 72603001

Used-Quanzhou Paper Converting Packaging Line, Model CHD-1575. Line consists of (1) Horizontal Flow "Pillow Pack" Machine and (1) Automatic Tuck Cartoning Machine. Stainless steel construction. Last used on tissue paper packaging operation. Has Delta HMI and Servo Drives. 3/50/60/200-240V.

Stock# 72544001

Used- New in 2020! Technoweb Model Exide Dual Lane Wet Wipes Forming, Cutting, Stacking and Wrapping Line. Dual lane unit capable of speeds up to 1600 wipes per minute. Capable of single and double Z folding on the same unit. Stack height range: 5mm - 60mm. Count range: 5 wipes to 150 wipes. Folded length range: 75m - 110mm. Folded width range: 50mm - 100mm. Lotion rate: 200% - 300%. All servo driven unit. Lane width range: 150mm - 210mm. Include Teknoweb Model Gensispack Basic Horizontal flow wrapper with film print registration. Has two labelers with hot swap Etipak strong 100. Dual independent stack feeding conveyors, Long dwell transversal sealing head. Like new condition and immediately available!

Stock# 72557001

Used- Complete WeighPack Systems Weighing, Dispensing, Filling, Capping, Labeling and Printing Line. Consisting of: PrimoCombi 14 head 0.5L multi-head weigher; Pre-CheQ inline weight analyzer; Stainless steel floor stand support frame; Floor mounted vibratory feeder; Rotary 48" unscrambling table; Rotary 48" accumulation table; Valtara capping machine-single head up to 30 caps per minute; 700 MM diameter bowl feeder; Valtara pressure sensitive wrap around lableler; Markem-Image Smartdate X60-128 printer with the Colos V5 software, 6" wide x 8' long indexing conveyor. Weight range: 1 gram to 200 grams subject to volume. Electrical: North American 230 VAC / 1 Ph / 60 Hz, International 240 VAC / 1 Ph / 50 Hz. Air: North American 1 CFM / 3-5 PSI, International 30 L / min / 0.2-0.4 bar. New in 2019.

Stock# 72444001

Used- PPE Face Mask Converting and Wrapping Line. Line consists of assembly line that takes nonwoven material into folder where is sandwiches three layers of material together, and ultrasonically welds the material together, transfers masks to two earloop machines where the strings are ultrasonically welded onto masks. Masks are then transferred and stacked in variable counts into (2) horizontal flow wrappers. Last running a 5 count stack. System was purchased new in 2020. Equipment was manufacturer nu Henan Zhengyang Machinery.
