Used High Intensity Mixers

Stock# 10131015

Used- MTI-Mischtechnik High Intensity Mixer, Model Uni Tec UT 750. Stainless steel Interior. Approximate working capacity 7.9-22.6 ft (225-640 Liter). Total Capacity 26.66 cu. ft (755 Liter), Side chopper. Hydraulic operated 8" (200 mm) bottom outlet. Hinged top cover, hydraulic operated. Driven by a approx. 30 HP-400volt/50cycle/3-phase motor. Last used in a Pigment application. New 2014.

Stock# 52184001

Used-Thyssen Henschel Industrietechnik High Intensive Mixing System/Mixer, type MB 1000. Material of construction is stainless steel on product contact parts, Total capacity 35.3 Cu Ft. (1000 liter). 46.9" (1204 mm) dia. x 345" (886 mm) st. side jacketed bowl. Belt driven by a 150/235KW-225/352.5HP-400volt/50cycle/3Ph exp. Motor. FRame mounted. Incl. Thyssen Henschel Industrietechnik filter, type 200.06.020, feeding system, piping, Siemens Multi panel controls, elevator, piping, valves, additional infrastructure, and I-beam steel construction with stairways. Overall dimensions: 113" (3470 mm) long x 35" (1100 mm) width x approx. 74" (2280 mm) high (mixer only). New 2002. Previous used in Masterbatch contract manufacturing application.

Stock# 52095002

Used-Mixaco High Intensity Container Mixer, Model CM 600D, Stainless steel on product contact parts. Working Capacity 12.71 Cu FT (360 Liter), Total Capacity 21.18 (600 Liter). Rotating mixing chamber with side scrapers. Driven by an approximate 40 hp (26.66 kW), 3/50/380 volt motor. Includes (1) canisters, (15) Carts, and control panel built 1997. Previous used in a chemical application.

Stock# 52283008

Used- Prodex / Henschel High Intensity Mixer, Model 35JSS. Carbon steel jacketed bowl with 304 stainless steel Interior. Approximate working capacity 100 Liters or 3.5 Cubic Feet (Total Capacity: 150 Liters or 5 Cubic Feet). Measures 24" diameter x 24" deep with 2-tier blades, 8" side bottom outlet with air actuated discharge and hinged top cover. Driven by 32/16 HP, 220V, 3-phase, 60 Hz, 3450/1790 RPM two-speed motor. Serial# 820786.

Stock# 52283009

Used- Prodex / Henschel High Intensity Mixer, Model 60JSS. Carbon steel jacketed bowl with 304 stainless steel Interior. Approximate working capacity 170 Liters or 6 Cubic Feet (Total Capacity: 240 Liters or 8.5 Cubic Feet). Measures 30" diameter x 24" deep with 2-tier blades, 8" side bottom outlet with air actuated discharge and hinged swing-away top cover. Driven by approximately 60/30 HP two-speed motor. (no nameplate on motor). Serial# 72090.

Stock# 51226009

Used- Mitsui Mike High Intensity Mixer, 700 Liter Capacity, 304 Stainless Steel. Approximate 36" diameter x 42" deep jacketed bowl. Jacket rated 5 kg/cm2 (71 psi). Two tier bottom blade, driven by a 75hp, 3/60/208-230/460 volt, 1780 rpm motor. Swing away top cover. Side bottom outlet with plug valve. Mounted on a painted carbon steel base. Serial # FM500684.

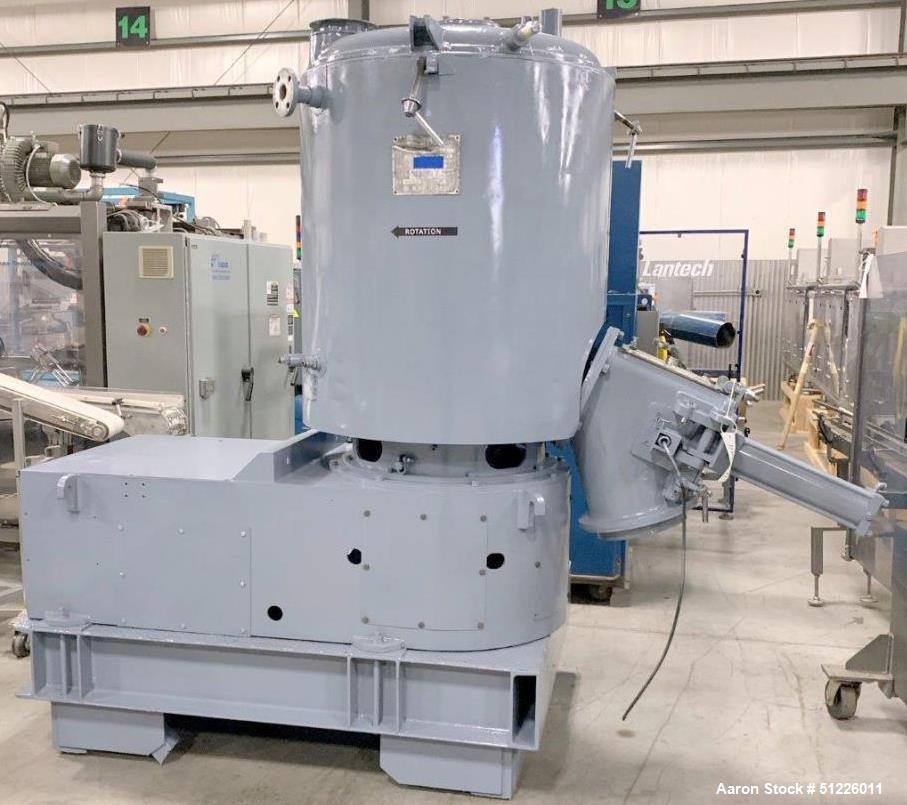

Stock# 51226011

Used- Mitsui Mike High Intensity Mixer, 700 Liter Capacity, 304 Stainless Steel. Approximate 36" diameter x 42" deep jacketed bowl. Jacket rated 5 kg/cm2 (71 psi). Two tier bottom blade driven by a 75hp, 3/60/208-230/460 volt, 1780 rpm motor. Swing away top cover. Side bottom outlet with plug valve. Mounted on a painted carbon steel base. Serial # FM500656.

Stock# 52095004

Used-Mixaco High Intensity Container Mixer, Model CM 1000D, Stainless steel on product contact parts. Working Capacity 12.71 Cu FT (600 Liter), Total Capacity 21.18 (1000 Liter). Rotating mixing chamber with side scrapers. Driven by an approximate 60 hp 3/50/380-volt motor. Includes (1) stainless steel control panel. New 2002. Previous used in a powder coating application. No mixing bowls included.

Stock# 52095003

Used-Mixaco High Intensity Container Mixer, Model CM 600D, Stainless steel on product contact parts. Working Capacity 12.71 Cu FT (360 Liter), Total Capacity 21.18 (600 Liter). Rotating mixing chamber with side scrapers. Driven by an approximate 40 hp (26.66 kW), 3/50/380 volt motor. Includes (1) canisters and control panel (mounted on mixer). built 1992. Previous used in a chemical application.

Stock# 52982001

Used- Mixaco High Intensity Mixer, Model CM1000, Stainless Steel. Max working capacity 800 liter (28.25 cubic feet), total capacity 1000 liter (35.3 cubic feet). Rotating mixing chamber with cone bottom. 1-Tier mixing blade driven by 22kW (30hp) 3/50/380 volt 1400/81 rpm gear motor. Center bottom outlet. Pneumatic tote locking lugs. Rotating motor approximate 2.2kW. Mounted on base. Serial# 22574. Applications include powder coating, master batch, dye concentrates, toner, PVC, metal compounds, PTFE, silicic acid, food, cosmetics, brake linings and pencil leads.

Stock# 51164004

Used- Henschel High Intensity Mixer, Model FM200A Carbon steel jacketed bowl with 304 stainless steel Interior. Approximate working capacity 4.7 cu ft (133 Liter). Total Capacity 7.06 cu. ft (200 Liter). Jacketed bowl. Hydraulic operated 8" (200 mm) bottom outlet. Hinged top cover, hydraulic operated. Driven by a approx. 16 HP-380volt/50cycle/3-phase motor. Incl. control panel with Siemens PLC. Last used in a Masterbatch application.

Stock# 51226013

Used- Henschel Fluidizing Mixer, Model FM-10, 304 Stainless Steel. Approximate 9" diameter x 8" deep. Driven by a 5hp, 3/60/230/460 volt, 1750 rpm motor. Approximate 3-1/4" outlet with valve. Has Reliance GV3000/SE AC Drive. Mounted on casters. Serial #001083. New controls required. Sold As Is.

Stock# 10749127

Unused and Uninstalled- Lancaster K-8 High Intensity Mixer. Dual Rotor High Intensity Mixer Type. Maximum Batch Capacity: 3000 liters or approximately 1680 kg of damp sulfur mix at a nominal loose bulk density of 560 kg/m3, after mixing. Maximum Mixer Working Capacity: 105 Cubic Feet; 10,500 lbs (Material Density of 100 lbs/cuft). Carbon Steel with a 316 Stainless Steel Liner. High Speed Rotor Drive: (2) 125 HP, 575 Vac./ 3 ph./ 60 Hz. (Belt Drive). Mixing Pan Drive: 30 HP, 575 Vac./ 3 ph./ 60 hz. (Gear Type). Plow Drive: 30 HP, 575 Vac./ 3 ph. / 60 hz. (Gear Type). Bottom Hydraulically Operated Pan Discharge Valve. 9'7 3/8" High x 13'6" Long x 8'9 1/2" Wide Overall Dimensions. Built in 2014. The Lancaster K-8 Mixer features a clockwise-rotating pan, and a counterclockwise rotating mixing plow. Together they create three-dimensional macro mixing streams which are redirected through two stationary side scrapers into the two counterclockwise rotors for high-intensity mixing. Sold as is where is.

Stock# 10131016

Used- Papenmeier GmbH High Intensity Mixer, Model KUM 2000. Stainless steel Interior. Approximate working capacity 47.07 ft (1333 Liter). Total Capacity 70.6 cu. ft (2000 Liter). Hydraulic operated 8" (200 mm) bottom outlet. Hinged top cover, hydraulic operated. Driven by a approx. 30 HP-400volt/50cycle/3-phase motor. Last used in a Pigment application.

Stock# 53141001

Used- MTI Mixing system consisting of: (1) MTI - MISCHTECHNIK INDUSTRIEANLAGEN GMBH High Intensive Mixer, type M600. 1.4541/AISI 321; ground in grain size 180 Stainless steel on product contact parts. Total capacity 680 liters (24 ct. ft.), working capacity 570 liters (20.12 cu. ft.). 3-part high-efficiency mixing tools. Mixing speed 370 RPM by 75 Kw (100.5hp) 3/50/400v V-belt driven motor. (1) Double door control panel, (1) Siemens Simatic operating panel. Mounted on a platform 6000 mm x 11000 mm x 3050 mm high. Includes legs, stairway, and additional infrastructure. Serial# 1496

Stock# 53667001

Unused- Eirich High Intensive Mixer, Model R16. 600L(158.5 gal)/960kg (2116.4 lbs) Max capacity. Includes washing system upgrade for top cover. Driven by 75HP V-Belt rotor motor; 15HP gear drive pan drive (product specific); 4HP hydraulic drive; Batch and continuous mode of operation; Standard atmospheric pressure operating mode; Bottom discharge. Mixer empty weight 9700 lbs. Control cabinet included. 3/60/480 volt, Serial # 807925, Built 2021. Reported to be unused.

Stock# 53667002

Used- Eirich High Intensive Mixer, Model R16. 600L(158.5 gal)/960kg (2116.4 lbs) Max capacity. Includes washing system upgrade for top cover. Driven by 75HP V-Belt rotor motor; 15HP gear drive pan drive (product specific); 4HP hydraulic drive; Batch and continuous mode of operation; Standard atmospheric pressure operating mode; Bottom discharge. Mixer empty weight 9700 lbs. Control cabinet included. 3/60/480 volt, Serial # 807887. Built 2021. Previously used for concrete mixture.

Stock# 51708018

Used- Kawata SMB Series High Intensity Super Mixer, Type SM-B-200. 200 Liter total capacity, 120 to 140 working capacity. Jacketed chamber, 304 stainless steel. Driven by a 30hp, 3/60/460 volt, 1750 rpm XP motor. Swing away top cover with 6", 4" openings. Side bottom outlet, approximate 6" diameter with plug valve. Mounted on a painted carbon steel base. Serial# M390027, Built 1987.
