Used Horizontal Side Sealers Shrink Equipment

Stock# 7409015

Used- Extreme Packaging Machinery Model AL-35 Horizontal Side Sealer. Machine is capable of speeds up to 75 packages per minute (or 110 feet of film per minute). Has a package size range: 3" - 19" (width) x 4" - 96" (length) up to 8" (height). Max film web width: 26" (Centerfolded). 102" infeed, 19" knife. 17" wide long x 9" wide dwell conveyor, 30" long x 9" wide discharge. Pin Perforation, Mechanical Rewinder, Flight Bar Infeed. Uses Allen Bradley Micrologix 1000 PLC Controls and Allen Bradley touch screen HMI. 4 cfm @ 80 psi. 30 amp. 3/60/240V. Built 2005

Stock# 7409016

Used- Extreme Packaging Machinery Model AL-35 Horizontal Side Sealer. Machine is capable of speeds up to 75 packages per minute (or 110 feet of film per minute). Has a package size range: 3" - 19" (width) x 4" - 96" (length) up to 8" (height). Max film web width: 26" (Centerfolded). 102" infeed, 19" knife. 17" wide long x 9" wide dwell conveyor, 30" long x 9" wide discharge. Pin Perforation, Mechanical Rewinder, Flight Bar Infeed. Uses Allen Bradley Micrologix 1000 PLC Controls and Allen Bradley touch screen HMI. 4 cfm at 80 psi. 30 amp. 3/60/240V.

Stock# 71688001

Used- Hugo Beck Full Shrink System; Includes: Infeed finger conveyor, tunnel SL 5015/23, exit flat belt conveyor. Dimensions: Width: 2 17 Length: 3", Height: up to 7". Packing Film: PE, 1,25 2,25 mil Polyolefin, 60 75 gauge. Centerfolded Product infeeding, Capacity: up to 80 packs per minute. System is as follows: 1. Infeeding product infeeding by separate finger chain conveyor, regular driven, including side guides. Usable length of conveyor: 2.000 mm (78") Working height: 850 +/- 50 mm (33.5" +/- 2"); Total length of conveyor: 2.400 mm (94.5"); Table width: approx. 400 mm (8") 2; Usable Width: 25 - 450 mm (1" 17.75"); Usable Height: max. 200 mm (7.875"); Length of product: min. 80 mm (3.250"), maximum is unlimited Width of film roll: max. 550 mm (21.500"), centre folded film max. roll diameter is 350 mm (13.75"); Waste rewinder strip: max. 100 mm (4"); 480/220 Volt, 3 Ph, GND, 60 Hz; Rockwell/Allen Bradley Controls; Working height: adjustable from 800 900 mm (31.5" 35.5"); Operator controls: left to right; 2.140 mm (84.25"), W = 1.450 mm (57").

Stock# 72021001

Used- Lantech Model SW1000 Automatic Side Seal Shrink Wrapper. Capable of speeds up to 40 packages per minute or 90 lineal feet per minute has side seal. Intermittent motion. Package size range: 3" to infinite (length) x 1" to 15" (width) x 1/8" to 8" (height). Hot knife cross seal width of 18". Film width (centerfolded) 6" to 24", PLC controls. Mechanical scrap rewind, adjustable film inverting head. Film types: most commercial grade polyolefin, PVC, some films may require change-parts. HMI digital read out. Has Mitsubishi Model FX-2NC Controls. Includes Lantech Model ST-700 Shrink Tunnel. Capable of speeds up to 70 feet per minute dependent on package configuration and film. Has four zones. Chamber dimensions: 51" long x 22" wide x 10" high. Has an approximate chamber temperature of 325-350 degrees Fahrenheit. Stainless steel wire belt conveyor. Lantech Side Sealer and Shrink Tunnel, Wrapper Model SW1000 S# SW-000157 3/60/208/230V, Lantech tunnel Model ST700 S# ST000288 230/208 Volts.

Stock# 71888001

Used- Preferred Packaging CM-20 Continuous Motion Servo Side Seal Shrink Wrapper. Capable of speeds up to 100 packages per minute, 95 feet per min max.. Package size range: 2" - 16" (width) x 5" - Infinite (length) x up to 6" (height). Web width 24" centerfolded. Has a 6' lugged chain infeed conveyor currently on 15" adjustable centers. Hand crank adjustable forming plow. Has knife cut off. Has automatic scrap rewind wheel and pinhole perforator roller bar. Siemens Simatic S7-200 PLC controls with Siemens Simatic HMI. 3/60/220v. Mitsubishi servo controllers. Set up and retooling available per application. Pricing and lead time subject to receipt of product samples by your AEK packaging professional. Last ran HPG-F 60 gauge Clysar Film.

Stock# 71947001

Used- Shanklin Horizontal Side Seal Shrink Wrapper, Model F-5. Capable of speeds up to 75 packages per minute and 90 linear feet per minute. Minimum package size: 1/2" - 16" (width) x 3" - 48" (length) x 1/8" to 6" (height). Has 45" long flighted infeed conveyor currently set up with blocks on 4.5" centers and with pusher lugs on 13.5" centers. Uses SPS Green Machine side sealer and hot knife end sea for shrink poly film. Has film perforating system, scrap rewinder. Maximum film width 22" center folded. Allen Bradley SLC 500 PLC controller. 3/60/230. Machine can be set to size for your application.

Stock# 40344007

Used- Shanklin Horizontal Side Seal Shrink Wrapper, Model F-5B. Capable of speeds up to 75 packages per minute and 90 linear feet per minute. Minimum package size: width 1/2" to 16"; length 3" to 48"; height 1/8" to 6". Has a 9' long flighted infeed conveyor currently set up on 9" centers. Has hot knife end seal film perforating system. Maximum film width 22" folded or 44" flat. Allen Bradley SLC PLC controller. 3/60/208V/230. Machine can be set to size and retooled for your application. Contact your AEK professional for details.

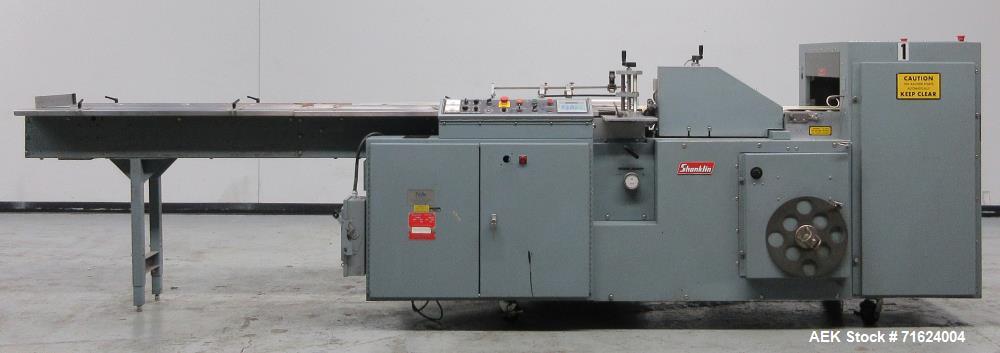

Stock# 71624004

Used- Shanklin HS-3 High Speed Automatic Horizontal Side Seal Shrink Wrapper. Capable of speeds from 100 to 180 packages per minute. Has a package size range of 2" to 15" length; 1/2" to 16" width; 1/8" up to 3" height. Uses Allen Bradley SLC 5/04 PLC. Has lugged chain infeed now on 14" centers, 20" wide heat seal knife, and 26" maximum web film width. Equipped with wire end seals and top and bottom wire side seals. Adjustable height former Shanklin F0241 Centerfolder. 8 amps. 1/60/460V.

Stock# 72036003

Used-Shanklin Model F5A Automatic Side Seal Shrink Wrapper. Capable of speeds up to 75 packages per minute, and 90 linear feet per minute. Package size range: 3" to 48" (length) x 1/2" to 16" (width) x 1/8" to 6" (height). Has a 9'L lugged chain infeed on 17" adjustable centers. Includes adjustable centerfolded forming plow. Shanklin HMI touch screen with an Allen Bradley SLC 5/03 PLC control. Has mechanical scrap rewinder. Scrap rewinder. 1/60/460V. Has a knife cut off and Dietz 400B web registration. Maximum film width 24" Center folded (44" total). Has Shanklin centerfolder available at an additional cost.
