Used Front and Back Pressure Sensitive Labelers

Stock# 72373003

Used- Aesus Model Premier Panel 2 Front and Back Pressure Sensitive Labeler. Capable of speeds up to 200 containers per minute (depending on application). Label heads can accommodate up to 240mm high and 800mm long label (with proper change parts). Conveyor 4" wide x 144" long. Bump wheel indexing. (2) Herma servo driven labeling applicators. Can dispense 160 meters per minute. Omron sysmac-CJ1M PLC, Omron Ms5-5-Q00B-V2 HMI. Serial# 27395 308.

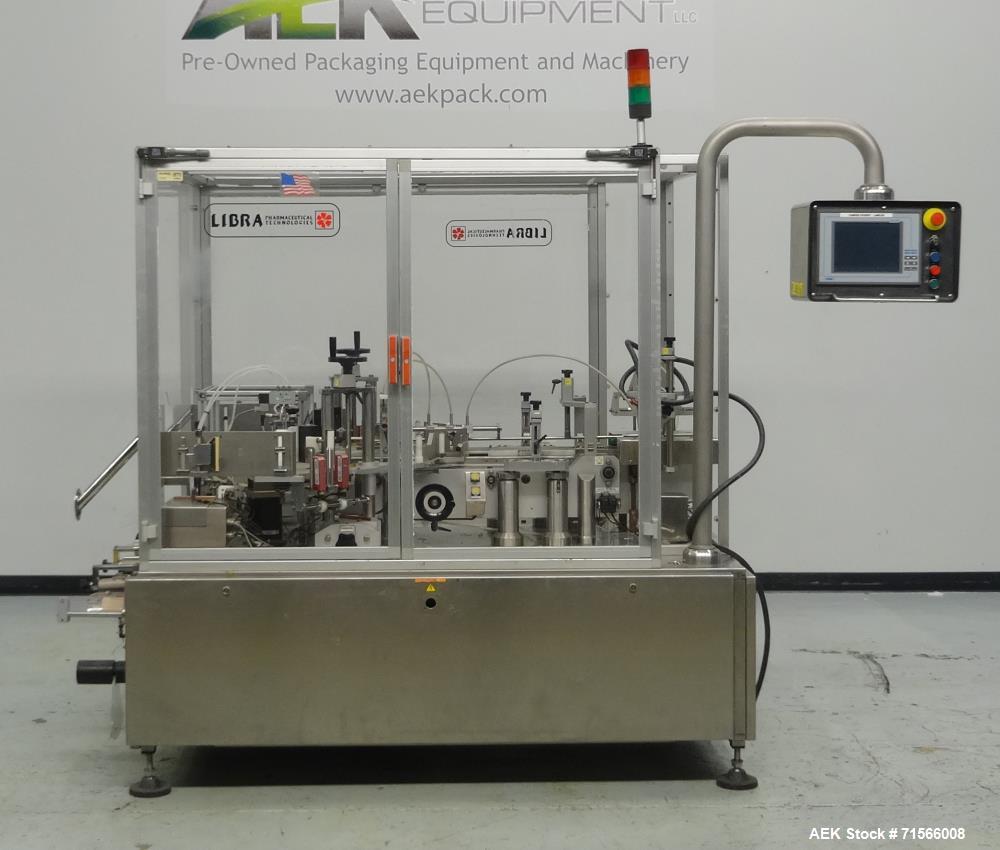

Stock# 71566008

Used- Libra (IMA) Model SE300TE Front and Back Pressure Sensitive Tamper Evident Carton Labeler. Designed to apply self-adhesive labels on formed cartons. Maximum output 120 pieces per minute. Carton size 116 to 130mm long x 35 to 69.9mm wide x 35mm tall. Tamper evident seal size 10 to 30mm tall x 15 to 65mm wide. Includes a Uniop panel, 7" wide x 114" long infeed conveyor, and Siemens Simatic PLC 57-300 controls. 3/60/208V.

Stock# 71296001

Used- Newtec 3 Station Rotary Labeler, Model Leopard Adhesive 480 F4 S3 E3. 3,000 bottles per hour. Includes (6) different bottle size change parts; 52mm, 63mm, 78mm, 85mm, 110mm, 114mm diameters. 220 Volts/ 60 hZ. Mfg. 2005. Last used in a wine bottling application. The first two stations would apply front and back labels. The third station would apply neck bands.

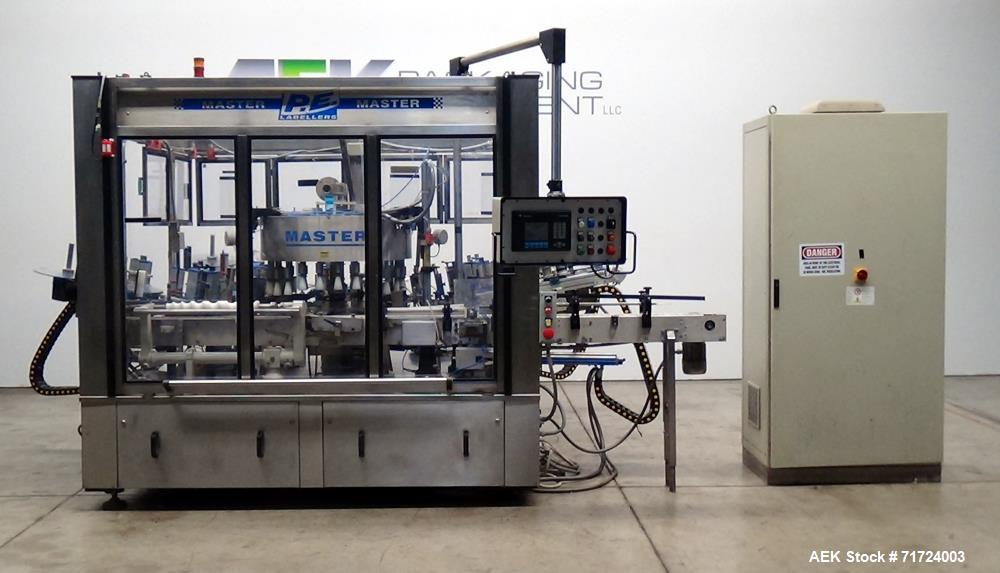

Stock# 71724003

Used- P.E. Labeler Model Master Non-Stop Front and Back Rotary Pressure Sensitive Labeler. 24 stations set up on 4.5" pitch/centers. Uses Allen Bradley SLC 5/04 PLC controls. 3.25" wide x 48" long infeed, 3.25" wide x 87" long discharge. 7" peel plates. 5 Packlab Labeling heads. Was previously running a 1.4" diameter, 4.25" tall deodorant roll bottles. 3/60/480V.

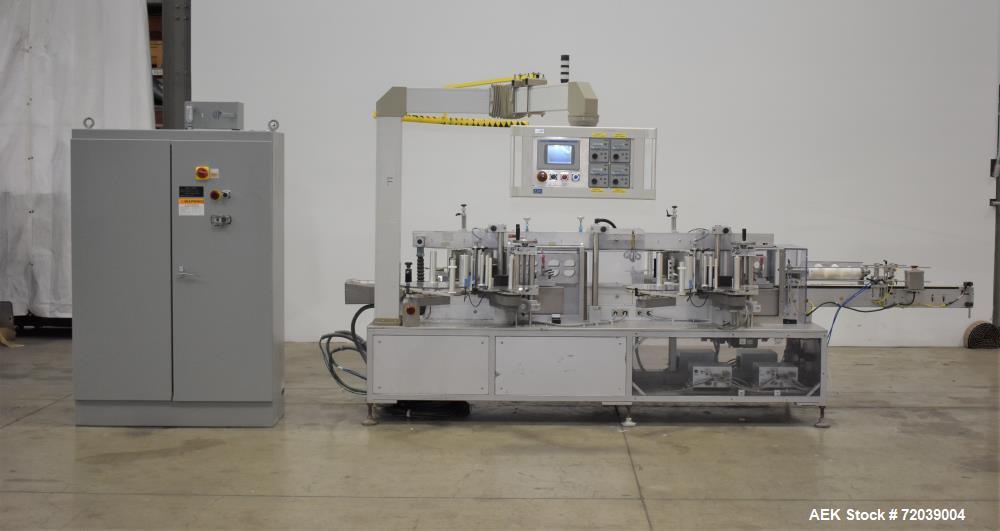

Stock# 72039004

Used- PagoMat System 200/157 Font and back Pressure Sensitive Labeler with redundant heads. Has top hold down, large label heads for tall containers. (2) Front and (2) Back label heads. Allen Bradley PB-3 PLC. A/B panelview plus 700 HMI. 5-1/2" max reel. 3-1/2" Wide conveyor. Last used in powders packaging operation on square containers. 3/60/480 Volt

Stock# 71920012

Used- Sancoa Weiler, Model RL3000L07. (3) Head (non-redundant), (7) Station Front and Back Pressure Sensitive Rotary Labeler. Designed to Apply Front, Back, and Side Panel Labels to One Gallon Old Style, One Gallon New Style, 1.5 Liter, and 4 Liter Containers (with appropriate change parts). Currently Set Up For 1 Gallon Plastic Bottle with 3-Panel Label, Label Height 4 7/8 in, Label Width 2 1/4 in. 18 in Diameter Label Reels, 3 in Diameter Cores. 6 in H Peel Plate. Maximum Speed of 220 PPM For All Sizes. (7) Position Rotary Turntable with 180 Degree Rotation. Air Actuated Top Hold Downs on 11.6 in Centers. Right to Left Configuration. Worm Screw Infeed to Starwheel Infeed and Discharge. Parker Digital Touch HMI. Stainless Steel Construction with Adjustable Leveling Feet. S/S Conveyor Frame for 6 in W Table Top Chain. Air Requirement 2 CFM at 80 PSI. 480 V, 3 Ph, 60 Hz, 15 Amp, 80 PSI.

Stock# 71920038

Used- Weiler Labeling Systems (Sancoa) Model RL-2000 Dual Head Front & Back Rotary Labeler. 10 Station unit with 2 labeling heads. Maximum 7" label web width. Worm-screw to star-wheel indexing. Allen Bradley SLC 5/03 PLC, A/B Powerflex 4, Emerson PCM drives. Serial # 827-713. 3/60/460 Volt. Last 500 ml (16.9 oz.) rectangular bottles.

Stock# 71628002

Used- Shorewood Model 5200R Front, Back and Neck Pressure Sensitive Labeler. 4.5" station centers with 4" dia container pedestals, Currently set up to run every other station for 9" centers at 60 cpm Last ran 25.4 oz (3" diameter) bottles with 5" wide labels. Includes change parts for 8 oz (3" diameter), 12 oz (3.25" oval), 13.5 oz (3.5"), and 15 oz (2.5" diameter), and 19 oz (2.75" diameter) bottles. Equipped with a 6" tall peel plate. Right-to-Left configuration. Uses Sysmac C60 PLC controls. Includes remote carbon steel electrical enclosure on a carbon steel cart with timing star wheel infeed and discharge (20) head rotary table, stainless steel frame, plexiglass safety panels (not installed). Wormscrew infeed, 3" wide x 78" long infeed and outfeed conveyors. SN 1417, mfg 1994 20 amps. 3/60/208V.

Stock# 70831068

Used- Uhlmann carton labeler, model PAGO System P580, type System 580TE, dual PAGO label heads with vision systems, servo driven, air reject with Siemens controls and operator interface, 480 volt, serial# 158010.
