Used Case Erectors With Tape Bottom Sealing

Stock# 72396005

Used Eagle Packaging Automatic Case Erector and Bottom Tape Sealer; Model Boxxter T-30. 30 cases/min. Capable of running both regular-slotted and half-slotted style boxes. Omron PLC; color touch screen; high-capacity blank hopper; easy access panels with safety switches; welded steel frame construction; includes casters for easy mobility; available for left or right hand operation. Min Case Size- 9.5" Long x 7.5" Wide x 5" Diagonal. Max Case Size- 20" Long x 16" Wide x 16" Diagonal. Last used in a food application.

Stock# 72826010

Unused- Endflex Boxxer T series Automatic Case Erector, Manual Loader and Automatic Case Taping System, Model T-18. Capable of speeds up to 18 CPM (depending on application). Approximate case size range: 9.5" to 20" long x 7.5" to 16" wide x 5" to 16" diagonal. Automatic Case Erector and bottom taper, Boxx Pack Manual Packing system and EZ-Tape Case Sealer. Control panel with Weintek HMI, Omron Sysmac CP1L PLC. Serial# 18498. 1/60/120 Volt, 7 Amp.

Stock# 73158002

Used Lantech Model C-1000 Case Erector - Industrial Packaging Machinery. Rated speed 10 cases per minute. Case size range: 7 7/8"-19 5/8"L x 5 7/8"-12 3/4"W x 5 7/8-20 1/2"H. Uses Both Air and Electric 230 AC. Used Daily for 4 years, then Every few days until put in storage in 2016.

Stock# 73296001

Used Lantech Case Packing Line. Consisting of Lantech C-1000-T case erector, WestRock RCL 60 w/ Kuka RCL 60 robot loading system, Lantech CS-1000 case sealer, Logopack 300 Printer (currently crated). Case erector range: 200-500mm L x 150-325mm W x 150-520mm H (open). Case sealer range: 200-650mm L x 150-510mm W x 120-500mm H (closed). Rated at 10 cases/minute. Built 2020.

Stock# 73375007

Used Lantech Model C-2000 Automatic Case Erector with Tape Bottom Seal. Capable of speeds from 8 - 25 cases per minute (depending on application). Case size range: 7-7/8" - 24-1/2" (length) x 5-7/8" - 17-3/4" (width) x 5-7/8" - 25.5/8". Like New Condition. The price will be in addition to an 18% buyer's premium. The customer is responsible for removal. Located in Portland, TN.

Stock# 72830001

Used Lantech Model C-300 Automatic Case Erector and Bottom Tape Sealer. Capable of speeds up to 10 cases per minute. Has a case size range: 7.875" - 19.625" (length) x 5.875 - 13.75" (width) x 5.875" - 20.75" (height/depth). Has a bottom tape head. Approximate magazine capacity: 200 cases Air supply: 6 Bar (80 psi).

Stock# 72418003

Used Lantech C-1000 Automatic Case Erector and Bottom Tape Sealer. Left hand discharge using RH cases. Capable of speeds up to 30 cases per minute. Has a case size range: 7-7/8" to 19-5/8" (200 - 500 mm) length x 5-7/8" to 12-3/4" (150 - 325 mm) width x 5-7/8" to 20-1/2" (150 - 520 mm) height/depth. Tape closure, requires tape head. Side belt case indexing. A/B Micrologix 1200 PLC with UniOp HMI. (3) Emerson servo drives. Air supply 80 psi. 3/60/230 Volt.

Stock# 73190001

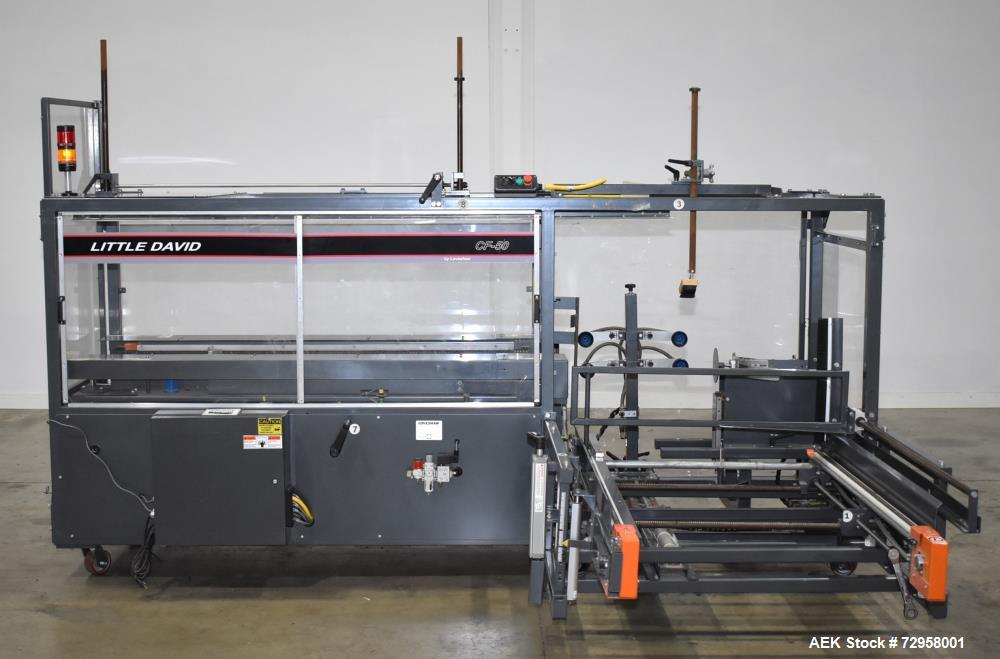

Used Little David Case Erector, Bottom Sealer, Model CF50T. Suitable for case dimensions of: 7" to 24" in length, 6" to 16" in width, and 4" to 20" in height. Rated for speeds up to 20 cases per minute, depending on size and application. Includes Little David 3" bottom-mounted tape head. Vacuum-style opening. Control panel with Allen Bradley Micrologix 1000 PLC. Req. 11 SCFM @ 80 psi. 1/60/110V, 10Amp.

Stock# 73452001

Used Little David CF25SB Narrow Width Case Erector & Bottom Taper 15 CPM, AB Controls, Like New. Capable of 15 cases per minute. Case size range: (Length) 6"-16" x (Width) 3-1/2" - 14" x (Height) 4"-12". Allen-Bradley PLC controls. Tape Specifications: Any commercially acceptable brand of pressure sensitive tape. Width: 3"Tape Roll Diameter: 15" 3(81mm) maximum on a 3" (76mm) core Roll Length: up to 2000 yards (1829m) Machine has been minimally used and is in like-new condition. Requires 80 PSI.

Stock# 70995004

Used Maxco Case Erector, Model MEG-24L. Capable of speeds up to 35 cases per minute. Case size range: (Length)6" - 24" (Width) 8" - 14" (Depth) 6" - 18". KD length: 12" min. 34" max. KD width: 12" min. 28" max. Has Allen micrologix PLC and Allen Bradley PanelView 550. Serial #YO715. ** SALE SUBJECT TO SELLER'S APPROVAL **

Stock# 72396011

Used OK International Case Erector/Taper Superformer 1. OEM 2" tape head. OEM Case Size Range: Minimums are approx. 8" L x 8" W x 6" D; Maximums are approx. 24" L x 20" W x 24' D. OEM rated at Up to 15 cases per minute. Stainless steel frame including housing; Powered belt hopper. Overall dimensions approx. 127" L x 66" W x 78" H. Mfg. 2000. Last used in a cheese manufacturing application. 480V / 3ph / 60Hz.

Stock# 72976001

Used Pearson Model R235 Case Erector and Bottom Tape Sealer. Capable of speeds up to 25 CPM. RH case. Case size range: 8.75" - 23.5" Length x 5" - 16" Width x 5" - 21" Depth. Has 81" long x 31.5" wide powered case blank magazine. Dekka 23 tape head, 2" Width. Upper hold down and lower chain conveyor 80" long, pneumatic trailing major and minor flap kicker. Allen Bradley Micrologix 1500 PLC, A/B panelview 300 micro HMI. Serial# 200202359977. 3/60/460 Volt.

Stock# 73102007

Used Pearson Model CE25-T Automatic Case Erector With Bottom Taper. Rated up to 25 caser per minute. Right hand unit. Case size range: 8"-24"L x 535"-16"W x 3"-18.5"H. 2" tape head. Allen Bradley HMI Panel View Plus 600, Allen Bradley MicroLogix PLC. Elec:3/60/460V. Overall Dims: 156"L x 114"W x 87"H.

Stock# 73187001

Used Pearson Model CE35-T Case Erector / Taper. Machine is rated at speeds up to 35 cases per minute. Case size range: 8.75" - 23.5" (length), 5"- 16" (width), 5.625" - 18.5" (depth). Overall capabilities include erecting and bottom sealing RSC, HSC, CSSC, and RSC with integral divider cases. Extended magazine, 2nd operating station, beacon, decreased min open depth (10"). Has Dekka M 3" tape head, last running 2" wide tape. Control panel with Allen Bradley CompactLogix L32E PLC, A/B PanelView Plus 600 HMI. 3/60/230/460V.

Stock# 73151001

Used Soco Case Erector, Model BE-300-ABS2. Capable of speeds up to 8 cpm. Has bottom tape sealer. Case size range: length 300 to 620 mm, width 200 to 400 mm, depth 130 to 500 mm. Includes an Allen Bradley CPU control. Machine footprint 108" long x 60" wide x 72" tall.

Stock# 72826011

Unused- Endflex Boxxer Model T-18 T-series Automatic Case Erector, Manual Loader and Automatic Case Taping System, . Capable of speeds up to 18 CPM (depending on application). Approximate case size range: 9.5" to 20" long x 7.5" to 16" wide x 5" to 16" diagonal. Automatic Case Erector and bottom taper, Boxx Pack Manual Packing system and EZ-Tape Case Sealer. Control panel with Weintek HMI, Omron Sysmac CP1L PLC. Serial# 18498. 1/60/120 Volt, 7 Amp.

Stock# 73480001

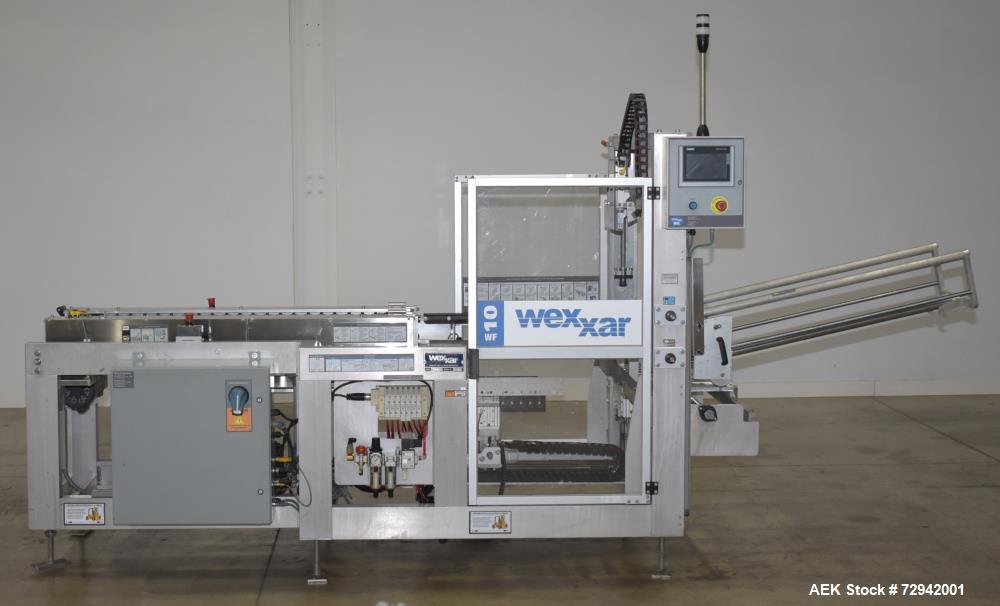

Used Wexxar WF10T Case Erector/Sealer Up to 20 CPM, Bottom Tape, PLC Control, Twin Screw Magazine. Machine is capable of speeds up to 20 cases per minute. Has a case blank size range of: 16" - 25" Long x 12" - 21" High and then individually formed Case Size Range - Length: 7" to 22"; Width: 6" to 17"; Height: 6" to 20" subject to max blank size range. Has 72" long twin screw style feed blank case magazine. Has bottom tape head for 2" tape. Pin style mechanical case opening. Left Hand, 20 cfm at 90 psi. Has control panel with A/B PLC.

Stock# 70970404

Used Wexxar Model WFT Case Erector Sealer. Machine is capable of speeds up to 20 cases per minute. Has a case blank size range of: 16" - 25" Long x 12" - 21" High and then individually formed Case Size Range - Length: 7" to 22"; Width: 6" to 17"; Height: 6" to 20" subject to max blank size range. Has 72" long twin screw style feed blank case magazine. Has bottom tape head for 2" tape. Pin style mechanical case opening. Left Hand, 20 cfm at 90 psi. Has control panel with A/B PLC. Requires change parts for case size, Retooling, set-up and testing services are available. Contact AEK for more information

Stock# 73287001

Remanufactured- WEXXAR Automatic Case Erector with Bottom Tape Sealer, Model WFT-S. Speeds up to 20 cases per minute; based on product specifications; Minimum: 7" length x 6" width x 9.5" height; Maximum: 22" length x 17" width x 25" height; Magazine dimensions: 72" length x 26" width. 3/60/460V. Serial # 1614. Includes 6 month parts and labor warranty and crating for shipment. Remanufactured by L6 Packaging Machinery Ltd with more than 30 years experience.
