Used Triseal Carton Former Trisealer Cartoners

Stock# 70926001

Used- Adco Model AFH-40-EC Tab-Lock Top-Load Tri-Seal Carton Forming Machine. Capable of 40 strokes/cartons per minute maximum. Finished tray size range: width 4" - 10", length 5-1/2" - 11", depth 1" - 4". This is a single head machine (one carton per stroke). Equipped with flighted conveyor outfeed with left takeaway construction, approximately 55" long x 7" wide with 14" between each flight. Was last running a carton size of 10-7/8" long x 6-9/16" wide x 1" deep. Has mild steel frame with white powder coat paint and is mounted on 4 legs. 3/60/460V.

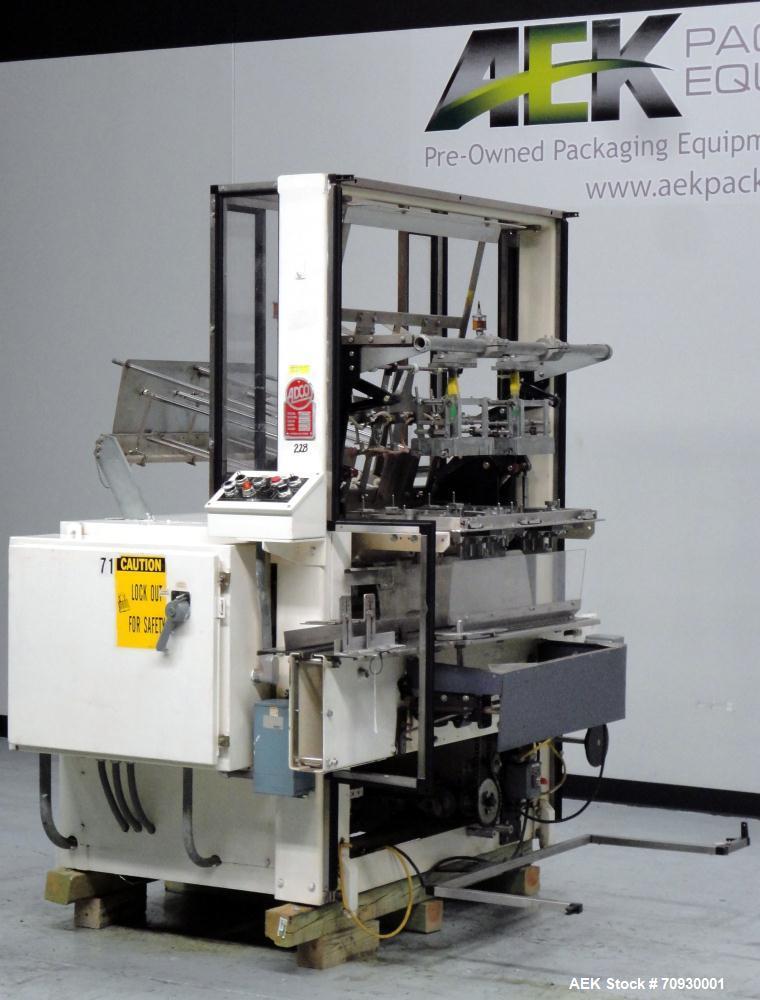

Stock# 70930001

Used- Adco Model AF60 Dual Head Tab Lock Top Load Carton Former. Capable of speeds up to 120 trays/cartons per minute. Currently set up with 2 forming heads for tray size of 9-15/16" long x 5-5/16" wide x 7/8" high. Has approximately 50" long chain conveyor with 14-3/4" between each index lug. 220V/3 Ph/15 Amp. Machine can be retooled and set to size per your application. Ask your AEK sale representative for details and lead times. Retooling cost will be provided upon receipt of product samples.

Stock# 72054001

Used- Adco Triseal Carton Former, Model AFHXX-40-3-WD. Three head former for tab-lock style hooded trays. All Stainless Steel construction Washdown Nema 4X. Top load carton / hooded tray size range: Length 3" to 17", Width 3" to 8", Depth 0.75" to 4" subject to tooling configuration. Now tooled for 3 trays: 6-7/8" x 6-1/4" x 2-1/4"'. Additional tooling is available, contact AEK for more information. Equipped with vacuum generator blank pick and place. Controls are Allen-Bradley CompactLogix L32E PLC, a AB PanelView 600 HMI. 230V.-3PH.-60Hz.-20 AMPS. Comp air 90 psi, cfm. Serial Number: 5871SL, mfg: 02-26-09.

Stock# 71556001

Used- IMA (BFB) Model FR100 Hooded Style Tray Former and Packer with Bottle Loader. Machine is capable of speeds up to 60 trays per minute, 2-up, 2 cartons per cycle. Tray size range: 2.36" - 9.84" Long x 1.96" - 11.81" Wide x 1.18" - 5.91" Tall. Currently Set up to form 5" long x 3.5" wide x 4.5" tall Tri Seal Cartons, Glue Body Top Tuck. Siemens Simatic S5-100U PLC Controls. Equipped with a Nordson Series 3100V hot melt glue system, a Prefolded Leaflet Inserter, a Tray Former Loader. Last used on Blister Pack Cartons in a pharmaceutical solid dosage packaging operation. Mounted on adjustable height legs. 3/60/208V.

Stock# 71923002

Used- Bosch Triseal Carton Forming,Robotic Loading and Top Closing. Glue Former, Model TTF-2 with Nordson BroBlue. Machine is capable of 30+ packages per minute per head (depending on product size and material). Has a carton/tray size range of: 115mm to 445 mm or 4.5" to 17.5" (length) x 75mm - 254mm or 3" - 10" (width) x 19mm - 171mm or 3/4" - 6-3/4" (height). Includes Bosch Model TTC in line Closer with Nordson ProBlue hot melt glue system, and Bosch model TTL robotic top loader product placer. Last doing slugs of crackers/biscuits. Allen Bradley PLC controls with AB HMI stations. Built 2011. Last running slug pack snack biscuits/crackers. 3/60/230V. CE Certified, Also Available is Bosch HSE horizontal wrapper with Bosch FGM collator. Ask for details and pricing on AEK object 71932001.

Stock# 70602002

Used- Bradman Lake Model HS2/60G Single Head Hot Melt Tray Former. Machine is capable of speeds up to 60 trays per minute. Has Nordson hot glue system, all stainless steel construction. 3/60/240 V. Handles top load carton or tray size (flat blank dimensions) up to 30" / 762 mm wide x 39 ' / 1000 mm length. Minimum / maximum tray height: 0.86" to 6.5" / 22 mm to 165 mm. Requires Gast type vacuum pump Now equipped with 1-5/8" x 5" mandrel and former. Machine can be set to size and retooled at an additional cost subject to receipt of product samples. Ask your AEK sales representative for details.

Stock# 72014001

Used- Doboy Tray Former, Model 751. Single mandrel former with hot melt. Relay logic for controls. Nordson ProBlue 10 hot melt system. 3/60/460V. Built 1993.

Stock# 71623015

Used- Kliklok-Woodman (Bosch) Model Model SRWD. Dual head self locking tab lock tray former. Capable of speeds from 50 - 120 cartons / trays per minute. Tray / Top load carton former size range: 127 mm - 356 mm or 5" -14" (length) x 102 mm - 304 mm or 4" - 14" (width) x 22 mm - 140 mm or .87" - 5.50" (depth). Has Siemens PLC controls. Electric 3/50/380/415V EU power.

Stock# 71003007

Used- MGS Model TLC Top Load Carton Former with Robotic Pick and Place Unit. Has an Adept Model Quattro s65OH robotic pick and place arm, Serial # 721-00383. Has a Nordson ProBlue 4 hot melt glue unit, Serial # SA10K70603. Used an Allen Bradley Compact Logix L32E PLC with (3) Allen Bradley Kinetix 300 servo drives. Has a 47" long x 7-1/2" wide adjustable width carton infeed magazine, a 60" long x 3-1/2" wide product infeed, 78" long x 5-1/2" wide discharge conveyor and a 48" long x 5-3/4" automatic reject system. 25 amp. 3/60/480V.
