Used Triseal Carton Closer Trisealer Cartoners

Stock# 70926002

Used- Adco Model 16C50-EC Hot Glue Style Top-Load Tri-Seal Carton Closing Machine capable of speeds up to 50 cartons per minute. Has a carton size range: length 5" to 11"; width 4" to 10"; depth 1" to 4". Has Allen Bradley Micrologix 1000 PLC controls, flighted chain conveyor with cover orientation, right entering machine, and pneumatic infeed gate. Includes Nordson 3500V hot melt glue system. Original carton size 10-7/8" long x 6-9/16" wide x 1-1/4" deep. Mild steel frame with white powder coat paint, mounted on caster. Adco AFH40-EC tab-lock top-load tri-seal carton forming machine available at an additional cost (see item 70926001). 3/60/460V.

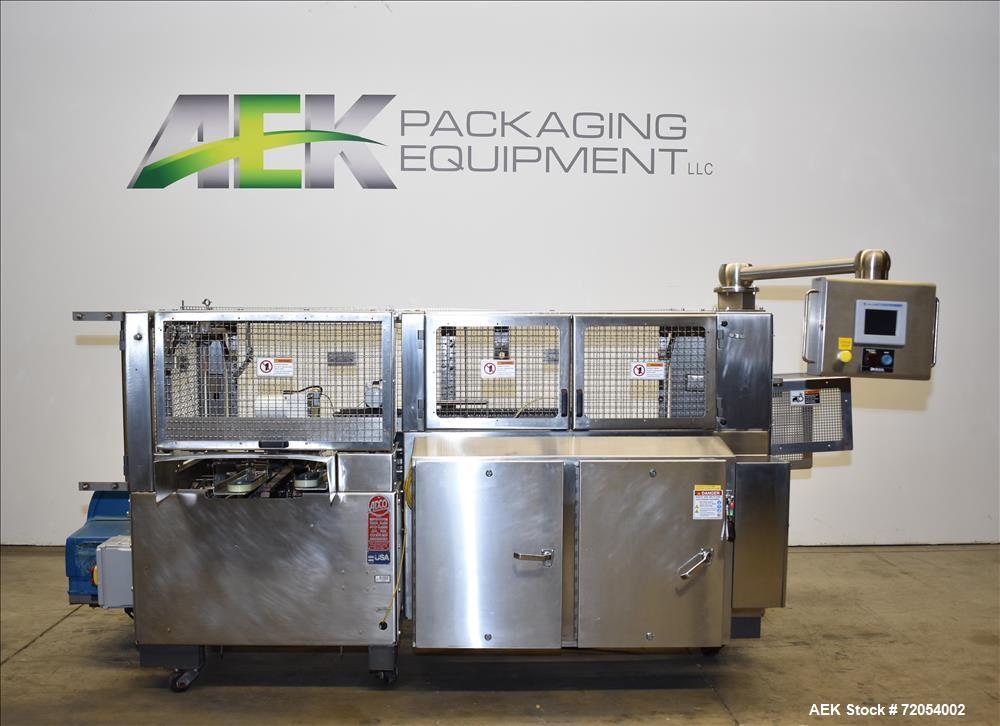

Stock# 72054002

Used- Adco Triseal Carton Closer, Model RAC-120-WD. Capable of speeds up to 120 cartons per minute. Has a carton size range: 4" - 14" or 100mm - 355mm (length) x 3" - 12" or 75mm - 305mm (width) x 1" - 5" or 25mm - 125mm (depth). Serial # 5072HG one servo motor (ultra3000 A-B) and three PowerFlex (4M), PLC- Allen-Bradley (CompactLogix L43), 220V.-3PH-30Amps-60Hz. Includes Hoffman chiller. Serial Number 5072HG. Serial Number 5072HG Mfg 2009. See AEK # 7504001 for info on matching Adco Carton Former.

Stock# 72128003

Used- Adco Triseal Carton Closer, Model 16B-60-SS. Carton closer is rated at speeds up to 80 cartons per minute. Has a size range of (assembled carton dimensions) 4" to 12" (length of opening); 4" to 10" (width of opening); and 1" to 4" (case depth). Is of stainless steel construction. Has Nordson ProBlue hot melt glue system. Allen Bradley PLC controls. Last run in apple sauce/food operation. 3/60/230/460V.

Stock# 72285001

Used- Bosch (Syntegon) Elematic 6000 EFC Top Load Coffee "K-Cup Style" Cartoning Line. Dual lane unit capable of speeds up to 600 coffee capsules per minute. Triseal cartoner line consists of Bosch Elematic 2000 VTA dual head carton former with Nordson Problue hot melt glue system, Bosch Elematic 6000 top loader, into a Bosch Elematic 1000 Triseal Top Load carton closer with Nordson problue hot melt glue system. Line also includes Bosch Elematic 3000L wraparound case packer with Nordson Glue system. Last running 12 count (2 x 3 x 2) and 18 count (2 x 3 x 3) retail cartons of coffee capsules. Case packer was set for 12 count cartons in a (4 x 1 x 1) configuration. Has Allen Bradley Controllogics plc with Panelview plus 1000 HMI.

Stock# 72285002

Used- Bosch (Syntegon) Elematic 6000 EFC Top Load "K-Cup Style" Coffee Capsule/Pod Cartoning Line. Dual lane unit capable of speeds up to 600 coffee capsules per minute. Triseal cartoner line consists of Bosch Elematic 2000 VTA dual head carton former with Nordson Problue hot melt glue system, Bosch Elematic 6000 top loader, into a Bosch Elematic 1000 Triseal Top Load carton closer with Nordson problue hot melt glue system. Line also includes Bosch Elematic 3000L wraparound case packer with Nordson Glue system. Last running 12 count (2 x 3 x 2) and 18 count (2 x 3 x 3) retail cartons of coffee capsules. Case packer was set for 12 count cartons in a 4 x 1 x 1 configuration. Has Allen Bradley Controllogics plc with Panelview plus 1000 HMI.

Stock# 71763002

Used- Delkor Capstone Series Model TSC Top Seal Carton Closer. Is capable of running at a maximum speed of 40 cartons per minute, depending on application. Carton size range: 3"-12.5" (length); 4" - 9" (width); 1" - 5" (height). Last running a 7-1/8" x 9-3/4" (layflat) tray for single-use coffee cups. Uses Allen Bradley PLC controls with Allen Bradley Kinetix Servo motors, and an Allen Bradley Panelview-Plus 700 HMI. Equipped with a Nordson ProBlue-10 Hot Melt Glue Applicator. 3/60/480V.

Stock# 71763004

Used- Delkor Capstone Series Model TSC Top Seal Carton Closer. Is capable of running at a maximum speed of 40 cartons per minute, depending on application. Carton size range: 3"-12.5" (length); 4" - 9" (width); 1" - 5" (height). Last running a 7-1/8" x 9-3/4" (layflat) tray for single-use coffee cups. Uses Allen Bradley PLC controls with Allen Bradley Kinetix 6000 Servo motors, and an Allen Bradley Panelview Plus 700 HMI. Equipped with a Nordson ProBlue-10 Hot Melt Glue Applicator. 3/60/480V.

Stock# 71998001

Used- Delkor Top Seal Carton Flange Closer, Capstone Series, Model FSC. For single forward flap glue closing. Capable of maximum speed of 55 cartons per minute, depending on application. Maximum Carton size range: up to 20" (length) x up to 14" (width) up to 14.5" (height). Last running cutlery. Uses Allen Bradley Compact logix PLC controls with Allen Bradley Kinetix Servo motors, and an Allen Bradley Panelview-Plus 700 HMI. Equipped with a Nordson ProBlue-10 Hot Melt Glue Applicator. 3/60/480V.

Stock# 71052001

Used- Kliklok Genesis Model GLC Triseal Topload Carton Closing Machine. Capable of speeds from 30-200 cartons per minute (depending on carton size and configuration). Carton size range: Length 4" - 15"; Width 3.25" - 12"; Height 1.49" - 5". Has a Markem SmartLase 130i laser coder. Stainless steel guards with Nordson 3400 hot melt glue system. Cartons are accepted end leading. Cover on right when viewed looking downstream. Discharged with front tuck leading. Has Allen Bradley MicroLogix 1000 PLC. Electrical 380-460 VAC, 3 Phase with ground (PE), 50/60 Hz. Normal Power Consumption: 32 kVA, Service Required: 40 amps at 460 VAC. Air Consumption: 25 CFM (708 liters/min) at 80 PSI (5.5 bar).
