Used Colloid Mills

Stock# 52848004

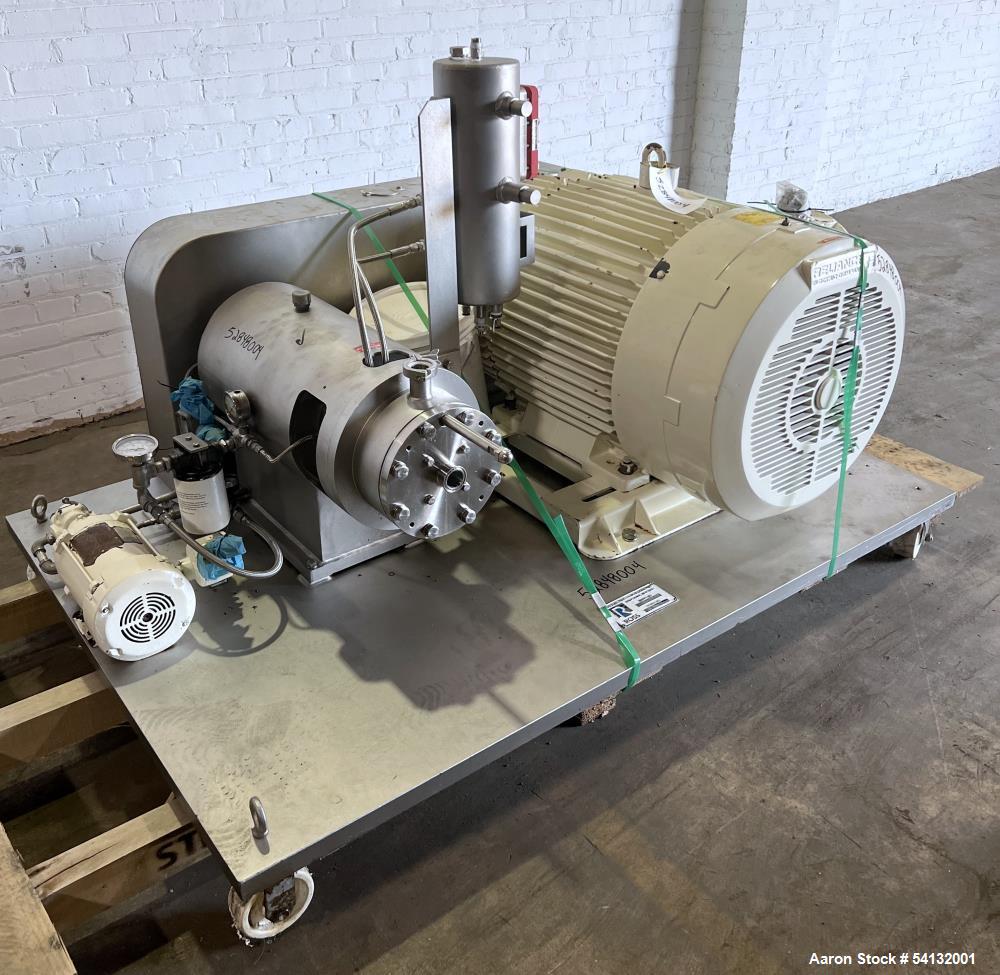

Used Ross Ultra High Shear Inline Mixer, Model HSM-706XQMS-125. 316 Stainless Steel. Mix chamber rated 150 psi at 250 degrees F. 6" Diameter rotor, driven by a 125hp, 3/60/460 volt, 3600 rpm motor, rated for VFD, 4:1 ratio. 1-1/2" Diameter inlet & outlet. 2 Gallon Barrier tank with sight glass & cooling coil, 304 stainless steel. 1HP Gear pump. Mounted on cart.

Stock# 52869001

Unused - Ross Inline High Shear Solid/Liquid Induction Mixer (SLIM); Model HSM-405SC-25; (4) blade rotor with induction ports for operation at 3,600 rpm at 60 Hz; Single-piece inlet plate with large square stator head; direct driven by a 25 HP explosion proof motor; 230/460 volt, 3 phase, 60 Hz power supply; Double mechanical seal with silicon carbide; Barrier system for use with double mechanical seal; Stainless steel tank with sight gauge and internal cooling coil mounted on a vertical riser; Factory tested with demineralized water in the barrier fluid tank and drain; Seal barrier tank to include one (1) side-mounted stainless steel liquid level switch with coupling; 2" tri-clamp inlet; 2" tri-clamp outlet; 1.5" tri-clamp inlet with Progressive Spiral Porting; 1.5" ball valve; 1/2" sanitary ferrule drain with flush plug, clamp, and gasket; 6 ft of flexible tubing with stainless steel wand; stainless steel type 316 charging hopper integrated with the 48" x24" bench top; Portable Stainless steel cart/mixer base; All product contact parts t316 stainless steel; All exterior 304 stainless steel 4 with a glass bead blast finish; 25 HP Nema 4X Variable Frequency drive; Nema 7/9 explosion proof operator station; Nema 12 enclosure with DC power supply and I/S barrier. New in Crate.

Stock# 52484001

Unused- IKA Works Dispax-Reactor / 3 Stage High Shear Inline Dispersing Machine / System, Model DR-2000/10. 316 Stainless Steel. Maximum flow rate 35 gpm (8,000 liter). Approximate 30hp, 3/60/460 volt, 3525 rpm motor. Tip speed approximately 23 m/s (4500 fpm). Maximum process pressure 16 bar, maximum process temperature 160 degrees C. 2" Inlet/outlet. Stainless steel. Includes Seepex BCSB, size 17 closed pin food pump, driven by a 7.5kW, 3/60/230/460 volt, 1740rpm motor. (2) Micro Motion F series mass flow sensors, 1/4hp pump, interconnecting piping. Control panel with Automation direct HMI and Allen Bradley micrologix 1500 PLC, Lenze AC tech drives. On unitized base. Last used for cosmetics, but hardly used, maybe only validated.

Stock# 50388107

Used IKA Works Dispax Reactor High Shear Inline Disperser, Model DR 2000/10, Stainless Steel. Nominal flow rate 35 gallons per minute (8,000 l/h), nominal tip speed 4500 feet per minute. Driven by a 30hp, 3/60/230/460 volt, 3525 rpm motor. 2" Inlet & outlet. Unit mounted on a base. Part# P015742. Serial # 2599-12.

Stock# 50388105

Used IKA Works Inline Dispax Reactor. Mixing/Homogenizing/Dispersing, Model MHD/DR-PB 20. Nominal flow rate 30 gallons per minute, solids capacity 6200 pounds an hour. Driven by a 50 hp, 3/60/460 volt, 3535 rpm motor. 4" Solid inlet, 3" liquid inlet, 2" outlet. Unit mounted on a base Part # P015897. Serial # 2603-12.

Stock# 52848008

Used IKA Model MHD 2000/30 Mixing-Homogenizing-Dispersing System. Total capacity 90 gallons per minute. Maximum solids capacity 6,200 l/h. Tip speed 23 m/s. Rotor rotational speed 1500rpm. Driven by approximate 60hp, 3/60/230/460 volt, 1780rpm motor. Top 6" inlet, Side 3" liquid inlet. 4" Outlet. Mounted on base. Serial# 1265.

Stock# 50388113

Unused- IKA Colloid Mill, Model MK 2000/50. Nominal flow rate 350 gallons per minute, maximum flow rate 60,000 l/h, nominal tip speed 23 meters per second. Driven by a Siemens 150hp Motor. 480 Volt, 1785 rpm. Serial# 2758-16

Stock# 50388115

Unused- IKA Works Inline Colloid Mill, Model MK 2000/50. Nominal flow rate 350 gallons per minute, maximum flow rate 60,000 l/h, nominal tip speed 23 meters per second. Driven by a 150hp, 3/60/460 volt, 1785 rpm motor. 8" Inlet, 6" outlet. Unit mounted on a base. Part# P016866, serial# 2756-16.

Stock# 50388116

Unused- IKA Works Model MK 2000/50 Inline Colloid Mill. Nominal flow rate 350 gallons per minute, maximum flow rate 60,000 l/h, nominal tip speed 23 meters per second. Driven by a 150hp, 3/60/460 volt, 1785 rpm motor. 8" Inlet, 6" outlet. Unit mounted on a base. Part# P016866, serial# 2757-16.

Stock# 50388117

Used IKA Works Model MK 2000/50 Stainless Steel Inline Colloid Mill. Rotor speed 1265 RPM. Max throughput 80,000 L/hr. Driven by 150hp, 3/60/460 Volt, 1785 rpm TEFC Motor. 8" Inlet, 6" outlet. Flowserve 6L mechanical seal reservoir. Mounted on a painted carbon steel base. No Serial# plate. Current parts machine, can be completed for additional cost.
