Used Hot Oil Boilers

Stock# 49216004

Used- Fulton Complete Turnkey Engineered Boiler System. With Vertical Coil Thermal Fluid Heater, Model FT-0320C. Runs on Natural Gas. 3.2 MMBTU/HOUR Rated Capacity, 937 kW Heat Output, Maximum Temperature 650 Degrees F (343 Degrees C), Maximum Pressure 150 PSI, 2.067 Inside Diameter, .154 Thickness, 230 Square Foot Heating Surface. Includes: Combination Expansion/Dearaetor/Thermal Buffer Tank, Skid Mounted Thermal Fluid System, Vertical Thermal Fluid Heater, 30 HP Thermal Fluid Circulating Centrifugal Pump, Electrical Panel, 3/60/480V. National Board # 8186, Serial # 6955C. Built 2013. (Last Certified in 2018).

Stock# 50337003

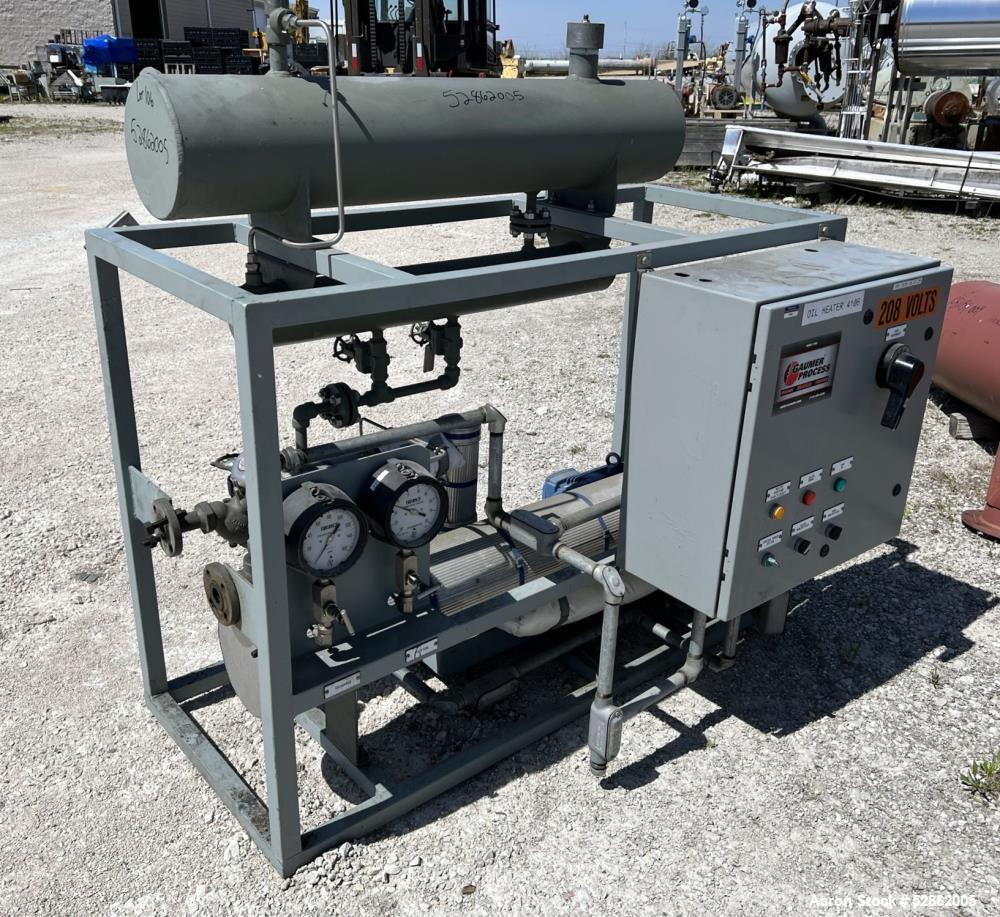

Used- 2.3 MM BTU/HR Gaumer Electric Process Hot Oil Heating System, Model GHOS-667-X. 667 KW total heating capability. 15 watts/square inch. Model GHOS-667-X, Gaumer Job # 12045. Komline Sanderson PO # 41633. Skid mounted electric hot oil system. Skid shipping dimensions are 146" wide x 108" wide x 110" high (plus lifting lugs and expansion tank). Control Panel # ZPA-850-18C-1M-UL. Unit has a 30 hp Vican gear pump rated at 400 gpm at 75 psig. Unit has three heat exchangers each rated for 222.2 kW for a total of 667 kW with a design pressure rating of 300 psi at 600 degree F. Expansion tank is 450 gallons, 42" diameter x 60" long rated with ASME stamp for 300 psi at 600 degree F. Piping is 4" typical. Insulation is 1.5" calcium Silicate typical. Unit is complete skid mounted with all electrical controls in panels mounted on the skid. Skid weight is 13,100 pounds.

Stock# 46080

Used- Loveco Direct Fired Gas Oil Heater, Model NDEO686-18EK. 9,000,000 btu/hour, rated 150 psi at 700 deg F, 3180 square foot heat transfer area. Heating coil openings (4) 4". Includes a Bloom gas burner, model 1026-100, serial #PE-0679-15, a gas trane panel, and control panel. Skid mounted.
