Water Treatment Equipment

Used US Filter CT Series 304 Stainless Steel Carbon Purifier

Used US Filter CT Series 304 Stainless Steel Carbon Purifier fabricated by Ross Engineering of Savannah, GA in 2002. National Board # 465, Manufacturer serial # SF-7790,shell MAWP 100PSI @ 230 degrees F, MDMT 100PSI @ -20 degrees F. Vessel size 84"OD x 99" Straight side. Overall length 176". Manway 18" x 14" elliptical, the bottom has one-6" RFSO nozzle with blind with 3" pipe, one- 2" RFSO with blind flange, the side has one-3" RFSO, one-2" RFSO with blind flange and the top has one 2" RFSO. Unit comes with additional piping, valves and control panel. Unit does not have carbon charge in unit.

MFR: US Filter

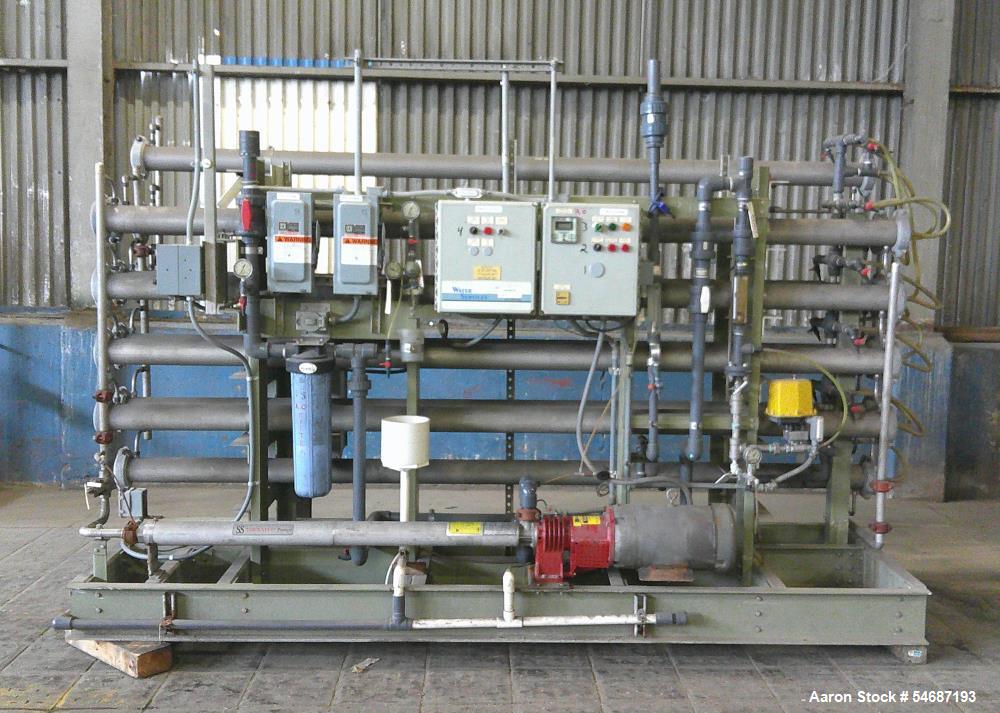

Used Water Services Corp. reverse osmosis filtration system. This unit has 12 stainless steel 4.5" dia. 126" long filter tubes, plc controls and a 15 hp GE Tonkaflo model SS2834D pressure pump that i...

Used-Water Services Corp. reverse osmosis filtration system. This unit has 12 stainless steel 4.5" dia. 126" long filter tubes, plc controls and a 15 hp GE Tonkaflo model SS2834D pressure pump that is rated for up to 25 gpm. This system is unitized on a fiberglass base. 230/460 vac 3 ph power required.

Used Krofta SPC62 Clarifier – 62' Diameter, 9200 GPM, 304 SS, Scoop Discharge, Air Tubes, Chemical Pump

Used- Krofta Clarifier, Model SPC62. 62' diameter; Rated 9200 GPM; 304 stainless steel construction; With scoop discharge; Has (3) air distribution tubes, chemical pump.

MFR: Krofta

Used Sigmadaf FPAC 160 Dissolved Air Flotation (DAF) System – 310,000 GPD Industrial Wastewater Treatment Unit

Used Sigmadaf Model FPAC 160 DAF System. Built in 2025, previously used for wastewater treatment. Rated flow capacity of 310,000 GPD (215 GPM), maximum hydraulic capacity of 705 GPM, and 388 square feet of flotation surface area. Designed for 10,640 mg/L TSS, 99.81% target solids removal, and 4.47% desired sludge concentration. Equipped with a 25 HP recirculation pump rated at 220 GPM and (20) skimmers. Overall dimensions: 557.1" L x 133.9" W x 90.6" H. Suitable for industrial wastewater treatment, solids separation, sludge thickening, and wastewater clarification in food, beverage, and industrial processing applications.

Unused Nelsen Twin 150 GPM Demineralizer System – 4-Tank FRP Water Treatment Package with Purolite Resin

Unused- Nelsen Twin 150 GPM Demineralizer System. Rated 150 GPM. System consists of: Twin 150 GPM Demineralizer with (4) FRP 48" x 84" Tanks, with face piping and controls, and controller skid. Built 2017. Includes 80 cubic foot Purolite A-300 Anion Resin; 40 cubic foot Purolite C-100 H Catatonic Resin.

Used KMU Loft Destimat LE 40 Vacuum Wastewater Evaporator – 40 LPH

Used KMU Loft Model Destimat LE 40 Industrial Vacuum Evaporator With 40 Liter Per Hour Capacity, Built 2018. Designed for industrial wastewater treatment, process liquid concentration and wastewater volume reduction through vacuum evaporation and distillation. Rated for an evaporation capacity of approximately 40 liters per hour (10.5 gallons per hour). Equipped with a 5.5 kW (approximately 7.37 HP) power rating and designed for 400-volt, 50 Hz electrical service. Manufactured in 2018. Possible applications include industrial wastewater treatment, contaminated rinse water processing, coolant and water-based emulsion concentration, chemical wastewater reduction, metal finishing wastewater treatment, process water recovery and concentration of other compatible industrial liquid waste streams.

Used LED Italia E-8000V3-AA4 Heat Pump Vacuum Evaporator with ONDA Shell & Tube Condenser

Used- LED Italia E Series Heat Pump Vacuum Evaporator, Model E-8000V3-AA4. With Forced Circulation and External Shell and Tube Heat Exchanger; ONDA S.p.A. Model CR100/S Shell & Tube Condenser; -10C/+120C shell min/max allowable temp; -10C/+120C tube min/max allowable temp; 43 bar shell test pressure; 14.3 bar tube test Pressure; 30 bar shell min/max allowable pressure; 10 bar tube min/max allowable pressure; HFC/HCFC/CFC water fluid type; 12L shell volume; 7.8L tube volume; S/N: P0613421-01. Built 2006.

Used Amiad/Arkal 4" Spin Klin Galaxy Water Filtration System | Dual-Skid Disc Filter | 70 & 20 Micron | Built 2023

Used Amiad/Arkal 4" Spin Klin Galaxy Water Filtration System | Dual-Skid Disc Filter | 70 & 20 Micron | Built 2023. Disc filtration type. 70 micron 1st stage filtration degree, 20 micron 2nd stage filtration degree. System fed by a 700 GPM pump. 145 PSI max. working pressure, 14.5 min. working pressure. 158 degrees F max. temp. 4-11 PH range. With control panel.

Used WHE Performance Separation Systems Filter – 20 HP, Stainless Steel, High-Speed Motor

Used- WHE Performance Separation Systems filter. Stainless Steel Construction. Driven by a 20hp 3/60/208-230/460v 3520 rpm motor. No mfg. tag.

Used HydroFloTech ClariMax 500 GPM Inclined Plate Clarifier – 2500 sq. ft. PSA, Skid-Mounted with Pumps & Tank

Used HydroFloTech ClariMax 500 GPM Inclined Plate Clarifier 2500 sq. ft. PSA, Model CMCIPC-2500-2.0-HP. Specially fabricated multiple chamber plate pack system; 55 degree sloping walls; Serviceable and removable plate packs; 2500 sq. ft. Projected Surface Area (PSA) inclined plate clarifier chamber; Hydraulic Loading Rate (HLR) = 0.2 gpm / sq. ft. of PSA at 500 gpm design flow rate; 12" - 150# ANSI flange inlet/outlet fittings; Flash/Floc chambers of 3000 total capacity divided 600/2400; Bottom sludge collection chamber (no auger).

MFR: Hydroflow

Used 500 GPM Inclined Plate Clarifier – HydroFloTech ClariMax with Polymer & Sludge Pumps

Used 500 GPM Inclined Plate Clarifier HydroFloTech ClariMax with Polymer & Sludge Pumps, Model CMCIPC-2500-2.0-HP. Specially fabricated multiple chamber plate pack system; 55 degree sloping walls; Serviceable and removable plate packs; 2500 sq. ft. Projected Surface Area (PSA) inclined plate clarifier chamber; Hydraulic Loading Rate (HLR) = 0.2 gpm / sq. ft. of PSA at 500 gpm design flow rate; 12" - 150# ANSI flange inlet/outlet fittings; Flash/Floc chambers of 3000 total capacity divided 600/2400; Bottom sludge collection chamber (no auger).

MFR: Hydroflow

HydroFloTech ClariMax Inclined Plate Clarifier – 500 GPM, PSA 2500 ft², Skid-Mounted

HydroFloTech ClariMax Inclined Plate Clarifier 500 GPM, PSA 2500 ft, Skid-Mounted, Model CMCIPC-2500-2.0-HP. Specially fabricated multiple chamber plate pack system; 55 degree sloping walls; Serviceable and removable plate packs; 2500 sq. ft. Projected Surface Area (PSA) inclined plate clarifier chamber; Hydraulic Loading Rate (HLR) = 0.2 gpm / sq. ft. of PSA at 500 gpm design flow rate; 12" - 150# ANSI flange inlet/outlet fittings; Flash/Floc chambers of 3000 total capacity divided 600/2400; Bottom sludge collection chamber (no auger).

MFR: Hydroflow
