Used Vertical Form and Fill Machines With Liquid-Paste Fillers
Browse AEK Packaging Equipment's inventory of unused and used vertical form and fill packaging machines with liquid paste fillers. Vertical Form and Fill Machines (VFFM) with liquid-paste fillers are automated packaging systems used in industries to package liquid or paste-based products efficiently. These machines are particularly useful in the food, pharmaceutical, chemical, and cosmetics industries. VFFM machines handle products ranging from thin liquids (e.g., water, juice, or oil) to thicker, paste-like substances (e.g., sauces, creams, or adhesives. If you are looking to sell your used vertical form fill seal machine submit a request online or contact KC Christensen at 630-238-2660.
What does a vertical form and fill packaging machine with liquid-paste filler do?
A form and fill packaging machine, also known as a form fill seal (FFS) machine, is an automated packaging system that performs three main functions: forming, filling, and sealing.
The machine starts with a large roll of flexible packaging film, typically plastic. It then pulls the film off the roll using belts or a dancer arm to maintain tension and guides the film through a forming tube or collar. It then shapes the flat film into a tubular form, creating the basic structure of the package.
Once the package shape is formed, the machine measures a predetermined amount of product using a piston, positive displacement pump or gravity filler dispenses the product into the formed package. This process can be used to package a variety of products, including condiments, detergents, shampoos, ointments and hand sanitizers. After filling, the machine completes the packaging process by sealing the bottom of the package (if not already sealed during forming) and sealing the top of the filled package, followed by cutting the sealed package from the continuous film to create individual units
Are there features of a vertical form and fill with liquid past filler I should be aware of?
Yes! Features can include:
- Printing capabilities for adding dates, codes, or graphics to the packages
- Various sealing methods, such as heat sealing, compression sealing, or ultrasonic sealing.
- Intelligent control systems for parameter setting, fault diagnosis, and production data recording, web tracking.
- What is the volume of product being dispensed
- Is it a viscous or free flowing product
- Will the pouch be a three or four sided seal
Are there more than one type of Vertical form and fill packaging machine?
Yes! Form and fill packaging machines come in two main orientations:
- Vertical Form Fill Seal (VFFS): Products are dropped into single pouch from vertically oriented packages using a variety of different types of fillers depending on your product.
- Multi Lane Form Fill Seal (stick pack or sachets): Vertically oriented packages are formed from a single or dual web into multiple lanes where products are dropped into each pouch using a variety of different types of fillers depending on your product.
Can you tell me what types of industries use form and fill packaging machines?
Yes! These machines are widely used in food, pharmaceuticals, consumer products, cosmetics and contract packaging industries.
When buying a used form and fill packaging machine, are there other items to consider?
Yes! Other things to consider include:
- Product Compatibility: Can the machine handle the type, size, and material of the bags that you intend to use, as well as the product being packed (e.g., solids or granular powders)
- Production Capacity: What are your current and future production needs, including speed, weight of product and pouch size?
- Ease of Operation and Maintenance: How easy or difficult is the machine to use?
- Flexibility and Customization: How flexible is the machine? Can it easily adapt to different packaging requirements?
What was the FFS machine last running?
Knowing what the machine was last running will help you understand if the machine can meet your requirements
Stock No.:
73731010Cryovac Onpac 2002A Automatic Food Pouch Forming and Filling Machine
Used Sealed Air Cryovac 2002A Onpac Automatic Liquid Bag Forming And Filling Machine. Sanitary food grade stainless steel construction for pumpable foods and liquids. Handles cold products and hot products up to 210 degrees F, with output up to 36 pouches per minute and maximum pouch capacity up to 2 gallons. Uses coextruded and laminated Cryovac films in 6", 7.5", 9.25" and 11.5" widths. Requires 230V, 3-phase power and compressed air. Possible applications include pouch packaging of compatible sauces, soups, ready meals, processed fruits and vegetables, oils, condiments, liquid eggs and dairy products.
Stock No.:
73731070Used Cryovac Model 2000B Vertical Form Fill and Seal Machine. Serial 0043. The VFFS is capable of speeds up to 30 packages per minute depending size and product viscosity. The vffs has a pouch size r...
Used-Cryovac Model 2000B Vertical Form Fill and Seal Machine. Serial 0043. The VFFS is capable of speeds up to 30 packages per minute depending size and product viscosity. The vffs has a pouch size range from 6" to 12" wide x 8" to 24" long and a pouch fill volume of 16 ounces to 256 ounces. The unit is all stainless steel with AB controls. Will handle a broad range of pump-able products (pump not included) including products with particulates up to 14" in size under hot or cold fill conditions. Ideal for products such as soups, sauces, condiments (ketchup, mustard, mayonnaise), salad dressing, tomato-based products (pizza sauce, spaghetti sauce) liquid eggs, taco meat filling. Last running tomato based products. Requires 230 vac 3 phase electrical, 90 psi and 300 cfm of compressed air, and 5 gpm of chilled water. Machine is priced to reflect some minor missing parts needed.
Stock No.:
73731071Used Cryovac Model 2000B Vertical Form Fill and Seal Machine. The VFFS is capable of speeds up to 30 packages per minute depending size and product viscosity. The vffs has a pouch size range from 6" ...
Used-Cryovac Model 2000B Vertical Form Fill and Seal Machine. The VFFS is capable of speeds up to 30 packages per minute depending size and product viscosity. The vffs has a pouch size range from 6" to 12" wide x 8" to 24" long and a pouch fill volume of 16 ounces to 256 ounces. The unit is all stainless steel with AB controls. Will handle a broad range of pump-able products (pump not included) including products with particulates up to 14" in size under hot or cold fill conditions. Ideal for products such as soups, sauces, condiments (ketchup, mustard, mayonnaise), salad dressing, tomato-based products (pizza sauce, spaghetti sauce) liquid eggs, taco meat filling. Last running tomato based products. Requires 230 vac 3 phase electrical, 90 psi and 300 cfm of compressed air, and 5 gpm of chilled water. Machine is priced to reflect some minor missing parts needed.
Stock No.:
73731008Used Cryovac Sealed Air 2002A Onpac Vertical Form Fill Seal Pouch Machine
Used Cryovac Sealed Air Model 2002A Onpac Vertical Form Fill And Seal Pouch Machine. Sanitary food grade stainless steel construction for pumpable foods and liquids. Handles cold products and hot products up to 210 degrees F, with output up to 36 pouches per minute and maximum pouch capacity up to 2 gallons. Uses coextruded and laminated Cryovac films in 6", 7.5", 9.25" and 11.5" widths. Requires 230V, 3-phase power and compressed air. Possible applications include pouch packaging of compatible sauces, soups, ready meals, processed fruits and vegetables, oils, condiments, liquid eggs and dairy products.
MFR: Fill
Stock No.:
73731009Used Cryovac Model 2002A Onpac Food Pouch Filling and Sealing Machine
Used Cryovac Model 2002A Onpac Sanitary Liquid Pouch Filler And Sealer. Sanitary food grade stainless steel construction for pumpable foods and liquids. Handles cold products and hot products up to 210 degrees F, with output up to 36 pouches per minute and maximum pouch capacity up to 2 gallons. Uses coextruded and laminated Cryovac films in 6", 7.5", 9.25" and 11.5" widths. Requires 230V, 3-phase power and compressed air. Serial #0051. Possible applications include pouch packaging of compatible sauces, soups, ready meals, processed fruits and vegetables, oils, condiments, liquid eggs and dairy products.
MFR: Fill
Stock No.:
73279001Used General Packaging E2LC Vertical Liquid Form Fill Seal Machine – 5 lb Bags
Used- General Packaging Vertical Liquid Form-Fill-Seal Machine, Model E2LC. Currently set up for 5 lbs. bags and sachets; Rated 1200-1500 sachets per hour. 3/60/240V. 22 amps. Built 2022. Previously used for condiments. Per manufacturers literature, it will run max 7" x 10" pouch.
MFR: General Packaging
Stock No.:

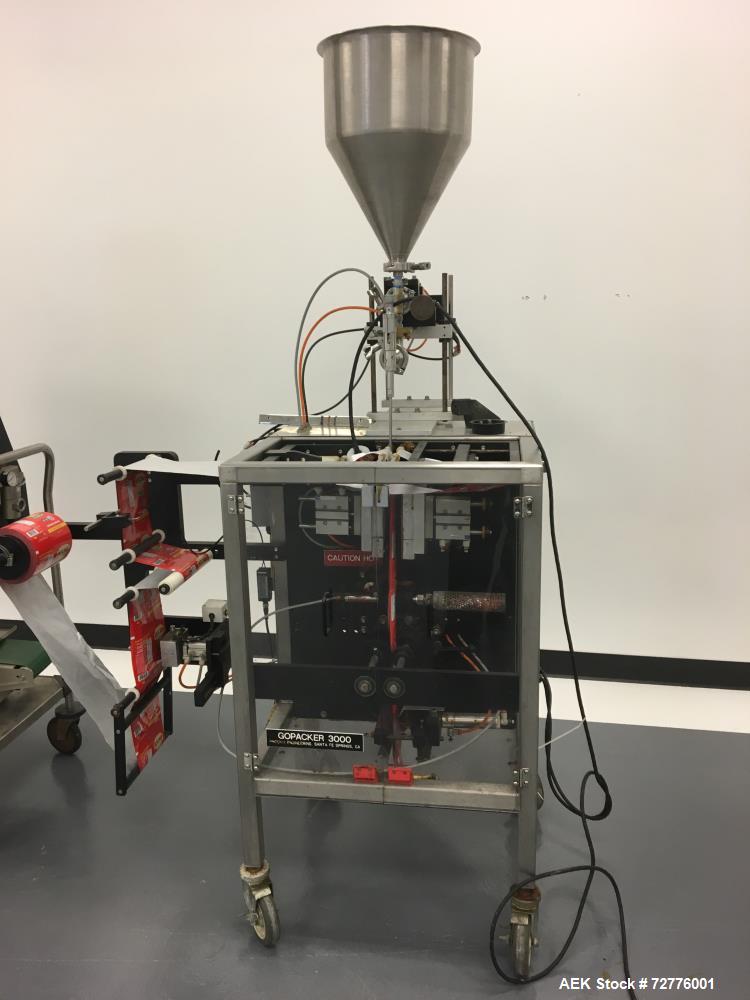

73492002Used Phoenix Engineering Gopacker 3000 Vertical Form Fill Seal Machine | Compact VFFS Bagger with Domino Coder
Used Phoenix Engineering Gopacker 3000 Vertical Form Fill Seal Machine | Compact VFFS Bagger with Domino Coder. up to 40 cycles per minute (depending on application). Has a pouch size range: 1"- 4" (Width) x 2"- 5"(length). Allen-Bradley PLC for reliable and industry-standard machine control. Fiber-optic registration sensor for accurate product detection and alignment. Automated cutoff knife for consistent and clean package separation. Domino Printing System with TouchPanel (HMI). Industrial-grade coder capable of printing lot codes, expiration dates, serialized data, and other variable information. Custom mounting and full integration for the Domino HMI system. Pneumatics Requirements: 80 psi @ 4 C.F.M, Electrical requirements: 120 volts, 60 hertz, 1 phase. Built 2020, Serial # 19-1254.
MFR: Phoenix Engineering
Stock No.:
72533005Used Prodo-Pak PV-215-CSW-10 Multi-Lane Liquid Form Fill Seal Machine – 10-Lane Sachet Packaging System
Used Prodo-Pak PV-215-CSW-10 Multi-Lane Liquid Form Fill Seal Machine 10-Lane Sachet Packaging System. 10 Lanes with piston filling. Multi-Lane Piston Filling System. Allen-Bradley PLC Controls, quick Panel Total Touch Screen Interface, film registration, stainless Steel construction, downstream packet alignment /conveyor System. Elec: 3/60/208/220V.
MFR: Prodo Pak
Stock No.:
71895011Used V-Shapes Vertical Form, Fill and Seal Machine with Liquid Fill – Model Alpha
Used- V-Shapes Vertical Form, Fill and Seal Machine with Liquid Fill, Model Alpha. Machine is rated for fill volumes from 0.2 to 38mL (with proper changeparts). Has a sachet size range of: 50 to 100mm (heights), and 40 to 100mm (width). Rated for speeds up to 300 packages per minute (or 16,000 per hour). Precision fill with accuracies of +/- 0.5%. Includes volumetric filling system for low/medium viscosity products. Is of stainless steel construction with 316L contact parts. Has Siemens & Rockwell Automation PLC controls with color touchscreen HMI. 3/60/480V. Last running hand sanitizer sachet packs.
Stock No.:
72970001Used V-Shapes Prima Vertical Form Fill Machine – Single-Dose Pouch, 30ml Max
Used-V-Shapes Vertical Form & Fill for liquid Paste/Gel Packaging Machine, type Prima. Up to 35 units a minute, 1ml to 30ml capacity single-portion V-Shapes. Max film reels width 110 mm (4.33"), Max film reels dia. 300 mm (7.87"). Air pressure 7 bar (105 PSI), Power supply 9 Kw/hr. Incl. Siemens PLC/ 7" Touch control panel. Belt conveyor. Frame mounted on legs. Overall dimensions 1378 mm L x 800 mm W x 2023 mm high (54.54 L x 31.49 W x 79.64 H) Weight 800 kg (1760 lbs). New 2021. Only tested for approx. 30 hours in a cosmetic gel appellation.
Stock No.:
72563001W.A. Lane Form & Fill Vertical Liquid-Paste Filler, Model L-18
Used- W.A. Lane Model L-18 Form & Fill Vertical Liquid-Paste Filler, Film width approximate 18". Up to 12 packages per cycle, 15 to 100 cycle per minute. Package range: 2-1/2" to 6" long, 1-1/2" to 4-1/2" wide. Fill volume range .05 to 6 fl. oz. Fill temperature range 40 to 195 degrees F. Film width 18". 3/60/220 Volt, 60 Amp. No PLC or HMI.
Stock No.:
72563002W.A. Lane Model L-18 Form & Fill Vertical Liquid-Paste Filler
Used- Winpak Lane Form & Fill Model L-18 Vertical Liquid-Paste Filler, Film width approximate 18". Up to 12 packages per cycle, 15 to 100 cycle per minute. Package range: 2-1/2" to 6" long, 1-1/2" to 4-1/2" wide. Fill volume range .05 to 6 fl. oz. Fill temperature range 40 to 195 degrees F. Film width 18". 12 Heads. Cutting Knife approximate 23" long x 1/2". Seal bar approximate 19" long x 1". Has Allen Bradley Micrologix 1500 PLC, A/B panelview 300 HMI. Filler pistons 1/2" diameter. Forming tubes 3/8" OD. No side seal slitters(can be added for additional cost). Inbound fill pipe 2" diameter. 3/60/240 Volt.
