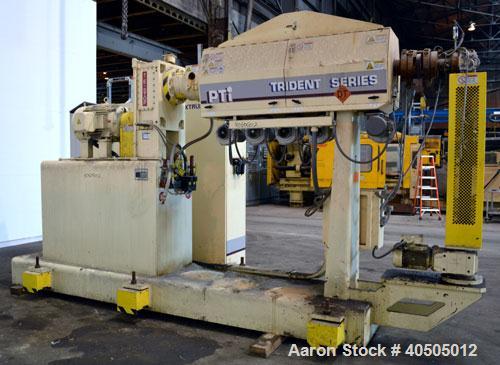

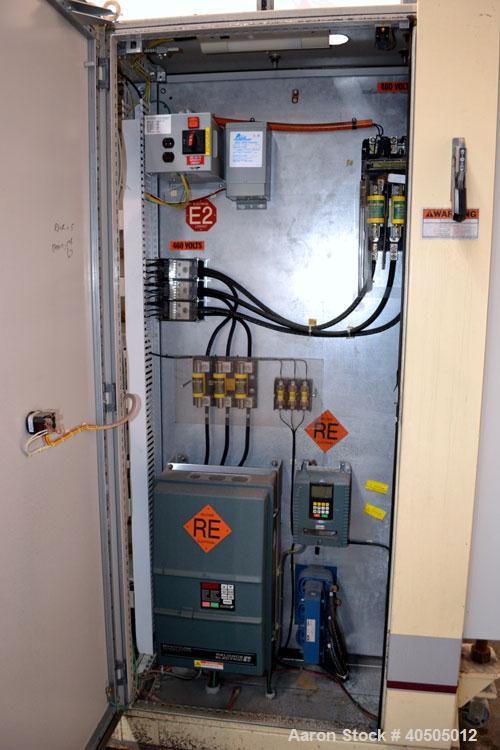

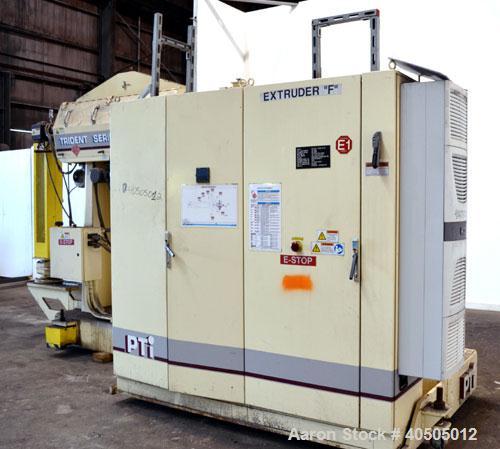

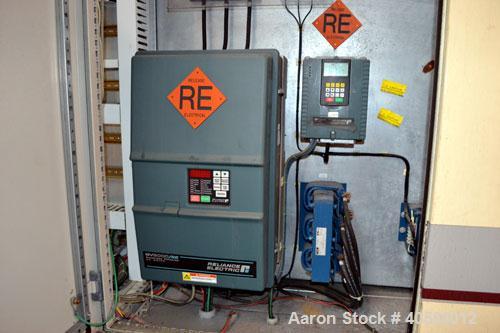

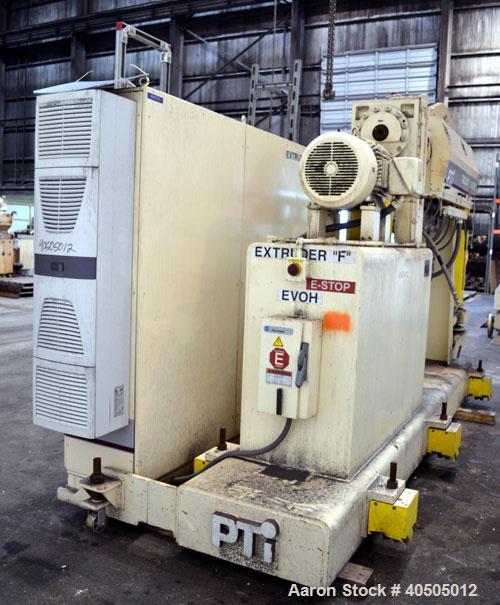

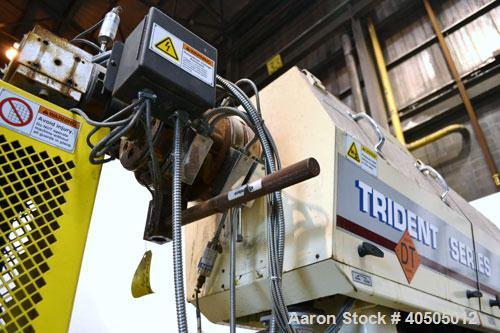

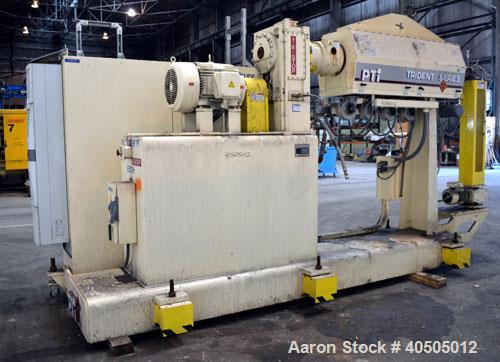

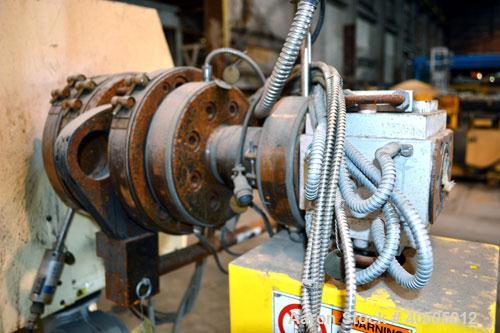

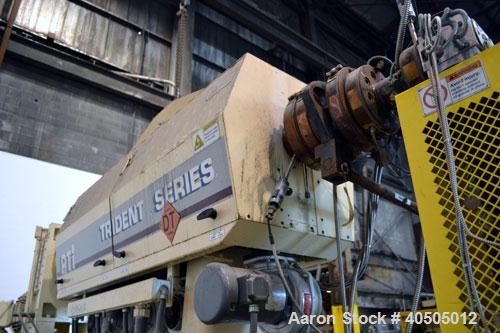

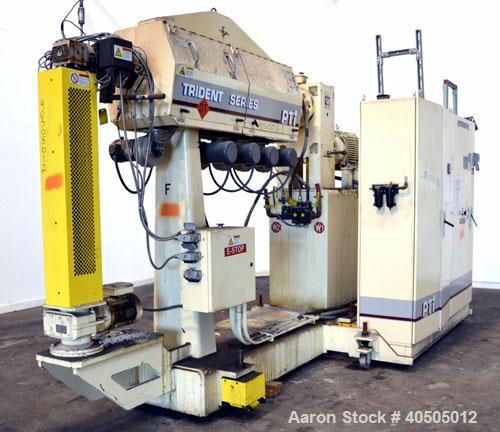

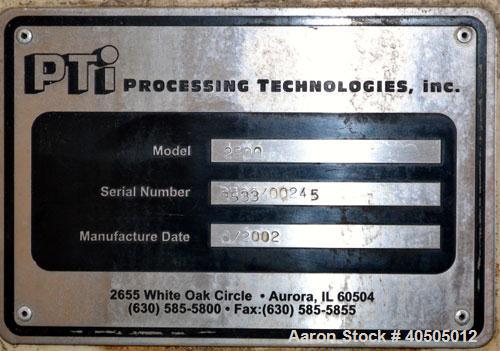

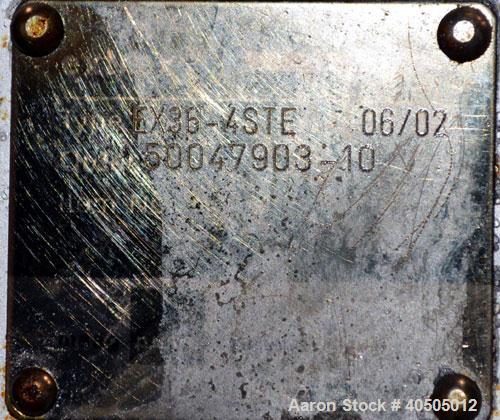

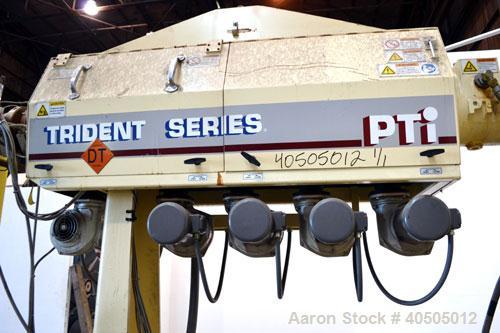

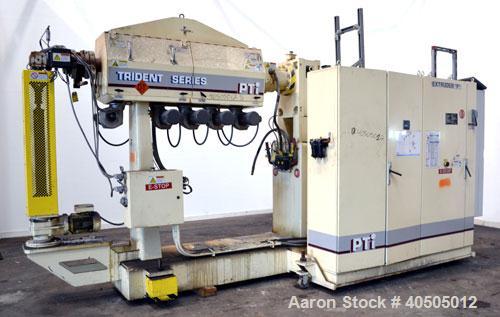

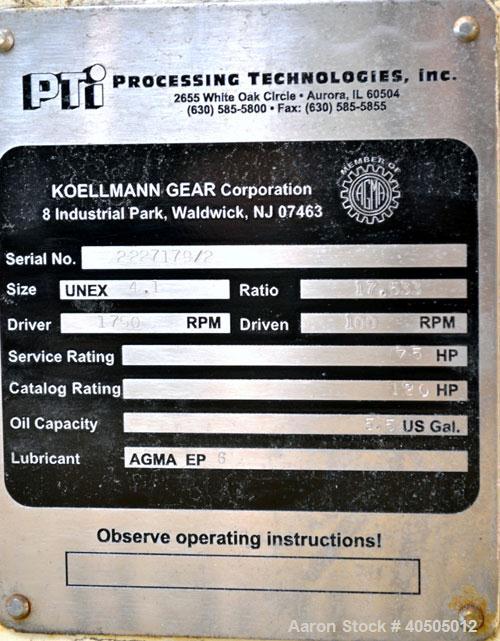

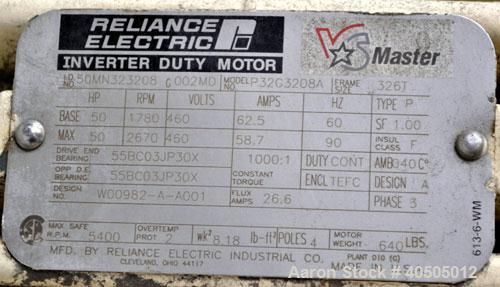

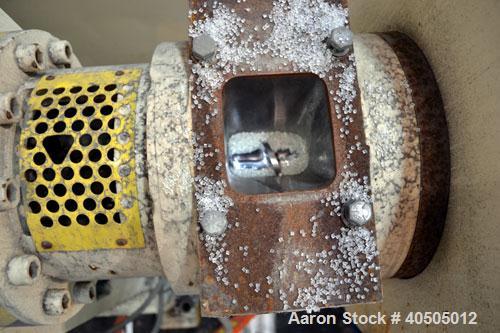

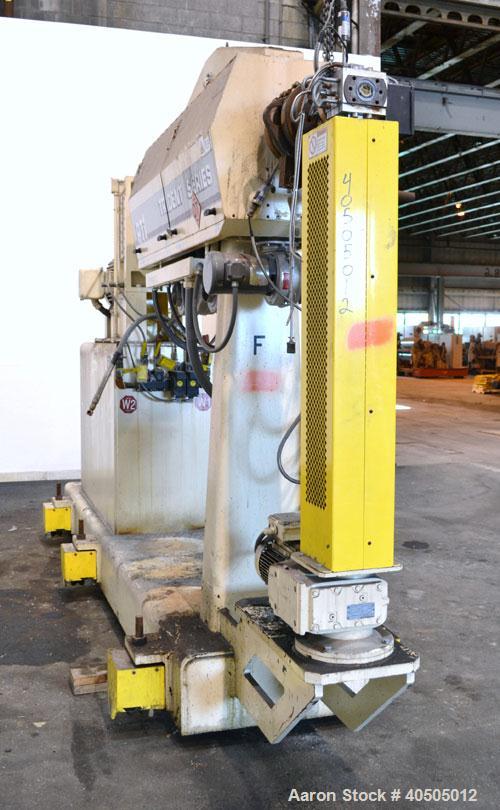

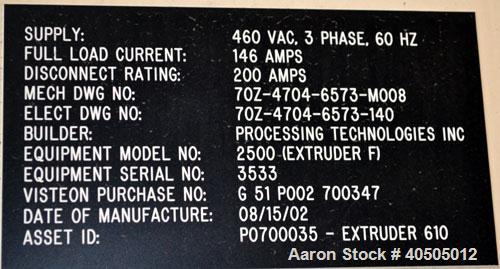

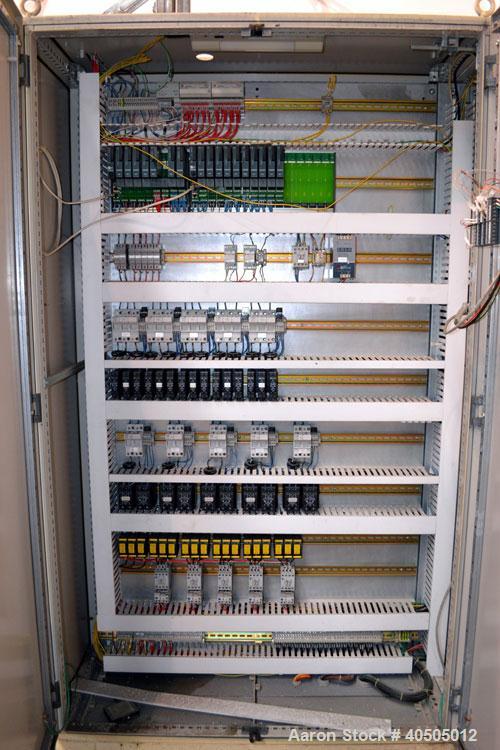

Used PTI Processing Technologies 2-1/2” Trident Series Single Screw Extruder, Model 2500. Approximate 32 to 1 L/D ratio. 5 Zone non-vented barrel electrically heated, air cooled. Water cooled feed throat, no hopper. Approximate 86” centerline height. Driven by a 50 hp, 3/60/460 volt, 1780/2670 rpm motor thru a Koellmann size UNEX 4.1 gearbox, ratio 17.533 to 1, 75 hp rating, catalog rating 120 hp, serial# 2227179/2. Includes a manual screen changer, and a Maag gear pump, Model EX36-4STE, serial# 50047903-10, driven by a 5hp, 3/60/230/460 volt, 1680 rpm gear motor, ratio 30.89 to 1. Side mounted control panel with a Reliance GV3000/SE sensor less AC drive, and a Reliance SP8000 drive, no temperature controllers. Built 2002.
Used PTI Processing Technologies 2-1/2” Trident Series Single Screw Extruder, Model 2500. Approximate 32 to 1 L/D ratio. 5 Zone non-vented barrel electrically heated, air cooled. Water cooled feed throat, no hopper. Approximate 86” centerline height. Driven by a 50 hp, 3/60/460 volt, 1780/2670 rpm motor thru a Koellmann size UNEX 4.1 gearbox, ratio 17.533 to 1, 75 hp rating, catalog rating 120 hp, serial# 2227179/2. Includes a manual screen changer, and a Maag gear pump, Model EX36-4STE, serial# 50047903-10, driven by a 5hp, 3/60/230/460 volt, 1680 rpm gear motor, ratio 30.89 to 1. Side mounted control panel with a Reliance GV3000/SE sensor less AC drive, and a Reliance SP8000 drive, no temperature controllers. Built 2002.
