Used Davis-Standard 60IN60TPIH 6" Single Screw Extruder – 34:1 L/D, 400 HP, Vented Barrel with ABB Drive
Used Davis-Standard 60IN60TPIH 6" Single Screw Extruder 34:1 L/D, 400 HP, Vented Barrel with ABB Drive. Features a 34:1 L/D ratio with a water-cooled, vented barrel incorporating six cooling zones; vent is located approximately 130" from the center of the feed throat and is currently plugged. Cooling system includes a 1/2 HP recirculation pump, heat exchanger, and 32" x 24" x 12" water reservoir. Driven by a 400 HP WEG AC motor (1,790 RPM) with ABB AC drive and a Davis-Standard Model 60IN60TPIH gearbox featuring a 17.2:1 ratio and rated for 526 HP with a 1.5 service factor. Temperature controls include six-barrel zone Solo 4896 controllers and seven die zone Omron E5EC controllers. Operator controls feature a speed pod with screw RPM, motor load percentage, and pressure transducer gauges. Includes hopper, 42" centerline height, and serial number PT238. Approximate footprint is 25' L x 8' W. Built 1994.
| Manufacturer | Davis StandardDavis Standard |
| Model | 60IN60TPIH |
| Category | Plastics EquipmentPlastics Equipment |
| Subcategory | Extruders - Single Screw ExtruderExtruders - Single Screw Extruder |
Manufacturer
Davis-Standard is a globally recognized manufacturer of extrusion systems serving the plastics, polymer, packaging, pipe, profile, sheet, wire and cable, and recycling industries. Davis-Standard extruders are known for their rugged construction, advanced process control, and long service life in demanding continuous production environments.
Description

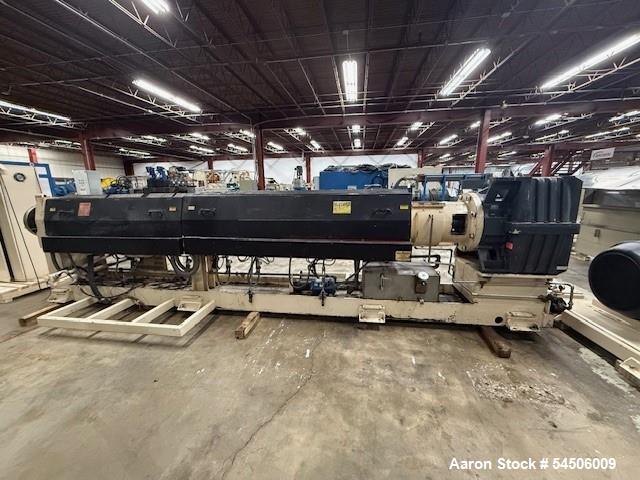

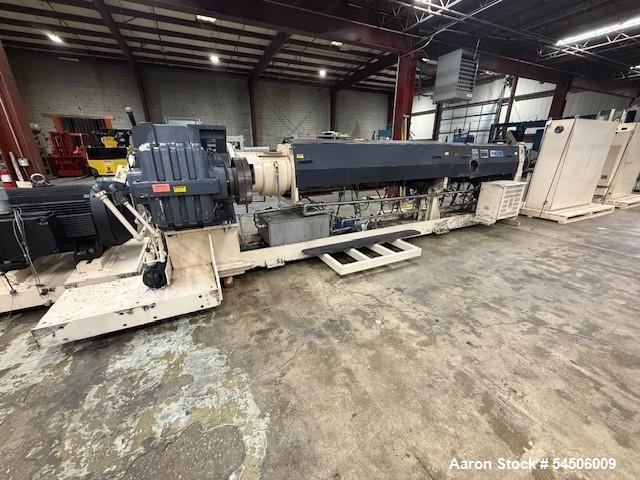

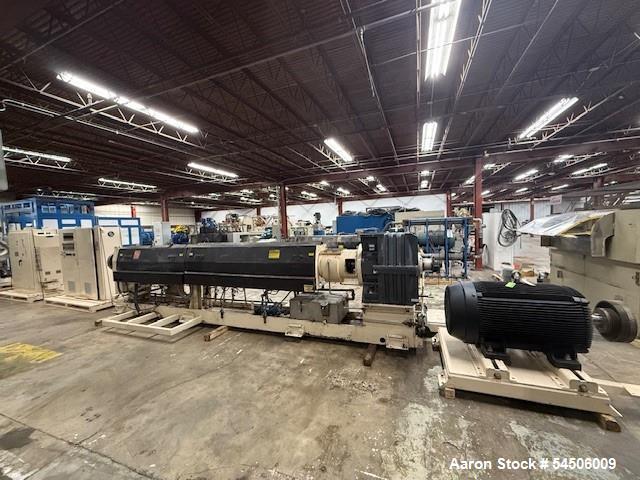

The Used Davis-Standard 6" Single Screw Extruder, Model 60IN60TPIH, is a high-performance industrial extrusion system designed for high-output thermoplastic processing applications. Built in 1994, this machine features an extended 34:1 L/D ratio and a vented, water-cooled barrel, making it well suited for processing moisture-sensitive materials, recycled plastics, and applications requiring devolatilization.

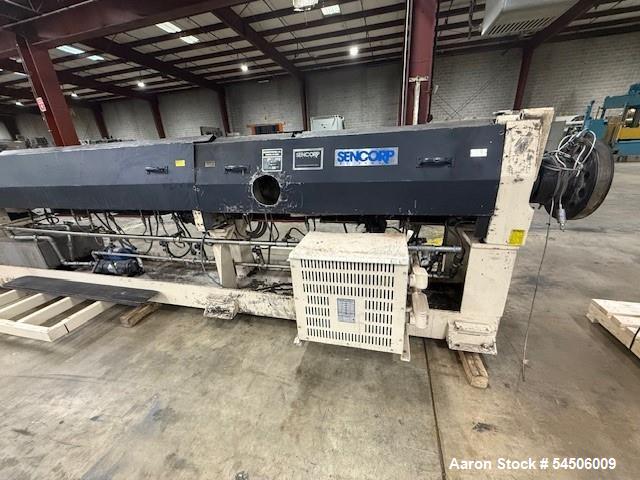

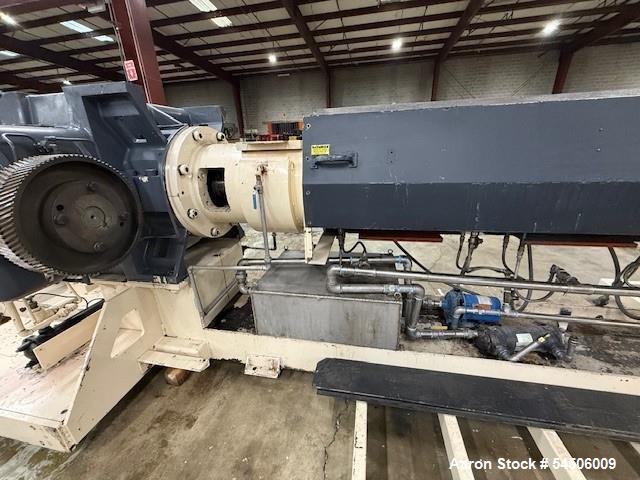

The barrel incorporates six water-cooling zones, with the vent located approximately 130 inches from the center of the feed throat. The vent is currently plugged but can be utilized for vacuum venting or devolatilization applications if required. The cooling package includes a 1/2 HP recirculation pump, heat exchanger, and integrated water reservoir measuring approximately 32" × 24" × 12".

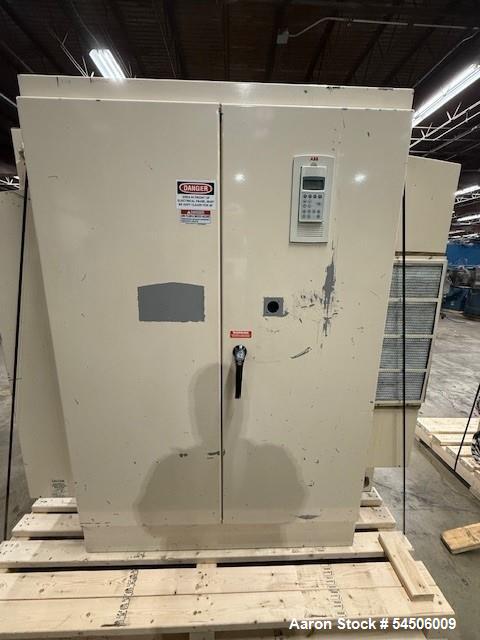

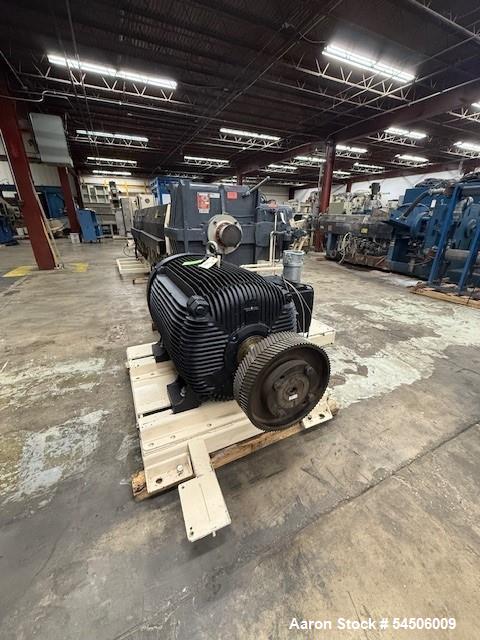

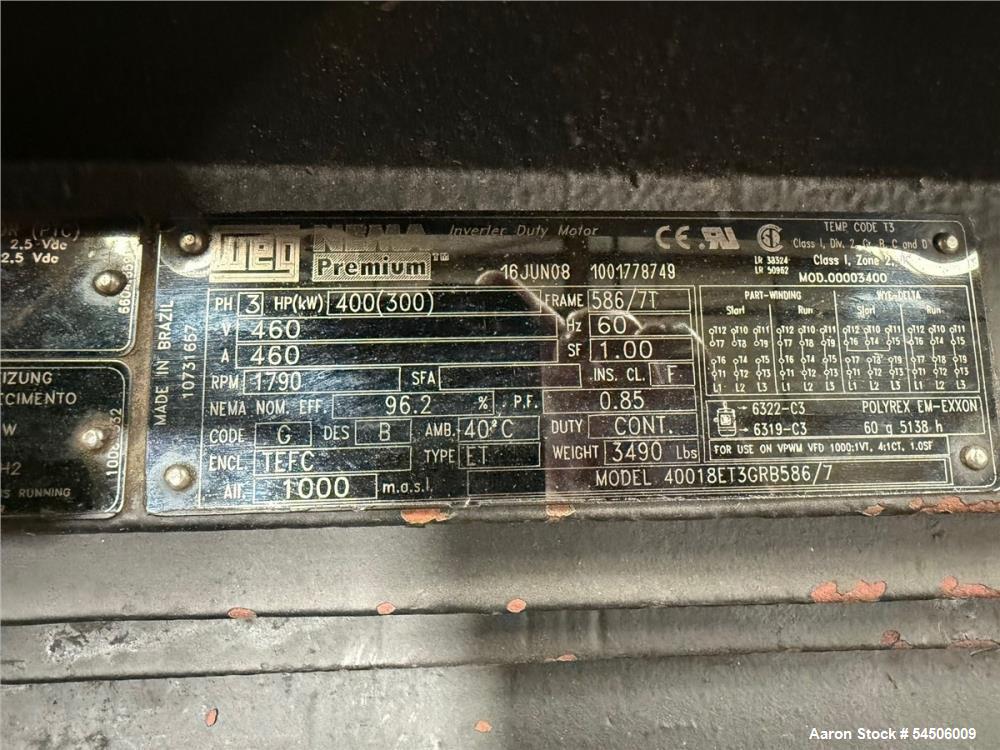

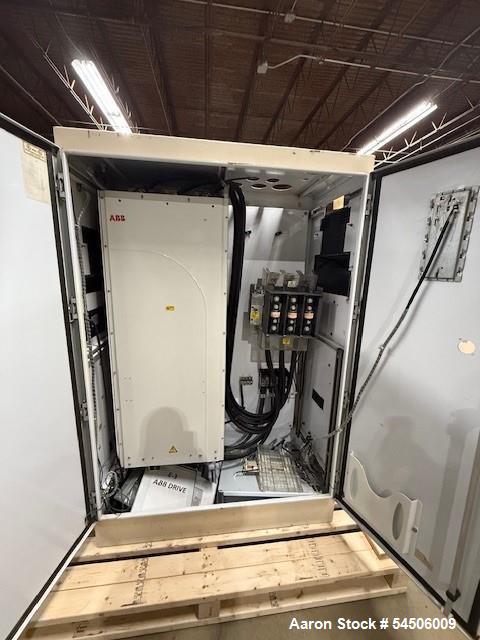

Power is supplied through a 400 HP WEG AC motor operating at 1,790 RPM, coupled to an ABB AC variable frequency drive for precise speed control. The extruder utilizes a Davis-Standard Model 60IN60TPIH gearbox with a 17.2:1 reduction ratio, rated for 526 HP with a 1.5 service factor, providing dependable torque for demanding extrusion applications.

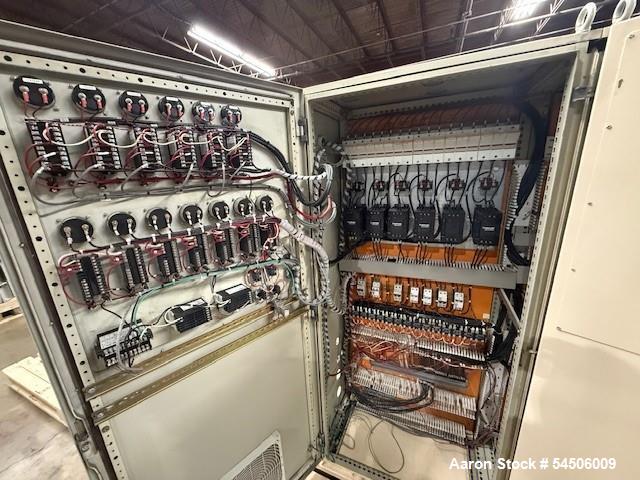

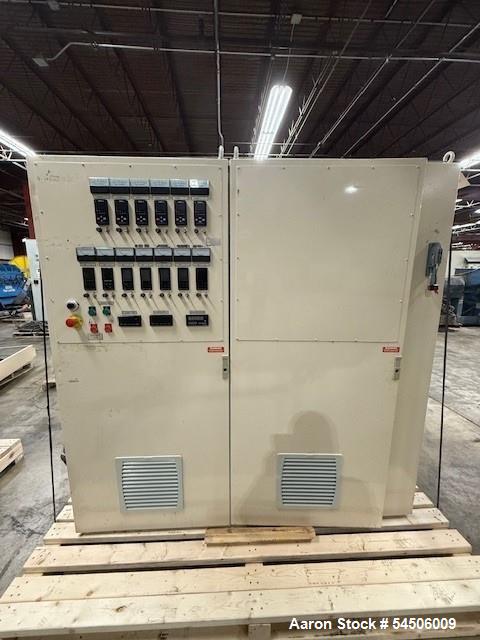

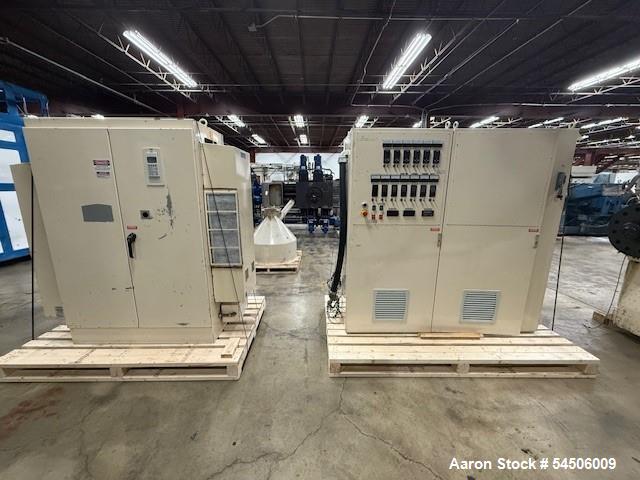

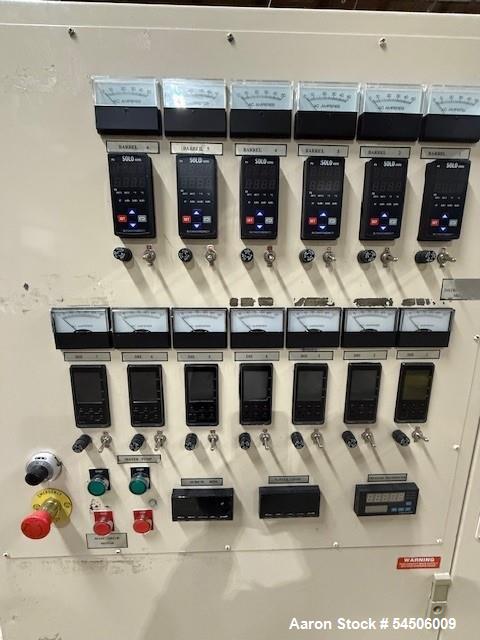

Temperature control is managed through six Solo 4896 barrel zone controllers and seven Omron E5EC die zone controllers. The operator station includes a speed pod displaying screw RPM, motor load percentage, and pressure transducer readings for comprehensive process monitoring.

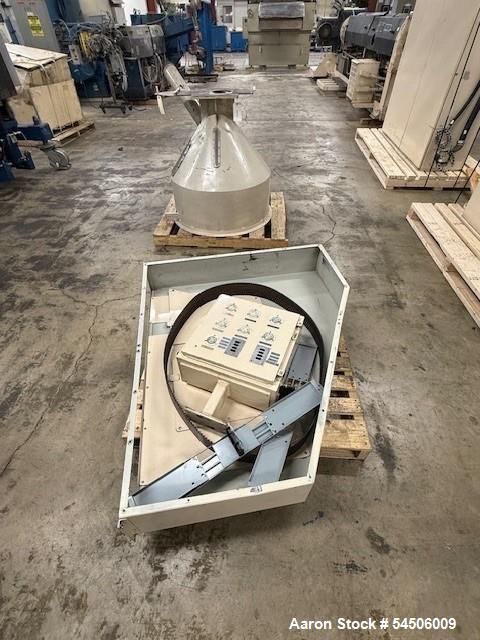

Complete with a hopper, 42-inch centerline height, and an approximate footprint of 25 feet long by 8 feet wide, this Davis-Standard extruder is an excellent choice for manufacturers seeking a proven, high-capacity extrusion platform.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Davis-Standard |
| Model | 60IN60TPIH |
| Equipment Type | Single Screw Extruder |
| Screw Diameter | 6 in. |
| L/D Ratio | 34:1 |
| Barrel Type | Water-Cooled, Vented |
| Cooling Zones | Six (6) |
| Vent Location | Approximately 130 in. from Feed Throat (Currently Plugged) |
| Cooling System | 1/2 HP Recirculation Pump, Heat Exchanger & Water Reservoir |
| Water Reservoir | Approximately 32 in. × 24 in. × 12 in. |
| Main Motor | 400 HP WEG AC Motor |
| Motor Speed | 1,790 RPM |

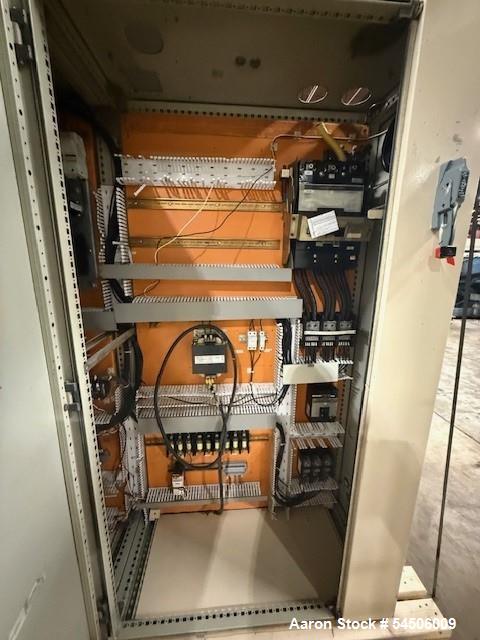

| AC Drive | ABB Variable Frequency Drive |

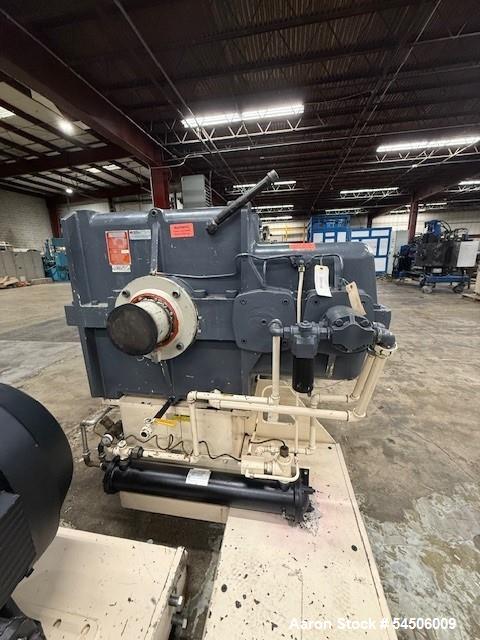

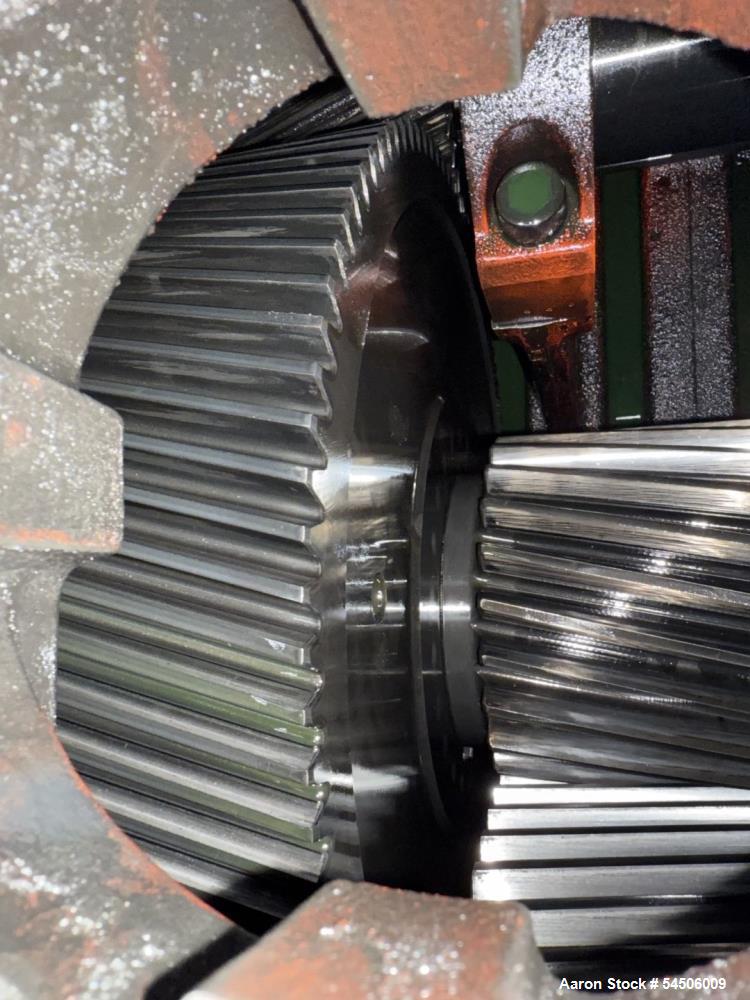

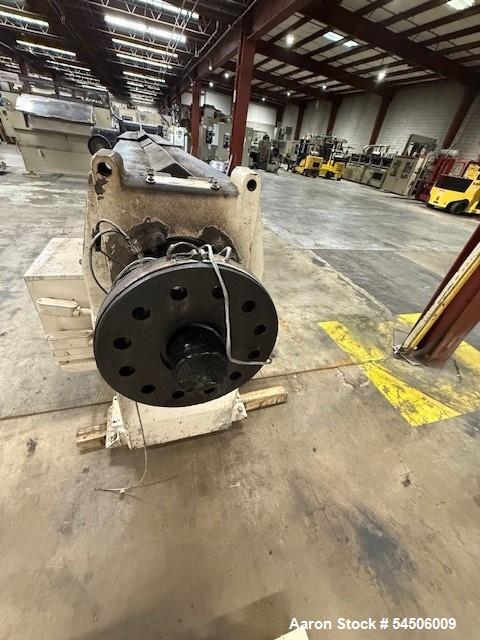

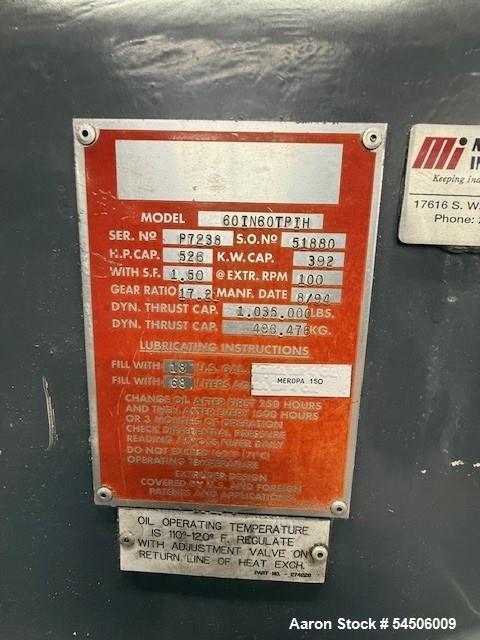

| Gearbox | Davis-Standard 60IN60TPIH |
| Gearbox Ratio | 17.2:1 |
| Gearbox Rating | 526 HP |
| Service Factor | 1.5 |
| Barrel Temperature Controllers | Six (6) Solo 4896 |
| Die Temperature Controllers | Seven (7) Omron E5EC |
| Operator Controls | Speed Pod with Screw RPM, Motor Load & Pressure Gauges |
| Hopper | Included |
| Centerline Height | 42 in. |
| Approximate Footprint | 25 ft. L × 8 ft. W |
| Serial Number | PT238 |
| Year Manufactured | 1994 |
| Condition | Used |
Applications
This extrusion system is commonly used for:
- Plastic pipe extrusion
- Sheet extrusion
- Profile extrusion
- Plastic recycling
- Polymer compounding
- Pelletizing
- Wire and cable insulation
- Film extrusion
- Thermoplastic processing
- Engineering resin production
- Custom extrusion
- Industrial plastics manufacturing
Common Materials Processed
- Polyethylene (PE)
- High-Density Polyethylene (HDPE)
- Low-Density Polyethylene (LDPE)
- Polypropylene (PP)
- PVC
- ABS
- Polystyrene (PS)
- Engineering thermoplastics
- Recycled plastics
- Filled polymer compounds
- Specialty resins
- Custom polymer blends
Features & Benefits
- Heavy-duty 6-inch single screw extruder
- Extended 34:1 L/D ratio for improved melt quality
- Water-cooled vented barrel
- Six independent cooling zones
- Vented barrel for devolatilization or moisture removal
- 400 HP WEG AC motor
- ABB variable frequency drive
- Heavy-duty Davis-Standard gearbox rated for 526 HP
- Solo and Omron digital temperature controllers
- Integrated operator speed pod
- Includes hopper
- 42-inch centerline height for production line integration
Frequently Asked Questions
What is the advantage of the 34:1 L/D ratio?
The extended 34:1 L/D ratio provides increased residence time for improved melting, mixing, homogenization, and processing consistency compared to shorter extruders.
Is the barrel vented?
Yes. The extruder features a vented barrel located approximately 130 inches from the center of the feed throat. The vent is currently plugged but can be configured for devolatilization or vacuum venting applications.
What drive system is installed?
The machine is powered by a 400 HP WEG AC motor with an ABB AC variable frequency drive, providing accurate speed control and energy-efficient operation.
How is barrel cooling accomplished?
The barrel incorporates six water-cooling zones supplied by a 1/2 HP recirculation pump, heat exchanger, and integrated water reservoir.
What operator instrumentation is included?
The operator station includes a speed pod displaying screw RPM, motor load percentage, and pressure transducer readings for process monitoring.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment offers complete domestic and international shipping, export documentation, freight coordination, heavy-haul transportation, and logistics services for extrusion equipment and complete plastics processing lines.
