Your Guide To Understanding Stainless Steel Shell and Tube Heat Exchangers
If you're delving into the world of heat exchangers, chances are you'll come across the stainless steel shell and tube heat exchanger. This type of heat exchanger enjoys widespread use due to its versatility and efficiency. Let's break down what stainless steel shell and tube heat exchangers are, how they work, and why they might be the right choice for your application.
What Are Stainless Steel Shell and Tube Heat Exchangers?

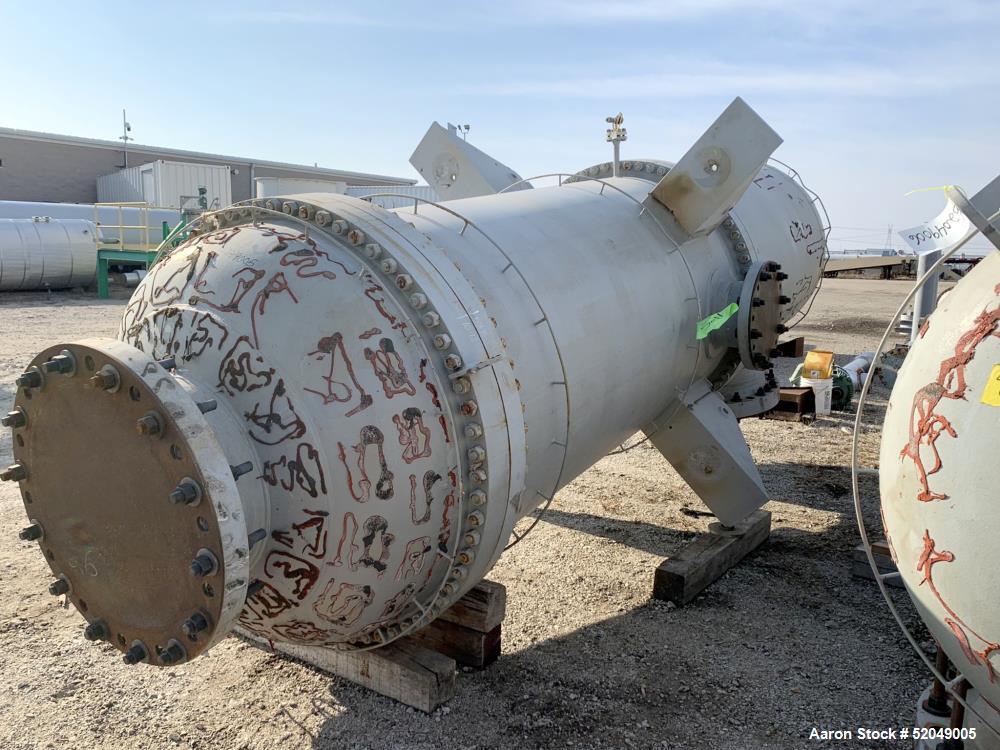

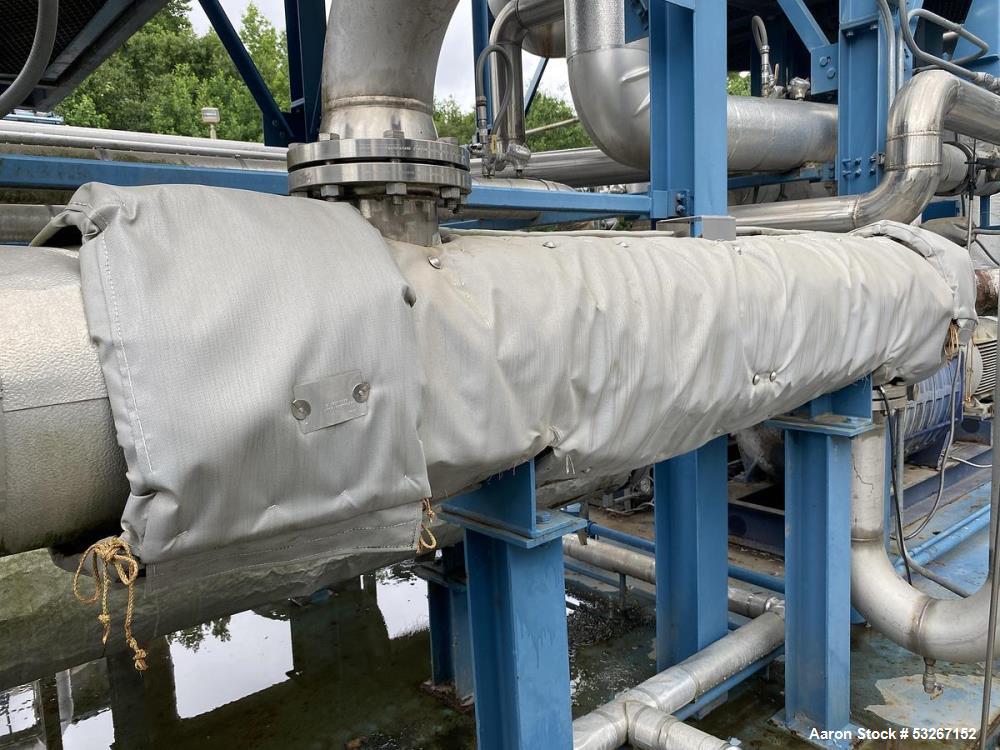

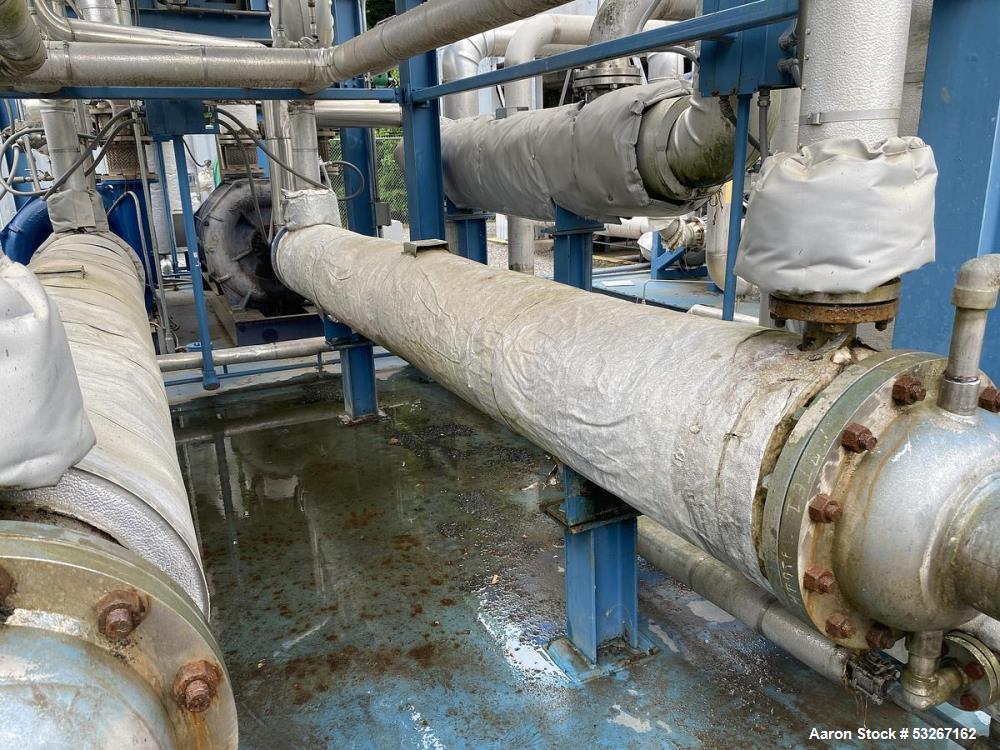

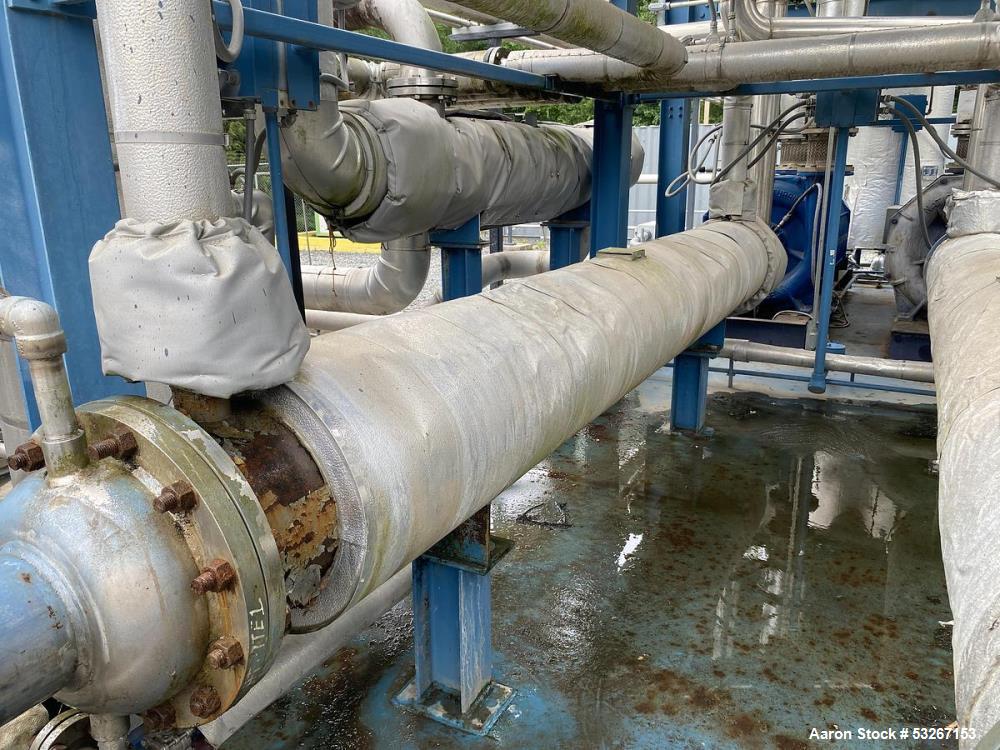

Stainless Steel shell and tube heat exchangers transfer heat from one fluid to another. They consist of a series of tubes—called the tube bundle—housed within a cylindrical shell. The basic idea is that one fluid runs through the tubes, and another flows over the tubes within the shell, exchanging heat between the two fluids.
Key Components
To better understand how these heat exchangers work, it's essential to know their primary components:

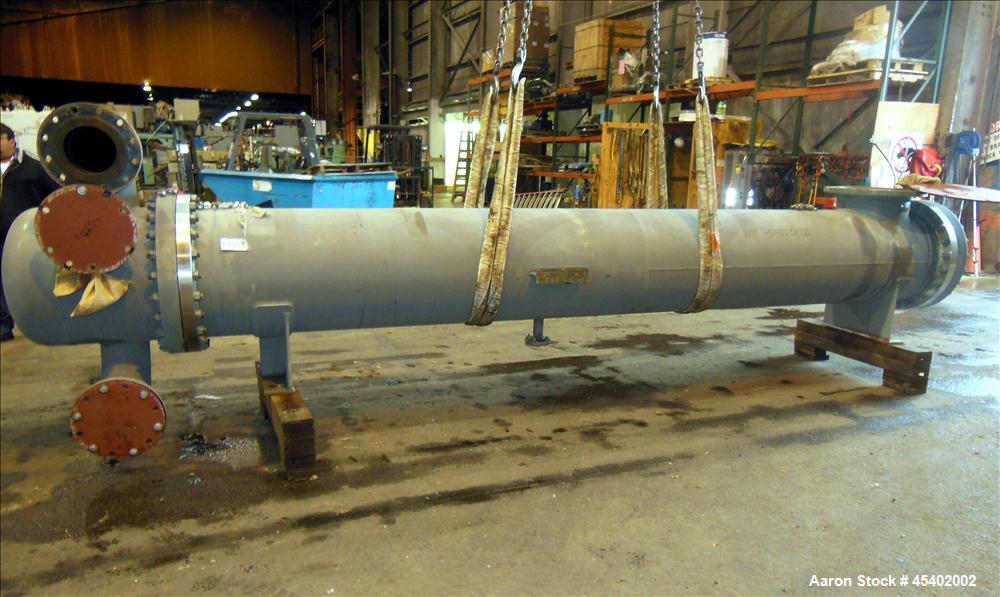

- Shell: The outer vessel that holds the tube bundle. It directs the flow of one of the fluids around the tubes.

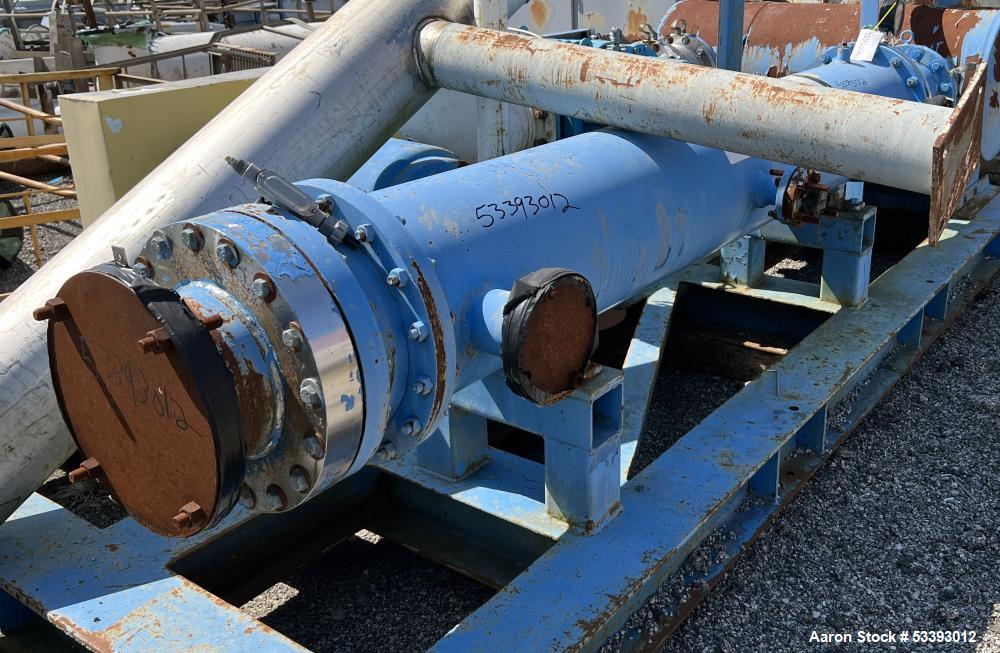

- Tube Sheets: These are flat plates at the shell's end that hold the tubes in place.
- Tube Bundle: A collection of tubes through which the fluid flows. It's the core component where heat exchange occurs.
- Baffles: These are plates within the shell that direct the flow of fluid across the tube bundle, improving heat transfer efficiency.
- Tie Rods and Spacers: They keep the baffles and tube bundle within the shell.
How Do Stainless Steel Shell and Tube Heat Exchangers Work?
The operation of shell and tube heat exchangers is straightforward yet highly effective. Here's a step-by-step look at the process:

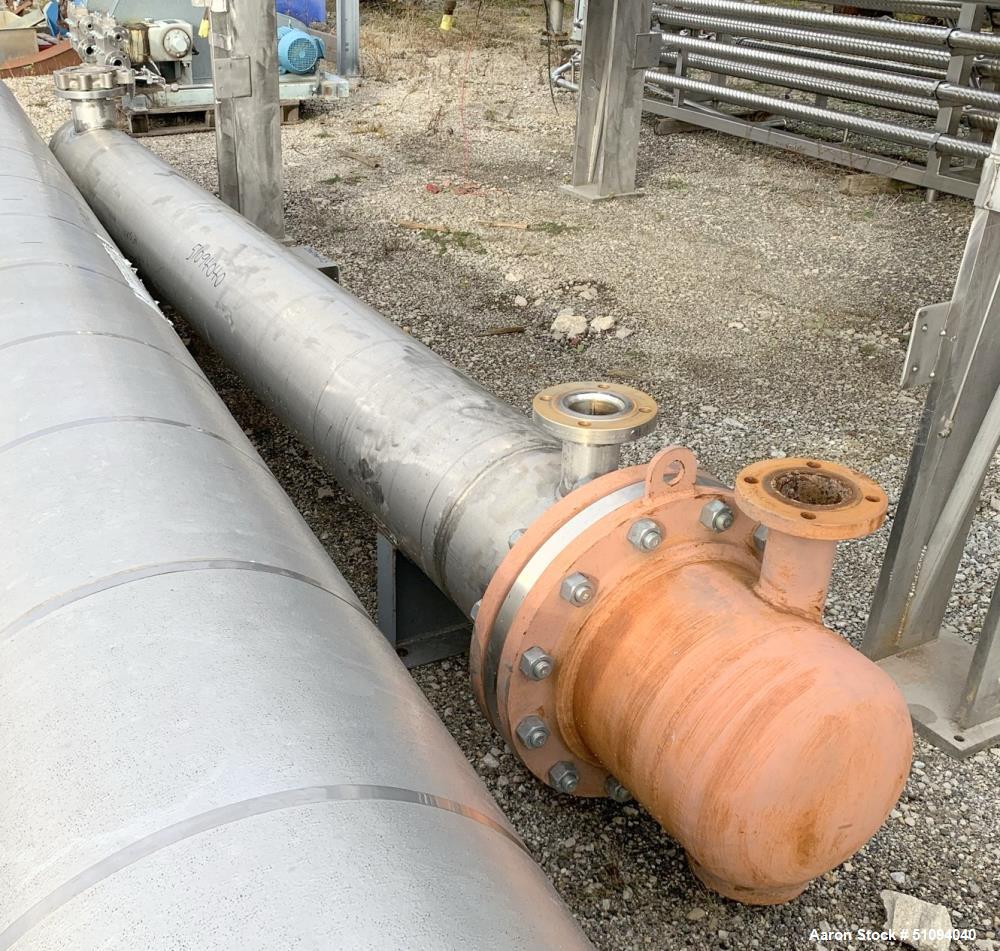

- Fluid Entry: One fluid enters the tube side through an inlet and flows through the tube bundle.
- Heat Exchange: The second fluid enters the shell side, flowing over and around the tubes. The heat exchange happens here as the fluids move in opposite directions (counterflow) or the same direction (parallel flow).
- Fluid Exit: The heated or cooled fluid exits through the outlet on its respective side—shell or tube.
Types of Flow
The efficiency of a heat exchanger can depend significantly on the type of flow within the device:
- Counterflow: fluids flow in opposite directions. This setup provides the highest heat transfer efficiency.
- Parallel flow: occurs when both fluids move in the same direction. It is less efficient than counterflow but is used in specific applications.
- Crossflow: The fluids move perpendicular to one another, a design often used in air-cooled heat exchangers.
Types of Stainless Steel Shell and Tube Heat Exchangers
Shell and tube heat exchangers come in various designs to suit applications and industry needs. Here are the primary types:

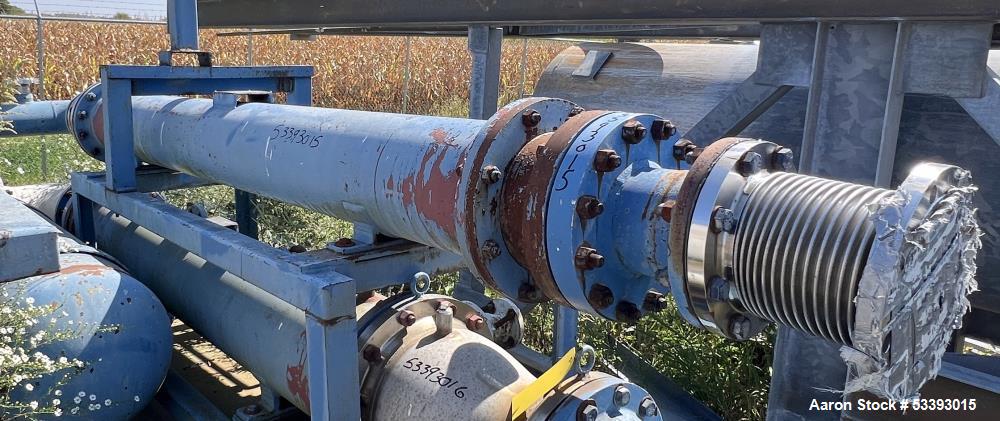

- Fixed Tube Sheet Design: This is the most straightforward design, where the tube sheets are welded directly to the shell. It's easy to manufacture and maintain but can be challenging to clean, as the tube bundle is not removable.

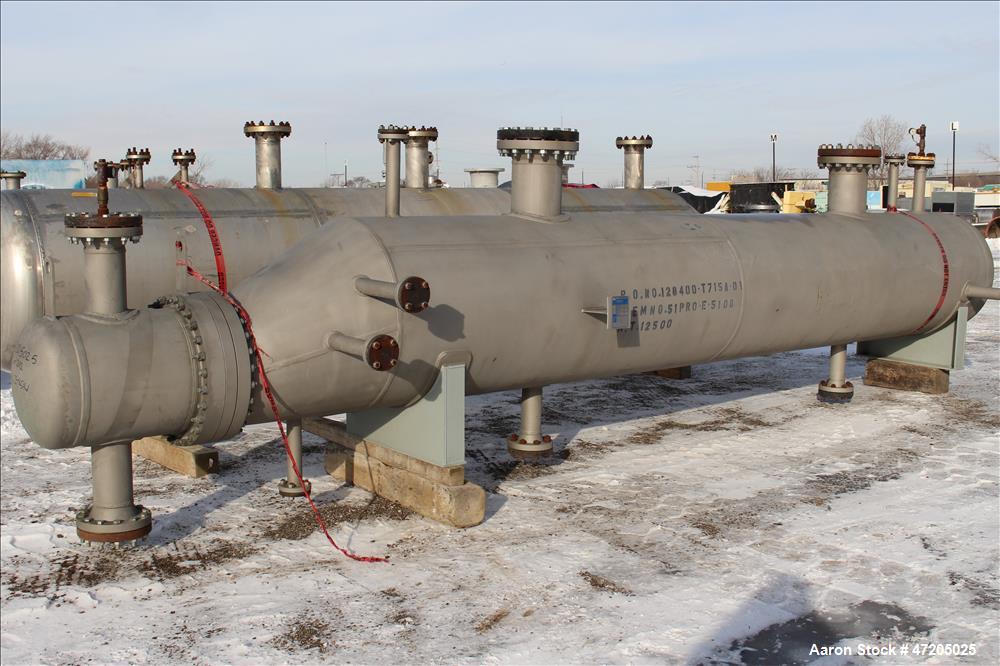

- U-tube Design: In this design, the tubes are bent into a U-shape, allowing for thermal expansion without causing stress on the tubes. The U-tube design is particularly useful when dealing with fluids at varying temperatures.
- Floating Head Design: The floating head design allows one end of the tube bundle to move freely, accommodating differential thermal expansion between the shell and the tubes. This design is ideal for applications requiring frequent cleaning.
Advantages of Stainless Steel Shell and Tube Heat Exchangers
Shell and tube heat exchangers offer several benefits that make them a popular choice across industries:
- Versatility: They can handle a wide range of temperatures and pressures.
- Efficiency: Capable of transferring significant amounts of heat between fluids.
- Durability: Built to withstand harsh industrial environments.
- Scalability: Easily scaled up or down to meet specific heat transfer requirements.
- Maintenance: Certain designs allow for easy maintenance and cleaning.
Considerations and Limitations
While stainless steel shell and tube heat exchangers are versatile and practical, they do have limitations:
- Size: They can be large and heavy, requiring significant space and structural support.
- Cost: Initial investment can be high, though operational savings often offset this.
- Fouling: Tube fouling can occur, impacting efficiency and requiring regular maintenance.
Applications of Stainless Steel Shell and Tube Heat Exchangers
Due to their adaptability, various industries use shell and tube heat exchangers for the following applications :

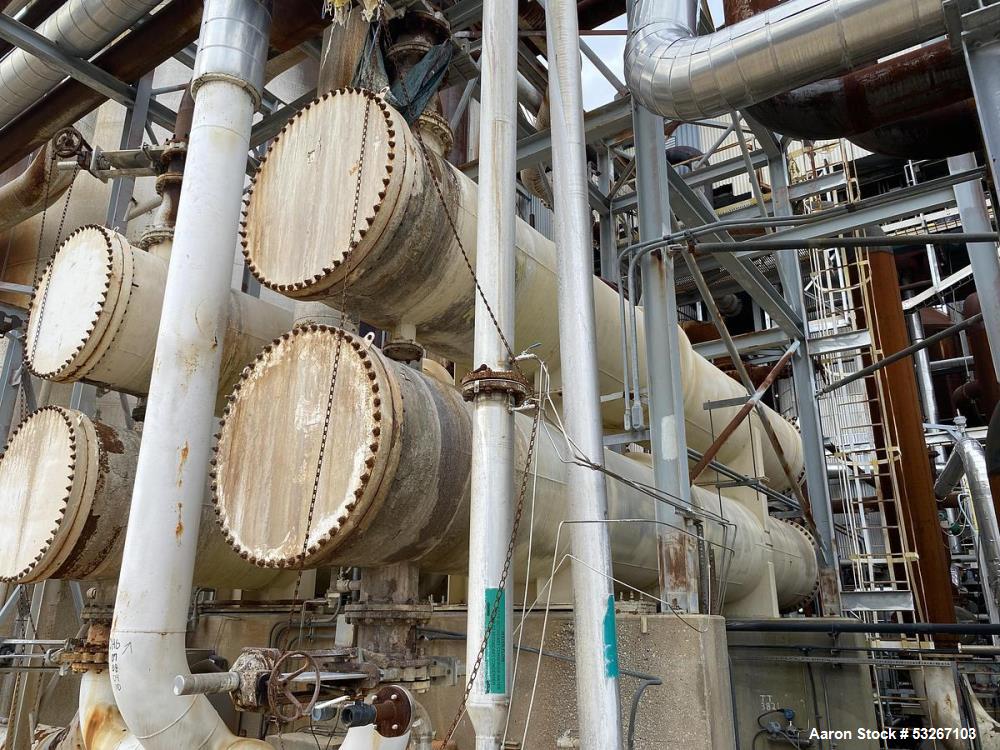

- Petrochemical and Chemical Processing: These industries use heat exchangers to heat or cool petroleum products and chemicals.
- Power Generation: Essential in steam turbines and condensers.
- HVAC Systems: Used for heating and cooling air and water in large buildings.
- Food and Beverage: Involved in pasteurization and temperature control processes.
Top Heat Exchanger Brands
While many reputable manufacturers exist, the US market has shown a preference for the following manufacturers:
- API Heat Transfer, Xylem, Koch Heat Transfer, Southern Shell and Tube Heat Exchanger, Anhydro, and Doyle and Roth
Stainless steel shell and tube heat exchangers are a cornerstone of industrial heat exchange technology. Understanding their components, operations, and types will help you choose the right one. Their robust design and versatility make them reliable solutions for heat transfer applications across various industries. By considering your application's specific requirements and weighing the advantages and limitations, you can make an informed decision about whether a stainless steel shell-and-tube heat exchanger is the right choice for you.
