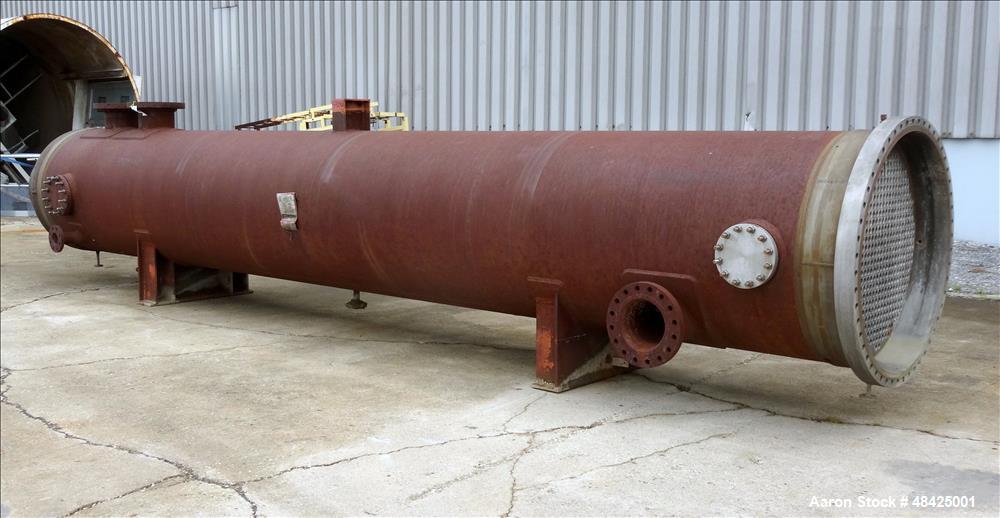

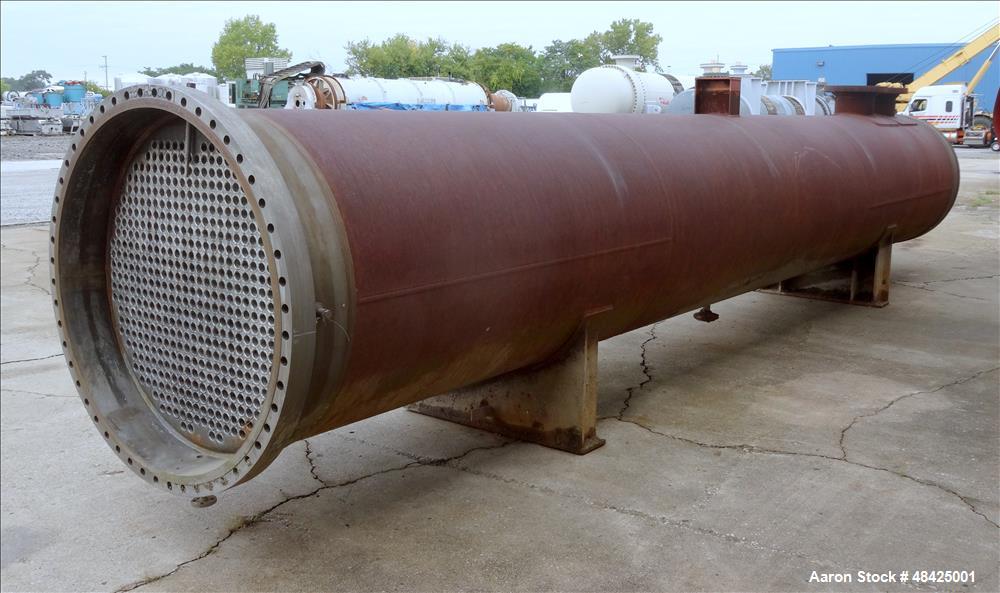

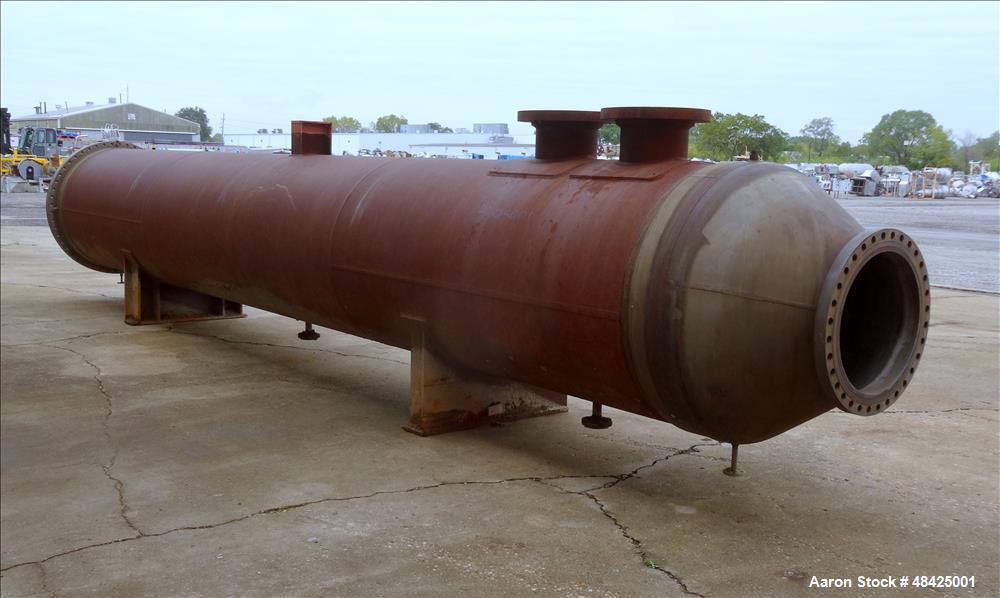

Used Southern Heat Exchanger Shell & Tube Heat Exchanger – 4,372 Sq Ft, Carbon Steel Shell, 430 SS Tubes
Used Southern Heat Exchanger Shell & Tube Heat Exchanger, Approximate 4,372 Square Feet, Horizontal. (514) 1-1/4" Diameter x approximate 307" long 430 stainless steel tubes rated 160 psi at 20 to 450 degrees F. Carbon steel shell rated 305 psi at 20 to 650/450 degrees F. Openings shell (2) 12", (1) 10", (1) 4", tubes (1) 22-1/2". Single head, 321 stainless steel. Saddle mounted. National Board # 12268, Serial # 03-407. Built 2005. NOTE: No Head.
| Manufacturer | Southern Heat ExchangerSouthern Heat Exchanger |
| Serial # | 03-407 |
| Category | Heat ExchangersHeat Exchangers |
| Subcategory | Shell & Tube StainlessShell & Tube Stainless |
| Square Footage | 4,372 |
| Horizontal or Vertical | Horizontal |
| Shell Material | Carbon Steel |
| Shell Pressure | 305 psi |
| Shell Temperature | 20 to 650/450 degrees F |
| Number of Shell Openings | 4 |
| Size of Shell Openings | (2) 12", (1) 10", (1) 4" |
| Tube Pressure | 160 psi |
| Tube Temperature | 20 to 450 degrees F |
| Number of Tube Openings | 1 |
| Size of Tube Openings | 22-1/2" |
| Mounted | Saddle Mounted |
| National Board No. | 12268 |
| Overall Dimensions | 345"L X 60"W X 72"T |
| Year Built | 2005 |
| Tube Length | Approximately 307" |

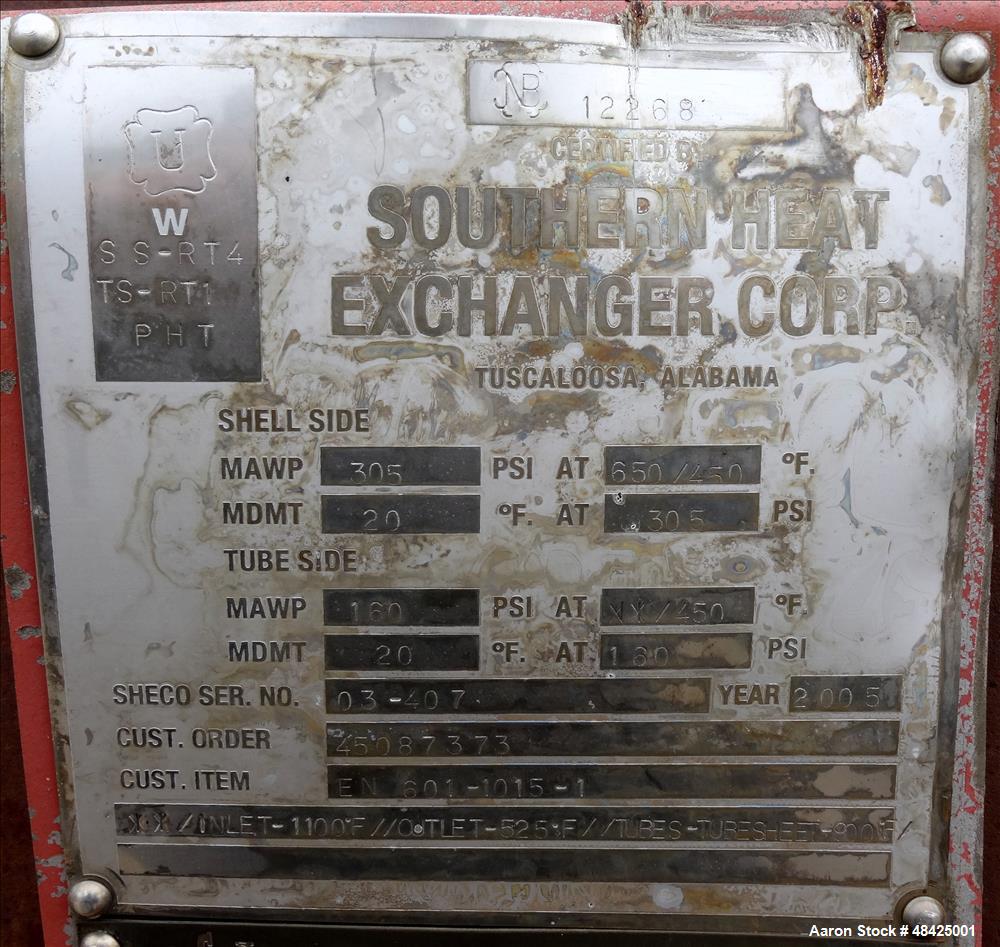

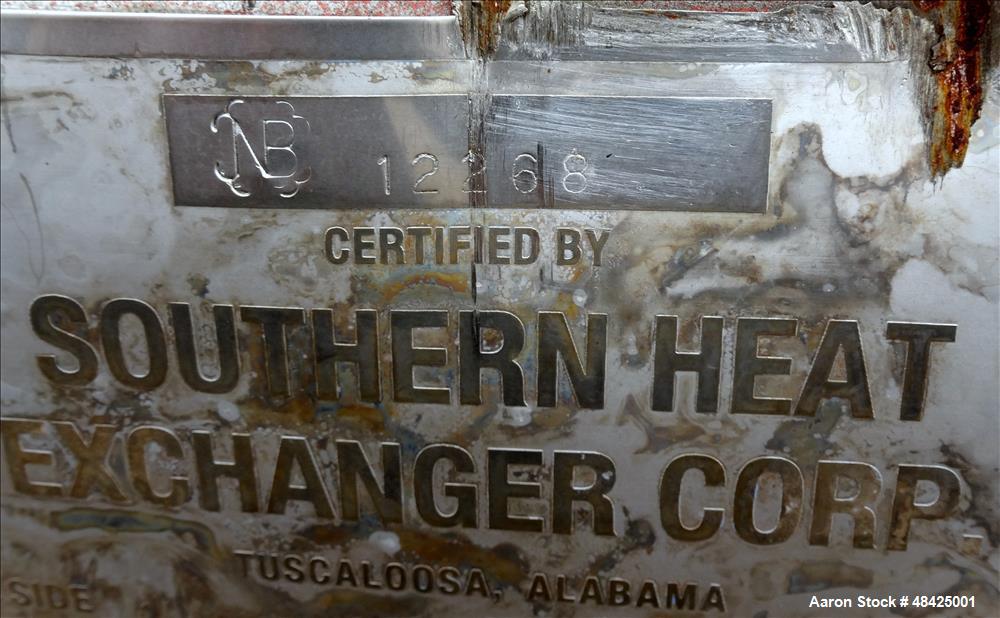

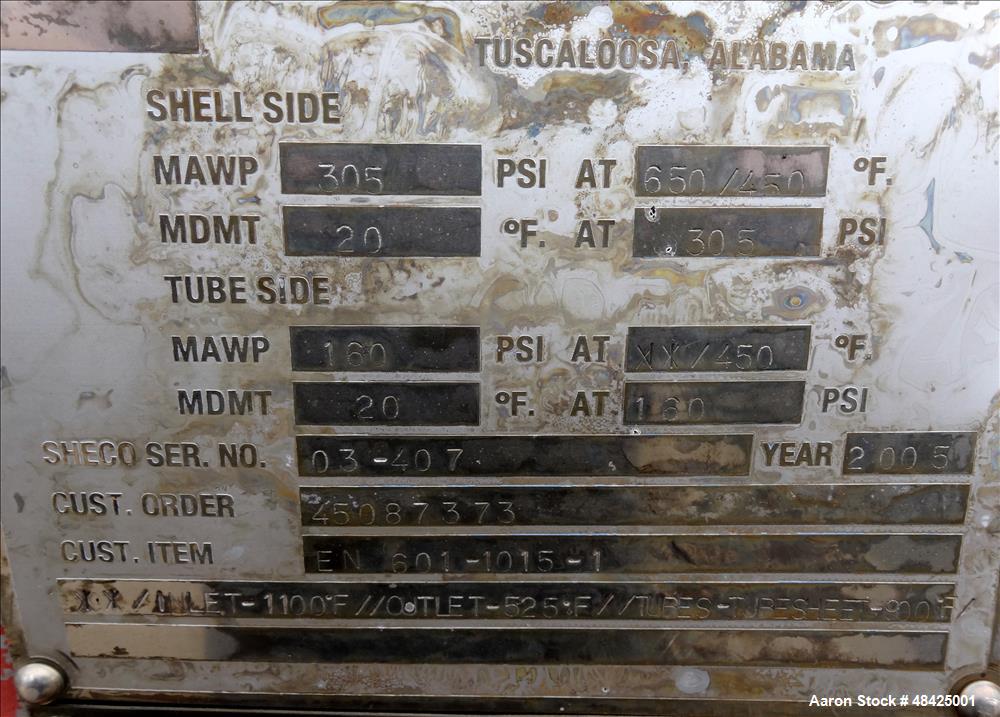

Manufacturer Information
- Manufacturer: Southern Heat Exchanger
- National Board Number: 12268
- Serial Number: 03-407
- Year Built: 2005
Description
This Used Southern Heat Exchanger Shell & Tube Heat Exchanger offers a large 4,372 square feet heat transfer surface, making it suitable for high-performance industrial heat exchange applications. Constructed with a carbon steel shell rated for 305 psi at 20°F to 650°F/450°F, it ensures durability and pressure resistance. The (514) 1-1/4" diameter, 307" long 430 stainless steel tubes are rated for 160 psi at 20°F to 450°F, providing effective heat transfer. The unit is saddle mounted for stable installation and features multiple large openings for efficient fluid transfer. Note: No head included.
Specifications
- Heat Transfer Surface: Approximately 4,372 square feet
- Tube Material: 430 Stainless Steel

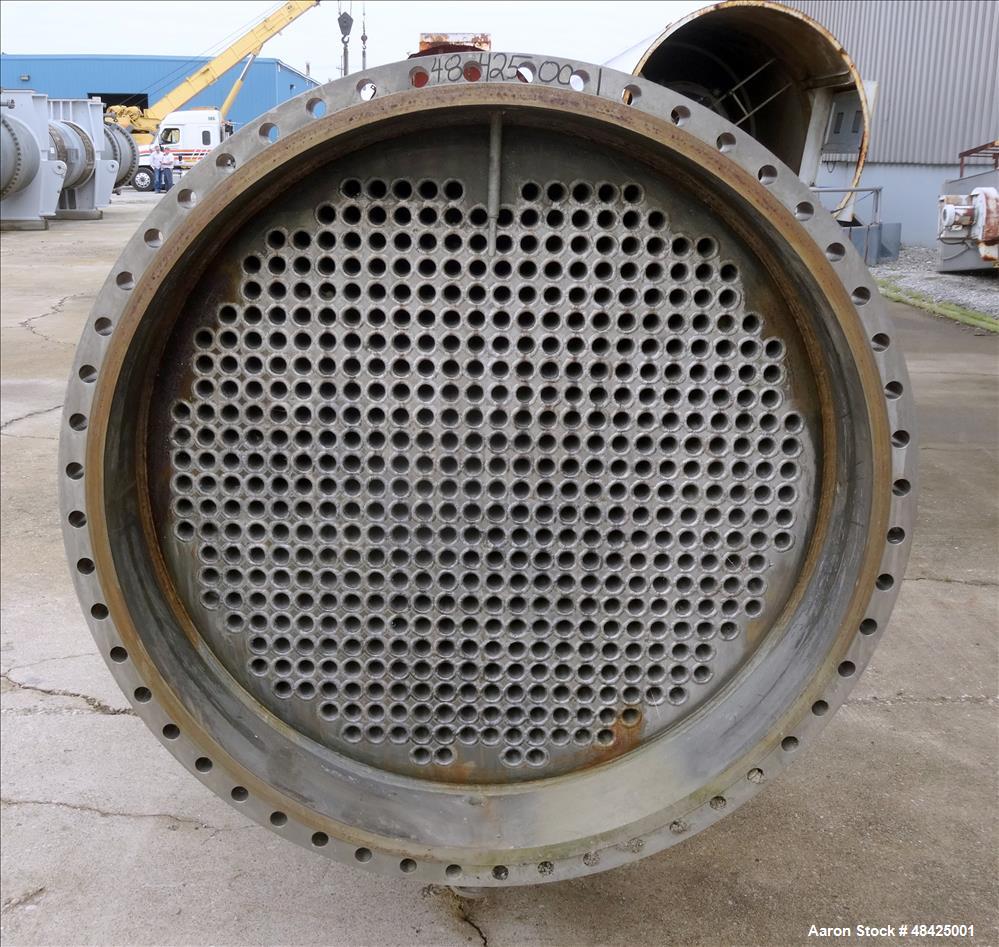

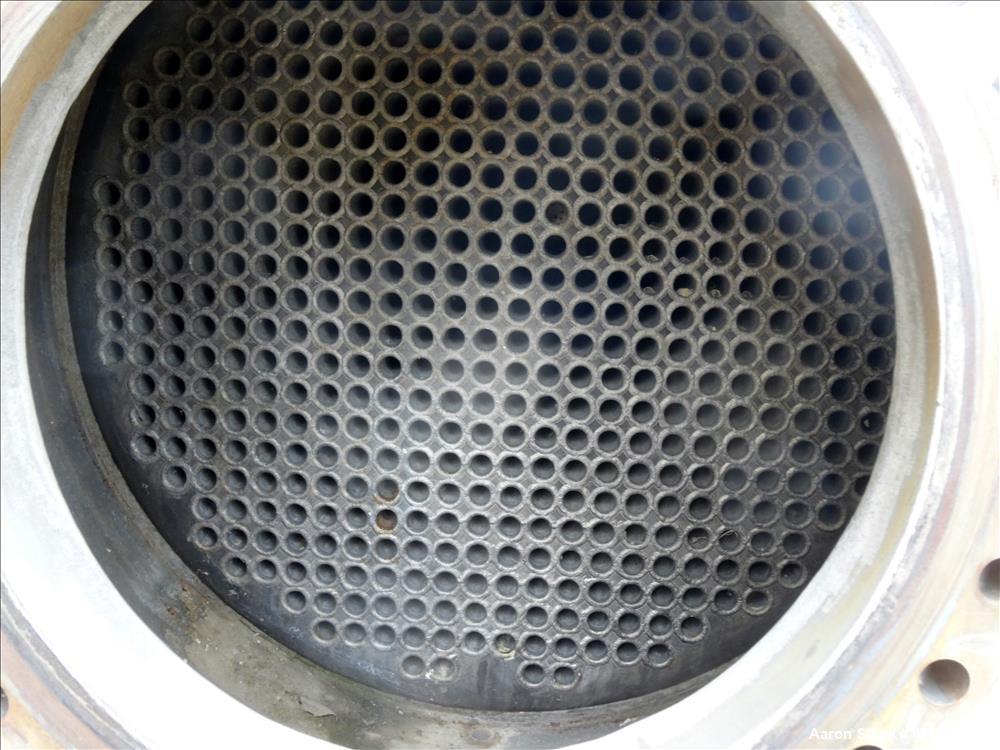

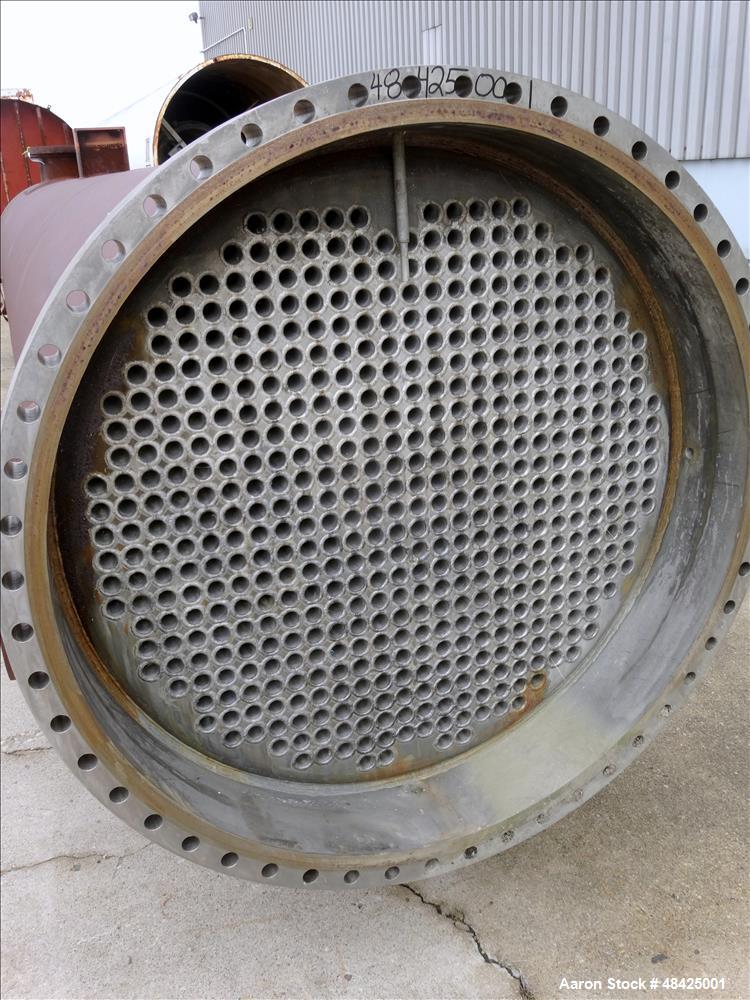

- Tube Size: (514) tubes, 1-1/4" diameter x approx. 307" long
- Tube Rating: 160 psi at 20°F to 450°F
- Shell Material: Carbon Steel
- Shell Rating: 305 psi at 20°F to 650°F/450°F

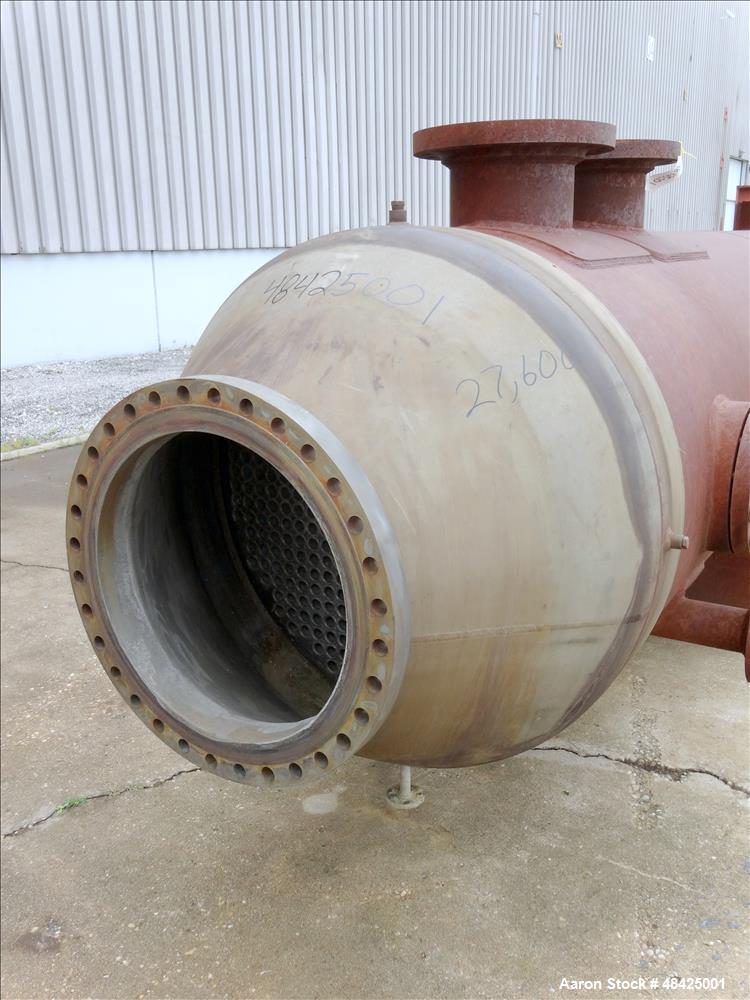

- Head Type: Single head (not included), 321 Stainless Steel

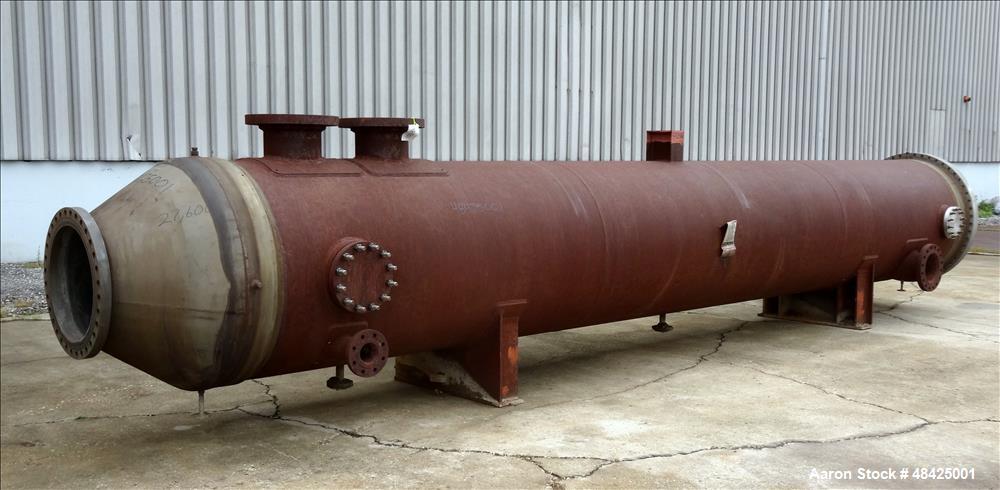

- Openings:
- Shell: (2) 12", (1) 10", (1) 4"
- Tubes: (1) 22-1/2"

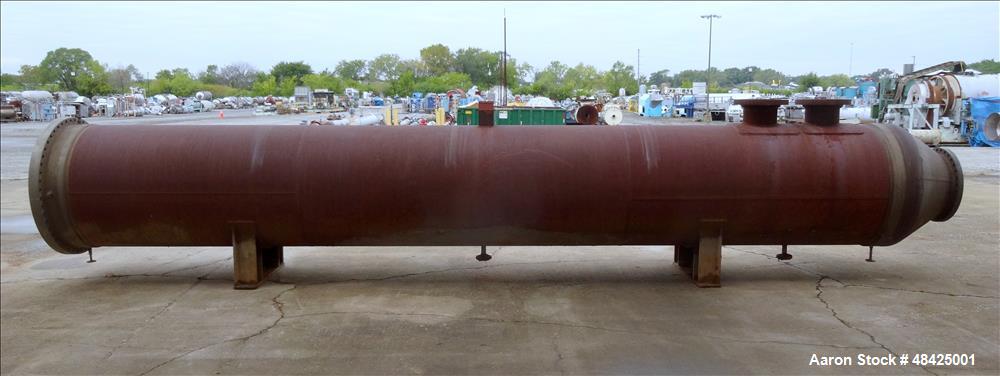

- Mounting: Saddle mounted
Applications
This heat exchanger is designed for industries requiring high-efficiency heat transfer and durable construction, including:
- Oil & gas processing
- Power generation
- Chemical & petrochemical industries
- Refinery operations
- Pulp & paper industry
- Industrial heating and cooling systems
- Thermal energy recovery
- Process cooling and heating units
- Boiler feedwater heaters
- Steam and gas condensers
- Waste heat recovery systems
- High-temperature process fluid exchangers
- Refrigeration and HVAC applications
