Used 272 Sq Ft Heat Exchanger, Duplex 2205 Tubes, 316L Shell, High Temp 430°F

Manufacturer / Equipment Info

• Manufacturer: Wuxi Chemical Equipment
• Type: Horizontal Shell & Tube Heat Exchanger
• Year Built: 2023

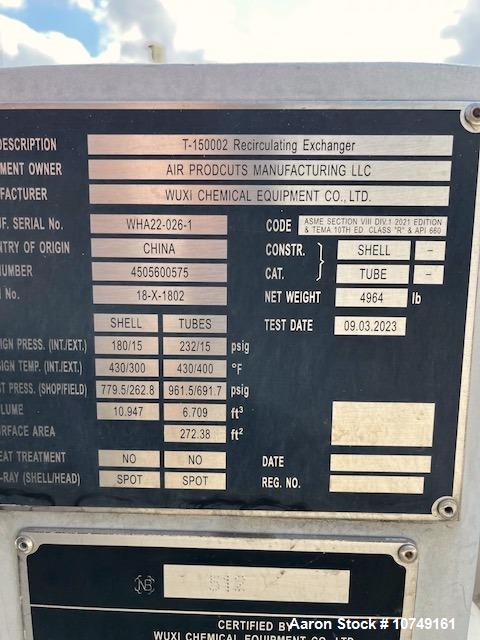

• National Board #: 512
• Serial #: WHA22-026-1
• Condition: Used

Description

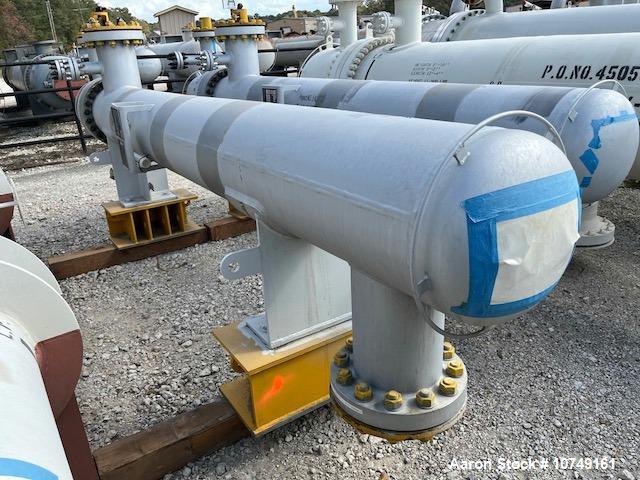

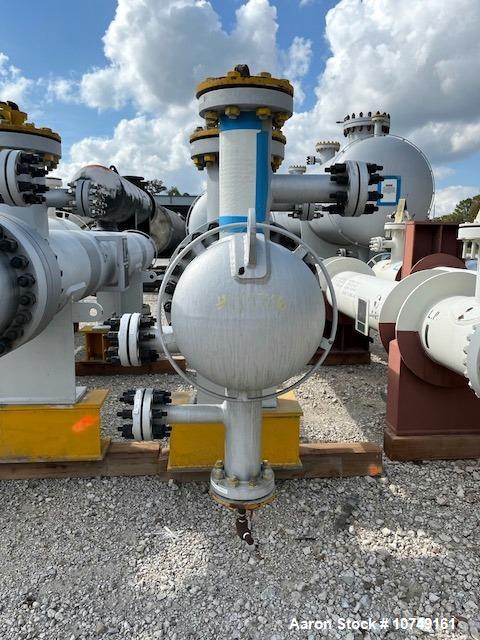

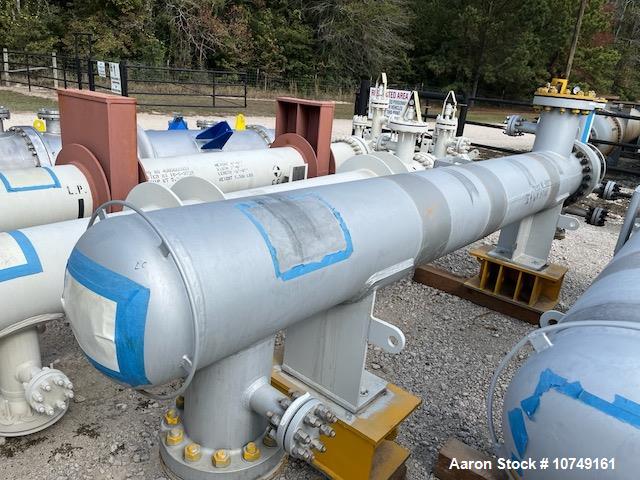

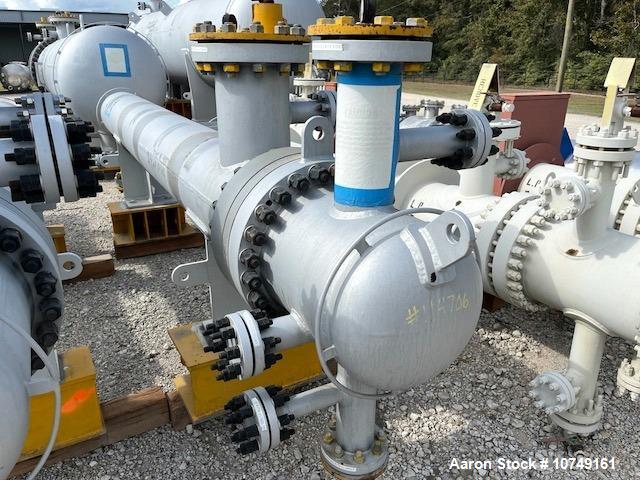

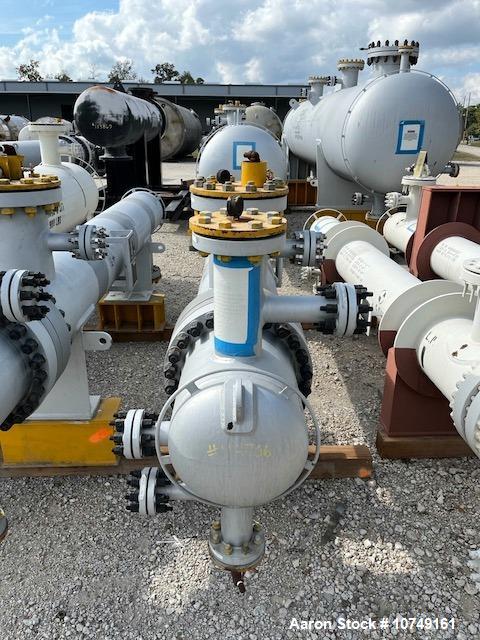

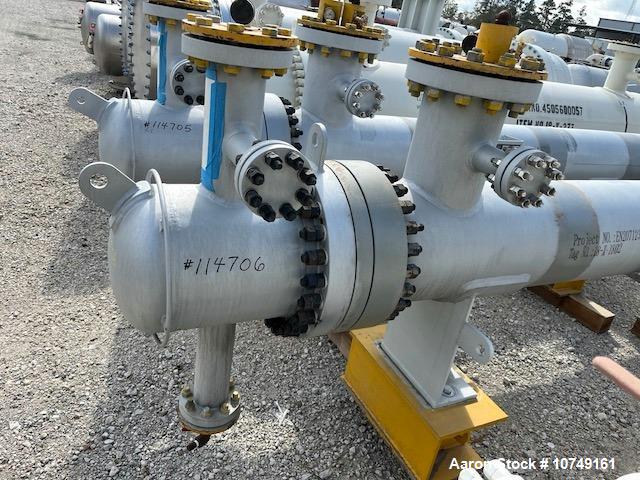

Used Wuxi Chemical Equipment horizontal shell and tube heat exchanger with approximately 272 square feet of heat transfer surface area, designed for efficient performance in high-temperature and high-pressure applications. This unit features Duplex 2205 stainless steel tubes for superior corrosion resistance and strength, combined with a 316L stainless steel shell for enhanced durability in aggressive process environments.

The exchanger includes 10' 6" tube length and a 15-inch shell diameter, providing a compact yet effective heat transfer solution. The tube side is rated at 532 PSI at 32°F to 430°F, while the shell side is rated at 186.7 PSI at 32°F to 430°F, making it suitable for demanding thermal processing conditions. Built in 2023, this unit offers modern construction and dependable operation.

Specifications

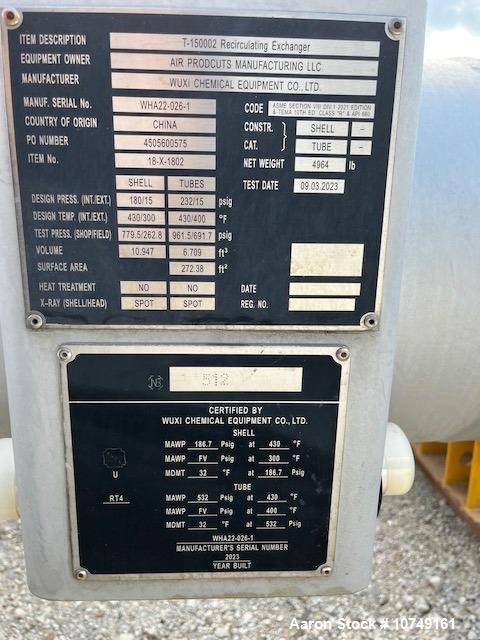

• Manufacturer: Wuxi Chemical Equipment
• Type: Horizontal shell & tube heat exchanger
• Heat transfer area: ~272 sq ft
• Tube material: Duplex 2205 stainless steel
• Tube length: 10' 6"
• Shell material: 316L stainless steel
• Head material: Carbon steel
• Shell diameter: 15 inches

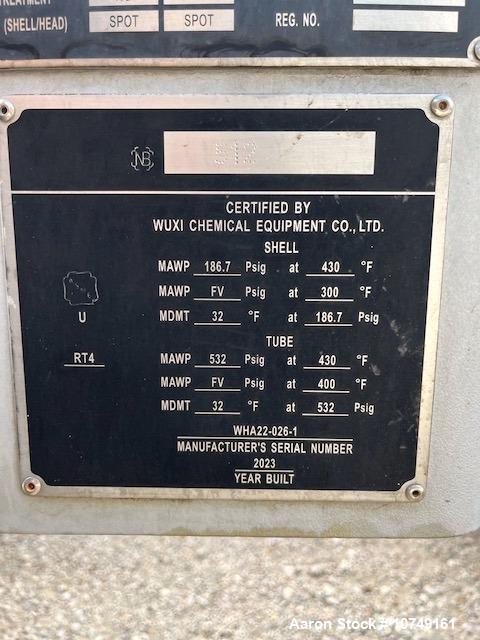

• Tube side rating: 532 PSI @ 32–430°F
• Shell side rating: 186.7 PSI @ 32–430°F
• National Board #: 512
• Serial #: WHA22-026-1
• Year built: 2023
• Condition: Used

Applications
Commonly used in:

• Chemical and petrochemical processing
• Oil & gas operations
• Pharmaceutical manufacturing
• Food and beverage processing
• Power generation
• HVAC and plant utilities
• Water and wastewater treatment
• High-temperature process systems

What products would this be used for

• Process chemicals
• Corrosive fluids
• Water and glycol systems
• Oils and lubricants
• Steam and condensate
• Heat transfer fluids
• Industrial solvents
• Pharmaceutical liquids
• Food-grade liquids
• High-temperature process streams
