Manufacturer Information

Manufacturer: JFD Tube & Coil Products Inc.
Serial Number: 10215-B

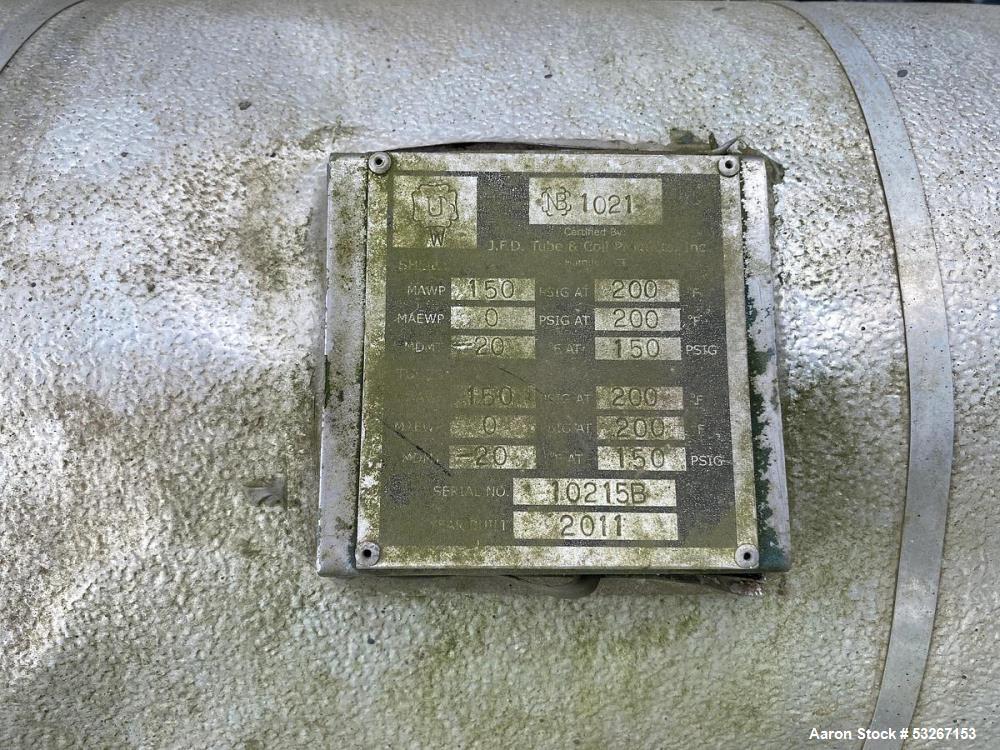

National Board Number: 1021
Equipment Type: Shell & Tube Heat Exchanger
Heat Transfer Area: 282.5 Square Feet
Year Built: 2011
Condition: Used

Description

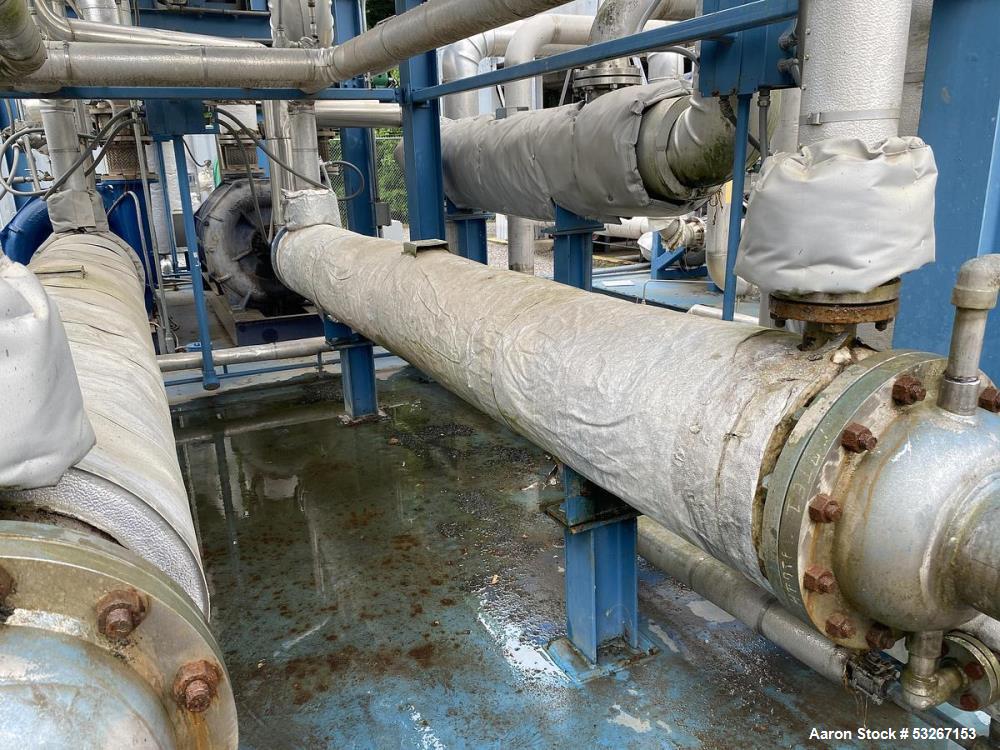

Available for sale is a used JFD Tube & Coil Products Inc. shell and tube heat exchanger featuring approximately 282.5 square feet of heat transfer surface area. Constructed from 304L stainless steel on both the shell and tube sides, this exchanger is designed for industrial cooling, process heating, utility service, food processing, pharmaceutical production, and chemical manufacturing applications.

The exchanger incorporates a 12-inch diameter shell with an approximate 144-inch face-to-face length and contains 122 stainless steel tubes measuring 0.75 inches in diameter. The unit is configured as a single-pass shell and tube exchanger, providing efficient thermal transfer for a wide range of process fluids.

Both shell and tube sides are rated for 150 PSIG operating pressure at temperatures ranging from -20°F to 200°F. The exchanger is equipped with 6-inch process connections and 2.5-inch service connections, allowing integration into a variety of industrial systems. The unit is mounted on carbon steel saddles and carries National Board registration for pressure vessel service.

Specifications

General Information

• Manufacturer: JFD Tube & Coil Products Inc.
• Serial Number: 10215-B
• National Board Number: 1021
• Equipment Type: Shell & Tube Heat Exchanger
• Year Built: 2011
• Condition: Used

Heat Transfer Area

• Total Heat Transfer Surface Area: 282.5 Square Feet

Shell Specifications

Material of Construction

• 304L Stainless Steel

Shell Diameter

• 12 Inches

Face-to-Face Length

• Approximately 144 Inches

Pressure Rating

• 150 PSIG

Temperature Rating

• -20°F to 200°F

Tube Bundle Specifications

Tube Material

• 304L Stainless Steel

Tube Quantity

• 122 Tubes

Tube Diameter

• 0.75 Inches

Pressure Rating

• 150 PSIG

Temperature Rating

• -20°F to 200°F

Flow Configuration

• Single Pass Design
• Shell & Tube Construction
• Horizontal Installation

Connections

Process Side Connections

• 6 Inch Nozzles

Service Side Connections

• 2.5 Inch Nozzles

Mounting

• Carbon Steel Saddle Supports
• Horizontal Orientation

Weight

• Approximate Weight: 1,700 Pounds

Applications

• Process cooling
• Process heating
• Water-to-water heat transfer
• Glycol cooling systems
• Chemical processing
• Food manufacturing
• Beverage production
• Pharmaceutical processing
• Utility systems
• HVAC systems
• Industrial thermal transfer
• Energy recovery applications

Products This Equipment Would Be Used For

• Process water
• Cooling water
• Glycol solutions
• Heated water
• Chemical solutions
• Beverage ingredients
• Food products
• Pharmaceutical fluids
• Utility fluids
• Cleaning solutions
• Industrial liquids
• Process streams

Frequently Asked Questions

• What is the heat transfer area of this exchanger?
  The exchanger provides approximately 282.5 square feet of heat transfer surface area.
• Who manufactured the unit?
  The exchanger was manufactured by JFD Tube & Coil Products Inc.
• What material is used for construction?
  Both the shell and tube bundle are constructed from 304L stainless steel.
• How many tubes are installed?
  The exchanger contains 122 stainless steel tubes.
• What size are the tubes?
  The tubes measure approximately 0.75 inches in diameter.
• What are the pressure ratings?
  Both shell and tube sides are rated for 150 PSIG.
• What temperature range is the exchanger designed for?
  The exchanger is rated from -20°F to 200°F.
• What connection sizes are installed?
  The exchanger features 6-inch process nozzles and 2.5-inch service nozzles.
• What type of exchanger is this?
  It is a single-pass shell and tube heat exchanger.
• Is the exchanger National Board registered?
  Yes, the unit carries National Board registration number 1021.
