Used 2010 GEA 120 Sq. Ft. Shell & Tube Heat Exchanger – 316L Stainless Tubes, 350/450 PSI Rated

Manufacturer Information

GEA

GEA manufactures industrial heat-transfer and process equipment used across food, beverage, chemical, refrigeration, energy, and general processing applications. Shell-and-tube heat exchangers provide indirect heat transfer between separate fluid circuits for heating, cooling, condensing, and heat-recovery duties.

This GEA shell-and-tube heat exchanger provides approximately 120 square feet of heat-transfer surface with 316L stainless steel tubes and a carbon steel shell.

Description

Available for sale is a used 2010 GEA shell-and-tube heat exchanger with approximately 120 square feet of heat-transfer area.

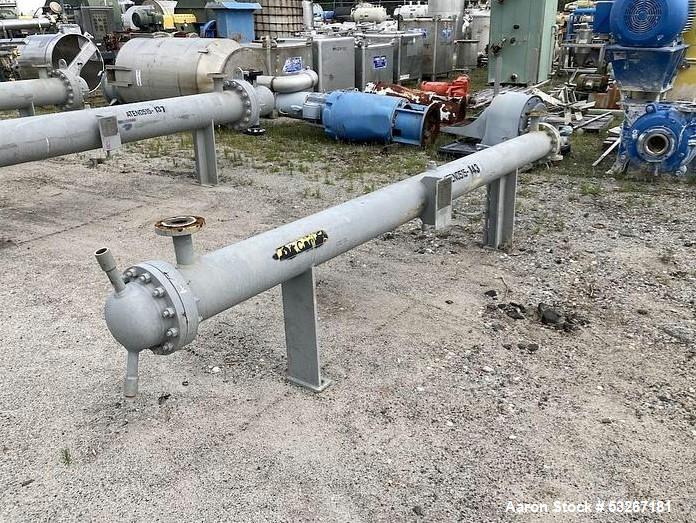

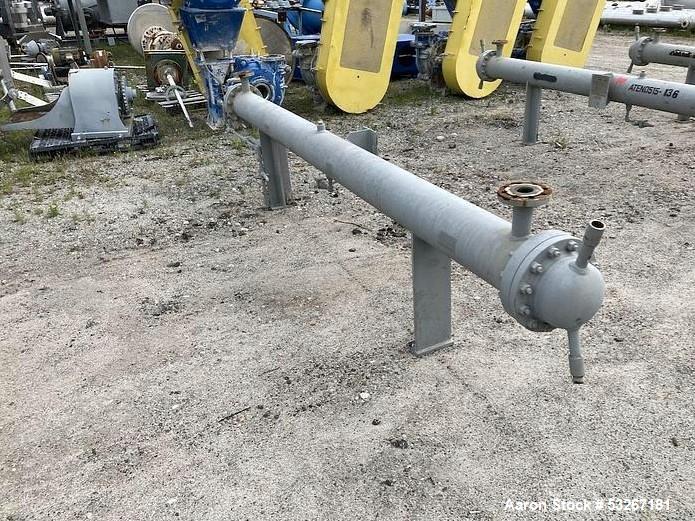

The exchanger measures approximately 8" in diameter x 144" face-to-face overall length and contains 60 316L stainless steel tubes. The tubes are rated for 350 PSI at temperatures from -20°F to 500°F.

The carbon steel shell is rated for 450 PSI over the same -20°F to 500°F temperature range and features epoxy-coated carbon steel heads.

Service-side connections include 2" service nozzles and two 3/4" vent/drain connections. The process side incorporates a 1.5" process nozzle, two 2" vent/drain connections, and two 3/4" instrument inlets.

The exchanger is leg mounted and identified as Serial No. 100368 and National Board No. 17048.

Specifications

Pressure ratings, nameplate data, National Board documentation, materials, current mechanical condition, and applicable inspection requirements should be verified before returning the exchanger to pressure service.

Typical Applications

• Process heating
• Process cooling
• Heat recovery
• Industrial refrigeration
• Liquid temperature control
• Utility heat exchange
• Chemical processing
• Process fluid preheating
• Water heating and cooling
• Condensing service
• Thermal fluid processing
• General industrial heat transfer

Products This Heat Exchanger Could Be Used For

• Process water
• Cooling water
• Glycol solutions
• Compatible refrigerants
• Chemical solutions
• Food and beverage process liquids
• Cleaning solutions
• Thermal fluids
• Compatible oils
• Process intermediates
• Industrial process fluids
• Other fluids compatible with 316L stainless steel and carbon steel

Actual suitability and heat-transfer performance depend on fluid chemistry, temperature, pressure, flow rate, viscosity, fouling characteristics, required thermal duty, allowable pressure drop, and materials compatibility.

Frequently Asked Questions

• How much heat-transfer surface does this exchanger have? The unit provides approximately 120 square feet of heat-transfer area.
• What are the tubes constructed from? The exchanger contains 60 316L stainless steel tubes.
• What are the pressure ratings? The tubes are rated for 350 PSI, while the carbon steel shell is rated for 450 PSI, both over a stated temperature range of -20°F to 500°F.
• What are the dimensions? The exchanger measures approximately 8" in diameter x 144" face-to-face overall length.
• Does this unit have a National Board number? Yes. The exchanger is identified as National Board No. 17048 and Serial No. 100368. Current documentation and inspection requirements should be verified before pressure service.
