Used 2010 GEA FES 120 Sq. Ft. Shell & Tube Heat Exchanger – 316L Tubes, 450 PSI Carbon Steel Shell

Manufacturer Information

GEA FES Inc.

GEA FES manufactures industrial refrigeration, heat-transfer, and process equipment used across food, beverage, chemical, cold-storage, and general industrial applications. Shell-and-tube heat exchangers provide indirect thermal transfer between separate fluids for heating, cooling, condensing, and heat-recovery processes.

This GEA FES shell-and-tube heat exchanger offers approximately 120 square feet of heat-transfer surface and combines 316L stainless steel tubes with a pressure-rated carbon steel shell.

Description

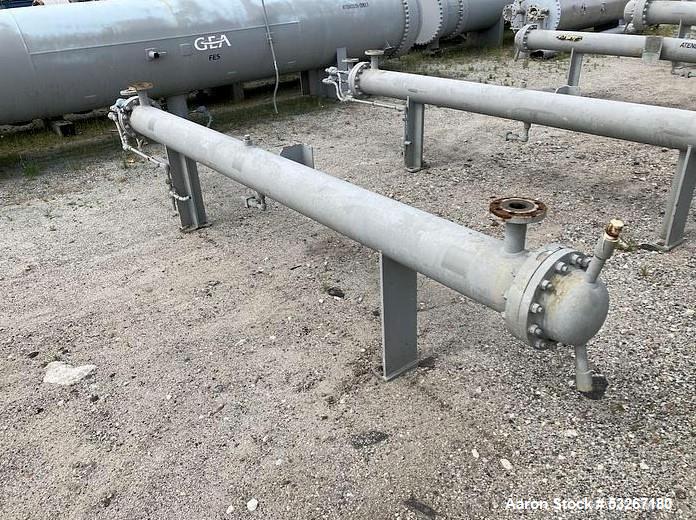

Available for sale is a used 2010 GEA FES Inc. shell-and-tube heat exchanger with approximately 120 square feet of heat-transfer surface.

The exchanger features an approximately 8" diameter shell and measures 144" face-to-face. Internally, the unit contains 60 316L stainless steel tubes rated for 350 PSI from -20°F to 500°F.

The carbon steel shell is rated for 450 PSI from -20°F to 500°F and is equipped with epoxy-coated carbon steel heads.

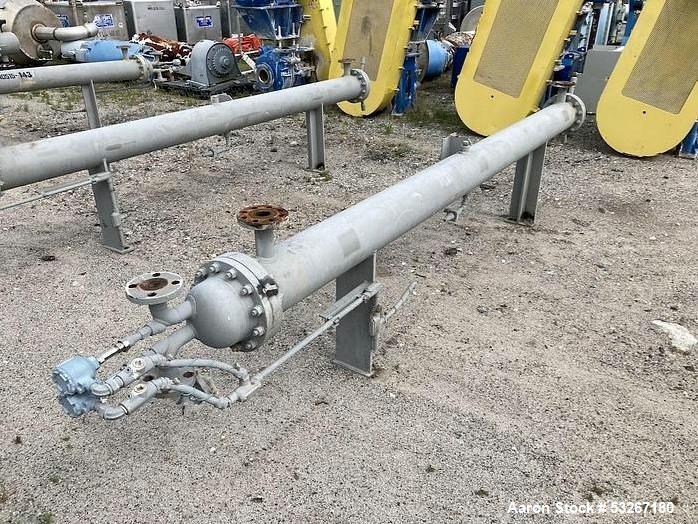

Service-side connections include 2" nozzles and two 3/4" vent/drain ports. The process side includes a 1.5" process nozzle, two 2" vent/drain ports, and two 3/4" instrument connections.

The heat exchanger is supported on legs. Identification includes Serial No. 100366 and National Board No. 17046. Manufactured in 2010.

Specifications

Pressure ratings, nameplate information, National Board documentation, materials, current mechanical condition, and applicable inspection requirements should be verified before returning the exchanger to pressure service.

Typical Applications

• Process heating
• Process cooling
• Industrial refrigeration
• Heat recovery
• Liquid temperature control
• Utility heat exchange
• Chemical processing
• Water heating and cooling
• Condensing service
• Thermal fluid processing
• Process fluid preheating
• Industrial thermal processing

Products This Heat Exchanger Could Be Used For

• Process water
• Cooling water
• Glycol solutions
• Compatible refrigerants
• Food and beverage process liquids
• Compatible chemical solutions
• Cleaning solutions
• Thermal fluids
• Compatible oils
• Process intermediates
• Industrial process fluids
• Other fluids compatible with the exchanger materials

Actual suitability and thermal performance depend on fluid chemistry, temperature, pressure, flow rate, viscosity, fouling characteristics, required heat duty, allowable pressure drop, and materials compatibility.

Frequently Asked Questions

• What is the heat-transfer area? This GEA FES exchanger provides approximately 120 square feet of heat-transfer surface.
• What material are the tubes? The unit contains 60 tubes constructed of 316L stainless steel.
• What are the pressure ratings? The tubes are stated to be rated for 350 PSI, while the carbon steel shell is rated for 450 PSI, both from -20°F to 500°F.
• What are the dimensions? The unit has an approximately 8" diameter shell and 144" face-to-face length.
• Does the exchanger have a National Board number? Yes. It is identified as National Board No. 17046 and Serial No. 100366. Available documentation and current inspection requirements should be verified.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this GEA FES heat exchanger.
