Used 234 Sq Ft Heat Exchanger, Duplex 2205 Tubes, 316L Stainless Shell, 130 Tube Holes

Manufacturer / Equipment Info

• Manufacturer: Wuxi Chemical Equipment
• Type: Horizontal Shell & Tube Heat Exchanger
• Year Built: 2023

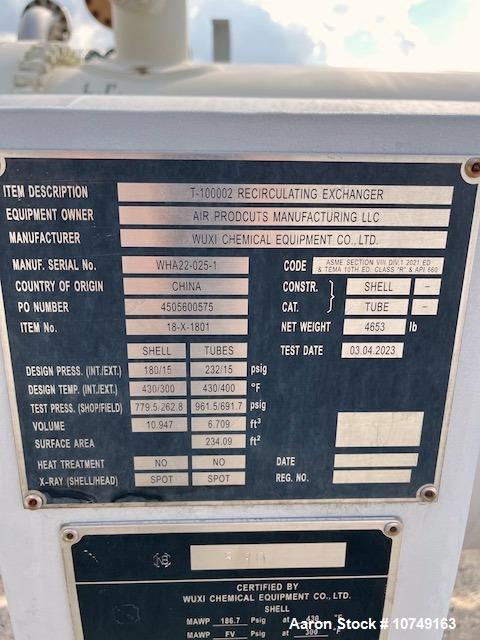

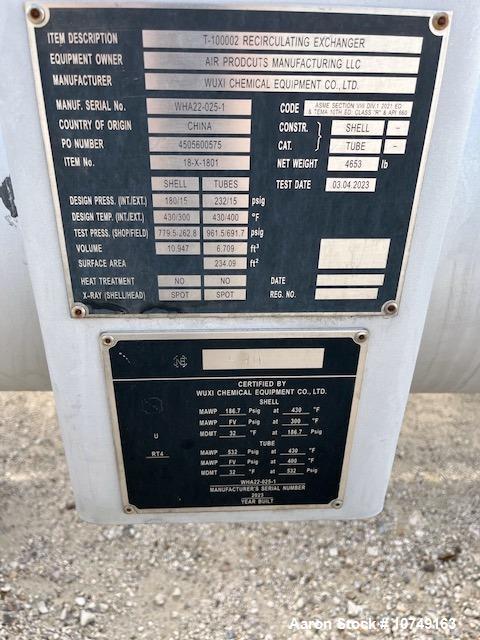

• National Board #: 530
• Serial #: WHA22-025-1
• Condition: Used

Description

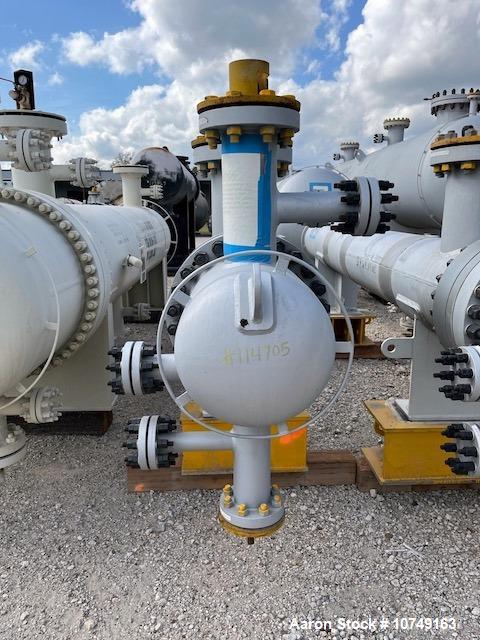

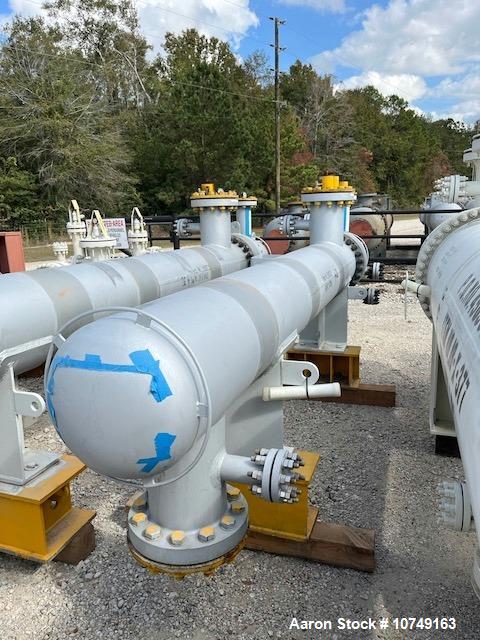

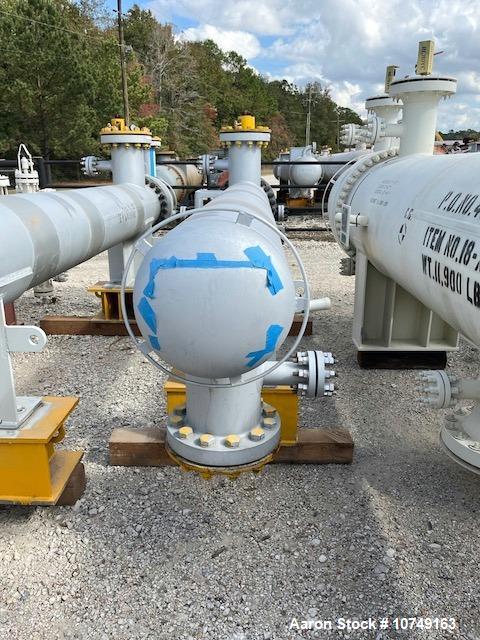

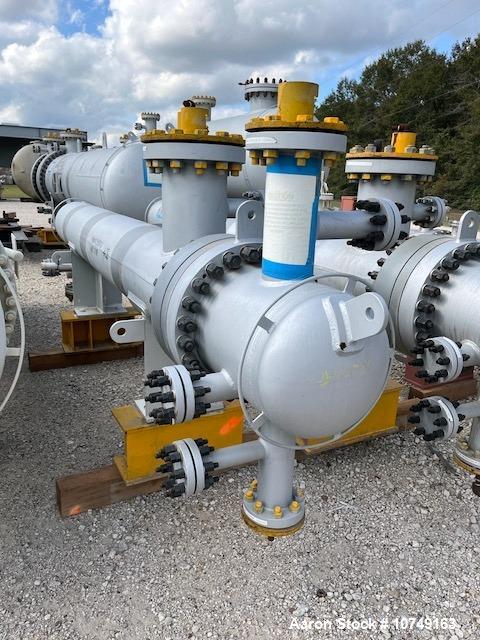

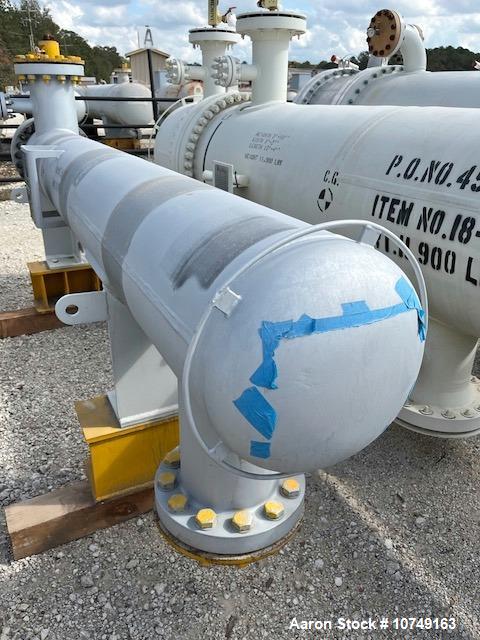

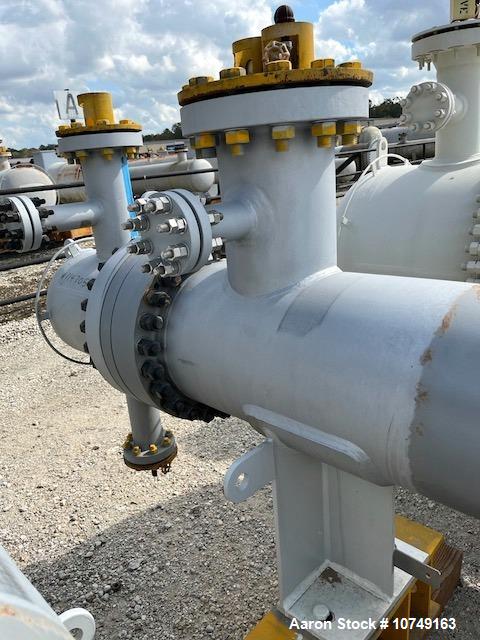

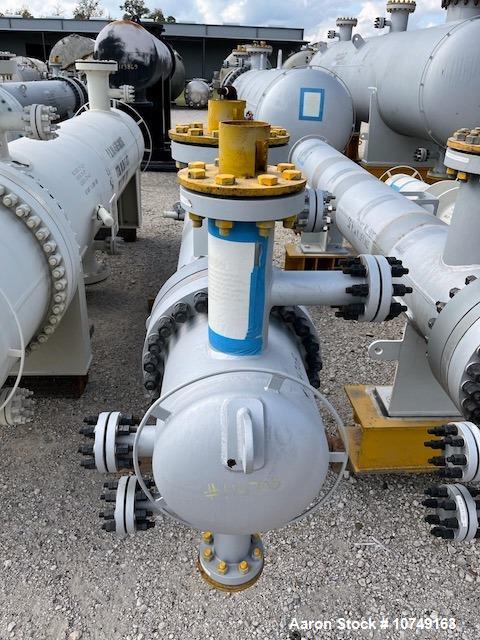

Used Wuxi Chemical Equipment horizontal shell and tube heat exchanger with approximately 234 square feet of heat transfer area, engineered for high-performance operation in demanding industrial environments. This unit features Duplex 2205 stainless steel tubes for superior corrosion resistance and strength, combined with a 316L stainless steel shell for enhanced durability in aggressive and high-temperature applications.

The exchanger includes 9-foot tube length with 130 tube holes, and a 15-inch shell diameter, providing efficient and compact heat transfer capability. The tube side is rated up to 532 PSI at 32°F to 430°F, while the shell side is rated at 186.7 PSI at 32°F to 430°F, making it suitable for high-pressure and high-temperature processes. Built in 2023, this unit offers modern construction and reliable performance.

Specifications

• Manufacturer: Wuxi Chemical Equipment
• Type: Horizontal shell & tube heat exchanger
• Heat transfer area: ~234 sq ft
• Tube material: Duplex 2205 stainless steel
• Tube length: 9 feet
• Tube count: 130 tube holes
• Shell material: 316L stainless steel
• Head material: Carbon steel
• Shell diameter: 15 inches

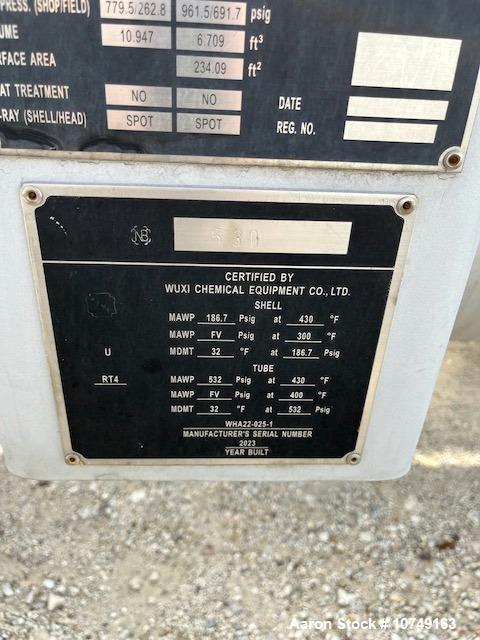

• Tube side rating: 532 PSI @ 32–430°F
• Shell side rating: 186.7 PSI @ 32–430°F
• National Board #: 530
• Serial #: WHA22-025-1
• Year built: 2023
• Condition: Used

Applications
Ideal for:

• Chemical and petrochemical processing
• Oil & gas operations
• Pharmaceutical manufacturing
• Food and beverage processing
• Power generation systems
• HVAC and plant utilities
• Water and wastewater treatment
• High-temperature and high-pressure systems

What products would this be used for

• Process chemicals
• Corrosive fluids
• Water and glycol systems
• Oils and lubricants
• Steam and condensate
• Heat transfer fluids
• Industrial solvents
• Pharmaceutical liquids
• Food-grade liquids
• High-temperature process streams
