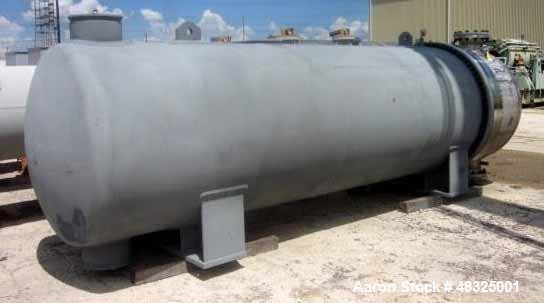

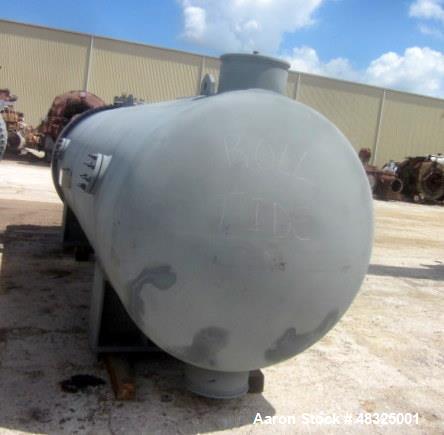

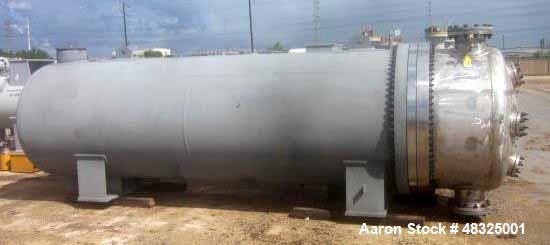

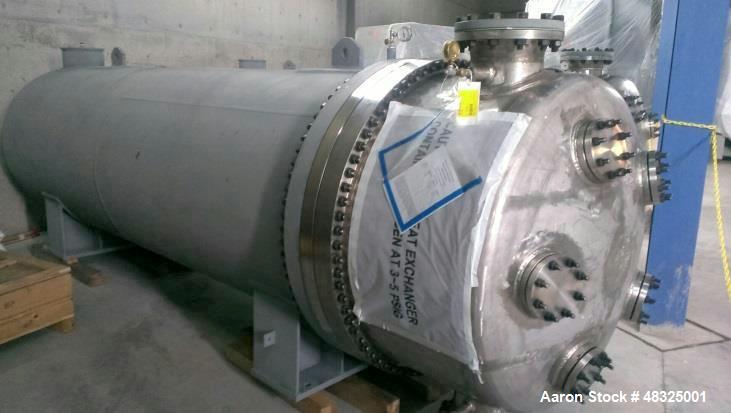

Joseph Oat Corporation 8 Pass U Tube Shell & Tube Heat Exchanger
Unused- Joseph Oat Corporation 8 Pass U Tube Shell & Tube Heat Exchanger, 5700 Square Feet, Horizontal. Carbon steel shell rated 150 psi at 200 degrees F. (1194) 3/4" Diameter x 11 long 304L stainless steel tubes rated 150 psi at 200 degrees F. 304L Stainless steel head and tubesheets. Openings for shell (2) 14", for tubes (2) 10". Mounted on saddles. Serial # 2692A. National Board # 3606. Built 2012.
| Manufacturer | Joseph Oat Corp.Joseph Oat Corp. |
| Serial # | 2692A |
| Category | Heat ExchangersHeat Exchangers |
| Subcategory | Shell & Tube StainlessShell & Tube Stainless |
| Square Footage | 5700 |
| Horizontal or Vertical | Horizontal |
| Shell Material | Carbon Steel |
| Shell Pressure | 150 psi |
| Shell Temperature | 200 degrees F |
| Number of Shell Openings | 2 |
| Size of Shell Openings | 14" |
| Tube Material | 304L Stainless Steel |
| Tube Pressure | 150 psi |
| Tube Temperature | 200 degrees F |
| Number of Tube Openings | 2 |
| Size of Tube Openings | 10" |
| Head Material | 304L Stainless Steel |
| Mounted | Saddle Mounted |
| National Board No. | 3606 |
| Overall Dimensions | 224"L X 64"W X 80"T |
| Year Built | 2012 |

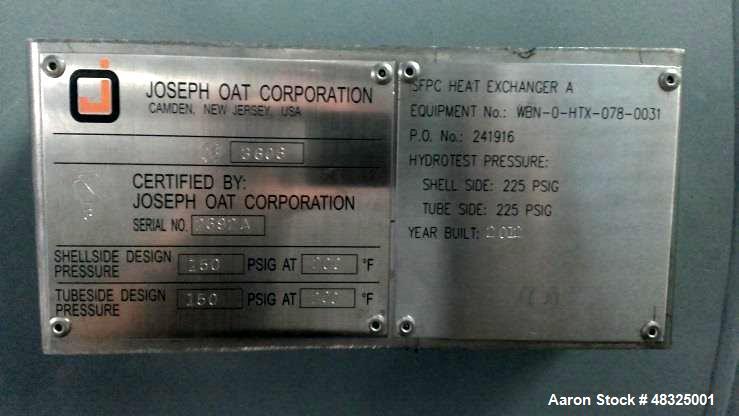

- Manufacturer: Joseph Oat Corporation
- Model: Unspecified
- Serial Number: 2692A
- National Board Number: 3606
- Year Built: 2012
Description
The Unused Joseph Oat Corporation 8-Pass U-Tube Shell & Tube Heat Exchanger is a high-efficiency industrial heat exchanger designed for a variety of thermal transfer applications. With a heat transfer surface area of 5700 square feet, this horizontal unit is built for durability and efficiency.
The carbon steel shell is rated at 150 psi at 200°F, while the (1194) ¾" diameter, 11' long 304L stainless steel tubes are also rated at 150 psi at 200°F. The 304L stainless steel head and tubesheets provide superior corrosion resistance. The unit is mounted on saddles for stability and features large shell (2) 14" and tube (2) 10" openings for flexible integration.
Specifications
- Type: U-Tube Shell & Tube Heat Exchanger
- Passes: 8-pass
- Orientation: Horizontal
- Surface Area: 5700 sq. ft.
- Shell Material: Carbon steel
- Tube Material: 304L stainless steel
- Head & Tubesheets Material: 304L stainless steel
- Shell Rating: 150 psi @ 200°F
- Tube Rating: 150 psi @ 200°F
- Tubes: (1194) tubes, ¾" diameter, 11' length
- Shell Openings: (2) 14"
- Tube Openings: (2) 10"
- Mounting: Saddle-mounted
Applications
- Chemical & Petrochemical Processing (cooling, heat recovery, condensation)
- Oil & Gas Industry (liquid heating, gas cooling, refining processes)
- Power Generation (steam systems, waste heat recovery)
- Food & Beverage Processing (temperature control, pasteurization)
- Pharmaceutical & Biotech Industry (sterile heating/cooling applications)
