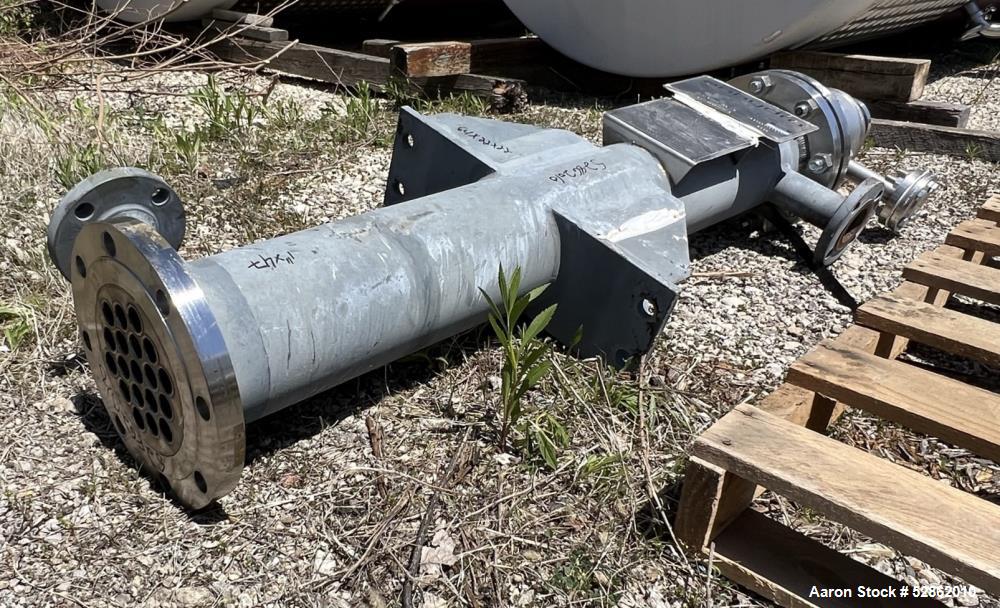

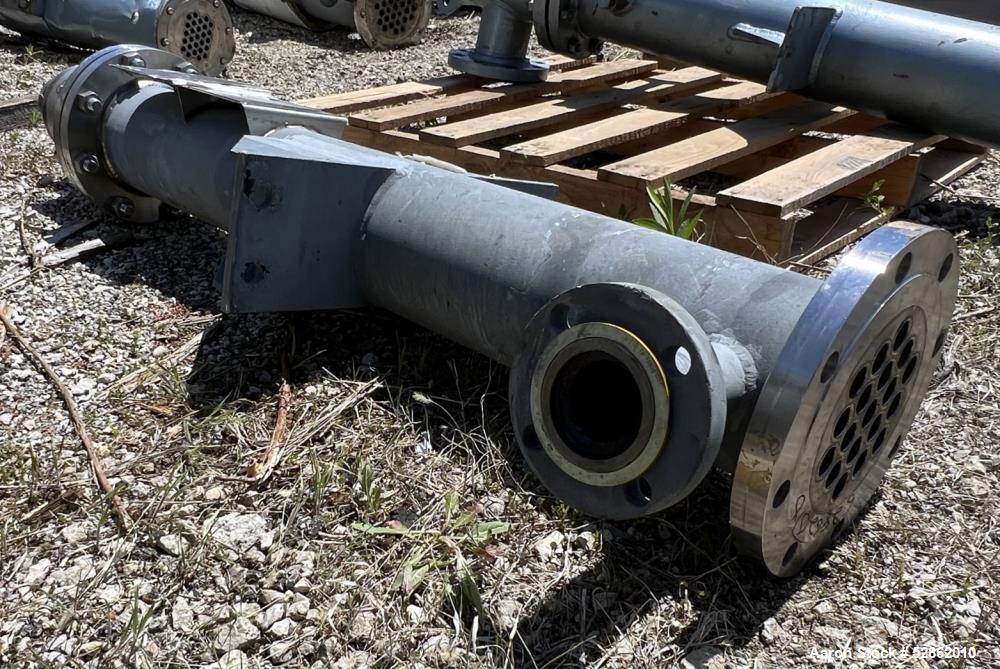

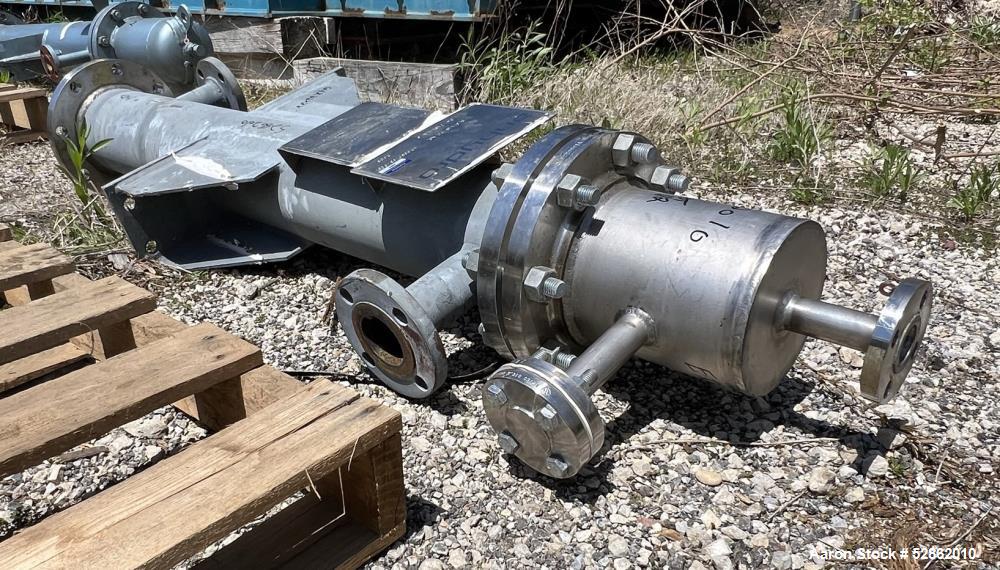

Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger, Approximate 19.5 Square Feet. Carbon steel shell rated 200psi / FV at -20 to 400 degrees F. (19) 1" diameter x 47" long Hastelloy C-276 tubes rated 15 psi internal / 200 psi external at -20 to 400 degrees F. Openings: (2) 2", (2) 1". 40,000 BTU/h. Side lug mounted. Certified by Orbit Industries, National Board# 1027, Serial# 8306-PV-4. No bottom head.
Manufacturer | AnhydroAnhydro |
Serial # | 8306-PV-4 |
Category | Heat ExchangersHeat Exchangers |
Subcategory | Shell & Tube StainlessShell & Tube Stainless |
Square Footage | 19.5 |
Horizontal or Vertical | Vertical |
Shell Material | Carbon Steel |
Shell Pressure | 200psi / FV |
Shell Temperature | -20 to 400 degrees F |
Tube Material | Hastelloy C276 |
Tube Pressure | 15 psi internal / 200 psi external |
Tube Temperature | -20 to 400 degrees F |
Number of Tube Openings | 19 |
Size of Tube Openings | 1" |
Mounted | Side Lug Mounted |
National Board No. | 1027 |
Overall Dimensions | 60 x 22 x 22"T |
Year Built | 2008 |
Tube Length | 47" |
Manufacturer: Anhydro
Type: Vertical Falling Film Heat Exchanger / Reboiler
Mounting Style: Side lug mounted
Certification: National Board, certified by Orbit Industries
Condition: Used
Orientation: Vertical
This Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger is a compact yet powerful heat transfer unit designed for applications requiring high thermal efficiency and resistance to aggressive fluids. Featuring a carbon steel shell and (19) Hastelloy C-276 tubes, the unit is rated for high pressure and vacuum operations, making it ideal for chemical, pharmaceutical, and energy processing.
Heat transfer area: Approx. 19.5 square feet
Thermal capacity: 40,000 BTU/h
Shell: Carbon steel, rated 200 PSI / full vacuum @ -20Β°F to 400Β°F

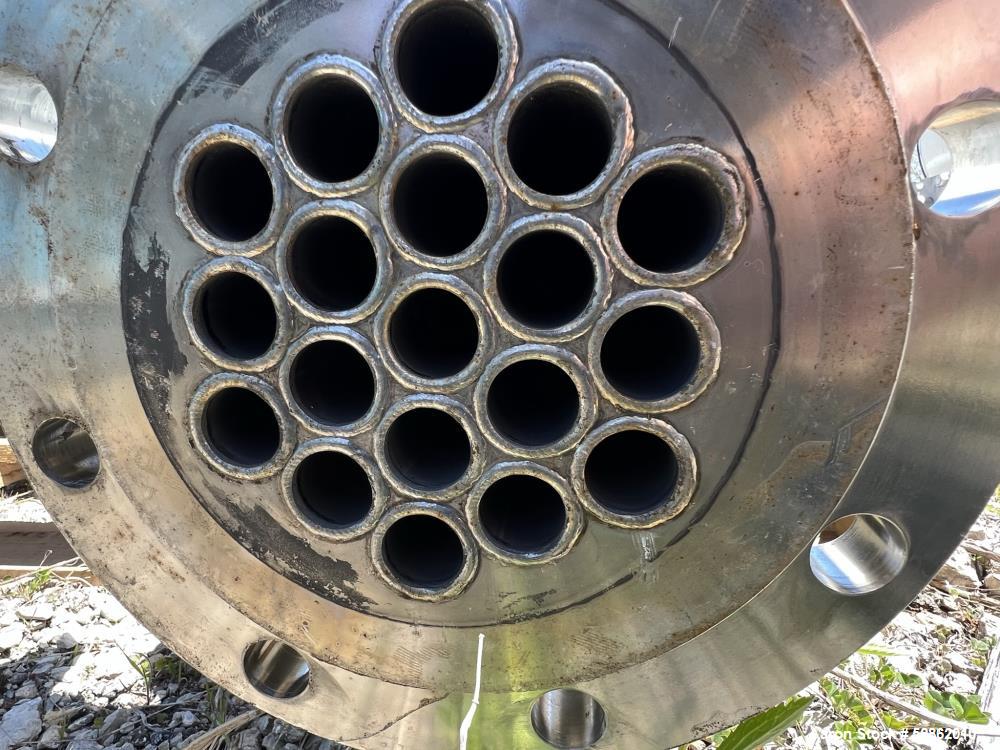

Tubes: (19) 1" dia x 47" long, Hastelloy C-276, rated 15 PSI internal / 200 PSI external @ -20Β°F to 400Β°F
Openings: (2) 2", (2) 1"
Mounting: Side lug mounted
Certification: National Board, Orbit Industries
Feature | Detail |
---|---|
Manufacturer | Anhydro |
Equipment Type | Falling Film Heat Exchanger / Reboiler |
Heat Transfer Area | 19.5 square feet |
Tube Material | Hastelloy C-276 (19 tubes, 1" x 47") |
Shell Material | Carbon Steel |
Shell Pressure Rating | 200 PSI / Full Vacuum @ -20Β°F to 400Β°F |
Tube Pressure Rating | 15 PSI Internal / 200 PSI External @ -20Β°F to 400Β°F |
BTU Capacity | 40,000 BTU/h |
Openings | (2) 2", (2) 1" |
Mounting Style | Side lug mounted |
Certification | National Board, certified by Orbit Industries |
Orientation | Vertical |
Solvent evaporation and condensation systems
Falling film reboiling in distillation columns
Thermal fluid systems with corrosive media
Vacuum reboilers for high-purity processing
Biochemical and pharmaceutical heating
Concentration of heat-sensitive liquids
Chemical production (acids, solvents, esters)
Waste stream heat recovery
Pilot-scale chemical process development
Skid-mounted thermal systems
Organic solvents
Heat transfer oils
High-purity water
Ethanol and alcohols
Bio-based process fluids
Refrigerants and glycols
Light hydrocarbons
Acidic and corrosive mixtures
Pharmaceuticals
Specialty chemicals
