Used Gulf Coast Exchanger Shell & Tube Heat Exchanger | 1733 Sq. Ft. | 300 PSI | U-Tube | 2017

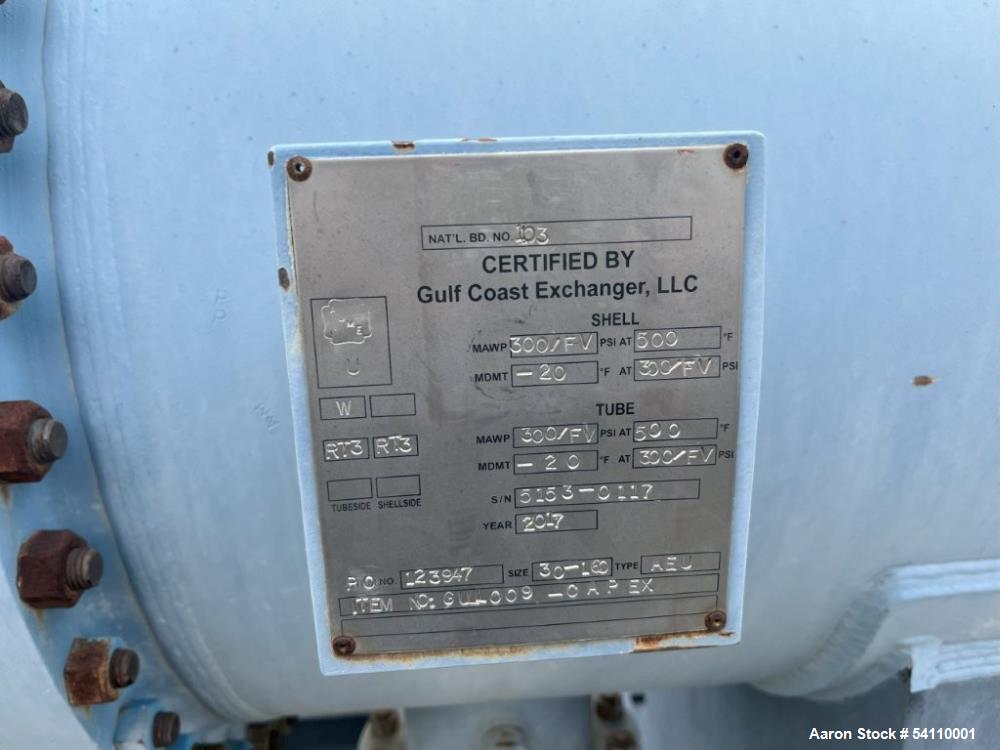

Manufacturer Information

Brand: Gulf Coast Exchanger
Type: Shell and Tube Heat Exchanger
Serial #: 824114
National Board #: 103
Year Built: 2017
Construction Materials:

• Tubes: SA-789 U-tube

• Shell: SA-516-70

Description

This Used Gulf Coast Exchanger Shell and Tube Heat Exchanger offers 1733 square feet of heat transfer surface area and is designed for high-pressure, high-temperature industrial applications. Built in 2017, it features SA-789 U-tube construction with SA-516-70 shell for durability and corrosion resistance.

The unit is rated for 300 psig design pressure on both shell and tube sides, with full vacuum capability and a 500°F design temperature. Testing was conducted to 390 psig for both sides. The shell side is configured for 1 pass, and the tube side for 2 passes, with 306 U-tubes measuring 0.75" OD × 13'3" straight length.

Specifications

• Surface Area: 1733 sq. ft.

• Tube Construction: SA-789 U-tube, 0.75" OD × 13'3" length, qty 306

• Shell Construction: SA-516-70

• Shell Side:

  • Design Pressure: 300 psig

  • Test Pressure: 390 psig

  • Design Temp: 500°F

  • MDMT: -20°F

  • Passes: 1

  • Full vacuum rated

• Tube Side:

  • Design Pressure: 300 psig

  • Test Pressure: 390 psig

  • Design Temp: 500°F

  • MDMT: -20°F

  • Passes: 2

  • Full vacuum rated

• Overall Dimensions: 35.25" diameter × 215.5" length (approx.)

• Year: 2017

• Serial #: 824114

• NB #: 103
