Manufacturer Information

Manufacturer: JFD Tube & Coil Products Inc.
Serial Number: 10216-A
National Board Number: 1022
Equipment Type: Shell & Tube Heat Exchanger
Heat Transfer Area: 149.6 Square Feet
Year Built: 2011
Condition: Used

Description

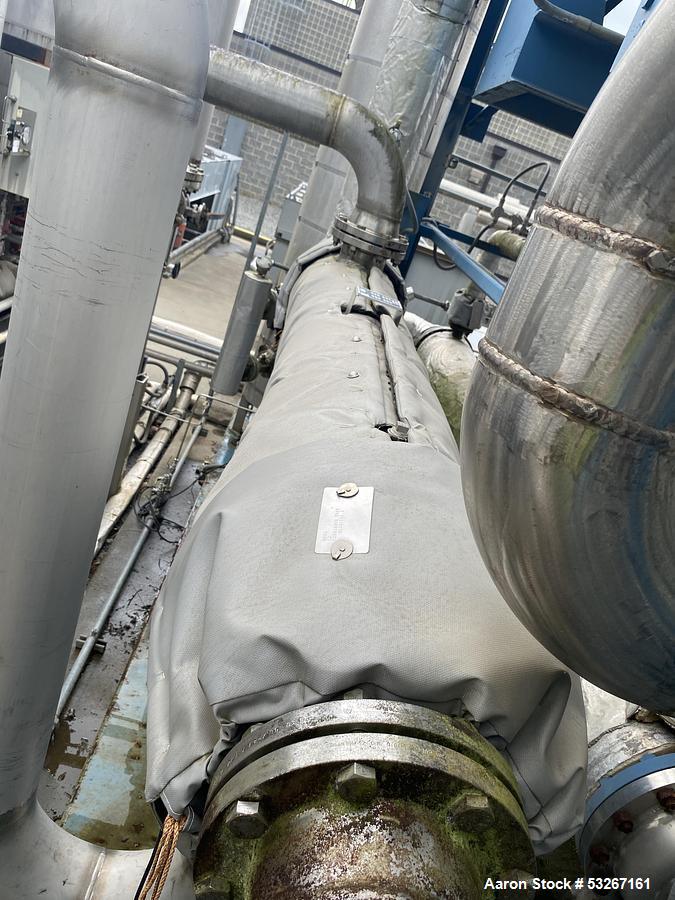

Available for sale is a used JFD Tube & Coil Products Inc. shell and tube heat exchanger featuring approximately 149.6 square feet of heat transfer surface area. Constructed entirely of 304L stainless steel on both the shell and tube side, this exchanger is designed for sanitary, chemical, industrial, food processing, pharmaceutical, and utility service applications requiring corrosion resistance and dependable thermal performance.

The exchanger features a 12-inch diameter shell with an approximate 80-inch face-to-face length and contains 118 tubes measuring 0.75 inches in diameter. The unit is configured as a single-pass heat exchanger and includes 6-inch process-side nozzles and 6-inch service-side nozzles to accommodate substantial flow rates.

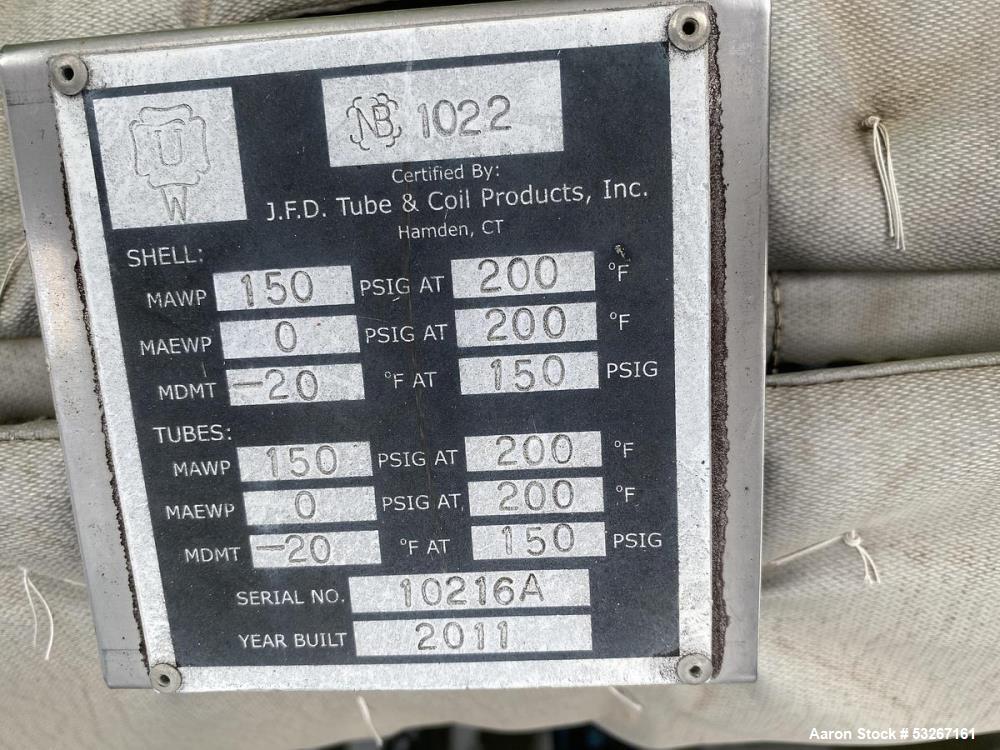

Both shell and tube sides are rated for 150 PSIG operating pressure at temperatures ranging from -20°F to 200°F. The exchanger is mounted on carbon steel saddles and carries a National Board registration, making it suitable for a variety of industrial heat transfer applications.

Specifications

General Information

• Manufacturer: JFD Tube & Coil Products Inc.
• Serial Number: 10216-A
• National Board Number: 1022
• Equipment Type: Shell & Tube Heat Exchanger
• Year Built: 2011
• Condition: Used

Heat Transfer Area

• Total Heat Transfer Surface Area: 149.6 Square Feet

Shell Specifications

Material of Construction

• 304L Stainless Steel

Shell Diameter

• 12 Inches

Face-to-Face Length

• Approximately 80 Inches

Pressure Rating

• 150 PSIG

Temperature Rating

• -20°F to 200°F

Tube Bundle Specifications

Tube Material

• 304L Stainless Steel

Tube Quantity

• 118 Tubes

Tube Diameter

• 0.75 Inches

Pressure Rating

• 150 PSIG

Temperature Rating

• -20°F to 200°F

Flow Configuration

• Single Pass Design
• Shell and Tube Construction
• Industrial Heat Transfer Service

Connections

Process Nozzles

• 6 Inch Connections

Service Nozzles

• 6 Inch Connections

Mounting

• Carbon Steel Saddle Supports
• Horizontal Installation Configuration

Weight

• Approximate Weight: 1,035 Pounds

Applications

• Process fluid heating
• Process fluid cooling
• Water-to-water heat transfer
• Chemical processing
• Food processing
• Beverage production
• Pharmaceutical manufacturing
• Utility systems
• HVAC systems
• Glycol cooling systems
• Industrial process cooling
• Thermal energy recovery

Products This Equipment Would Be Used For

• Process water
• Glycol solutions
• Cooling water
• Heated water
• Chemical solutions
• Beverage products
• Food ingredients
• Pharmaceutical fluids
• Utility fluids
• CIP solutions
• Industrial liquids
• Process streams

Frequently Asked Questions

• What is the heat transfer area of this exchanger?
  The exchanger provides approximately 149.6 square feet of heat transfer surface area.
• Who manufactured the heat exchanger?
  The unit was manufactured by JFD Tube & Coil Products Inc.
• What material is the exchanger constructed from?
  Both the shell and tubes are fabricated from 304L stainless steel.
• How many tubes are installed in the bundle?
  The exchanger contains 118 tubes.
• What size are the tubes?
  The tubes measure approximately 0.75 inches in diameter.
• What are the pressure ratings?
  Both the shell and tube sides are rated for 150 PSIG.
• What is the operating temperature range?
  The exchanger is rated from -20°F to 200°F.
• What type of flow configuration does the unit use?
  The exchanger is configured as a single-pass shell and tube heat exchanger.
• What size are the process connections?
  Both process and service connections are 6-inch nozzles.
• Is the exchanger National Board registered?
  Yes, the unit carries National Board registration number 1022.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, rigging, loading, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used heat exchangers and process equipment?
  Yes, Aaron Equipment actively purchases and sells used shell and tube heat exchangers, plate exchangers, condensers, evaporators, utility systems, and complete industrial facilities worldwide.
