P.X. Engineering U Tube Heat Exchanger
Unused- PX Engineering U Tube Heat Exchanger, 4611 Square Feet, Horizontal. Carbon steel shell rated 150 psi at 200 degrees F. (668) 5/8'' Diameter x 252'' long 304 stainless steel tubes rated 75 psi at 212 degrees F. 304 Stainless steel tube sheet and heads. (2) 10" Shell nozzles, (2) 12" nozzles in head. Saddle mounted. Year 1980.
| Manufacturer | PX EngineeringPX Engineering |

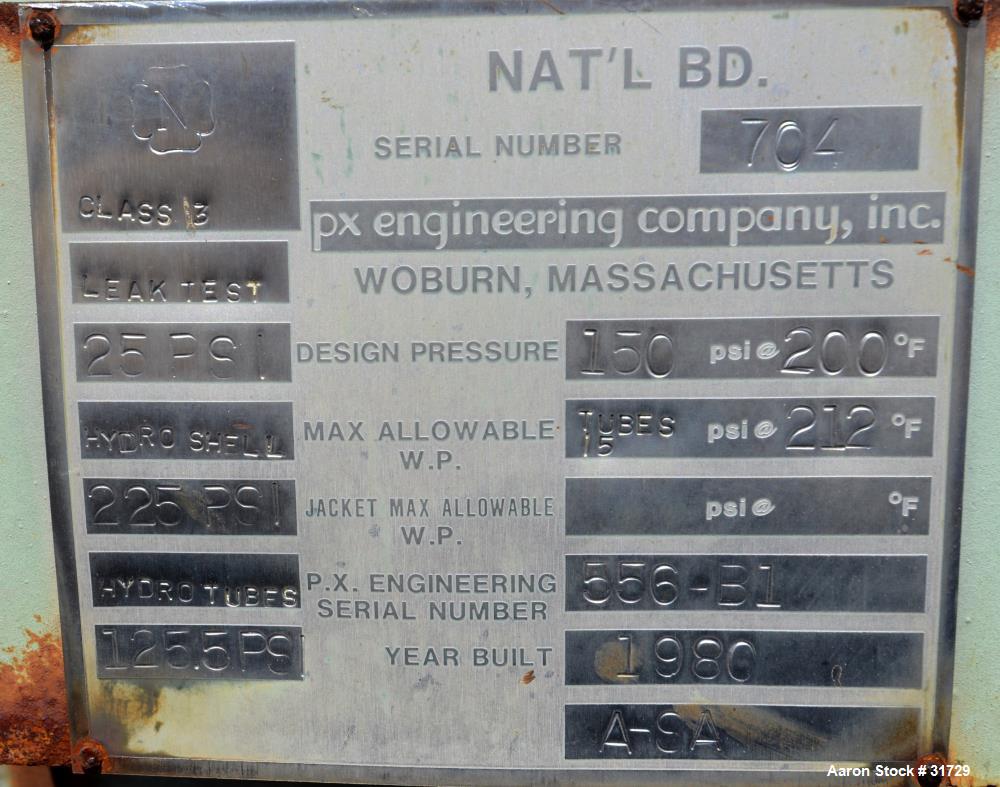

| Serial # | 556-B1 |
| Category | Heat ExchangersHeat Exchangers |
| Subcategory | Shell & Tube StainlessShell & Tube Stainless |
- Manufacturer: PX Engineering
- Model: Unspecified
- Year Built: 1980
Description
The Unused PX Engineering U-Tube Heat Exchanger is a high-capacity industrial heat exchanger designed for efficient heat transfer in demanding applications. Built with a carbon steel shell and 304 stainless steel tubes, tube sheet, and heads, this horizontal, saddle-mounted unit offers durability, corrosion resistance, and reliability.
The shell is rated at 150 psi at 200°F, while the (668) ⅝" diameter, 252" long 304 stainless steel tubes are rated at 75 psi at 212°F. The unit includes two 10" shell nozzles and two 12" nozzles in the head, allowing for flexible system integration.
Specifications
- Type: U-Tube Shell & Tube Heat Exchanger
- Orientation: Horizontal
- Surface Area: 4611 sq. ft.
- Shell Material: Carbon Steel
- Tube Material: 304 Stainless Steel
- Tube Sheet & Head Material: 304 Stainless Steel
- Shell Rating: 150 psi @ 200°F
- Tube Rating: 75 psi @ 212°F
- Tubes: (668) tubes, ⅝" diameter, 252" length
- Shell Nozzles: (2) 10"
- Head Nozzles: (2) 12"
- Mounting: Saddle-mounted
- Year Built: 1980
Applications
- Chemical & Petrochemical Processing (cooling, heat recovery, condensation)
- Oil & Gas Industry (liquid heating, gas cooling, refining processes)
- Power Generation (waste heat recovery, steam systems)
- Food & Beverage Processing (temperature control, pasteurization)
- Pharmaceutical & Biotech Industry (sterile heating and cooling applications)
Compatible Products & Systems
- Industrial cooling and heating systems
- Steam and process fluid handling
- Oil refining and gas processing units
- Heat recovery and energy efficiency applications
