Used Anhydro Vertical Falling Film Reboiler – 19.5 Sq Ft, Hastelloy Tubes

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

SELL US YOURS

Stock # 52862009

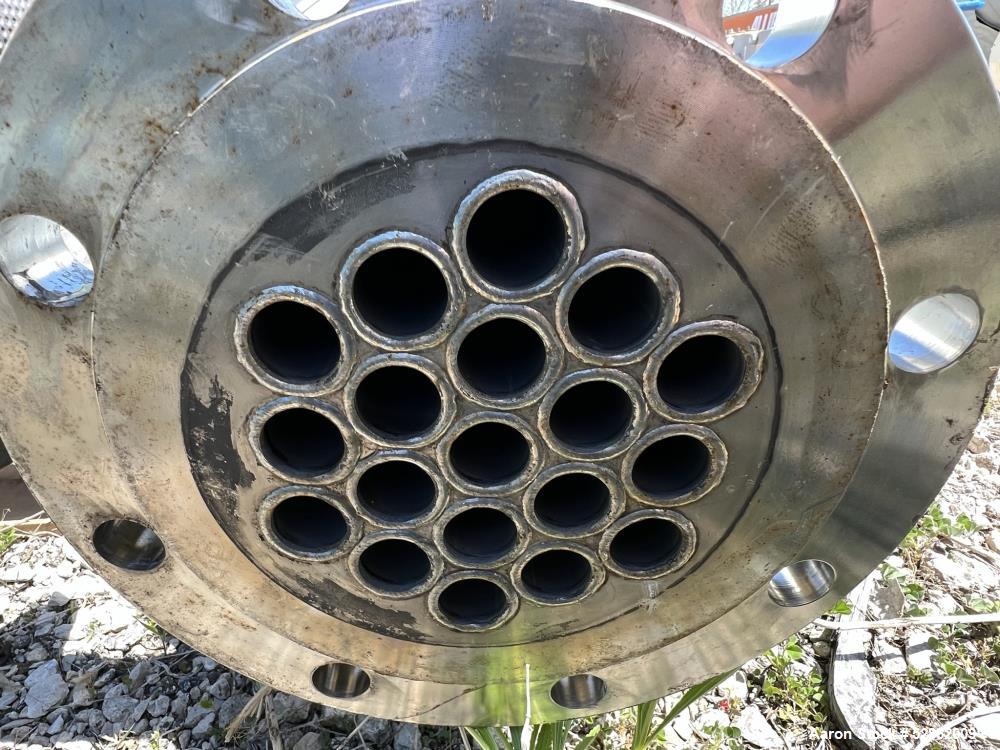

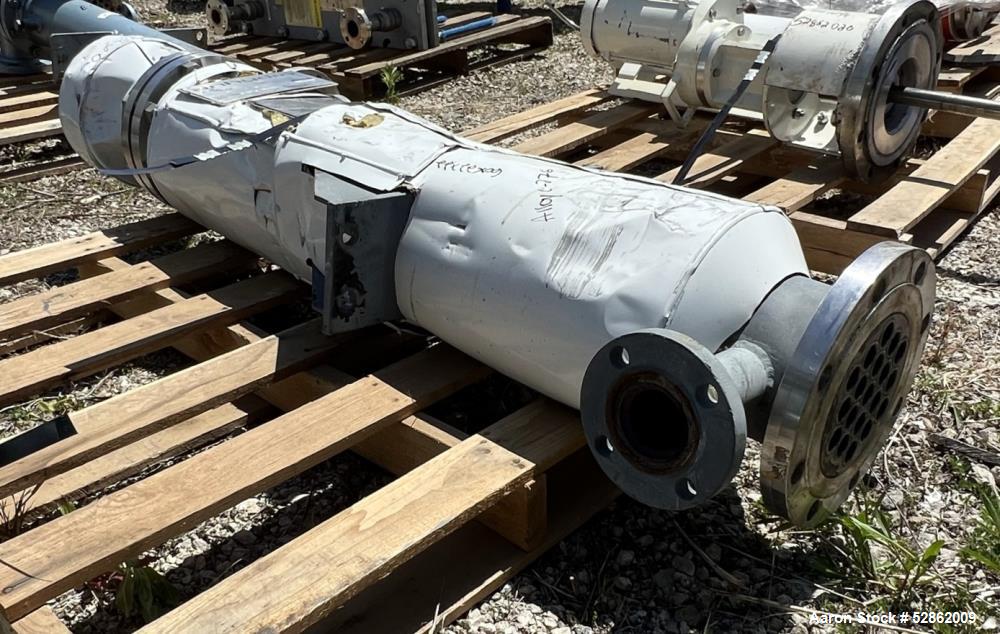

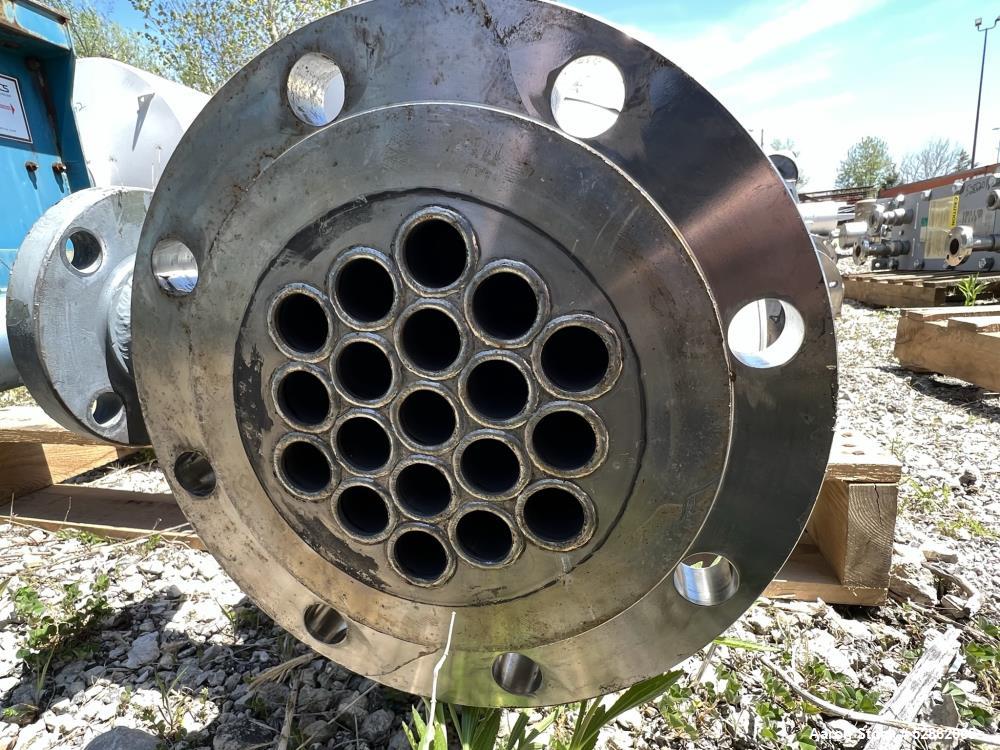

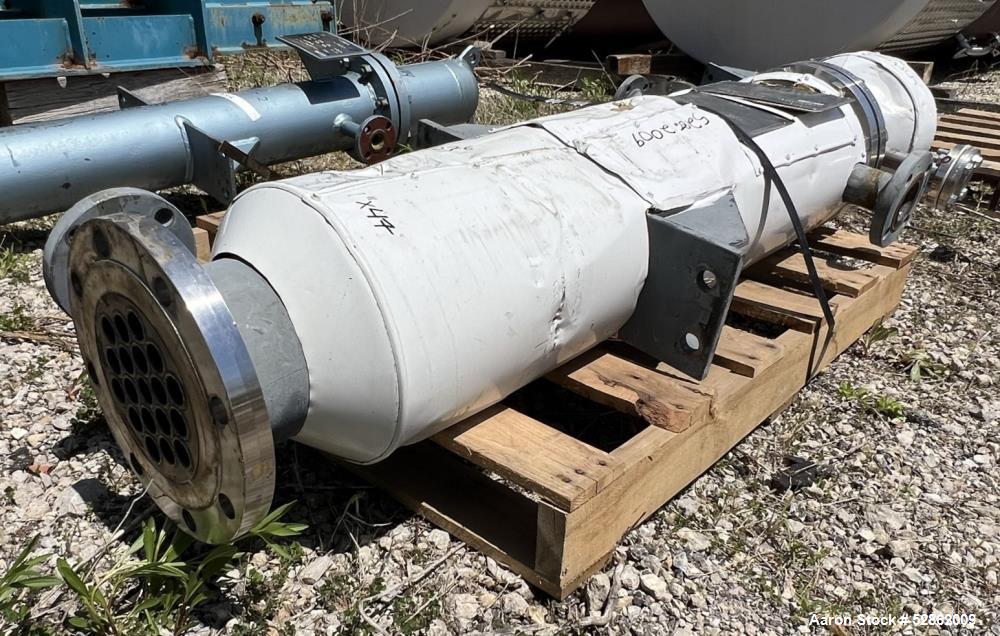

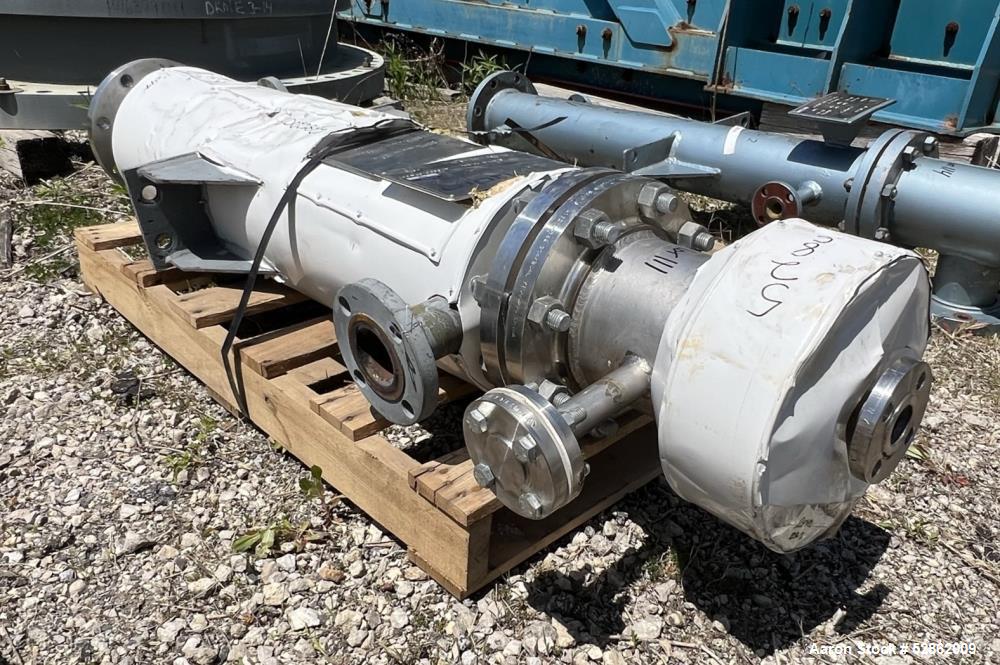

Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger, Approximate 19.5 Square Feet. Carbon steel shell rated 200psi / FV at -20 to 400 degrees F. (19) 1" diameter x 47" long Hastelloy C-276 tubes rated 15 psi internal / 200 psi external at -20 to 400 degrees F. Openings: (2) 2", (2) 1". 40,000 BTU/h. Side lug mounted. Certified by Orbit Industries, National Board# 1026, Serial# 8306-PV-3. No bottom head.

SPECIFICATIONS

Manufacturer	AnhydroAnhydro
Serial #	8306-PV-3
Category	Heat ExchangersHeat Exchangers
Subcategory	Shell & Tube StainlessShell & Tube Stainless
Square Footage	19.5
Horizontal or Vertical	Vertical
Shell Material	Carbon Steel
Shell Pressure	200psi / fv
Shell Temperature	-20 to 400 degrees F
Tube Material	Hastelloy C276
Tube Pressure	15 psi internal / 200 psi external
Tube Temperature	-20 to 400 degrees F
Number of Tube Openings	19
Size of Tube Openings	1"
Mounted	Side Lug Mounted
National Board No.	1026
Overall Dimensions	60 x 22 x 22"T
Year Built	2008
Tube Length	47"

Used Equipment Facts About This Machine

Manufacturer: Anhydro
Model: Unspecified
Category: Vertical Falling Film Reboiler / Heat Exchanger
Serial Number: 8306-PV-3
National Board Number: 1026

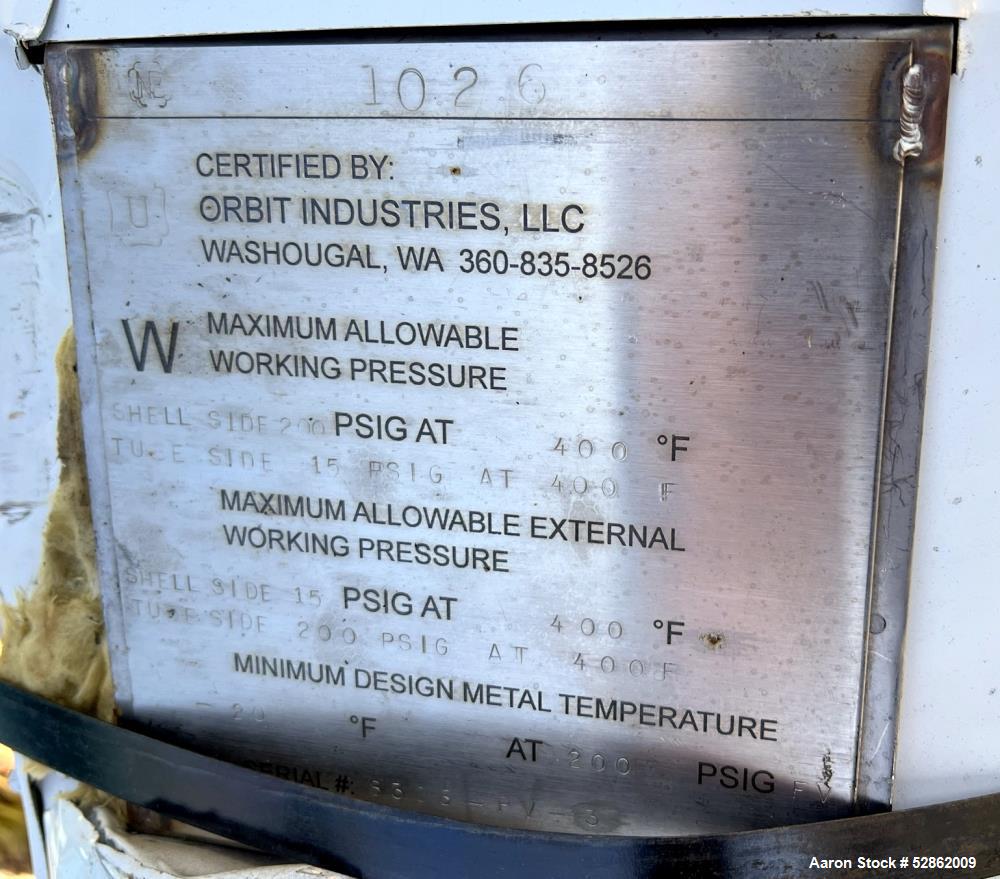

Certified By: Orbit Industries

Description

The Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger is a high-efficiency thermal transfer unit, designed for industrial heating and evaporation applications. With Hastelloy C-276 tubes, this unit provides exceptional corrosion resistance, making it ideal for chemical, pharmaceutical, and petrochemical processing.

This vertical, side lug-mounted reboiler has a heat transfer surface area of approximately 19.5 square feet. It features (19) 1" diameter, 47" long Hastelloy C-276 tubes, rated for 15 PSI internal / 200 PSI external at -20 to 400°F. The carbon steel shell is rated for 200 PSI/full vacuum at -20 to 400°F.

The system is designed for 40,000 BTU/h heat transfer capacity and includes multiple openings: (2) 2" and (2) 1". Note: This unit does not include a bottom head.

Specifications

Type: Vertical Falling Film Reboiler / Heat Exchanger
Heat Transfer Surface Area: 19.5 sq. ft.
Shell Material: Carbon Steel
Shell Rating: 200 PSI / Full Vacuum @ -20 to 400°F
Tube Material: Hastelloy C-276
Tube Dimensions: (19) tubes, 1" diameter, 47" length
Tube Rating: 15 PSI internal / 200 PSI external @ -20 to 400°F
Heat Transfer Capacity: 40,000 BTU/h
Openings:
- (2) 2"
- (2) 1"
Mounting: Side Lug Mounted
Bottom Head: Not Included

Applications

Chemical & Petrochemical Processing (heat recovery, distillation, evaporation)
Pharmaceutical & Biotech Industry (reactor heating, solvent recovery)
Food & Beverage Processing (thermal evaporation, concentration processes)
Oil & Gas Industry (refinery heating, process fluid conditioning)
Power Generation & Energy Recovery (waste heat utilization, steam applications)

🧪 Applications

Solvent evaporation and condensation systems
Falling film reboiling in distillation columns
Thermal fluid systems with corrosive media
Vacuum reboilers for high-purity processing
Biochemical and pharmaceutical heating
Concentration of heat-sensitive liquids
Chemical production (acids, solvents, esters)
Waste stream heat recovery
Pilot-scale chemical process development
Skid-mounted thermal systems

🎯 Fluids & Substances Typically Handled

Organic solvents
Heat transfer oils
High-purity water
Ethanol and alcohols
Bio-based process fluids
Refrigerants and glycols
Light hydrocarbons
Acidic and corrosive mixtures
Pharmaceuticals
Specialty chemicals
