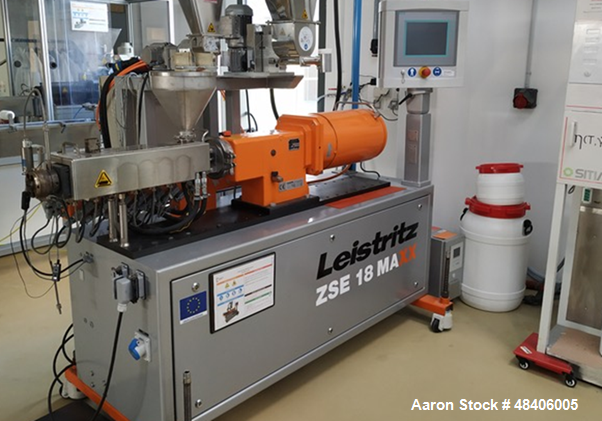

Used- Leistritz Twin Screw Extruder, type ZSE18 MAXX-28D

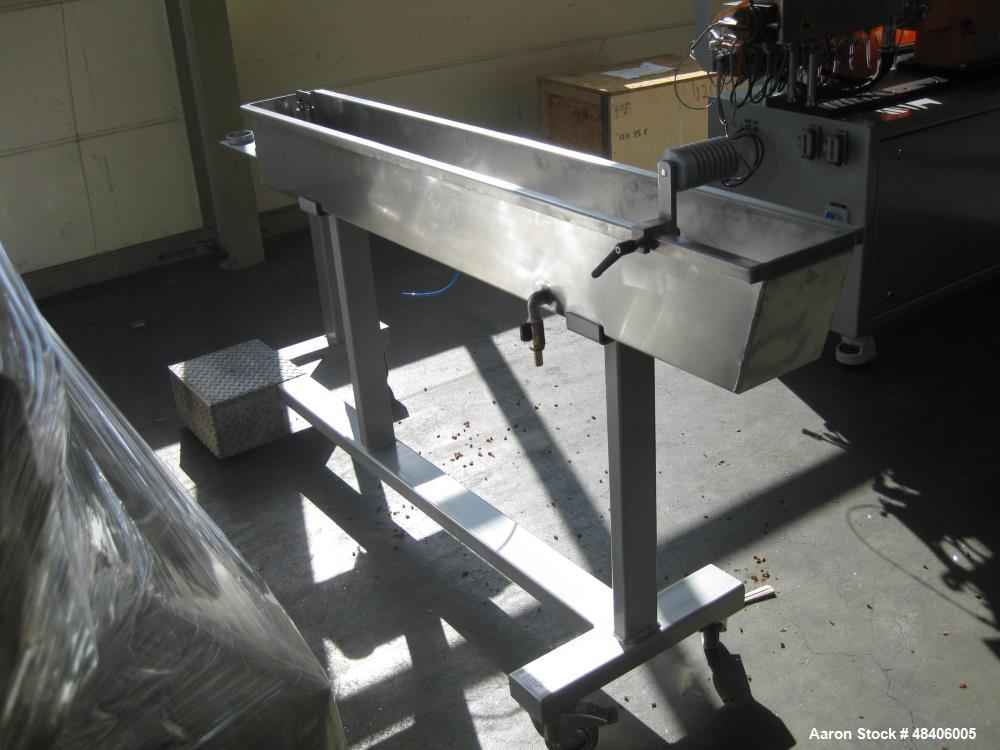

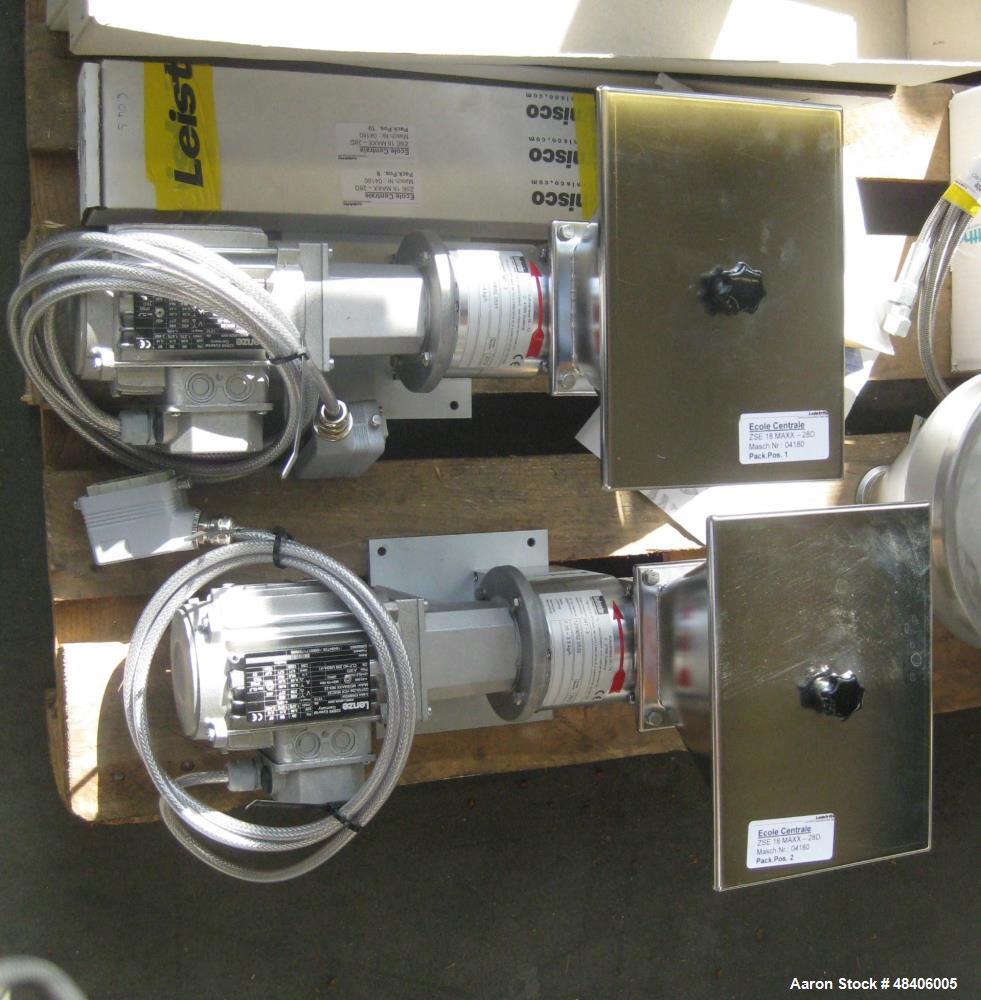

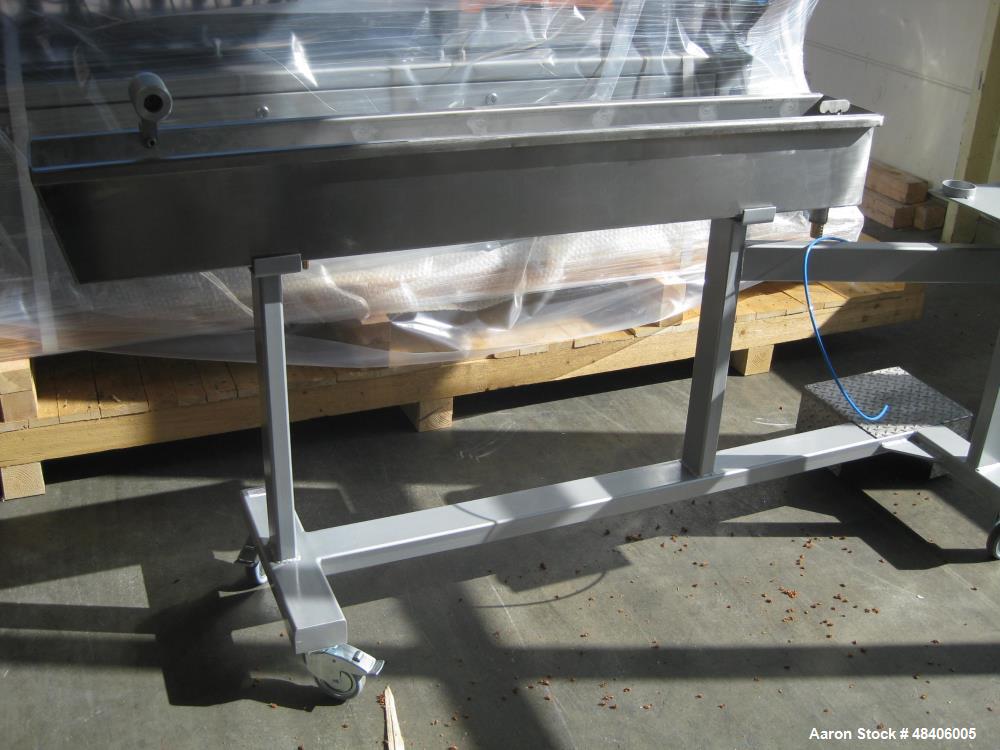

Used- Leistritz Twin Screw Extruder, type ZSE18 MAXX-28D. 28:1 L/D. Vented barrel, 6 housing sections, electrically heated, water cooled. 0.7" (18 mm) diameter screws, co-rotating design. Maximum screw speed 1200 rpm. Driven via a gearbox by a 10 Kw (13.4hp) 400-volt motor. Includes extruder cooling, Strand die head, Type LSA 18-3 (3 mm dia. holes) & 1 Flat die (30x3mm), Brabender volumetric feeder, type MT-3, Brabender volumetric feeder, type DRS 28-20. Melt pressure sensor system. Melt temperature sensor system. Strand pelletizer, Type SGS 25. Siemens S7 control panel. On wheels. Incl. stainless steel water batch. Mfg. 2012. 290 hours in service. Previous used as R&D machine at a technical college.
