Stock No.: 54399009
Used APV PGX 30 Twin Screw Extruder with K-Tron T22 Feeder – Compact Pilot Compounding System

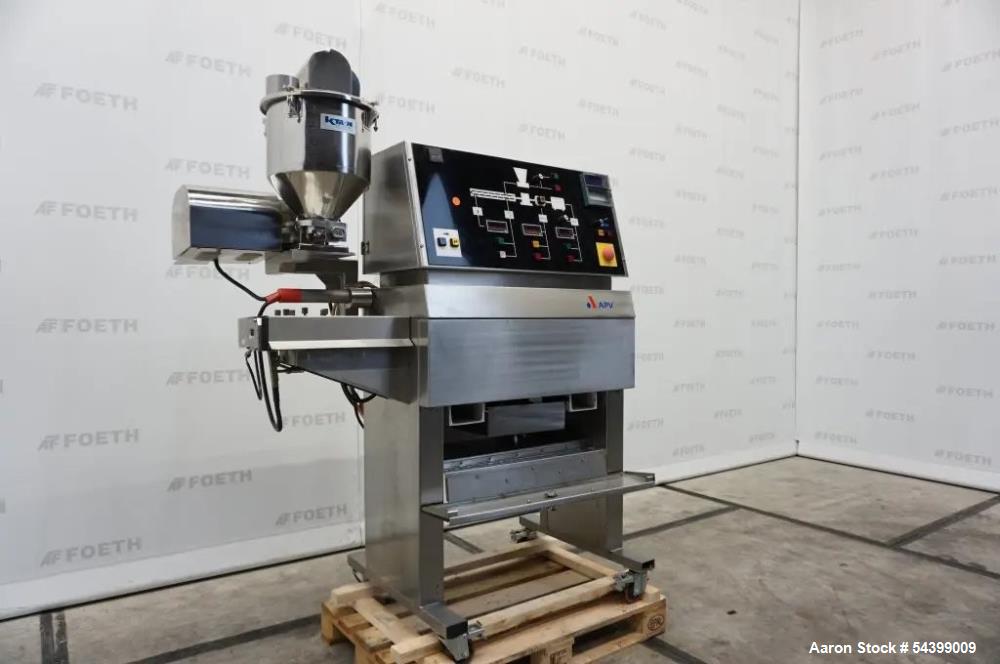

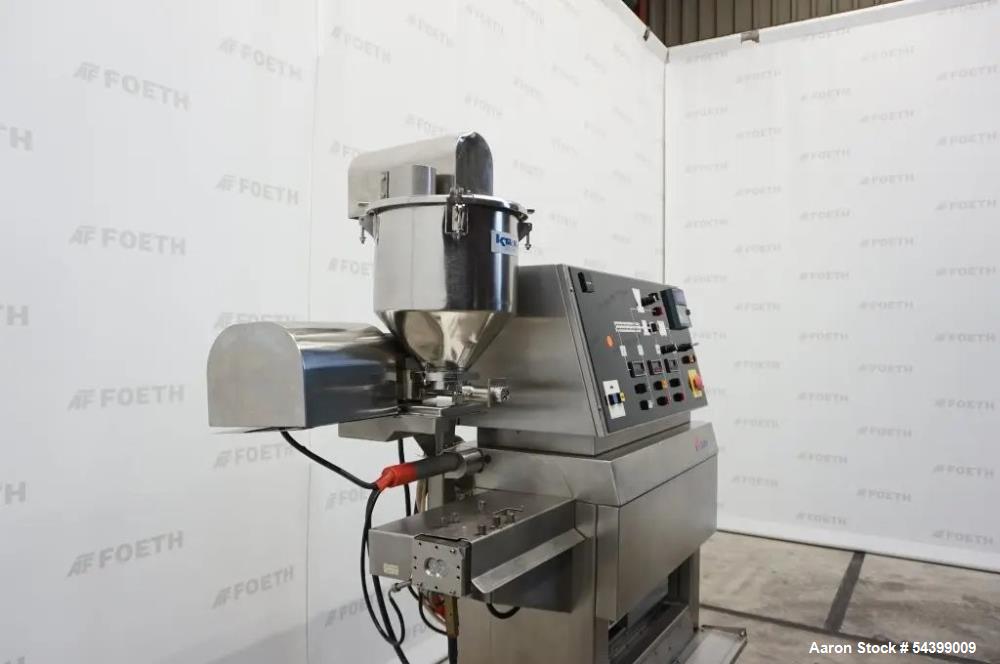

Used APV PGX 30 Twin Screw Extruder with K-Tron T22 Feeder Compact Pilot Compounding System. 30 KG (66 lbs) per hour. (2) 30 mm diameter side by side screws, 10:1 L/D ratio. Electrically heated water cooled barrel. Driven by a 4 kw (5.36hp) -440-volt AC drive motor via a gear box. Screw speed maximum 161 RPM. Frame mounted on 4 wheels. K-Tron T22 twin screw feeder. Control panel mounted on extruder. Weight approx. 400 kgs. Extruder: 1800 mm L x 800 mm W x 2200 mm H. Previously used in a compounding application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.
-
ManufacturerAPV
-
ModelPGX 30
-
Serial #19187
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Twin Screw CoRotate
Used equipment facts about this machine
Manufacturer Information
Manufacturer: APV
Model: PGX 30
Type: Twin Screw Extruder (Co-Rotating)
Condition: Used
Description
Used APV PGX 30 Twin Screw Extruder, a compact and efficient co-rotating twin screw system designed for pilot-scale compounding and small batch production. This unit features 30 mm diameter screws with a 10:1 L/D ratio, making it ideal for controlled processing and lower throughput applications.
Capable of processing up to 30 kg/hr (66 lbs/hr), this extruder is equipped with an electrically heated, water-cooled barrel for precise thermal management. Powered by a 4 kW AC motor with gearbox, the system operates at speeds up to 161 RPM, providing consistent mixing and extrusion performance.
Mounted on four wheels for mobility, this unit includes a K-Tron T22 twin screw feeder for accurate material feeding and a control panel mounted directly on the machine. Previously used in compounding, this system is well-suited for R&D, pilot plants, and specialty production environments.
Specifications
- Manufacturer: APV
- Model: PGX 30
- Machine Type: Twin Screw Extruder (Co-Rotating)
- Throughput Capacity: Approx. 30 kg/hr (66 lbs/hr)

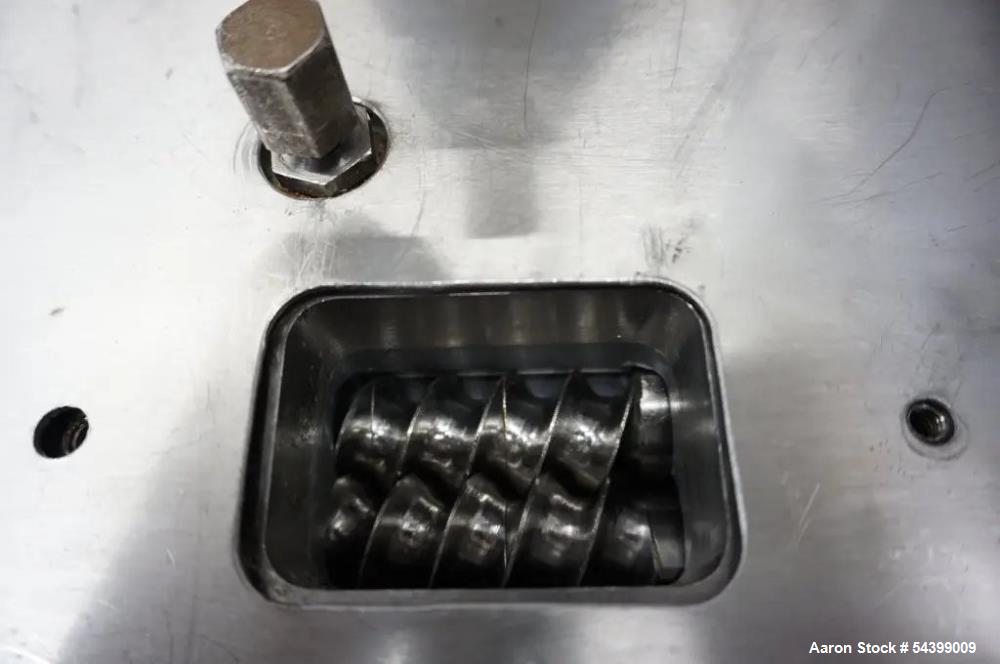

- Screw Diameter: (2) 30 mm
- Screw Configuration: Side-by-side, co-rotating
- L/D Ratio: 10:1
Barrel & Processing
- Electrically heated barrel
- Water cooled system
Drive & Performance
- Drive Motor: 4 kW AC motor
- Voltage: 440 Volt
- Gearbox: Gear driven
- Maximum Screw Speed: 161 RPM
Feeding System

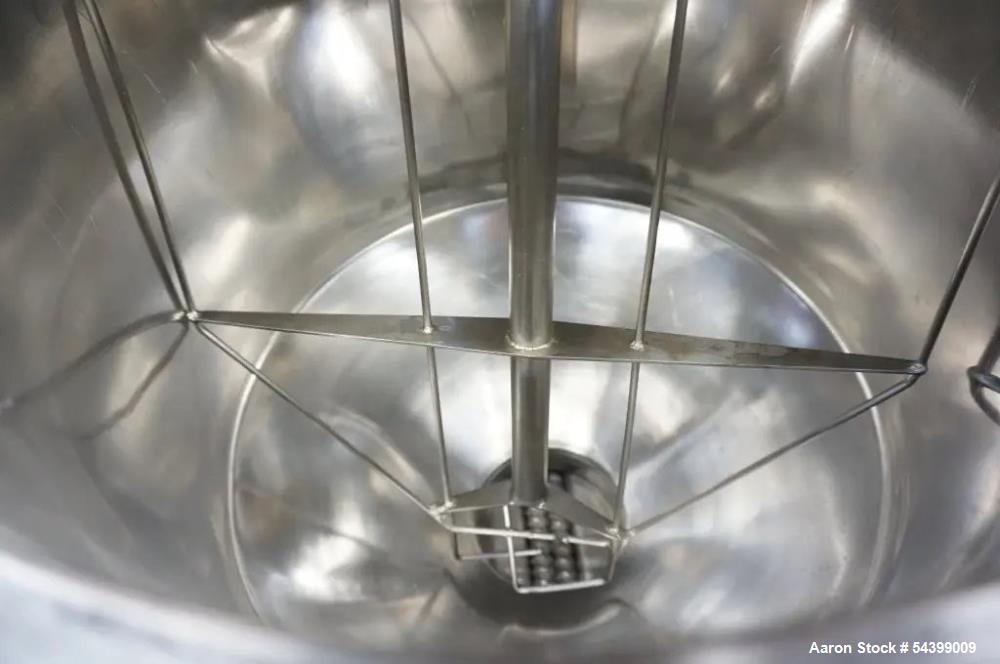

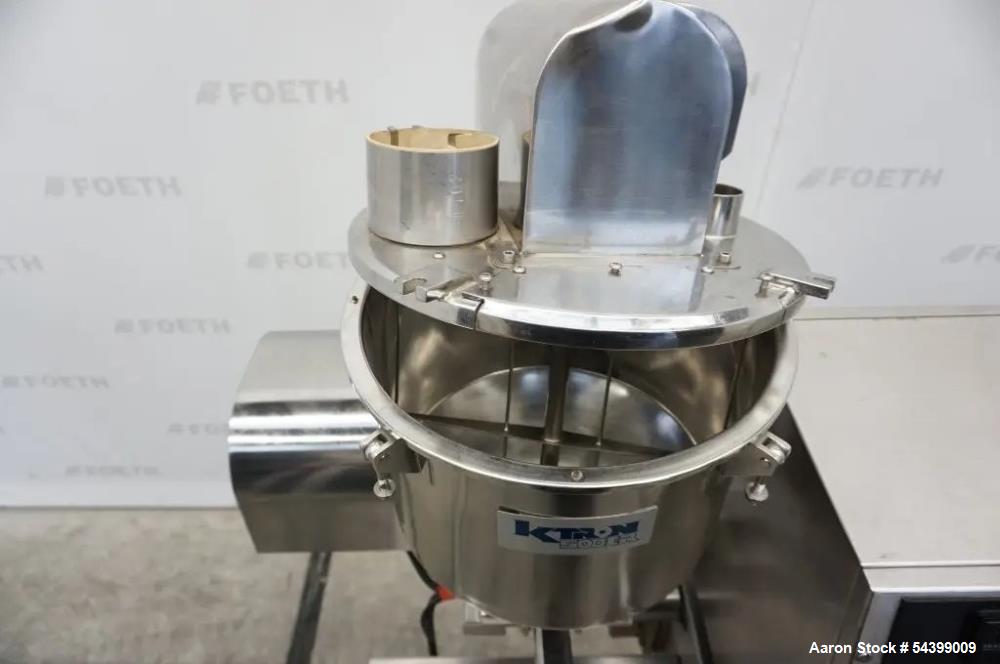

- Feeder: K-Tron T22 twin screw feeder
Mechanical

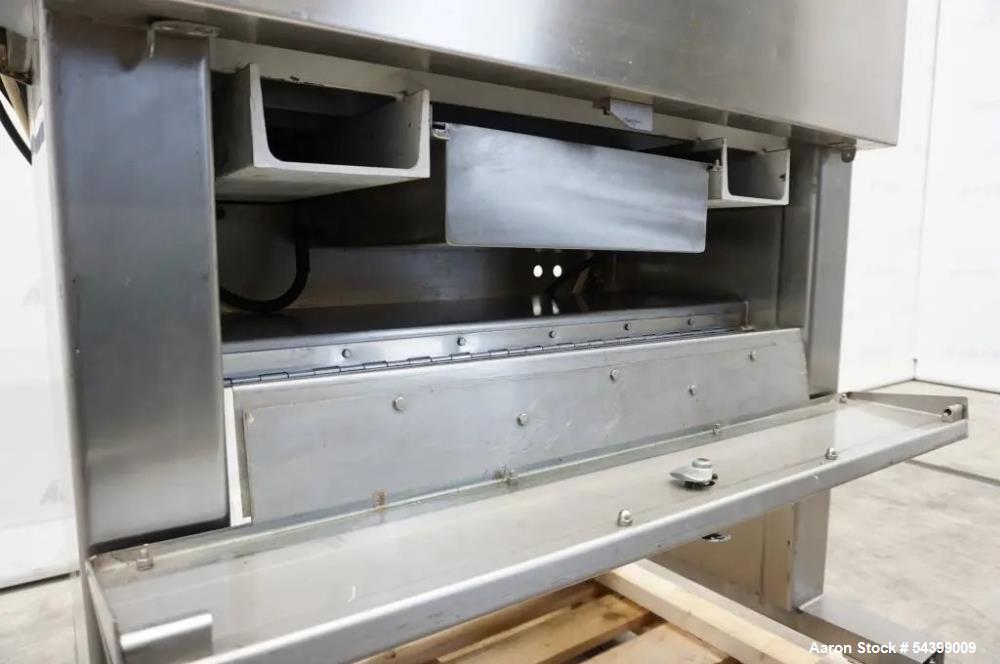

- Mounting: Frame mounted on (4) wheels

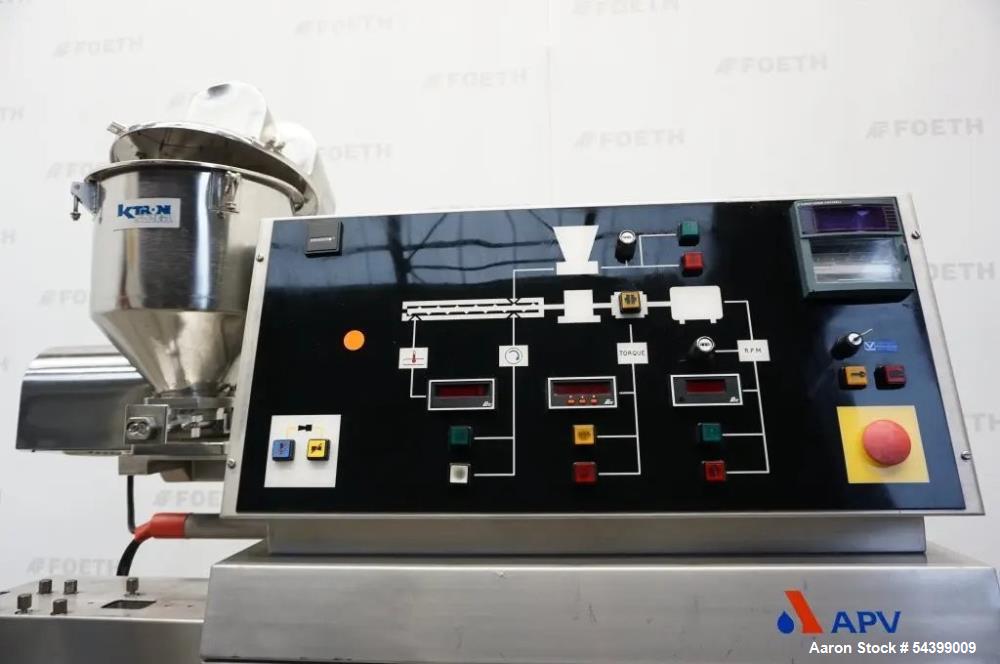

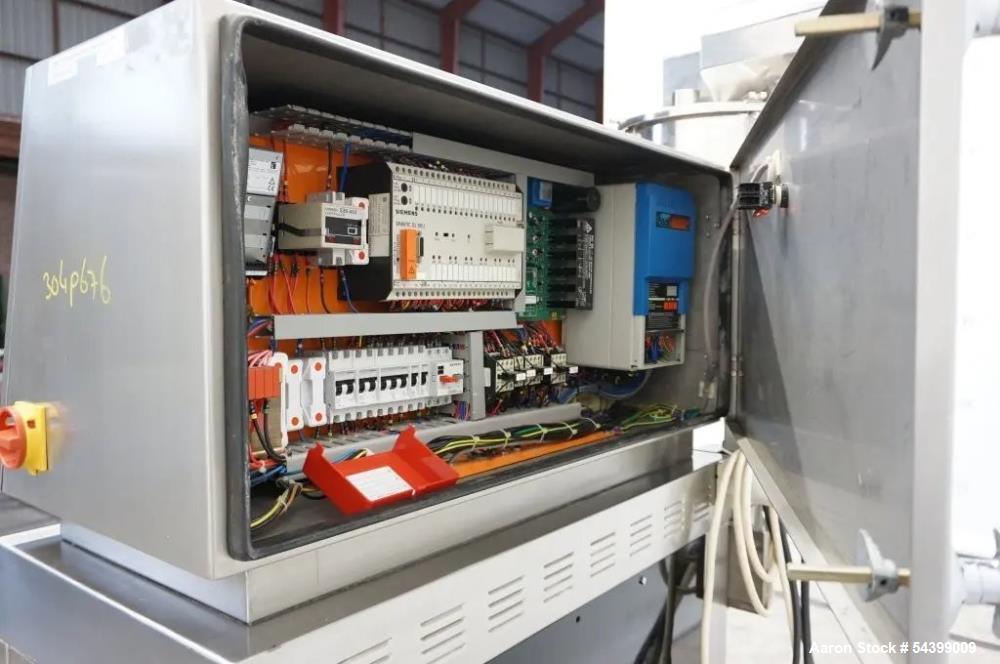

- Control Panel: Mounted on extruder
Dimensions & Weight
- Size:
- Length: 1800 mm
- Width: 800 mm
- Height: 2200 mm
- Weight: Approx. 400 kg
- Previous Use: Compounding
Applications
- Polymer compounding
- Additive blending
- Masterbatch production
- R&D processing
- Pilot plant trials
- Specialty polymer formulation
- Color concentrate development
- Food or pharmaceutical extrusion trials
- Low-volume production
- Material testing and development
What might this be used for
- Developing new polymer formulations
- Producing small batches of plastic compounds
- Testing additives and fillers
- Creating masterbatch samples
- Compounding specialty materials
- Running pilot-scale production
- Feeding precise material blends with twin screw feeder
- Evaluating process parameters
- Producing custom polymer blends
- Training or lab-scale extrusion operations
Products this machine would be used for
- Plastic pellets
- Masterbatch pellets
- Additive concentrates
- Color concentrates
- Specialty compounds
- Engineering plastic samples
- R&D material batches
- Test production materials
- Small-scale polymer blends
- Custom formulations
