Stock No.: 54399008

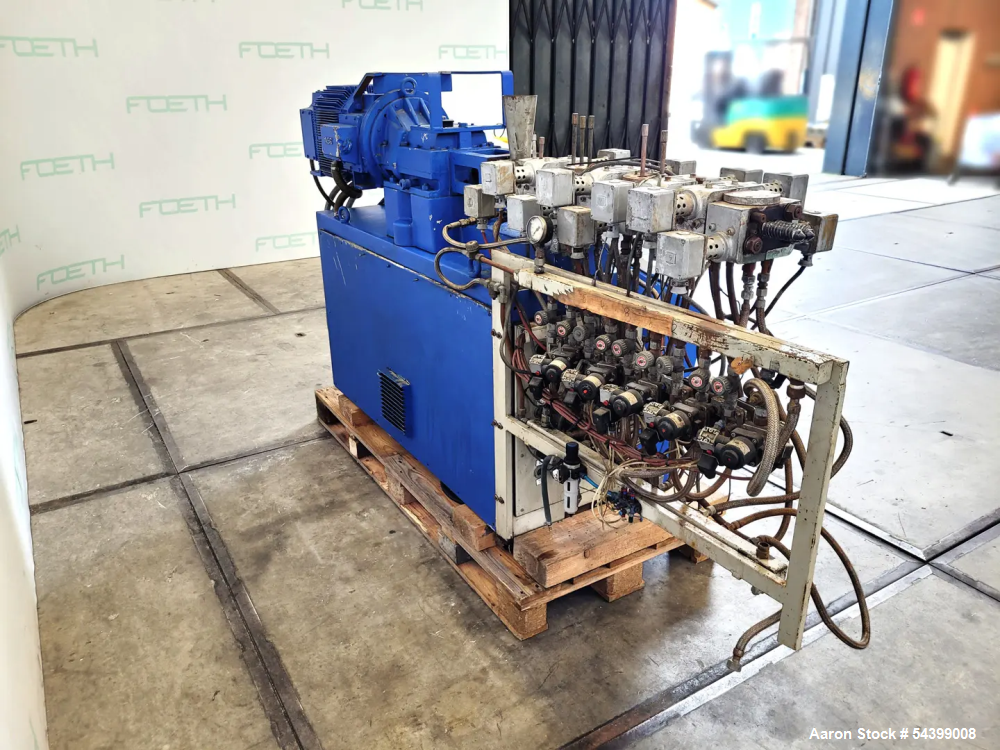

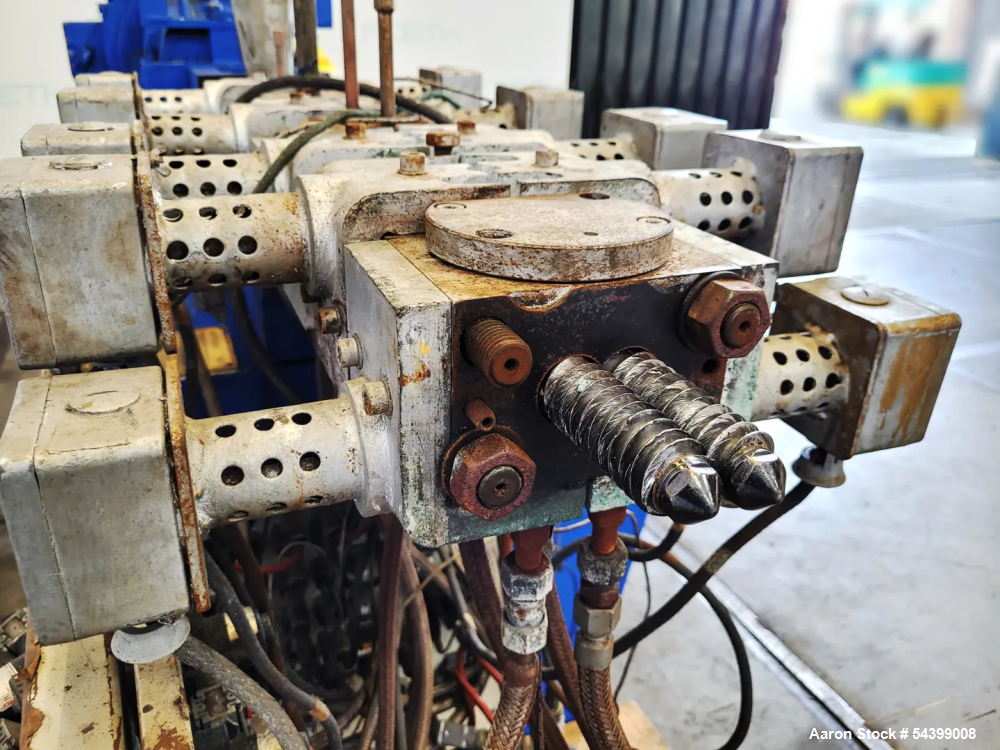

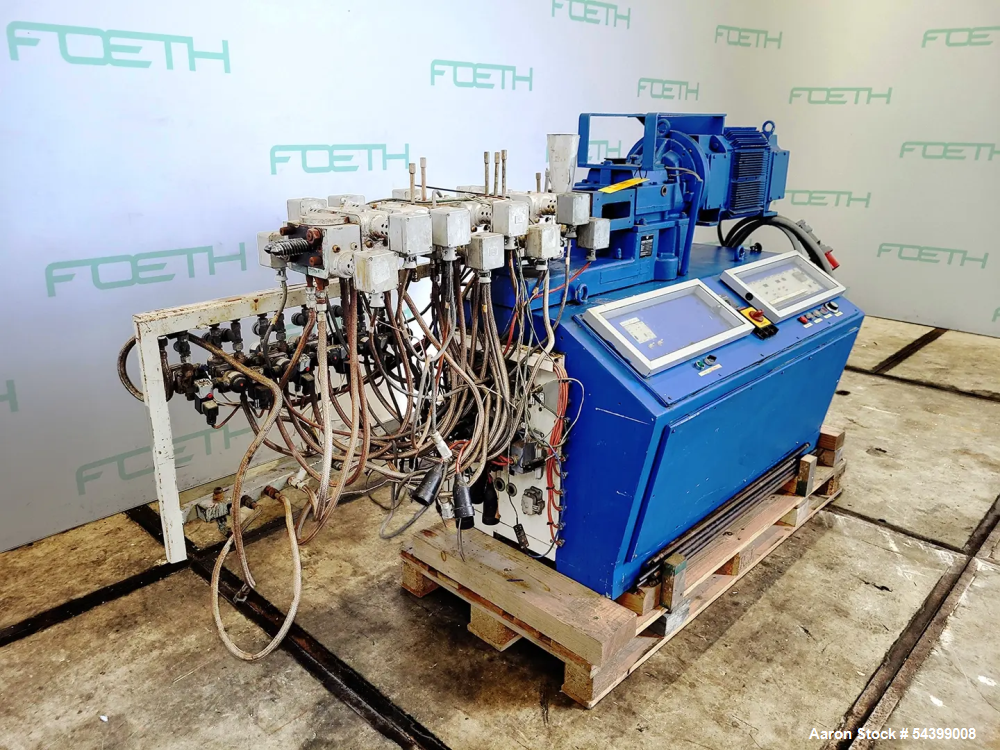

Used Coperion Werner & Pfleiderer ZSK 30-W9/2 Twin Screw Extruder – High-Speed Lab & Production Compounding System
Used Coperion Werner & Pfleiderer ZSK 30-W9/2 Twin Screw Extruder High-Speed Lab & Production Compounding System. (2) 30 mm diameter side by side screws, 33.3:1 L/D ratio, 8 total barrel sections, (7) heated barrels, electrically heated water cooled. Driven by a 10.4 kw(14hp) -440-volt AC drive motor via a gear box. Screw speed maximum 500 RPM. Frame mounted, Control panel. Weight 1.1 tonnes. Extruder: 2800 mm L x 850 mm W x 1300 mm H. Previously used in a compounding application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.
-
ManufacturerWerner & Pfleiderer
-
ModelZSK 30-W9/2
-
Serial #219522
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Twin Screw CoRotate
Used equipment facts about this machine
Manufacturer Information
Manufacturer: Coperion Werner & Pfleiderer
Model: ZSK 30-W9/2
Type: Twin Screw Extruder (Co-Rotating)
Condition: Used
Description
Used Coperion Werner & Pfleiderer ZSK 30-W9/2 Twin Screw Extruder, a compact, high-performance co-rotating twin screw system ideal for precision compounding, R&D, and small-scale production. Featuring 30 mm diameter screws and an extended 33.3:1 L/D ratio, this machine provides excellent mixing, dispersion, and process control.
The extruder includes 8 barrel sections (7 electrically heated and water-cooled) for accurate thermal management across processing zones. Powered by a 10.4 kW AC motor with gearbox, the system delivers high-speed operation up to 500 RPM, making it suitable for advanced formulations and high-shear applications.
Previously used in compounding, this unit is frame mounted and includes a control panel, offering a complete, ready-to-run solution for polymer processing environments.
Specifications
- Manufacturer: Coperion Werner & Pfleiderer
- Model: ZSK 30-W9/2
- Machine Type: Twin Screw Extruder (Co-Rotating)
- Screw Diameter: (2) 30 mm
- Screw Configuration: Side-by-side, co-rotating
- L/D Ratio: 33.3:1
- Barrel Sections: 8 total
- Heated Barrels: 7 electrically heated
- Cooling: Water cooled
- Drive Motor: 10.4 kW AC motor
- Motor Power: 14 HP
- Voltage: 440 Volt
- Gearbox: Gear-driven
- Maximum Screw Speed: 500 RPM
- Mounting: Frame mounted
- Control System: Control panel included
- Previous Use: Compounding
Dimensions
- Extruder Size:
- Length: 2800 mm
- Width: 850 mm
- Height: 1300 mm
- Weight: 1.1 tonnes
Applications
- Polymer compounding
- Masterbatch development
- Additive dispersion
- R&D and pilot-scale processing
- Engineering plastics formulation
- Color concentrate production
- Reactive extrusion
- Specialty compound development
- Pharmaceutical or food-grade polymer trials
- Small batch production
What might this be used for
- Developing new polymer formulations
- Producing small batches of compounds
- Testing additives and fillers
- Creating color masterbatch samples
- Compounding engineering-grade resins
- Research and development trials
- Scaling formulations from lab to production
- Mixing high-value specialty polymers
- Producing custom polymer blends
- Continuous pilot line processing
Products this machine would be used for
- Plastic pellets
- Masterbatch pellets
- Color concentrates
- Additive concentrates
- Engineering thermoplastics
- Specialty polymer blends
- Research-grade materials
- High-performance compounds
- Small production batches
- Custom plastic formulations
