Used Coperion ZSK 70 SC Twin Screw Extrusion Line – 800-1,000 kg/hr Polymer Compounding System with Pelletizing Package

Manufacturer

Coperion GmbH

Description

Available for sale is a used Coperion ZSK 70 SC Twin Screw Extrusion Line designed for high-performance polymer compounding, masterbatch production, engineering plastics processing, and specialty material manufacturing. The line is rated for an estimated throughput of 800-1,000 kg/hr and includes feeding, dosing, side feeding, extrusion, pelletizing, conveying, metal detection, screening, filling, and storage systems.

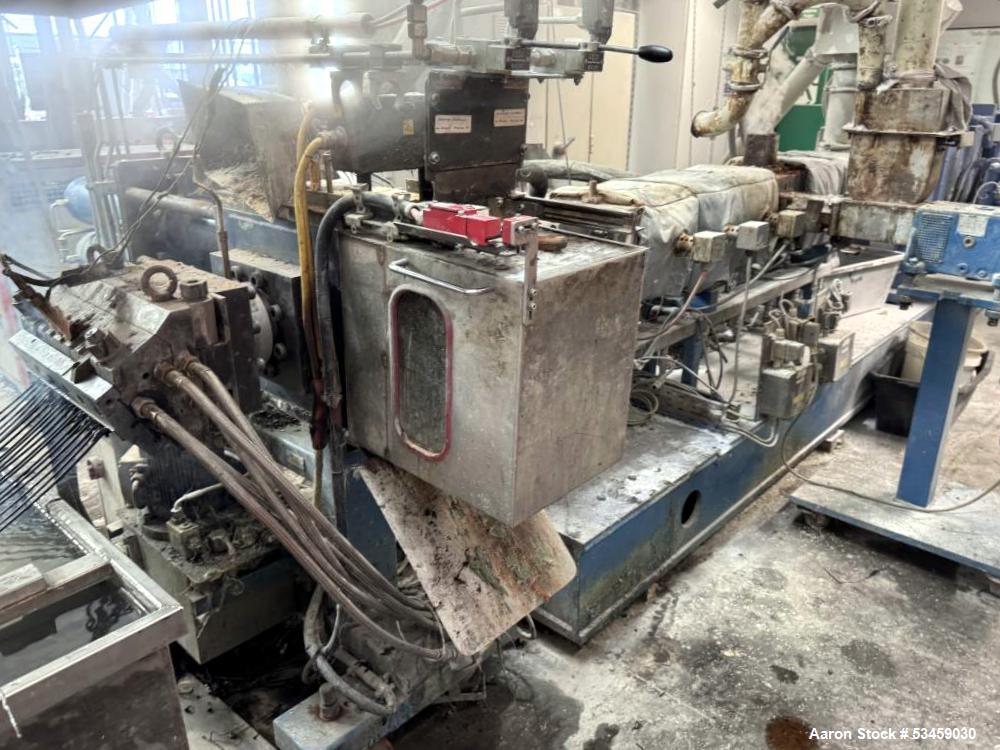

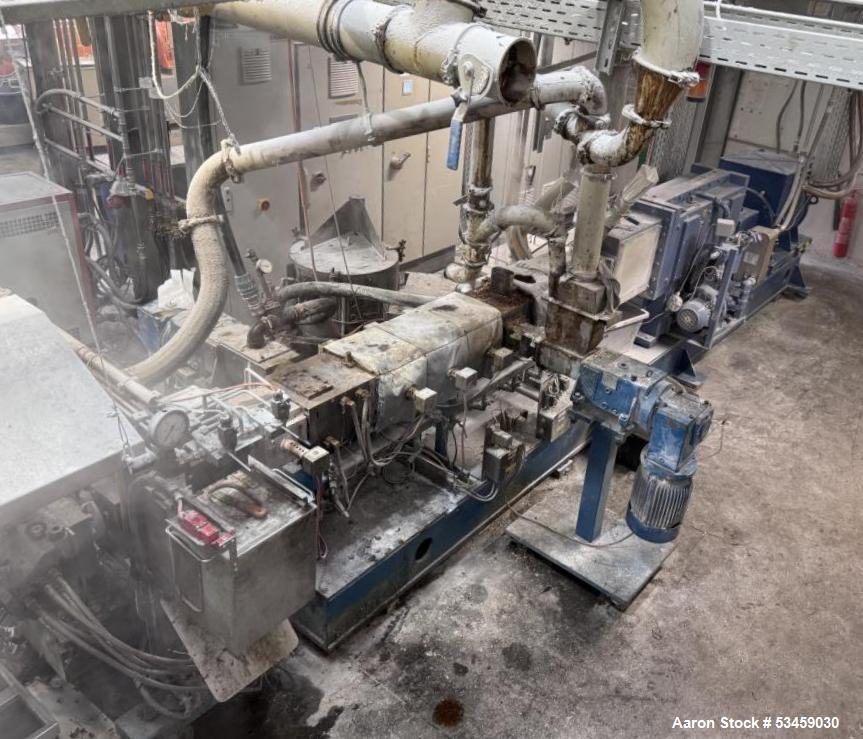

The extrusion system is built around a Coperion ZSK 70 SC co-rotating twin screw extruder featuring 70 mm intermeshing screws, a 40:1 L/D ratio, and nine electrically heated, water-cooled barrel sections. The extruder is powered by a 250 kW drive motor coupled to a Flender gearbox and includes a 26-hole die head for efficient pellet production.

Included with the line are a Koch Technik feeding system, Scholz Dosiertechnik dosing unit, two Coperion ZSB 58 twin screw side feeders, Pell-Tec SP 300 Easy pelletizer, stainless steel water bath, Vibra conveyor, S+S metal separator, stainless steel sifter, Colortronic filling stations with scales, and a 20 m³ stainless steel storage silo.

This complete compounding line is being offered as part of an auction event and is expected to become available at the end of July 2026. An additional 18% Buyer's Premium applies.

Specifications

Included Equipment

Feeding & Dosing Systems

• Koch Technik Feeding System

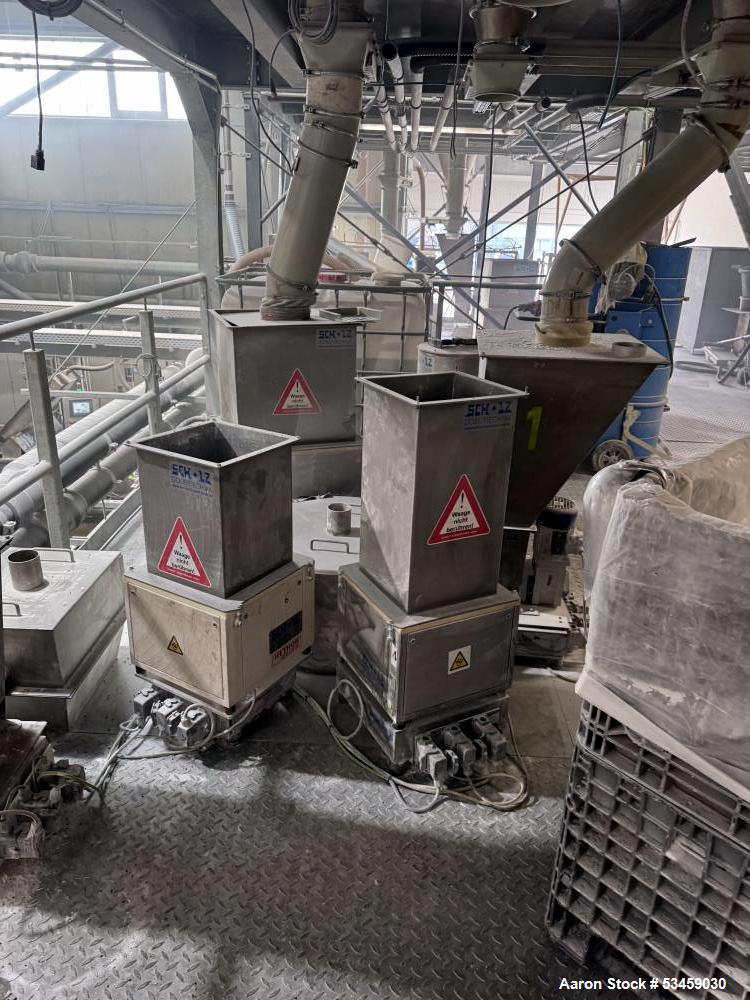

• Scholz Dosiertechnik Dosing Unit

Extrusion System

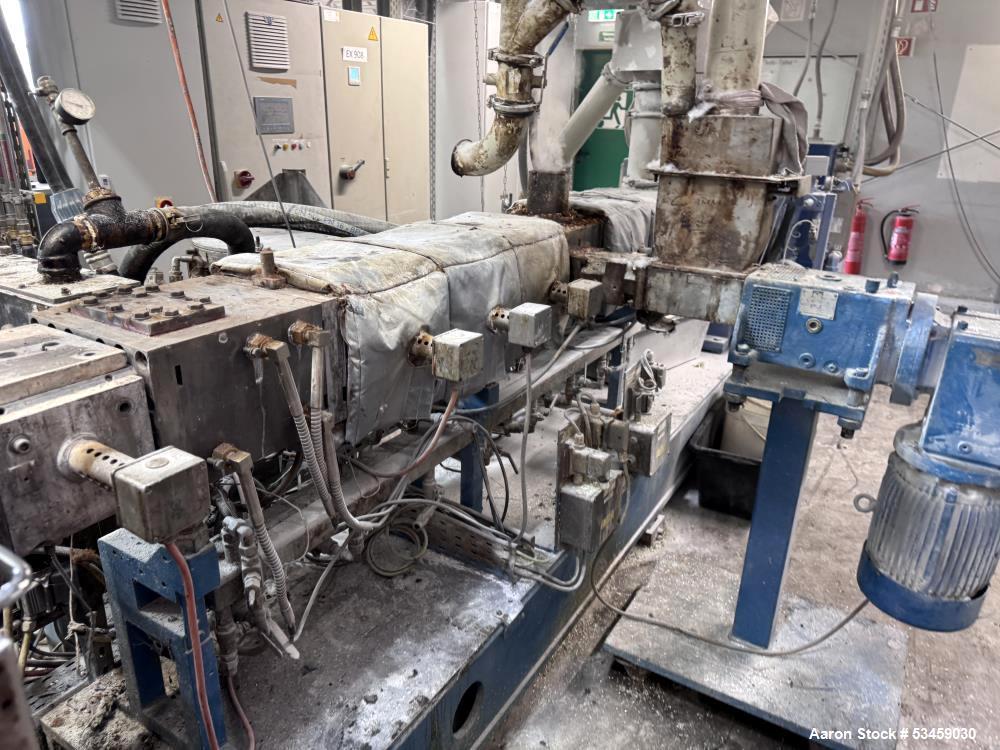

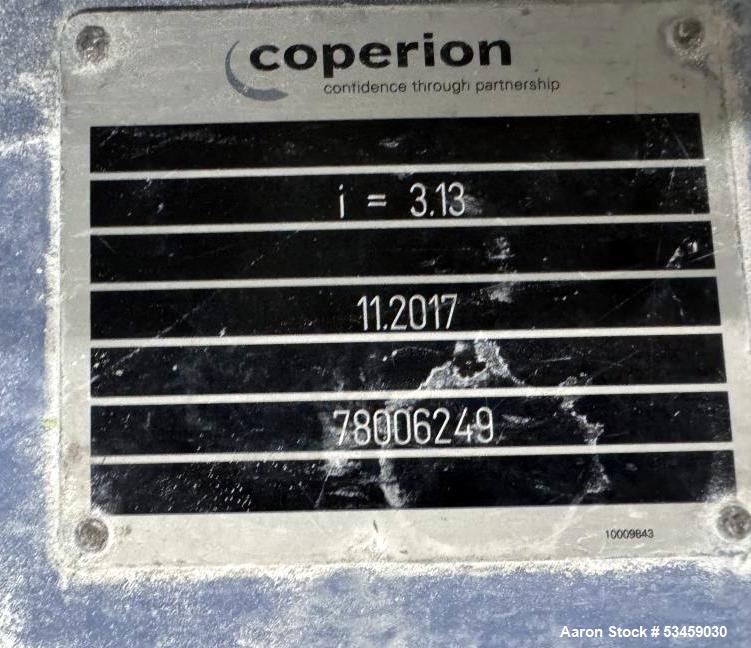

• Coperion ZSK 70 SC Twin Screw Extruder

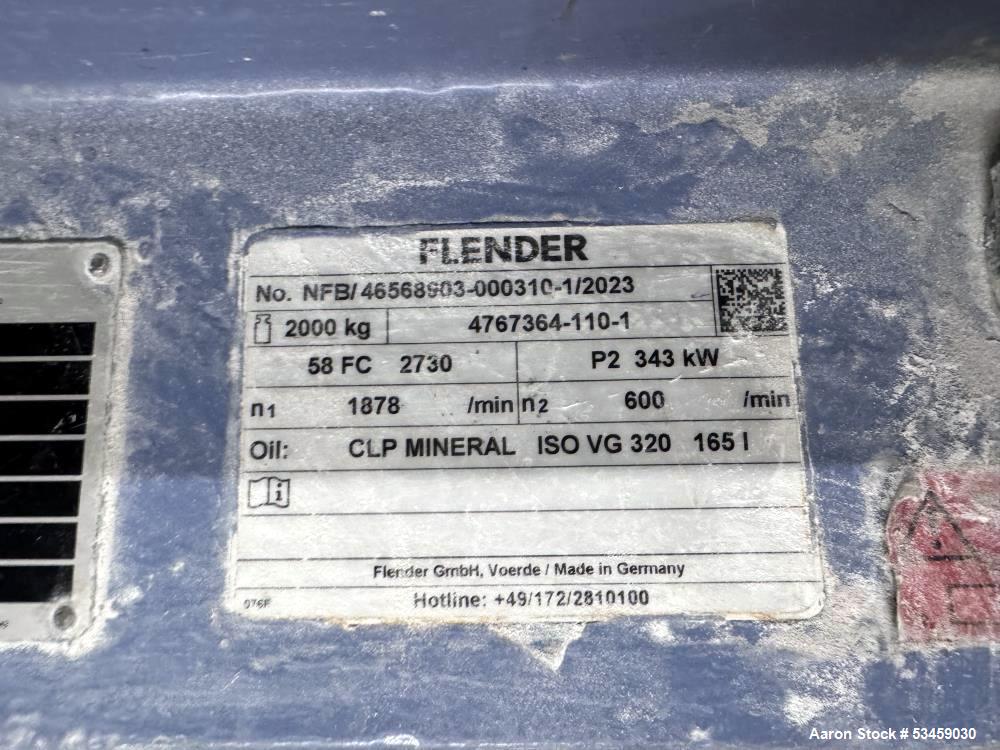

• Flender Gearbox
• 250 kW Main Drive Motor
• 26-Hole Die Head

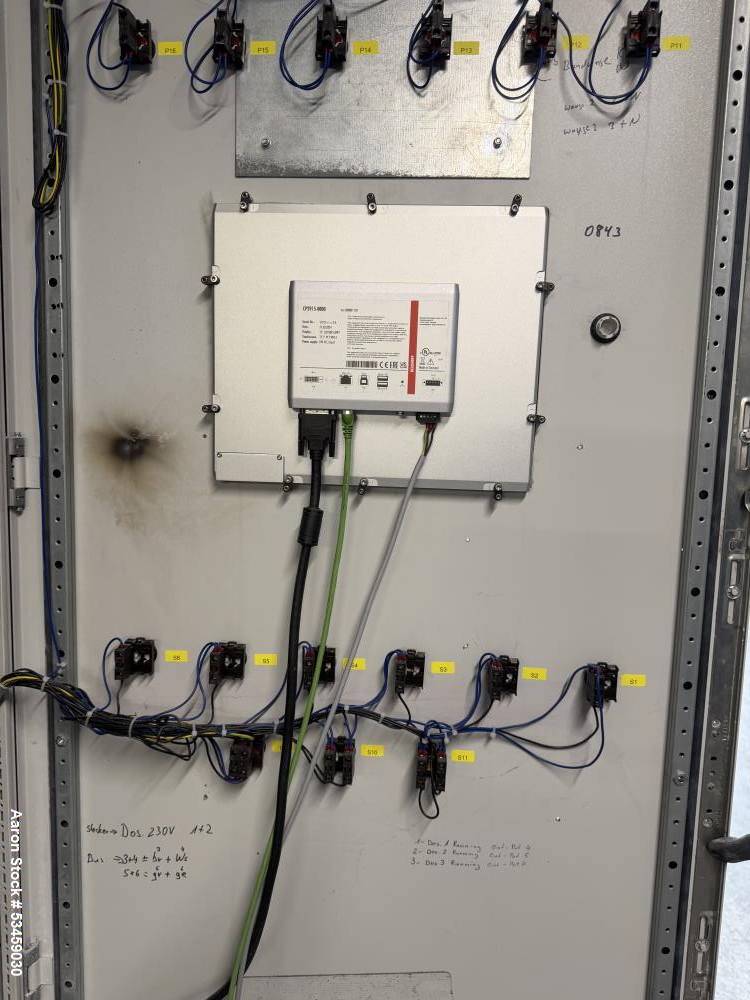

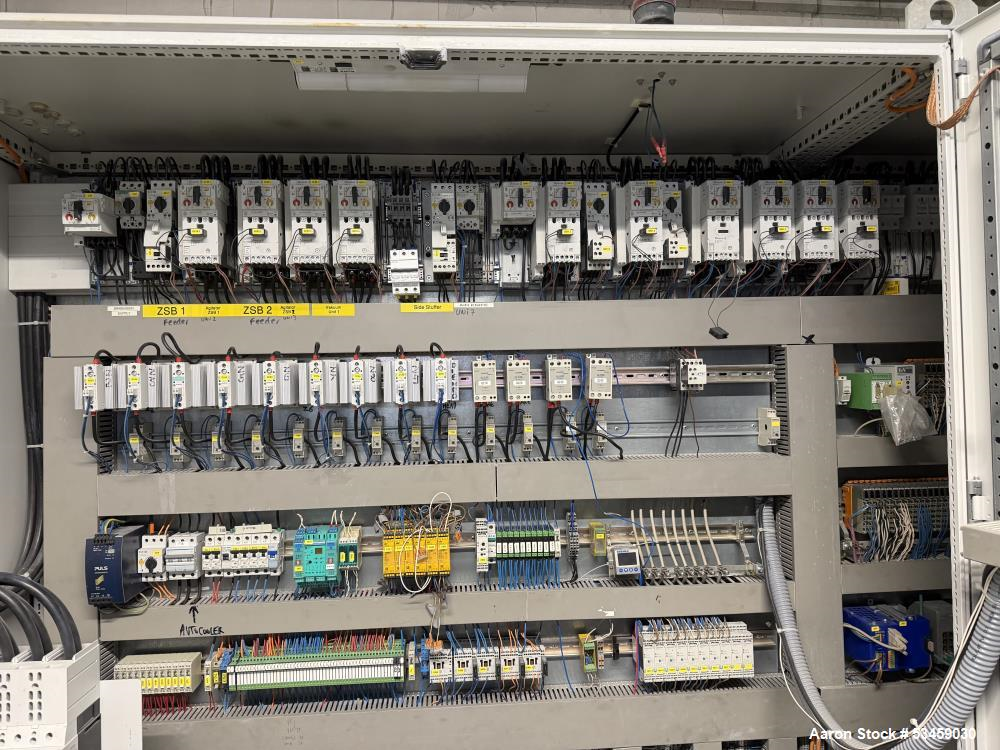

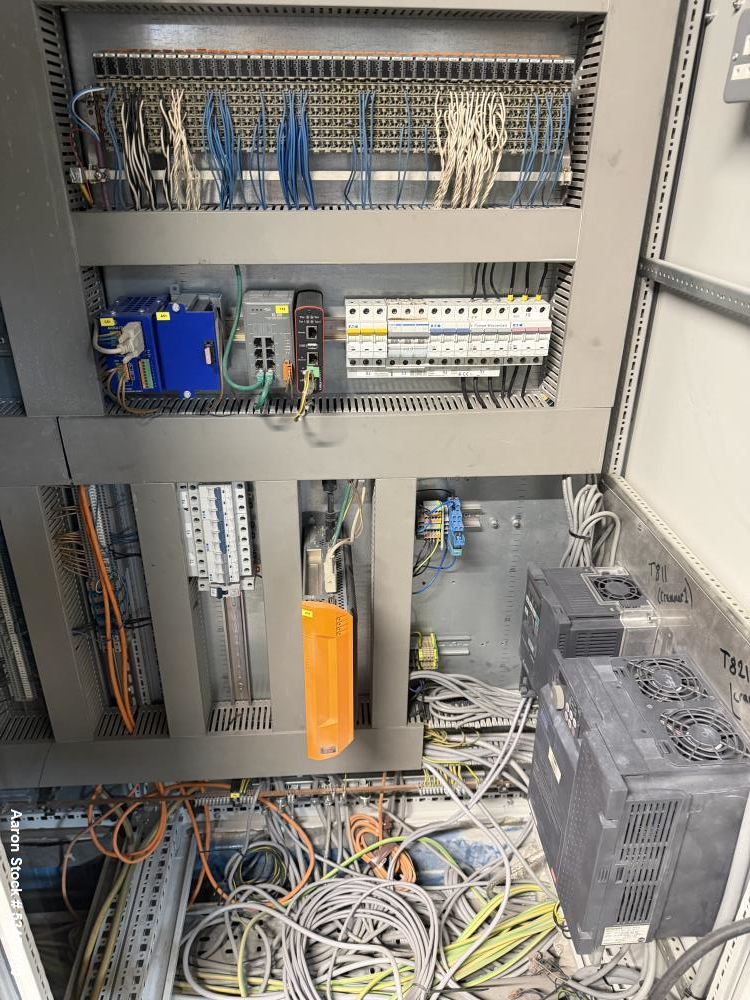

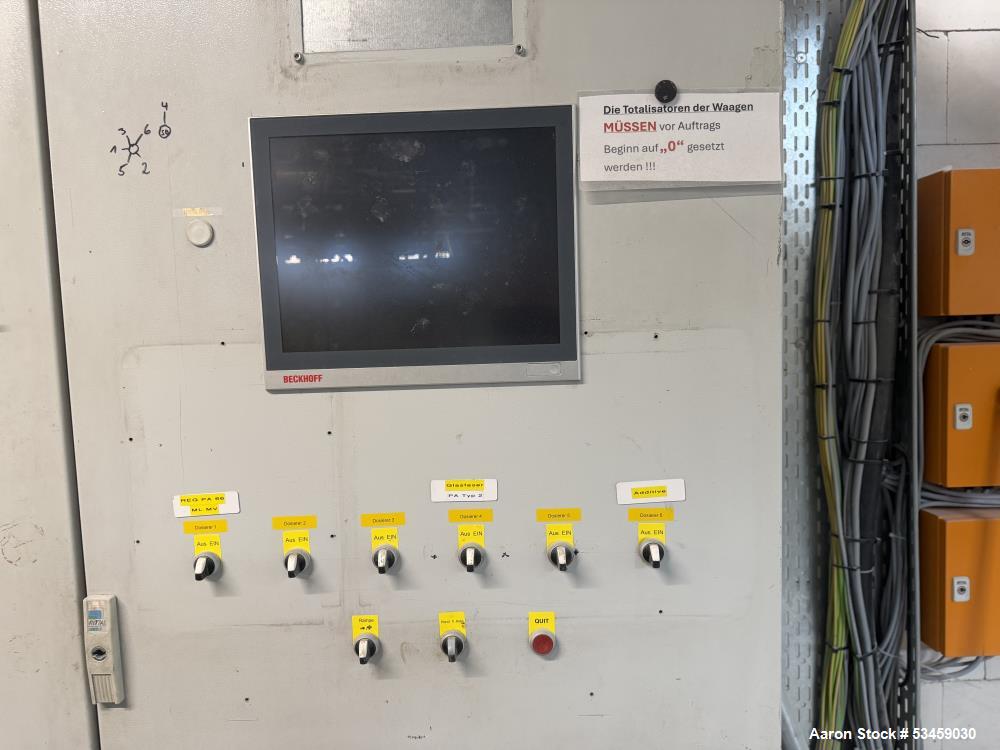

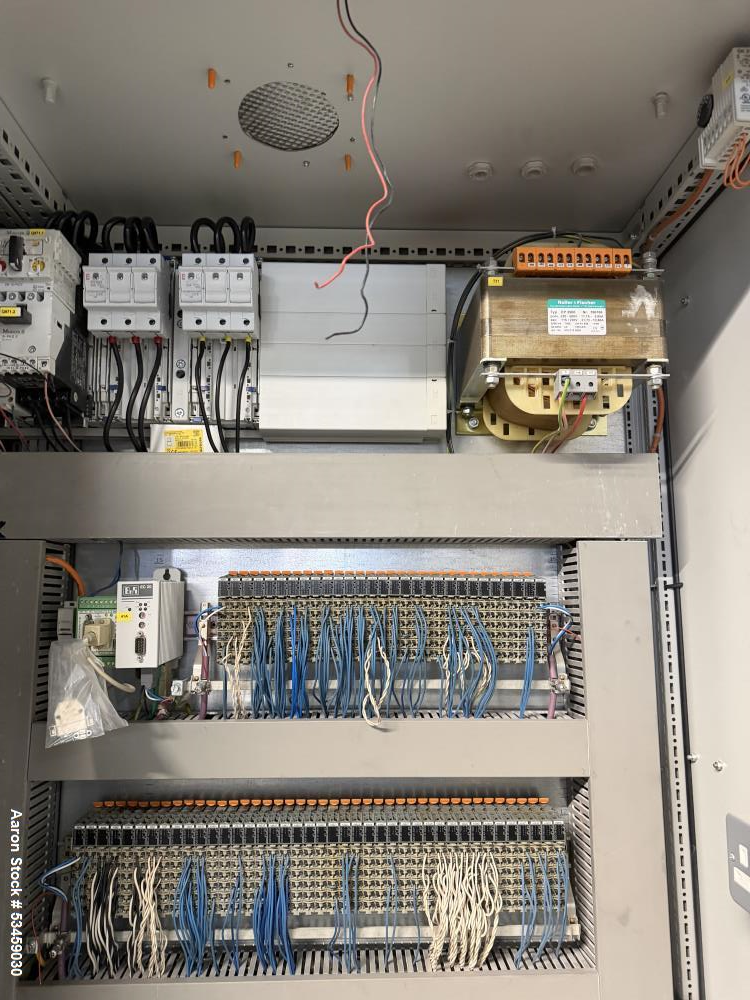

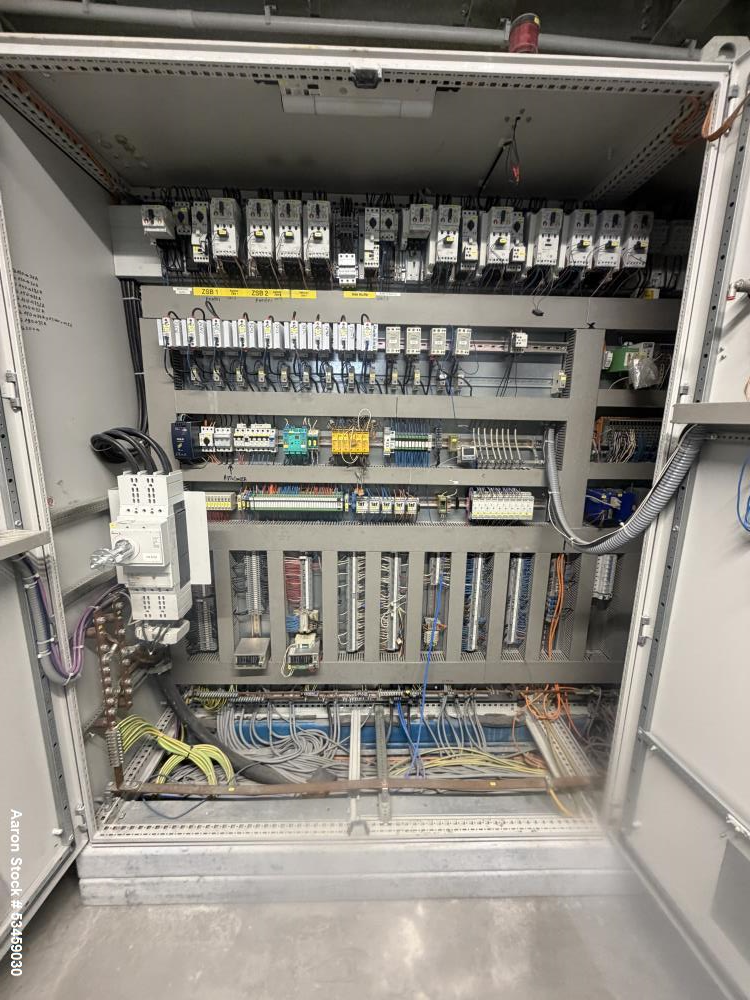

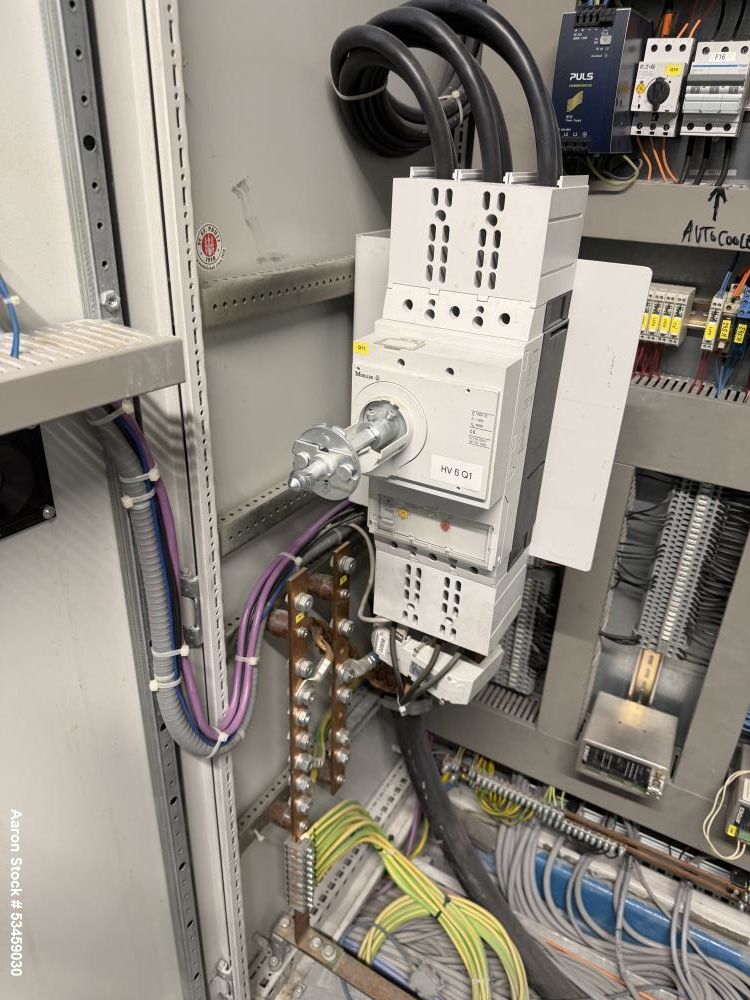

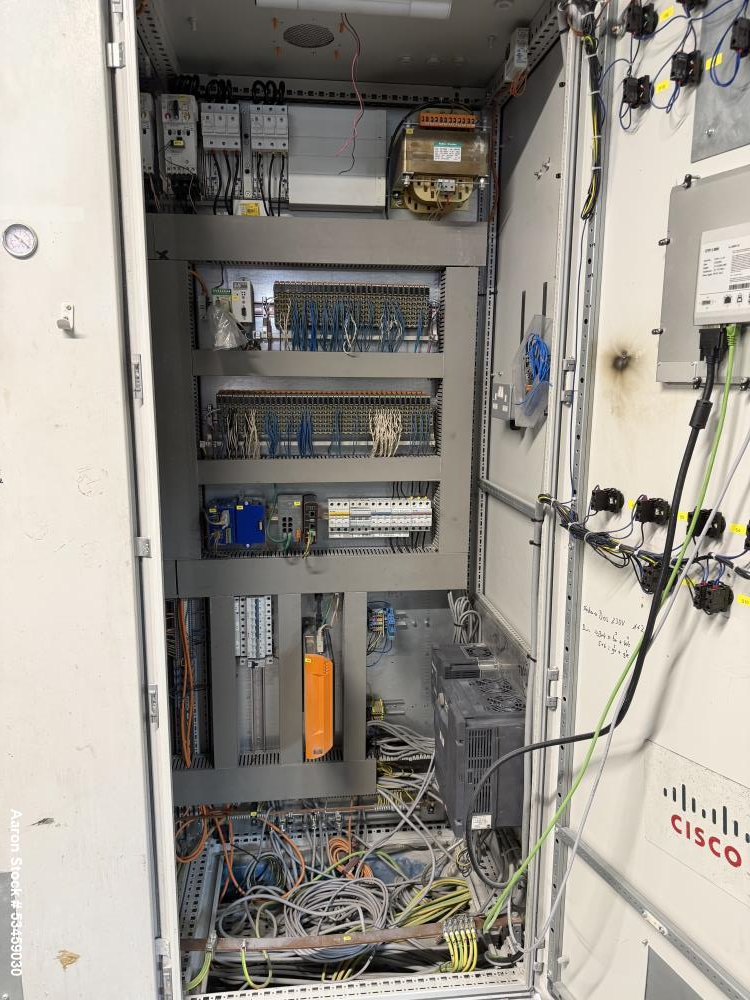

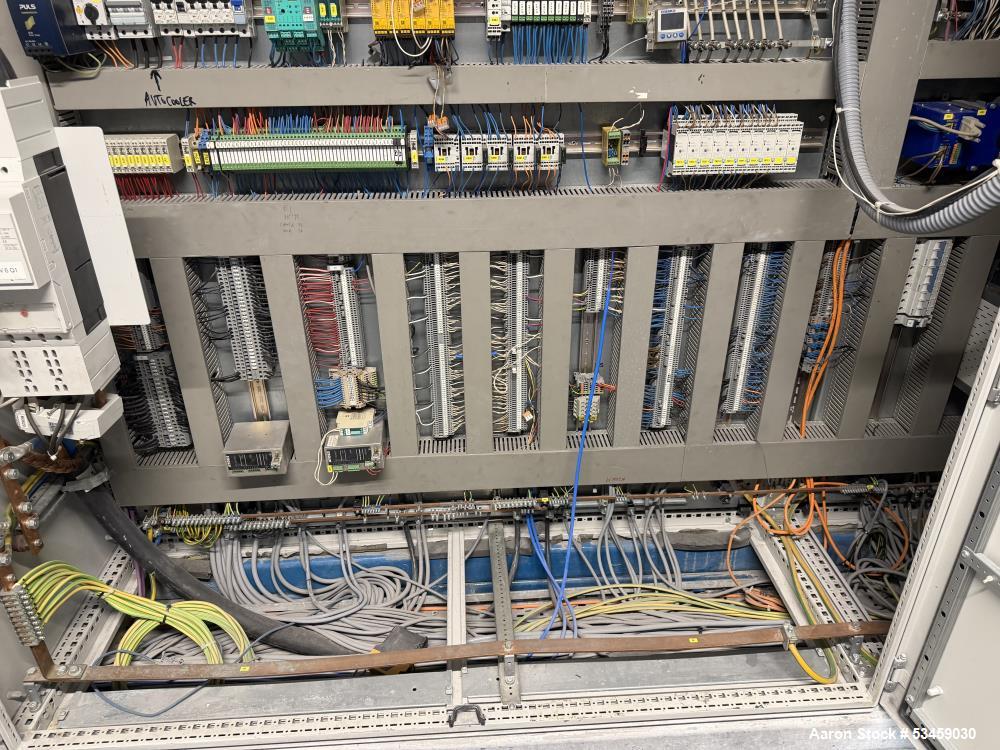

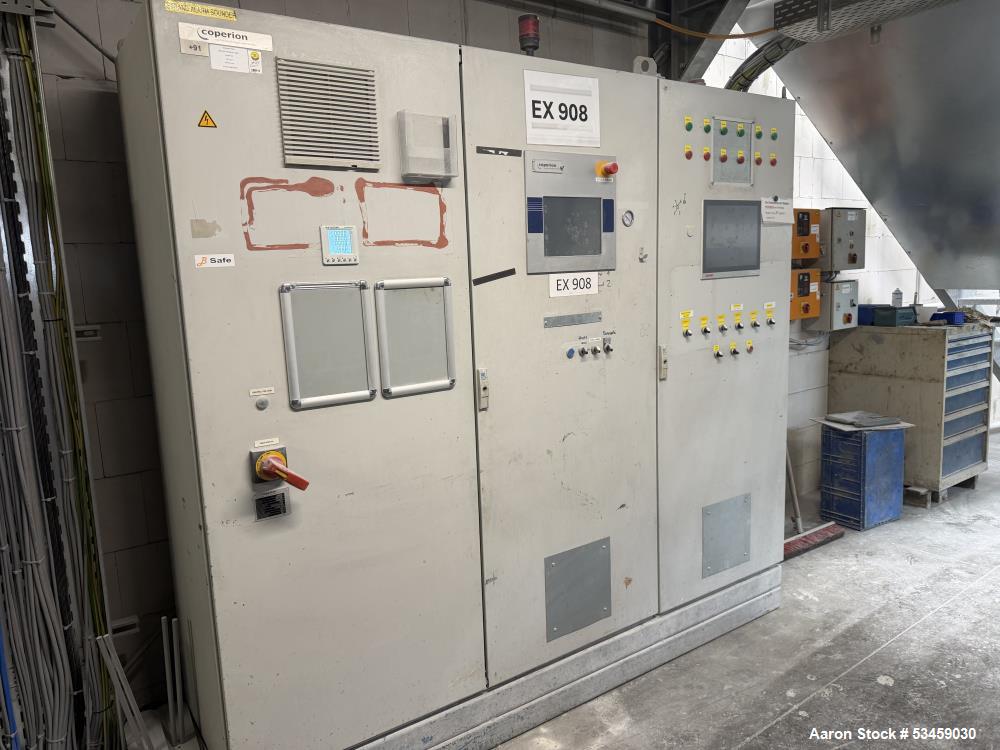

• Control Panel

Side Feeding

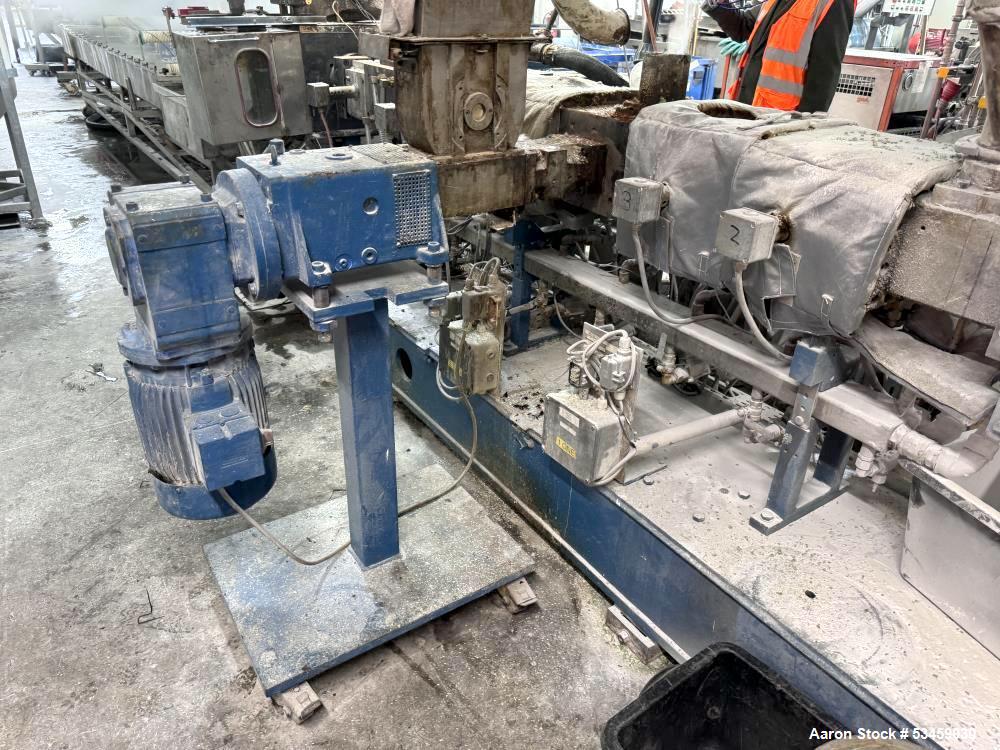

• (2) Coperion ZSB 58 Twin Screw Side Feeders

Pelletizing & Cooling

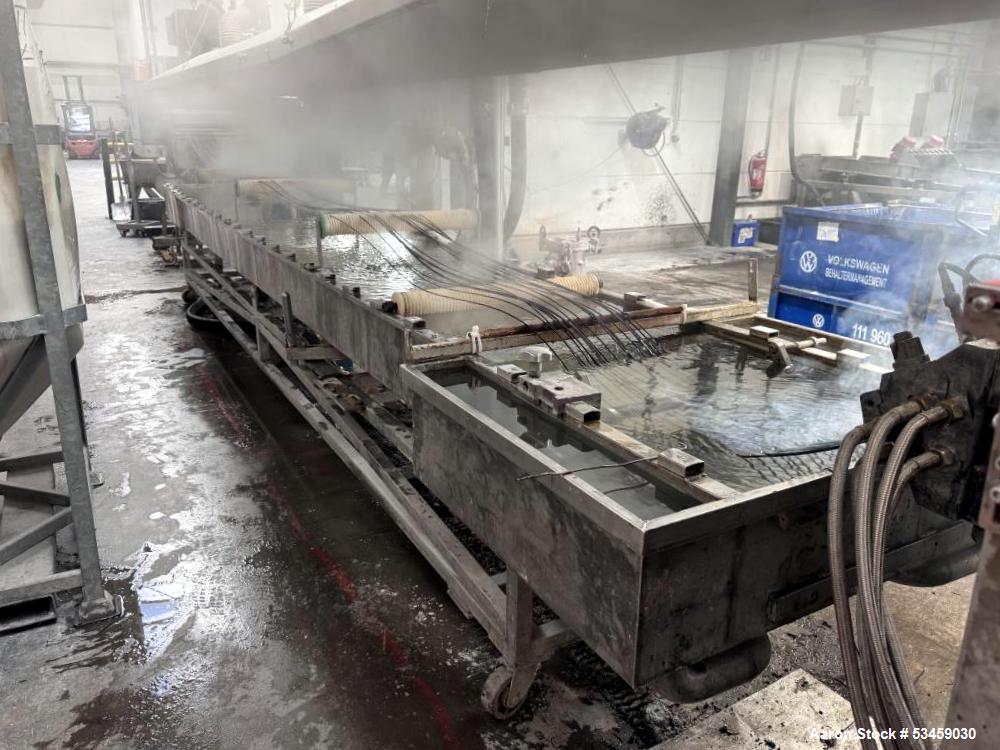

• Stainless Steel Water Bath on Wheels

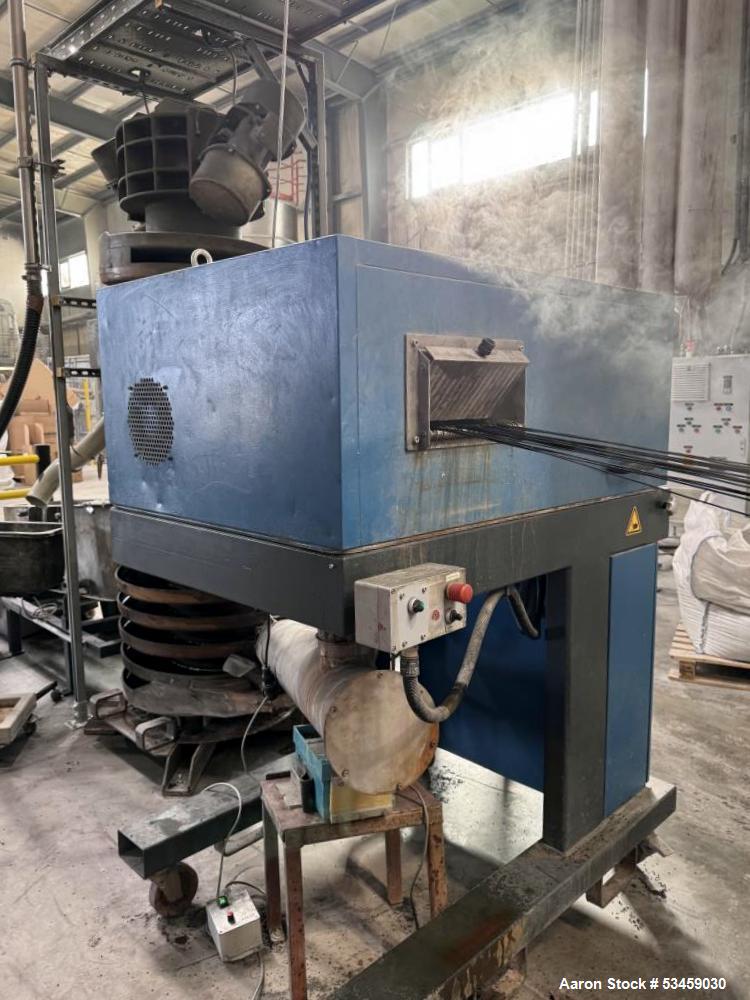

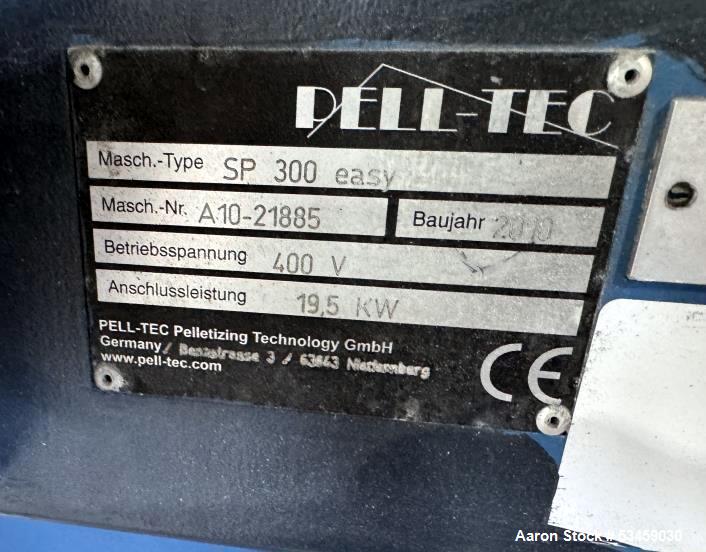

• Pell-Tec SP 300 Easy Pelletizer (2011)

Product Handling

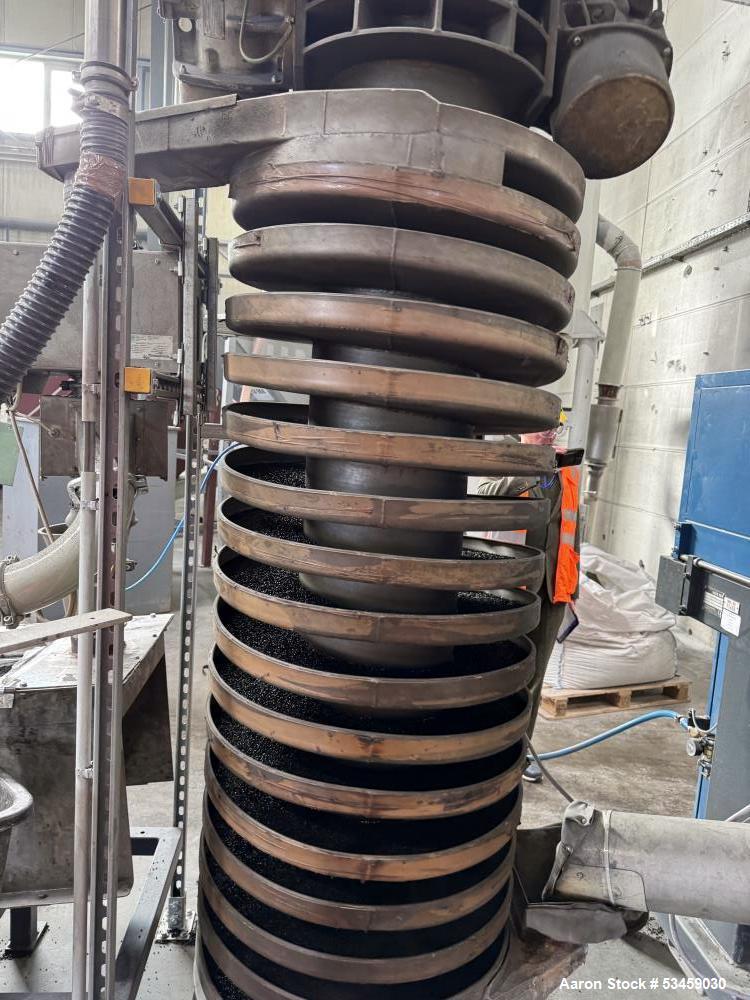

• Vibra Conveyor WF 814-18DC (2009)
• S+S Metal Separator
• Stainless Steel Sifter

Packaging & Storage

• Colortronic Filling Stations with Scales
• Stainless Steel Silo, 20 m³ Capacity, Leg Mounted

Applications

• Polymer compounding
• Engineering plastics production
• Color masterbatch manufacturing
• Additive masterbatch production
• Plastic recycling operations
• Mineral-filled compounds
• Glass-filled compounds
• Specialty polymer processing
• Biopolymer production
• Custom resin formulation

Common Products Processed

• Polypropylene (PP)
• Polyethylene (PE)
• ABS
• Polycarbonate (PC)
• Nylon (PA)
• PET compounds
• Color concentrates
• Filled polymers
• Engineering resins
• Recycled plastic compounds

Frequently Asked Questions

Q: What is the throughput capacity of this extrusion line?

• The line is rated for approximately 800 to 1,000 kg per hour, depending on material and formulation.

Q: What screw configuration does the extruder utilize?

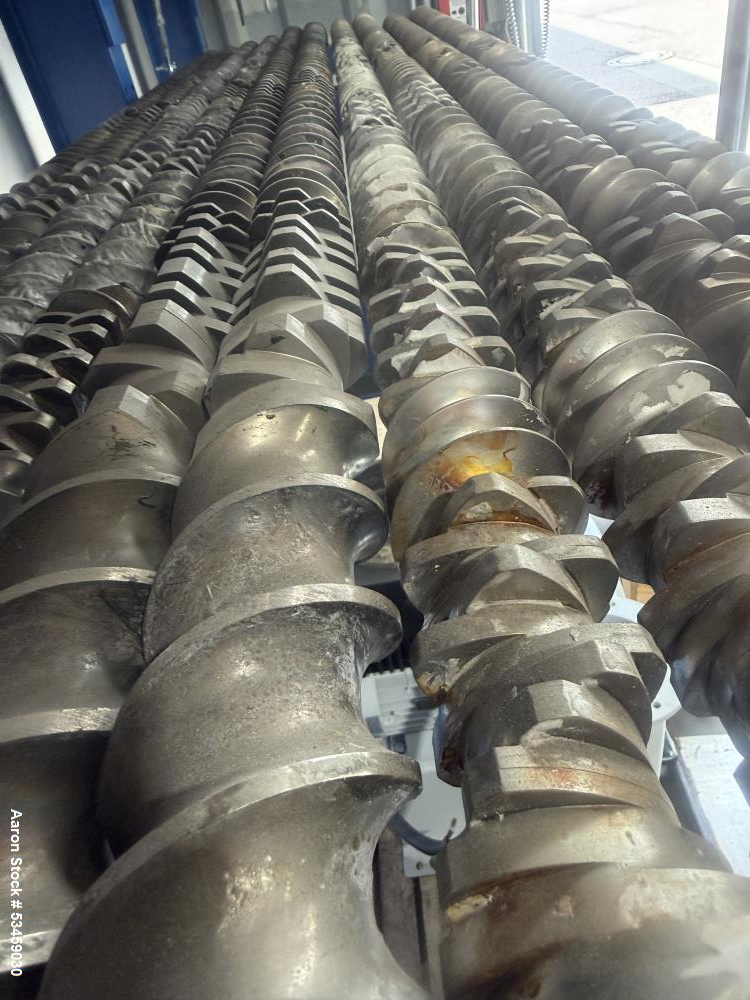

• The system features 70 mm co-rotating intermeshing twin screws with a 40:1 L/D ratio.

Q: Are side feeders included?

• Yes, the package includes two Coperion ZSB 58 twin screw side feeders.

Q: Does the line include pelletizing equipment?

• Yes, the package includes a Pell-Tec SP 300 Easy pelletizer and stainless steel water bath.

Q: Is downstream product handling equipment included?

• Yes, the line includes a vibratory conveyor, metal separator, sifter, filling stations, and storage silo.

Q: Can Aaron Equipment assist with shipping and logistics?

• Yes, Aaron Equipment can coordinate dismantling, rigging, export documentation, freight arrangements, transportation planning, and worldwide logistics support.
