Stock No.: 54399010
Used Buhler BTSK 30/40D Twin Screw Extruder | 50 mm Co-Rotating Process Extruder

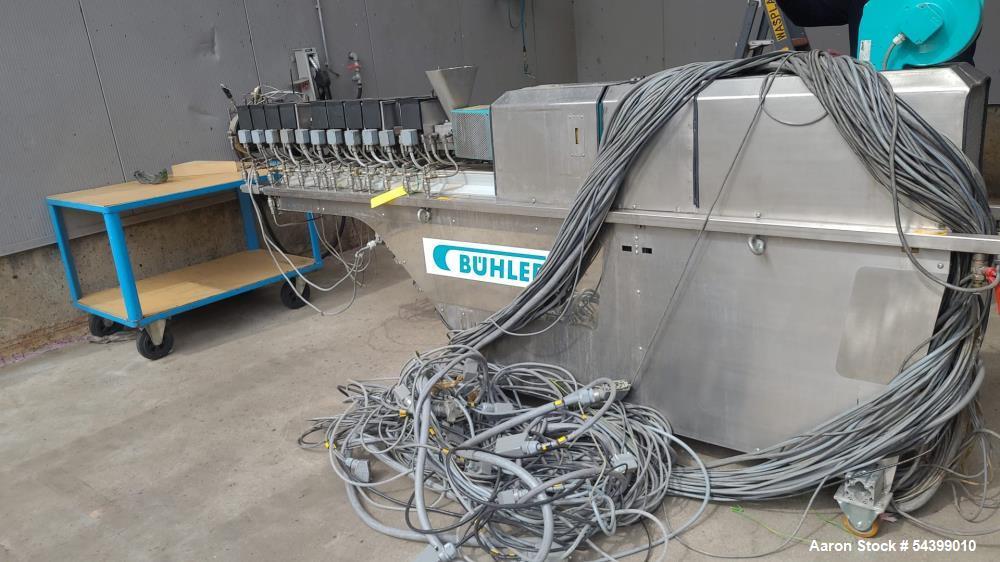

Used- Buhler BTSK 30/40D Twin Screw Extruder, 2 x 50 mm diameter side by side screws, 53:1 L/D ratio, 11-barrel sections, electrically heated water cooled. Driven by a 21 kw(31.5hp)-440-volt AC drive motor via a gear box. Screw speed maximum 800 RPM. Frame mounted, Control panel. Weight 1540 LDS/700 Kgs. Extruder: 2400 mm L x 500 mm W x 1450 mm H (extruder only). Previously used in a Teijin Aramid application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.
-
ManufacturerBuhler Inc.
-
ModelBTSK 30/40
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Twin Screw CoRotate
Used equipment facts about this machine
Manufacturer Information
Manufacturer Info
Bühler is a global manufacturer of advanced processing and extrusion equipment for food, plastics, chemicals, pharmaceuticals, and specialty material applications. Bühler twin screw extruders are engineered for high-performance compounding, reactive extrusion, polymer processing, and continuous industrial manufacturing operations.
Description

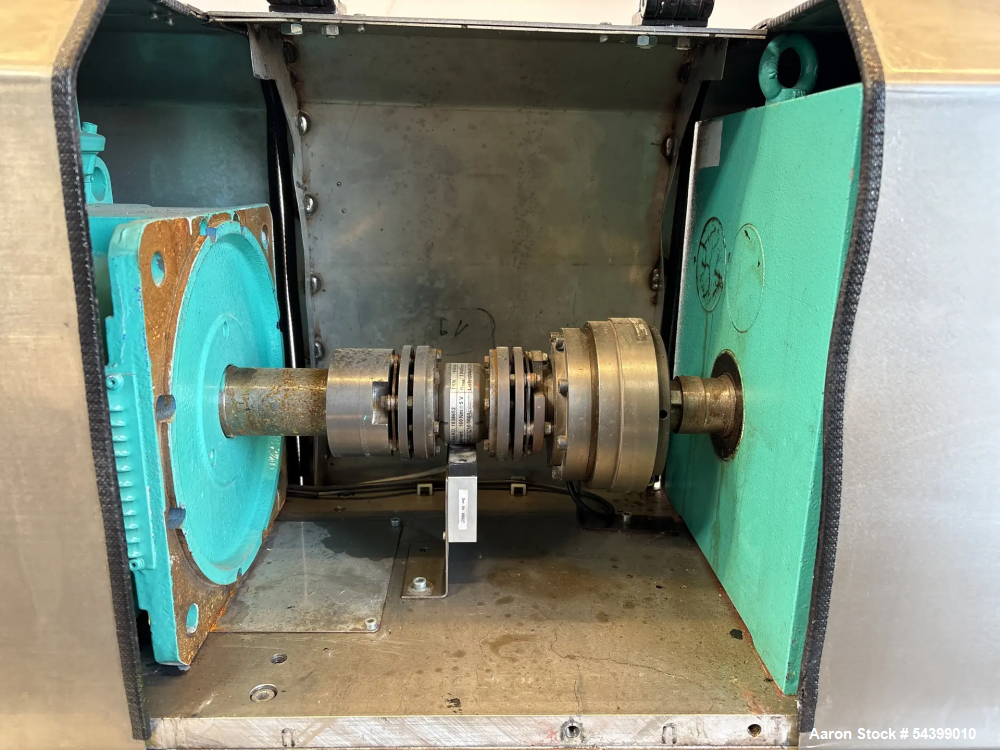

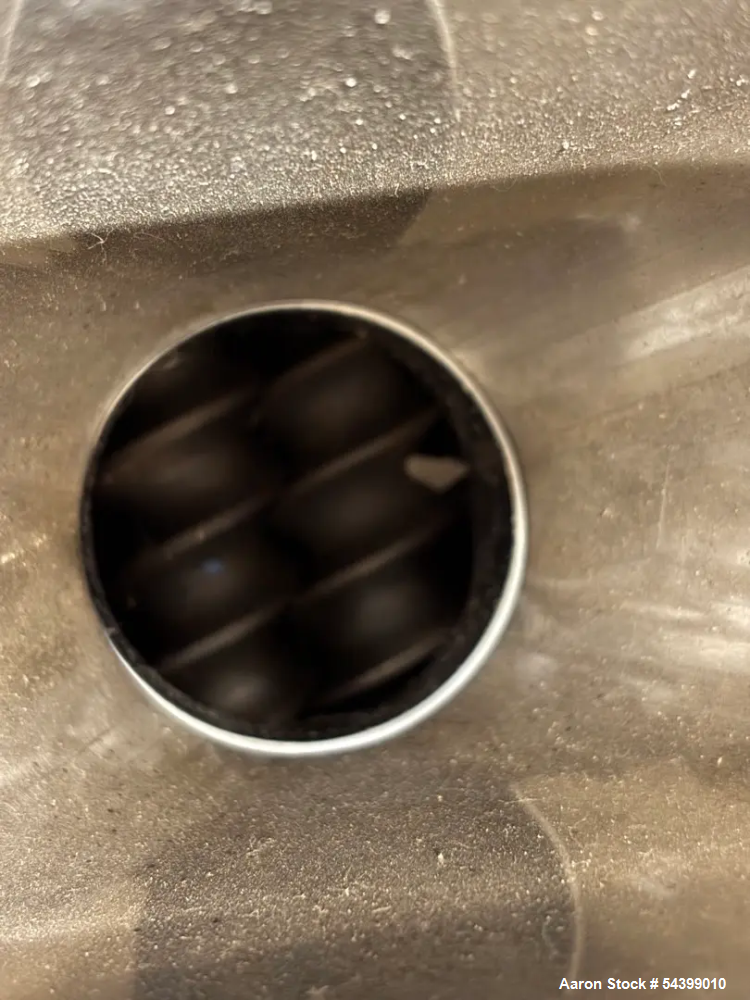

Used Bühler BTSK 30/40D twin screw extruder equipped with (2) 50 mm diameter side-by-side screws and a 53:1 L/D ratio. Unit features 11 electrically heated and water-cooled barrel sections for precise thermal processing and material control. Driven by a 21 kW (31.5 HP), 440 volt AC drive motor through a gearbox, with maximum screw speed up to 800 RPM.

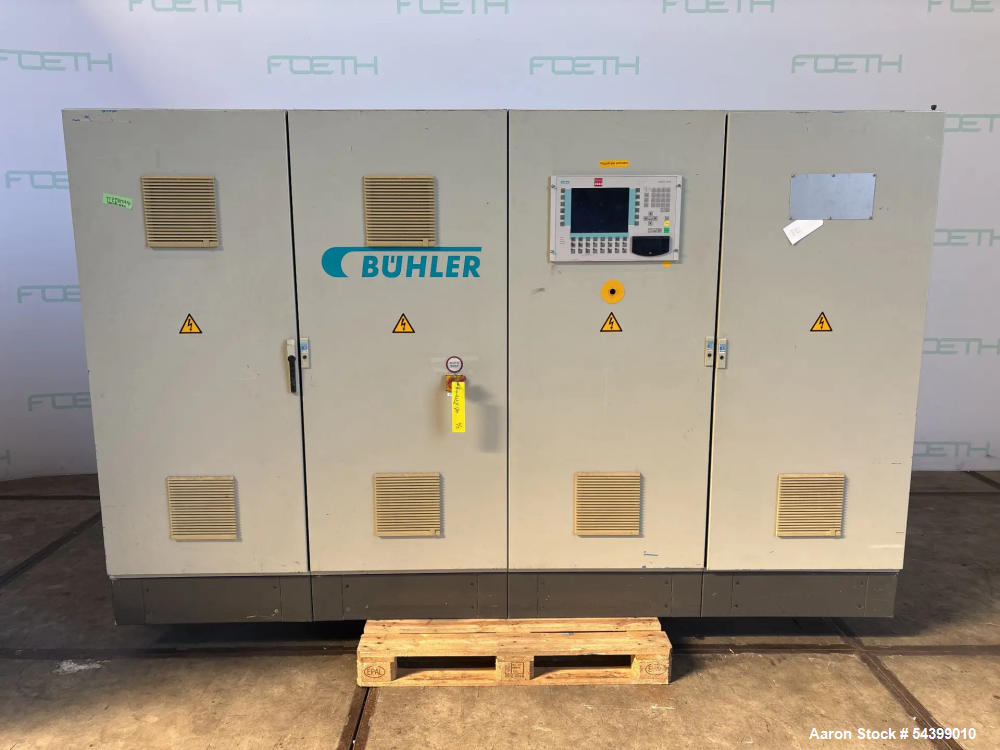

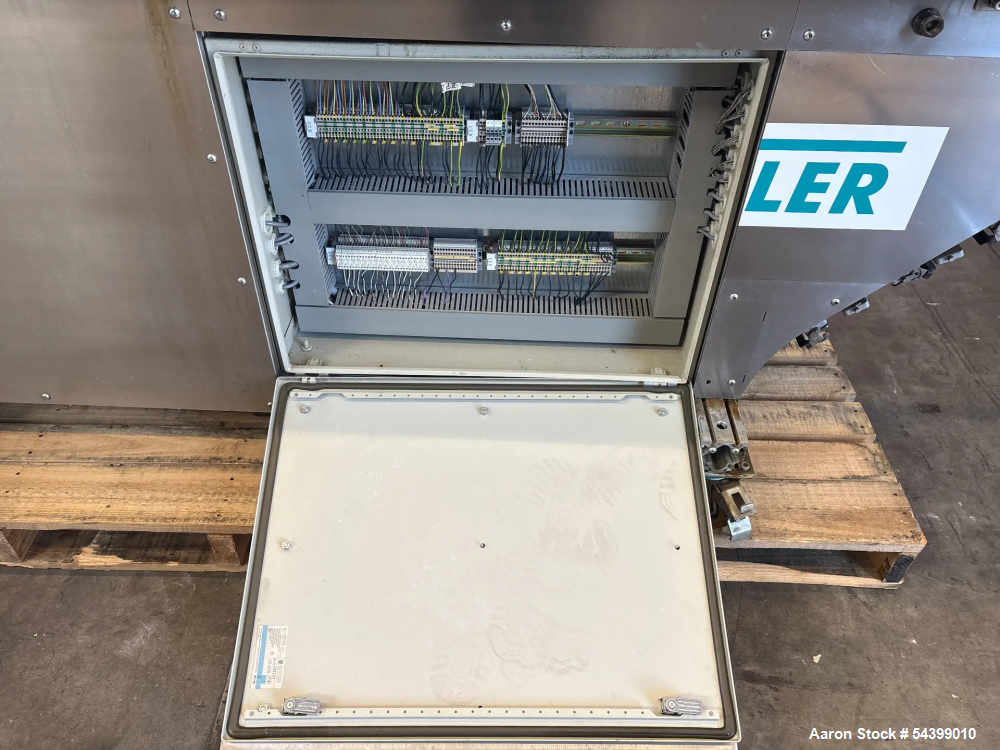

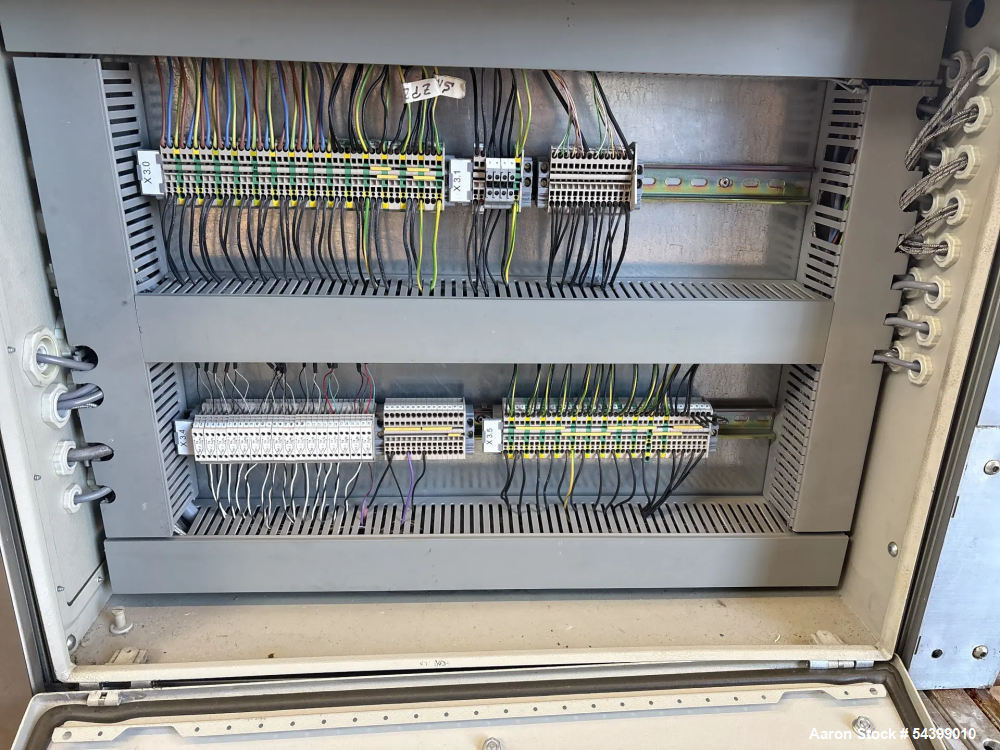

The extruder is frame mounted and includes its control panel. Previously utilized in a Teijin Aramid application, making it suitable for specialty polymer compounding and engineered material processing applications.
Specifications
- Manufacturer: Bühler
- Model: BTSK 30/40D
- Type: Twin Screw Extruder
- Screw Configuration:
- Twin Side-by-Side Screws
- Screw Diameter:
- 2 x 50 mm
- L/D Ratio:
- 53:1
- Barrel Sections:
- 11 Sections
- Barrel Features:
- Electrically Heated
- Water Cooled
- Drive Motor:
- 21 kW
- Approx. 31.5 HP
- 440 Volt AC
- Drive System:
- Gearbox Driven
- Maximum Screw Speed:
- 800 RPM
- Mounting:
- Frame Mounted
- Includes:
- Control Panel
- Previous Application:
- Teijin Aramid Processing
- Weight:
- Approximately 1540 lbs / 700 kg
- Extruder Dimensions:
- 2400 mm Long
- 500 mm Wide
- 1450 mm High
- Condition: Used
Applications
- Polymer compounding
- Reactive extrusion
- Specialty material processing
- Fiber compounding
- Plastics processing
- Aramid material processing
- Engineering resin production
- Continuous mixing
- Additive incorporation
- Industrial extrusion processing
Products This Would Be Used For
- Engineering plastics
- Aramid compounds
- Polymer masterbatch
- Filled resins
- Reinforced plastics
- Thermoplastic compounds
- Specialty polymers
- Composite materials
- Industrial fibers
- High-performance materials
