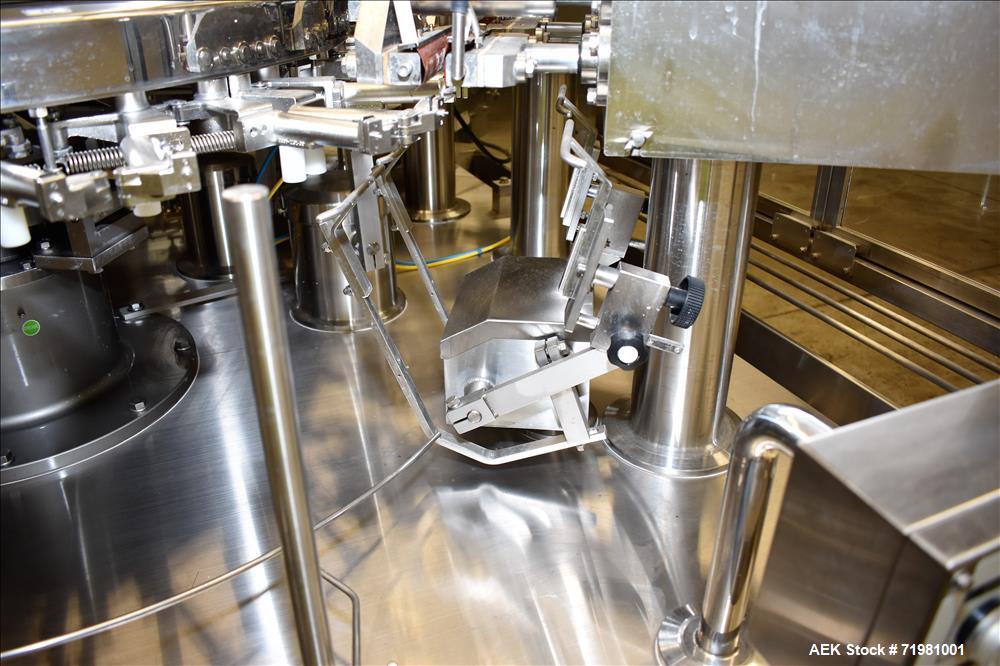

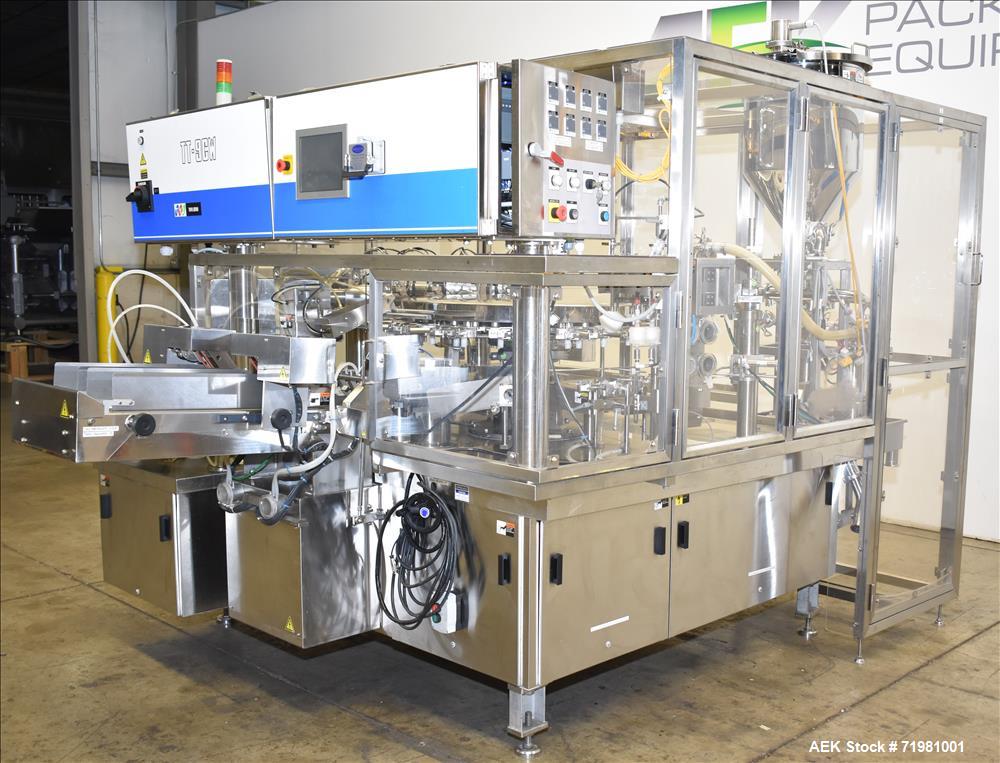

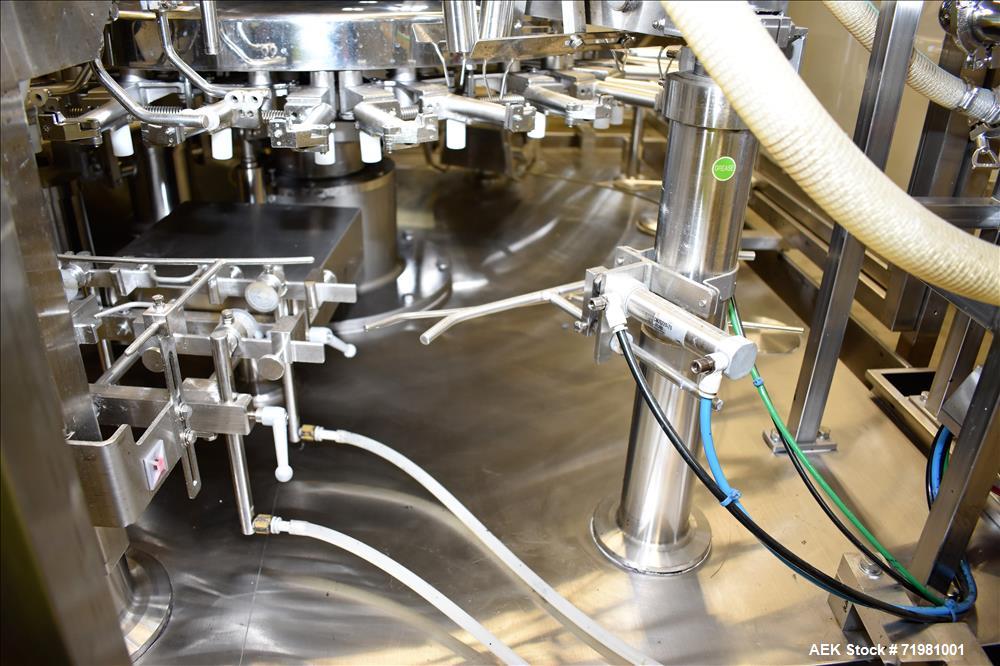

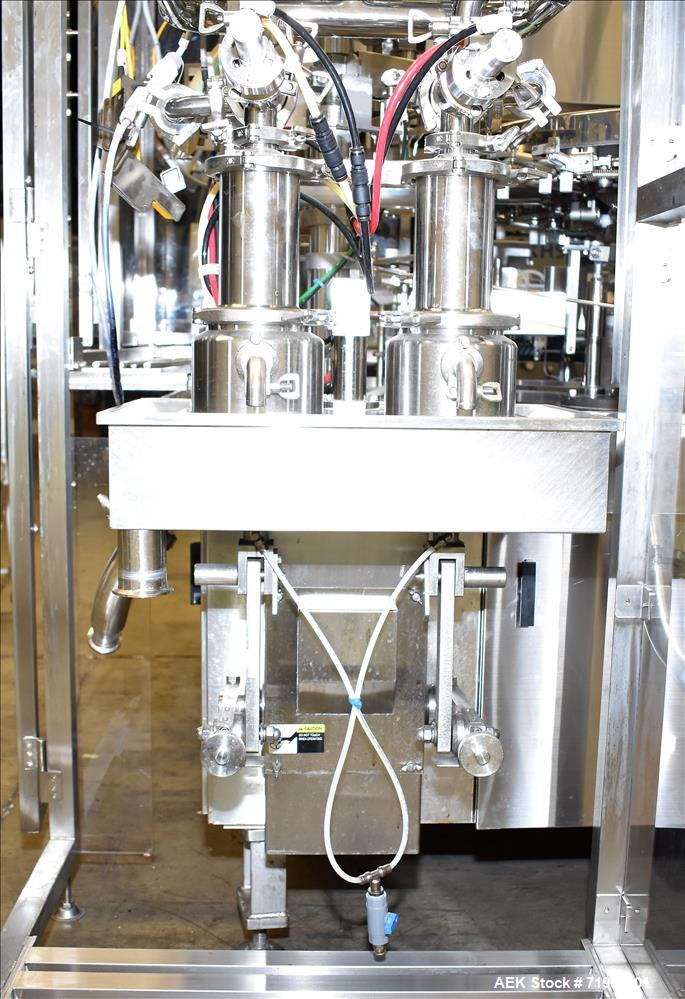

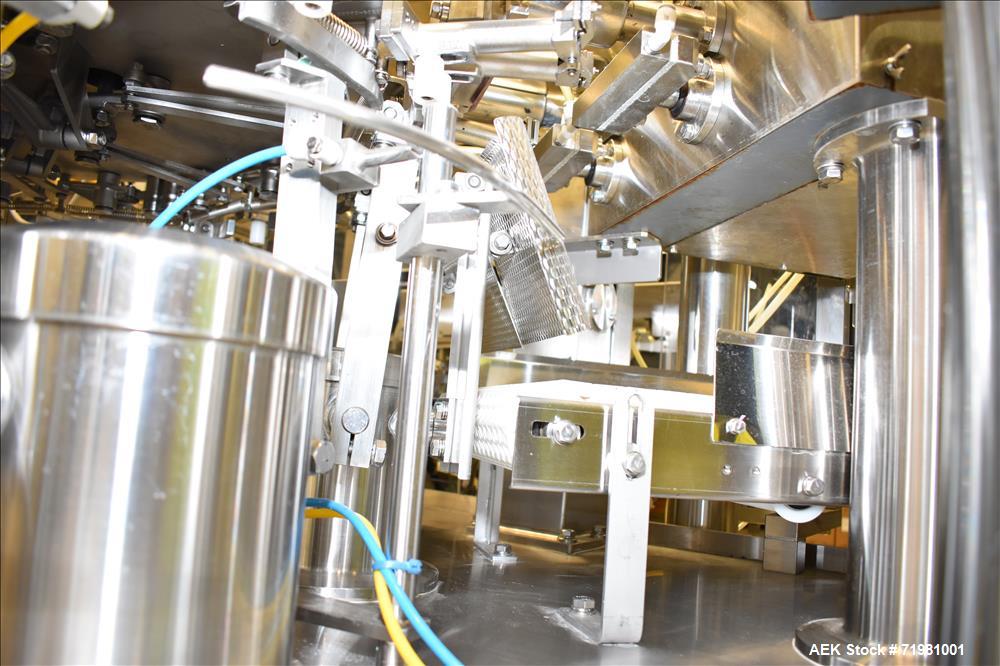

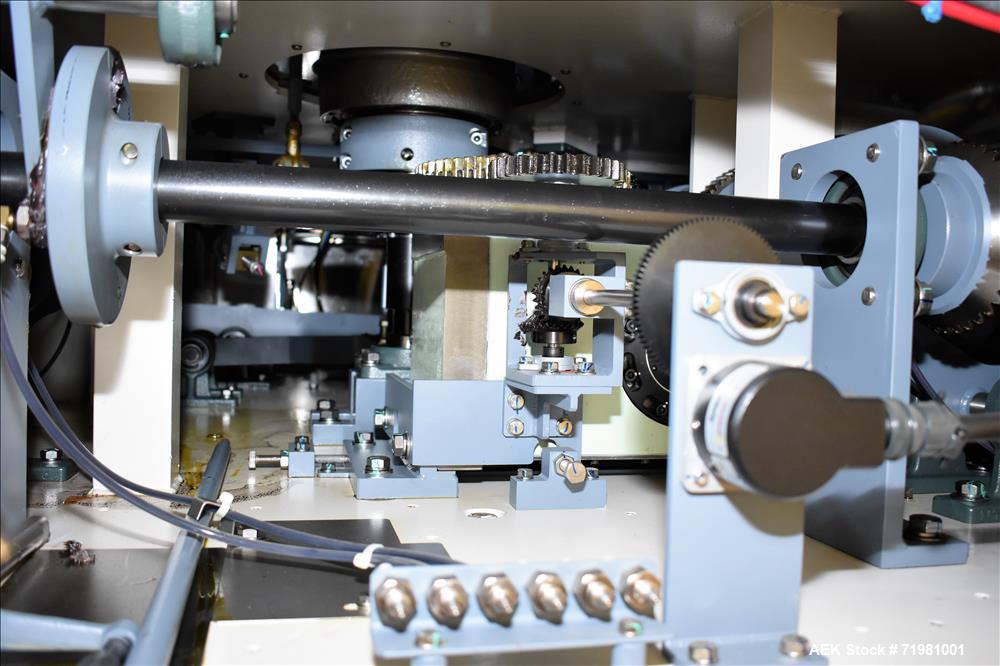

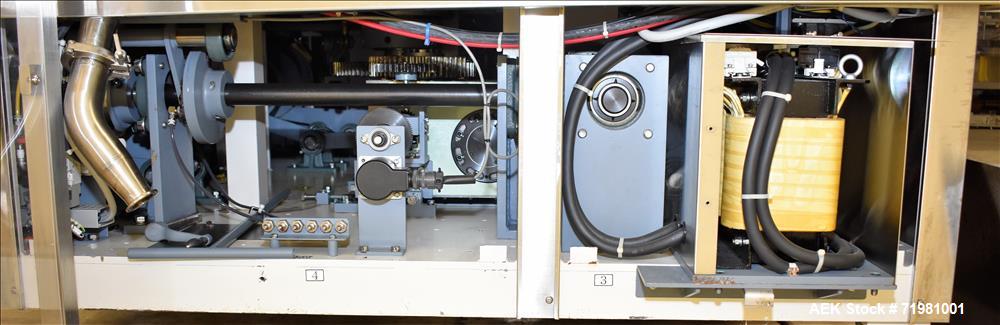

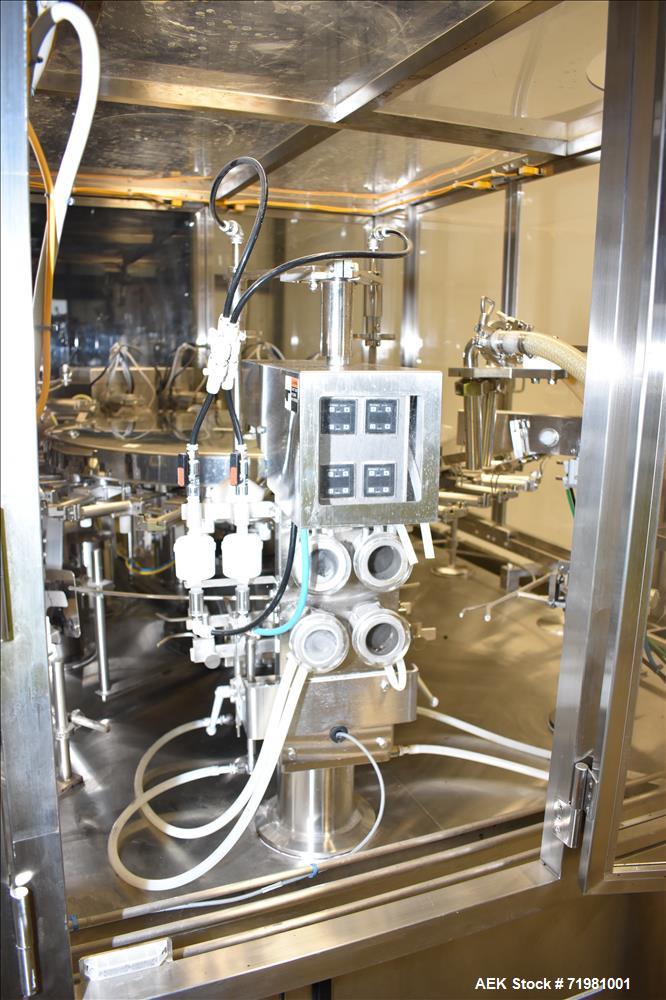

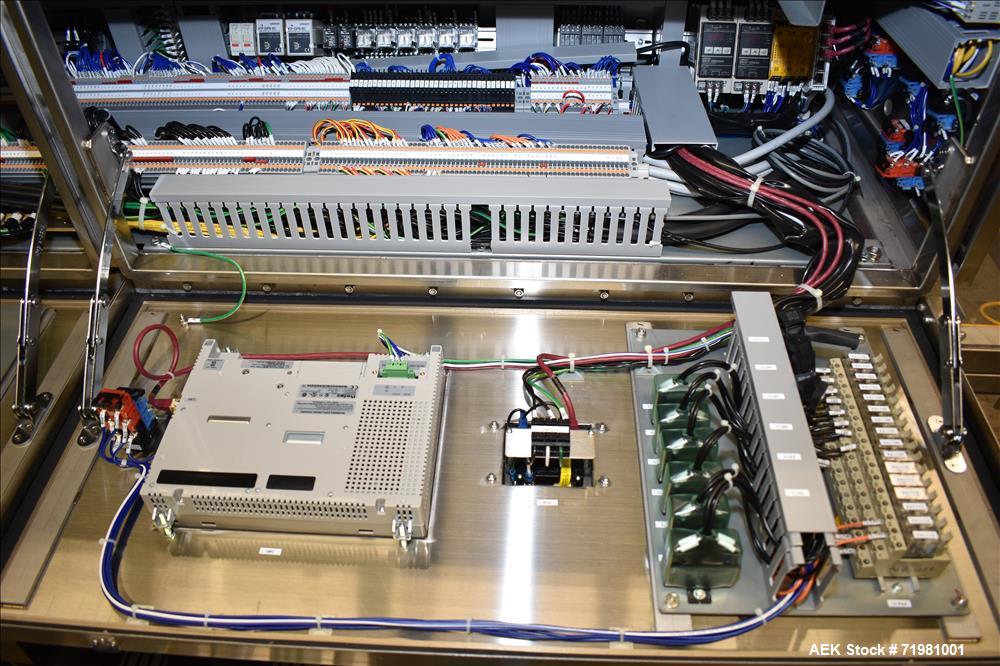

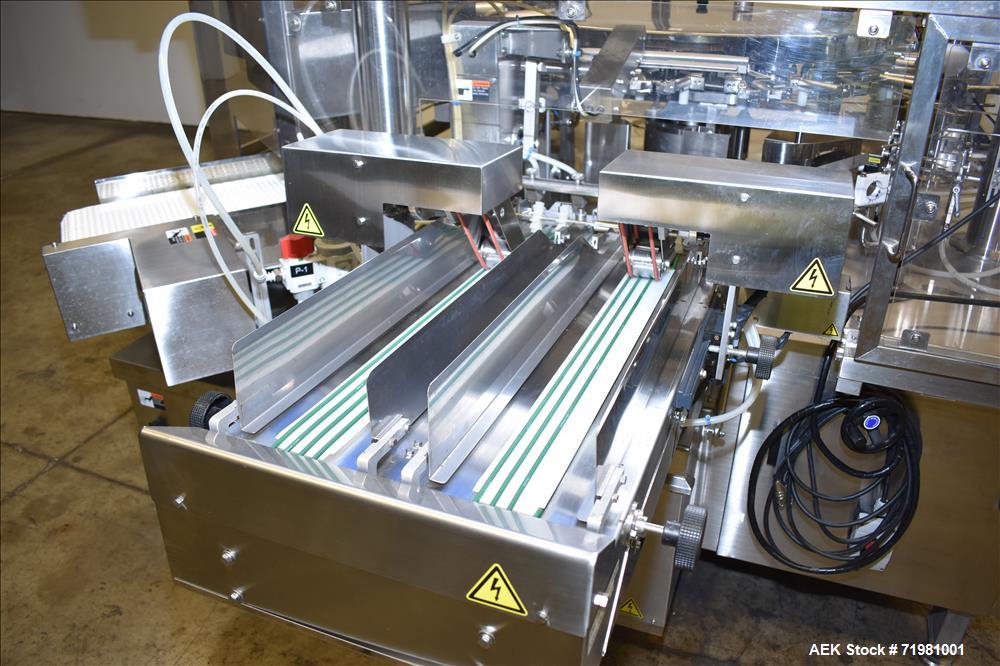

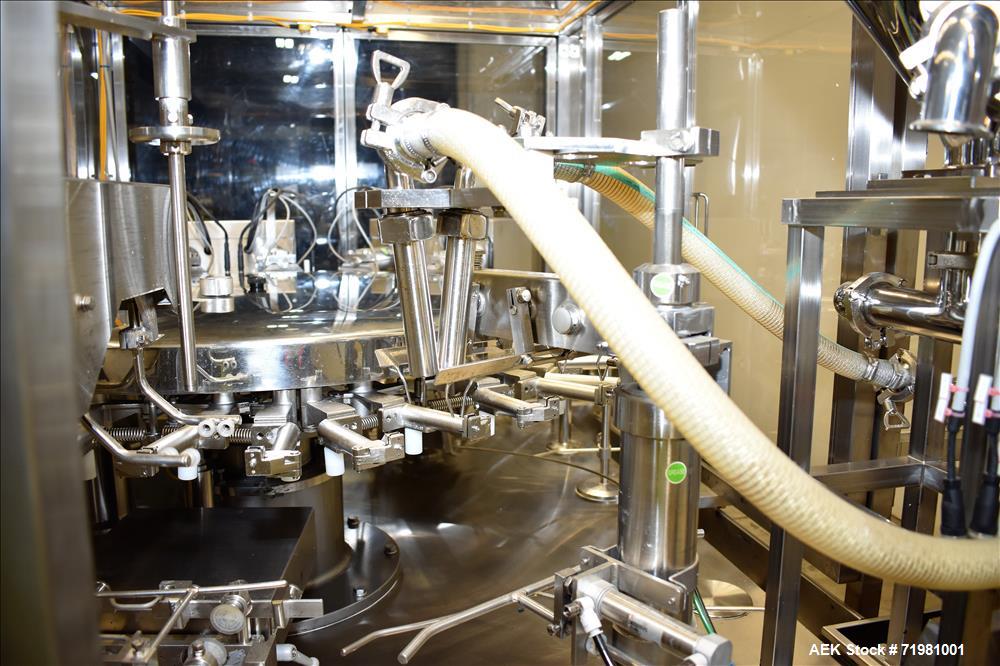

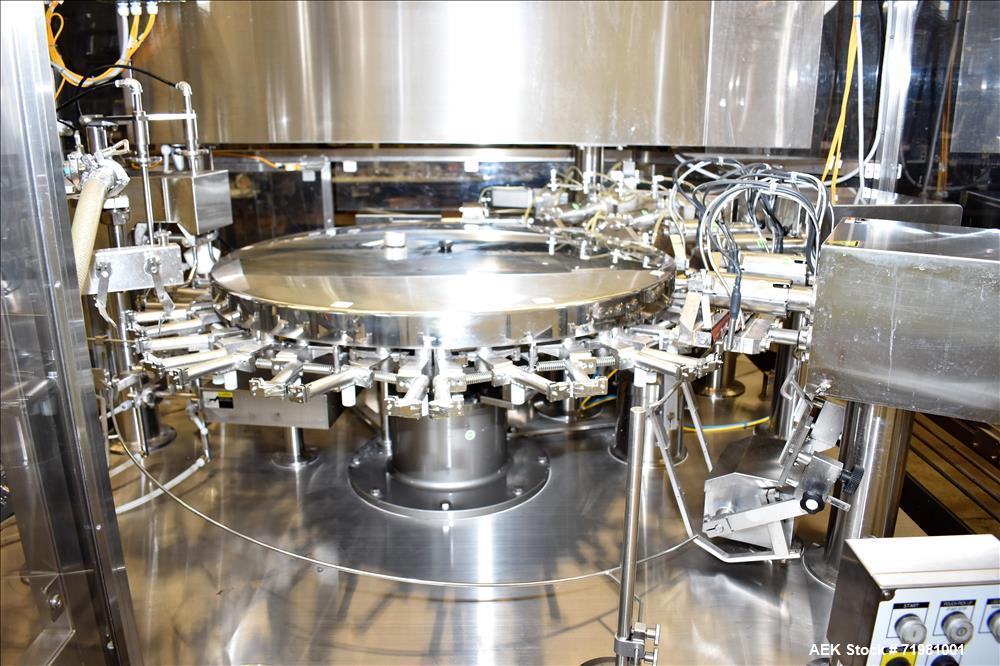

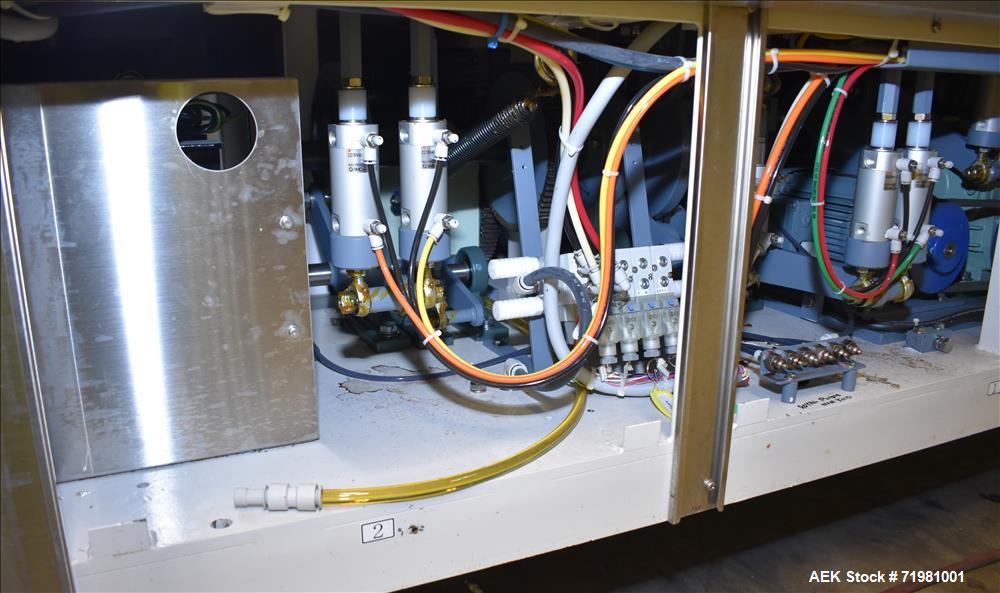

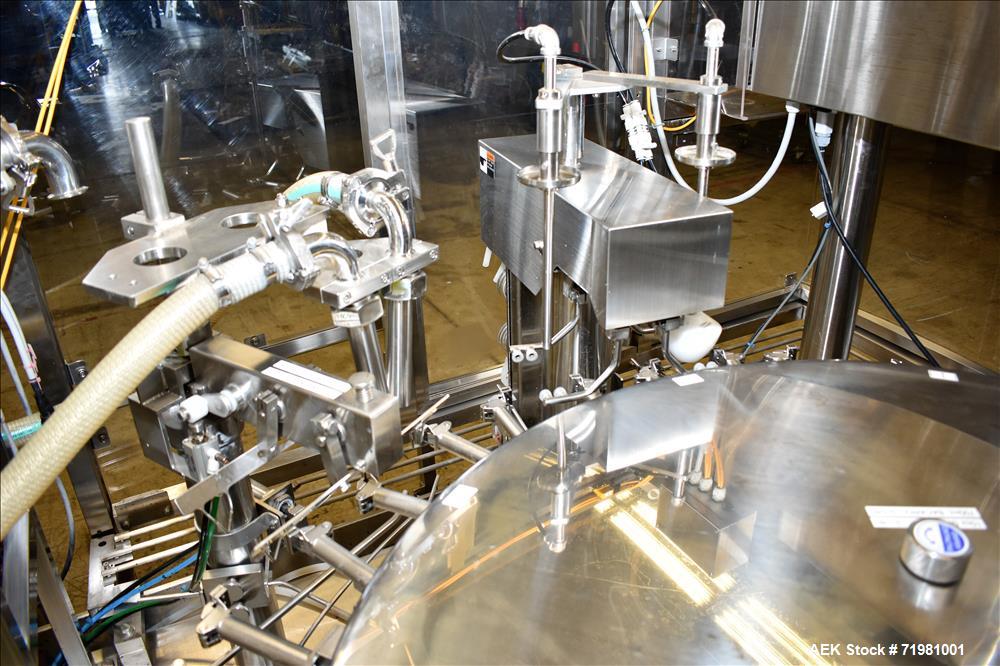

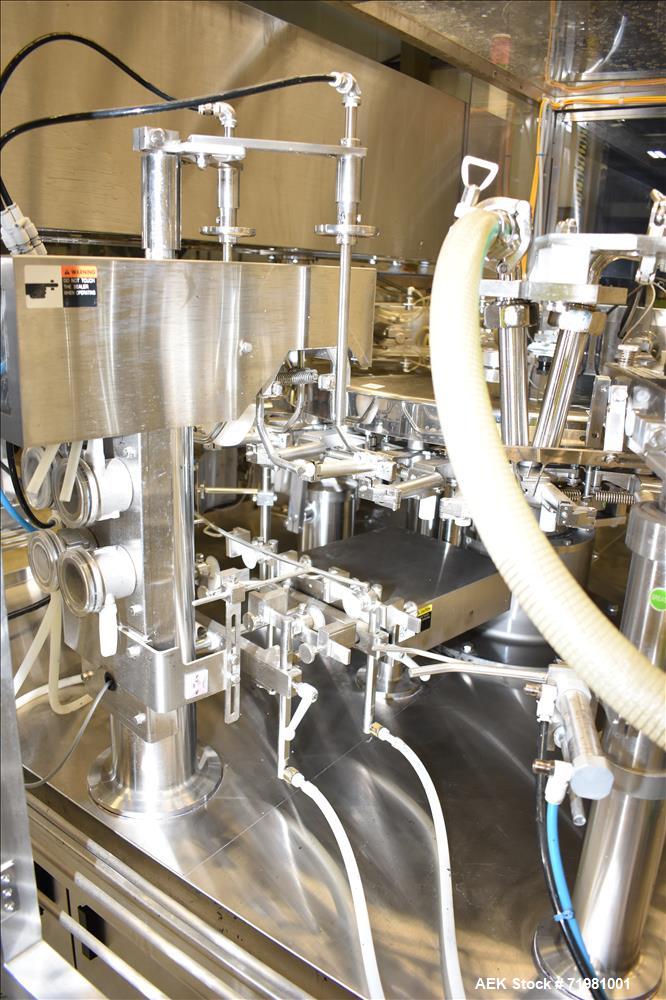

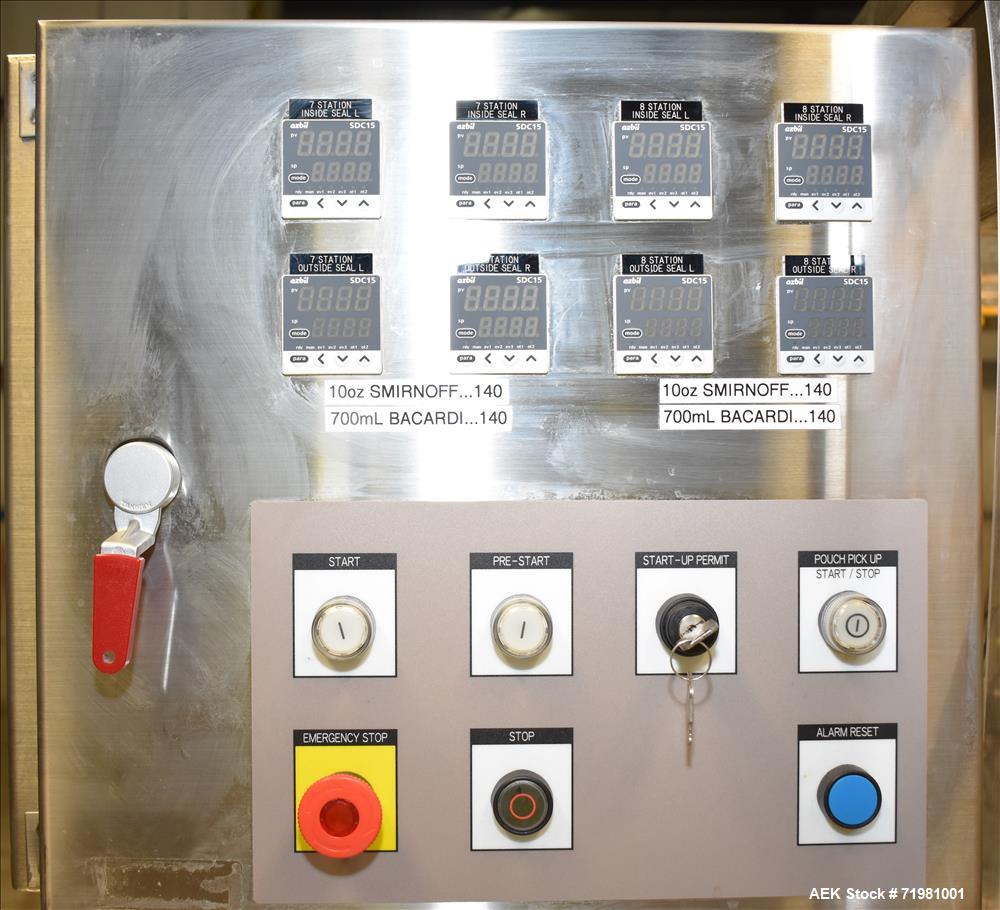

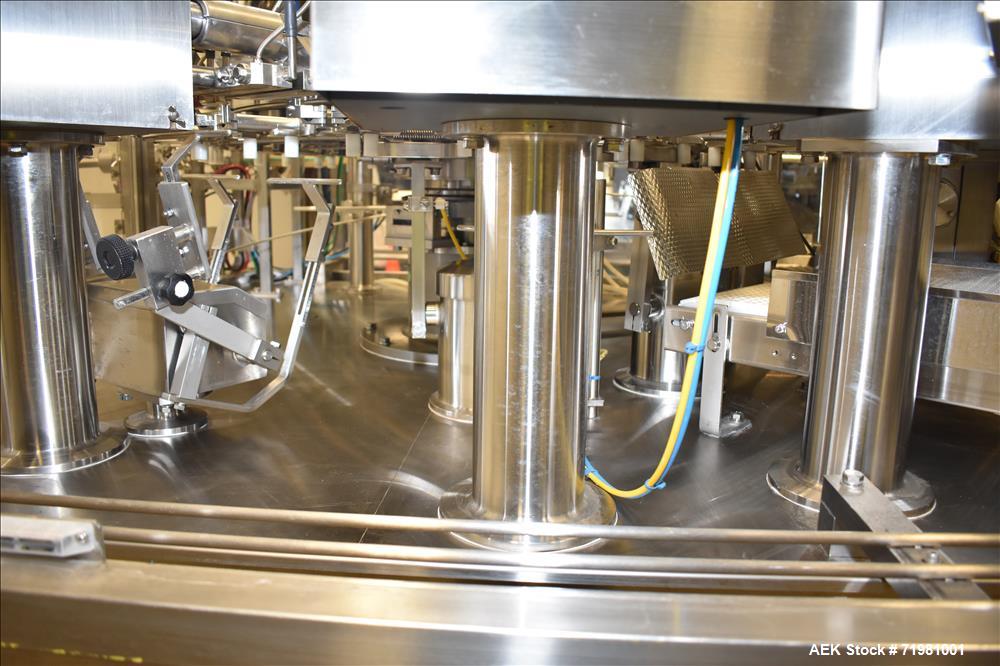

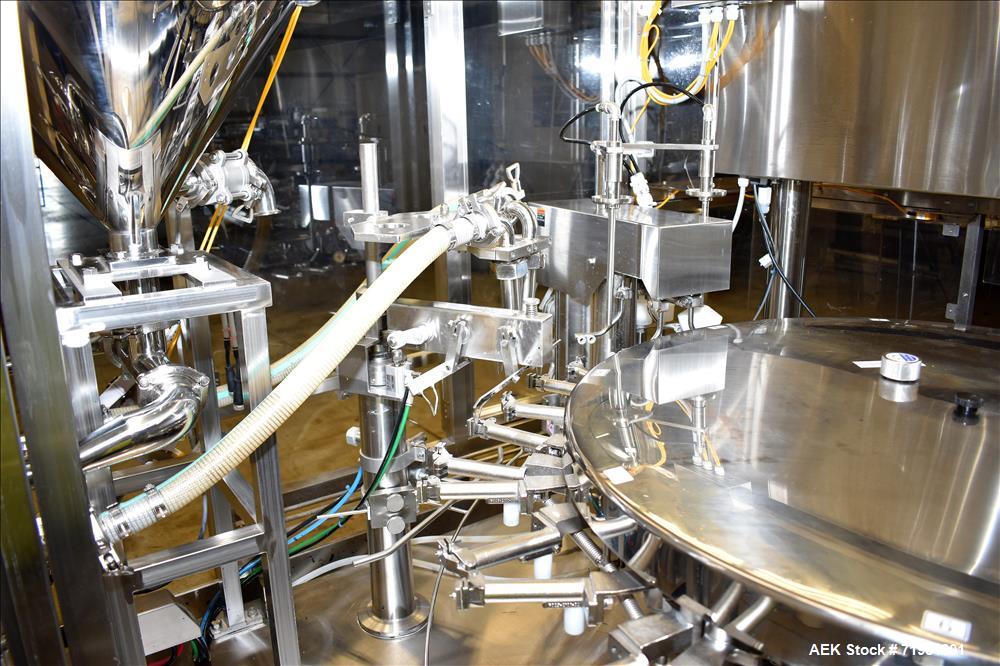

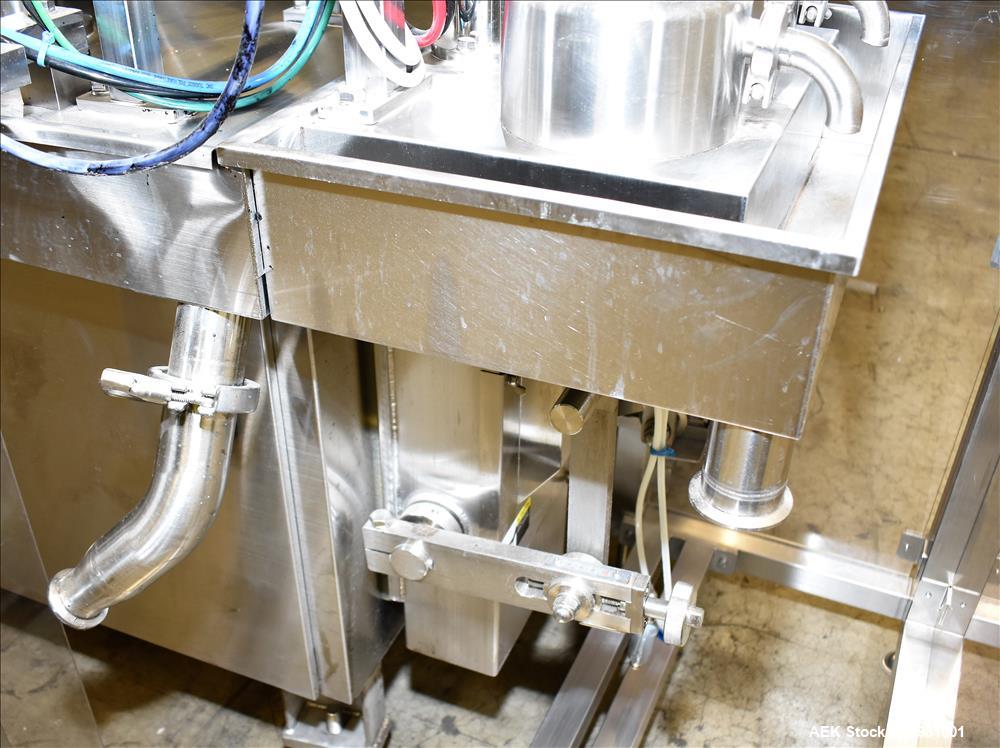

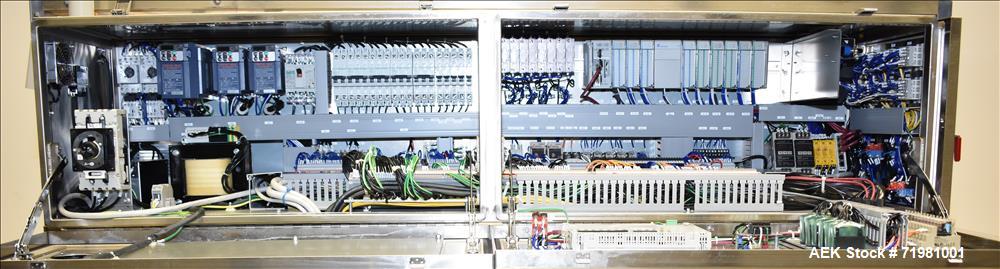

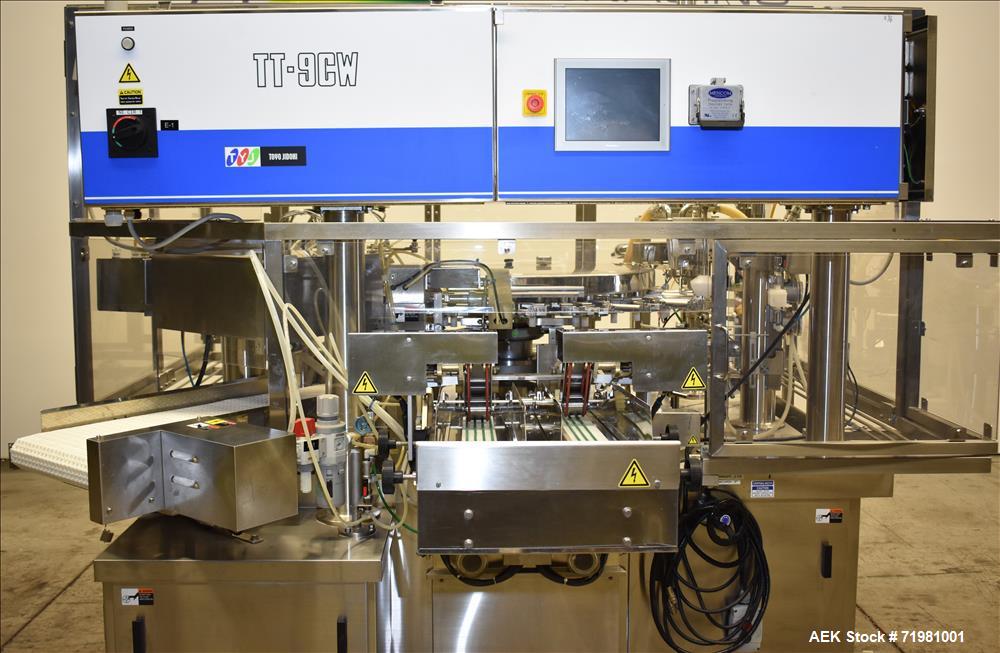

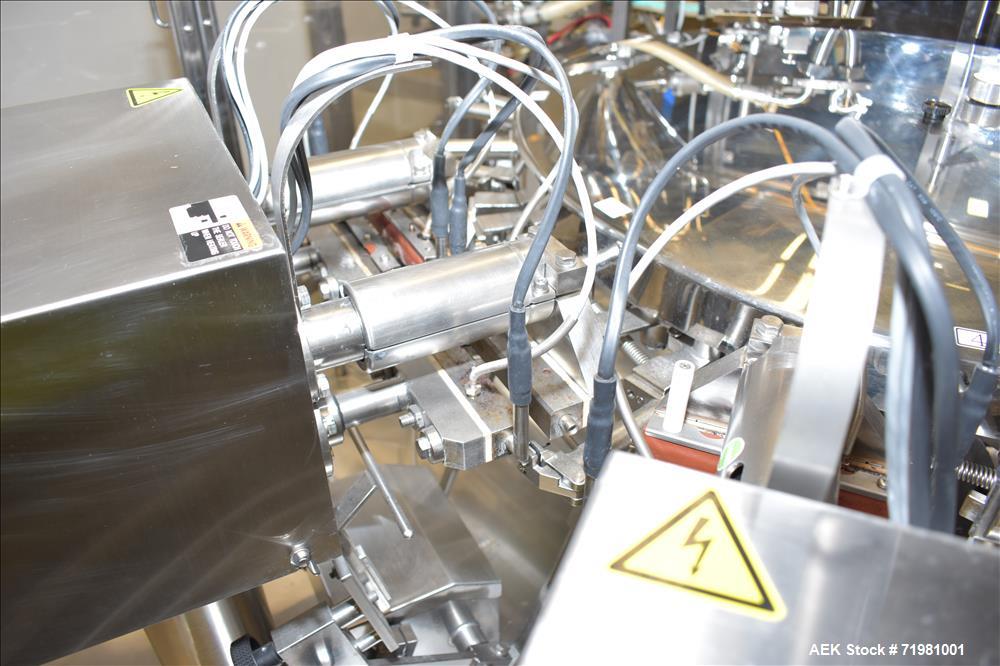

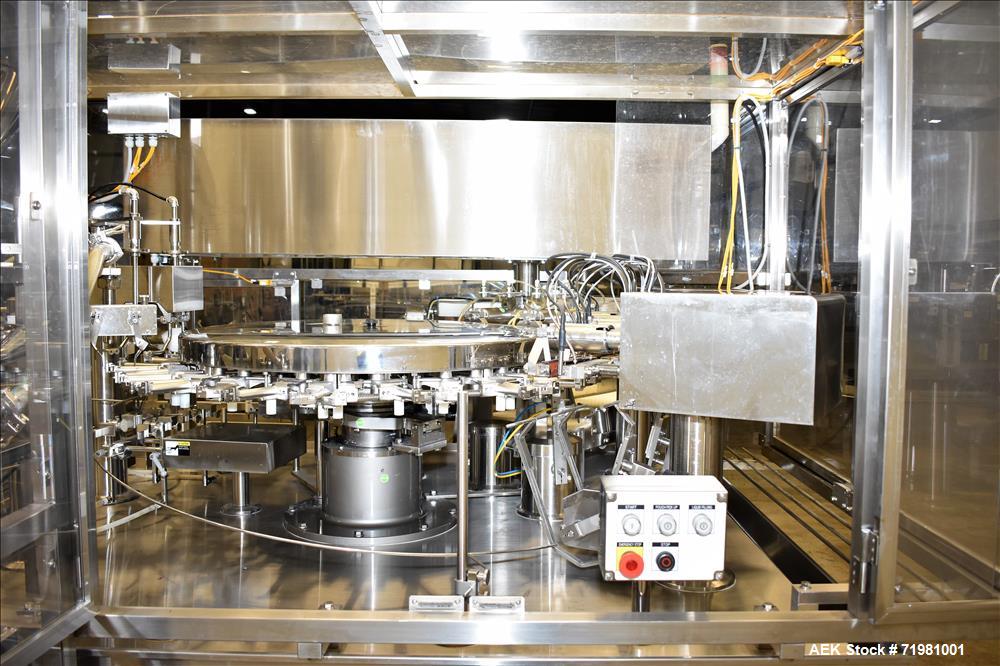

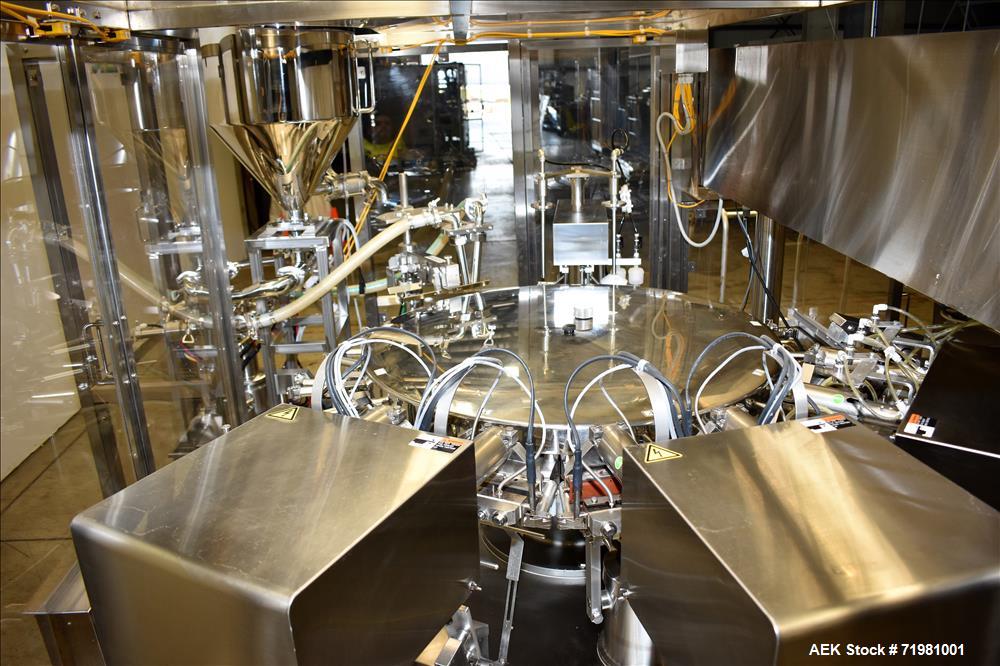

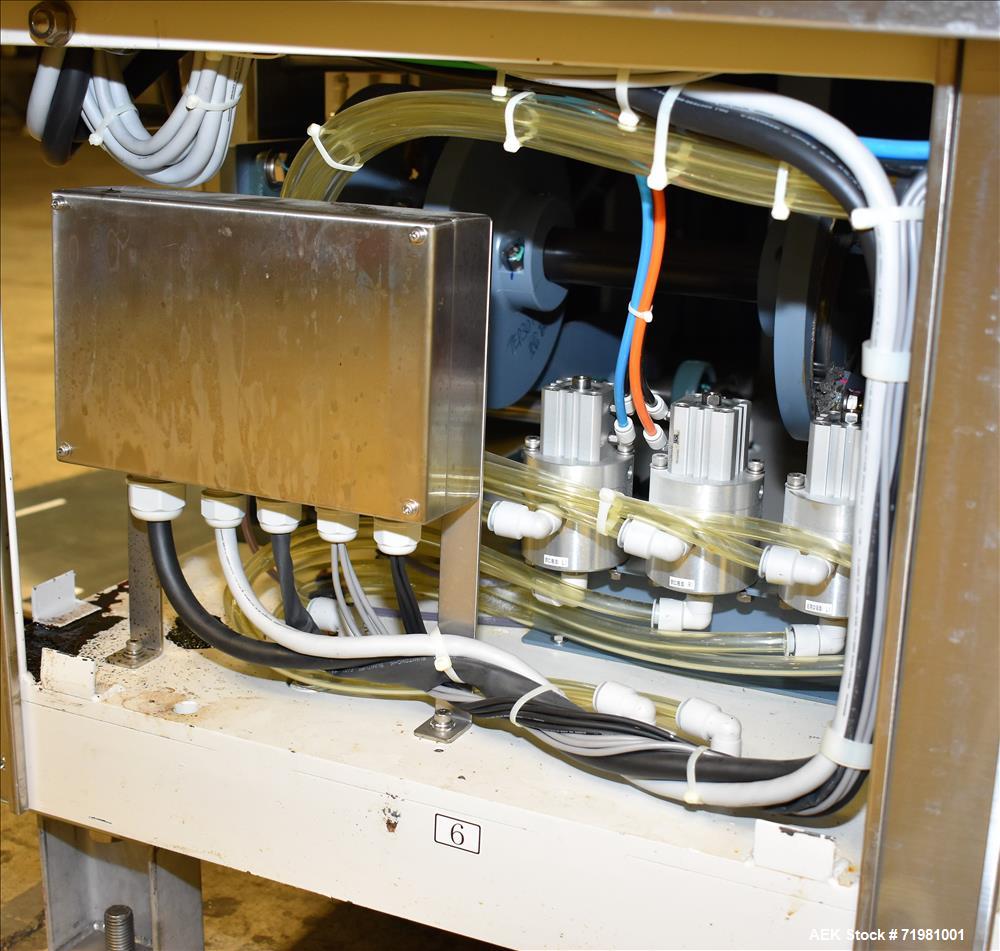

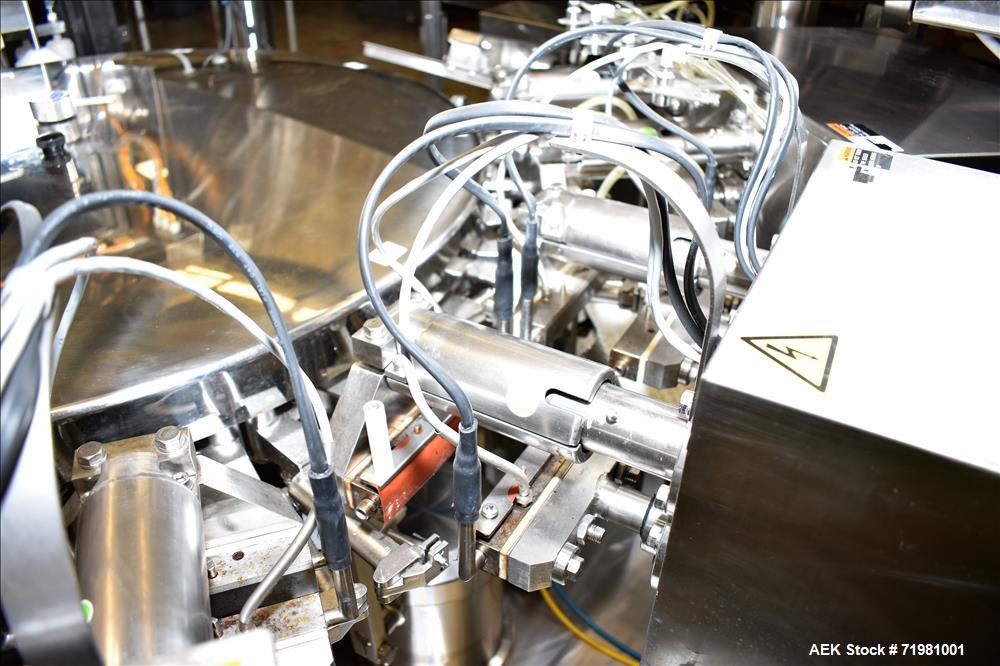

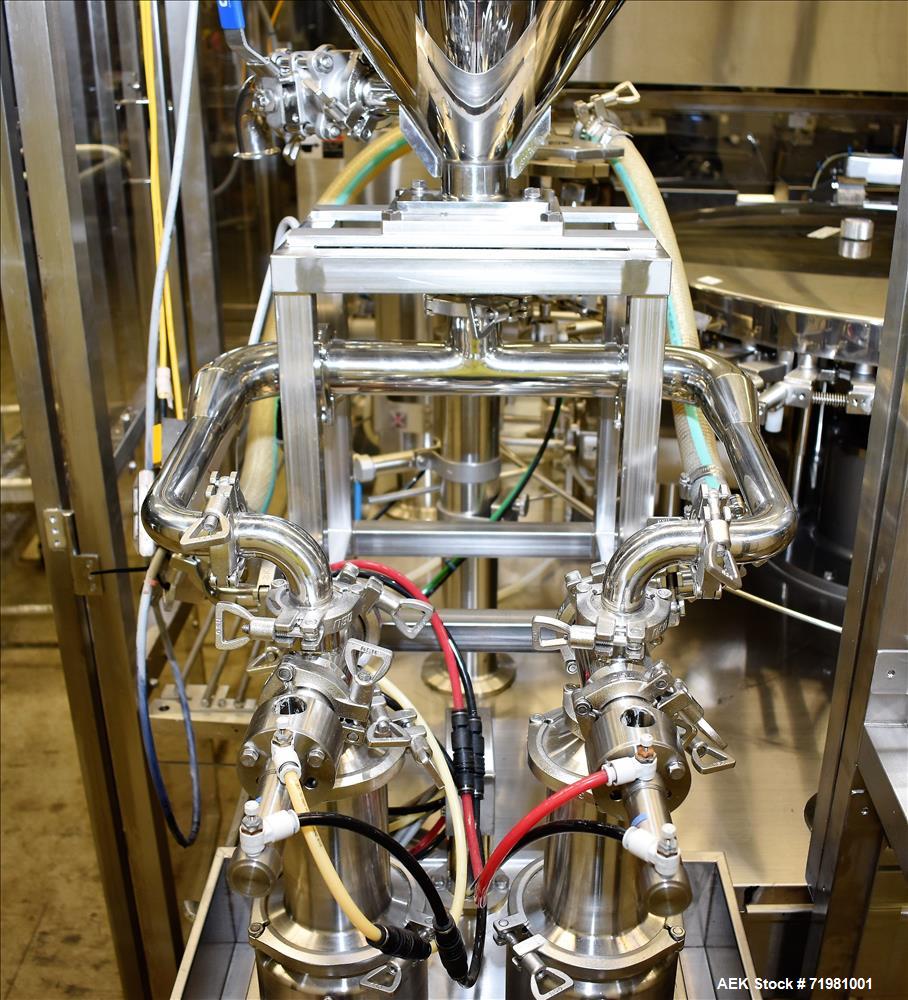

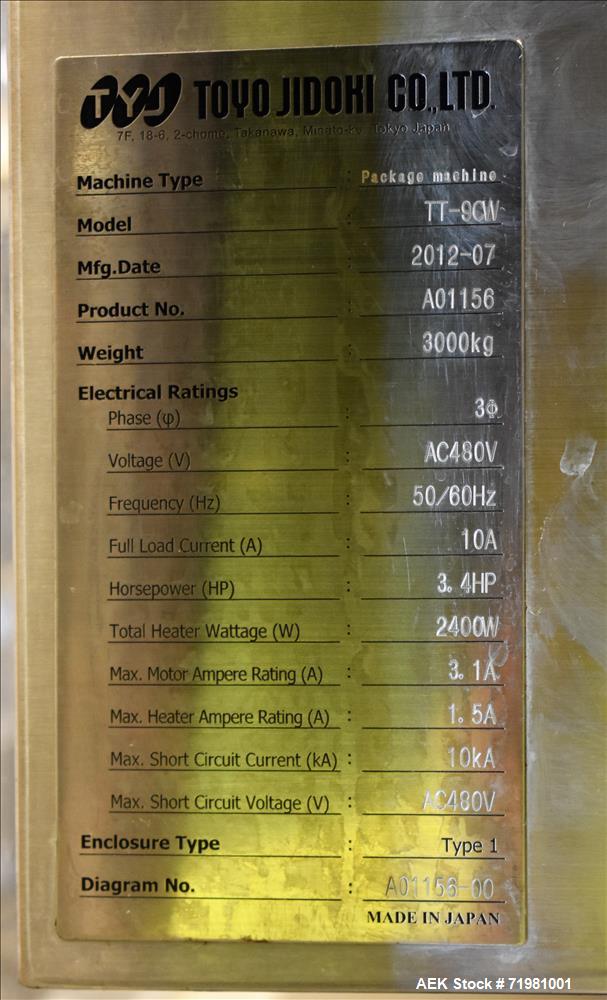

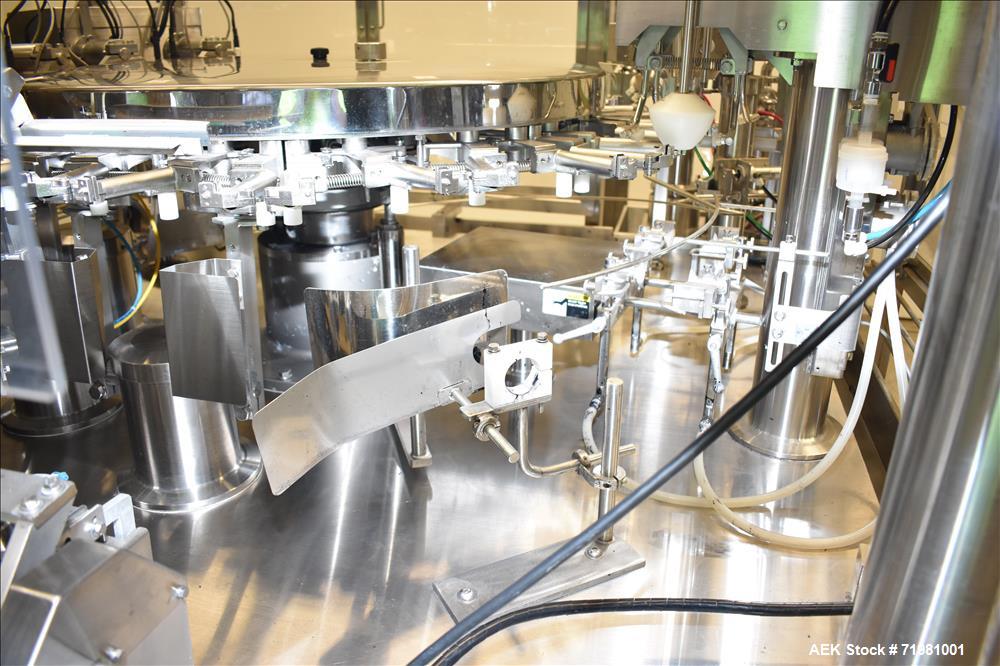

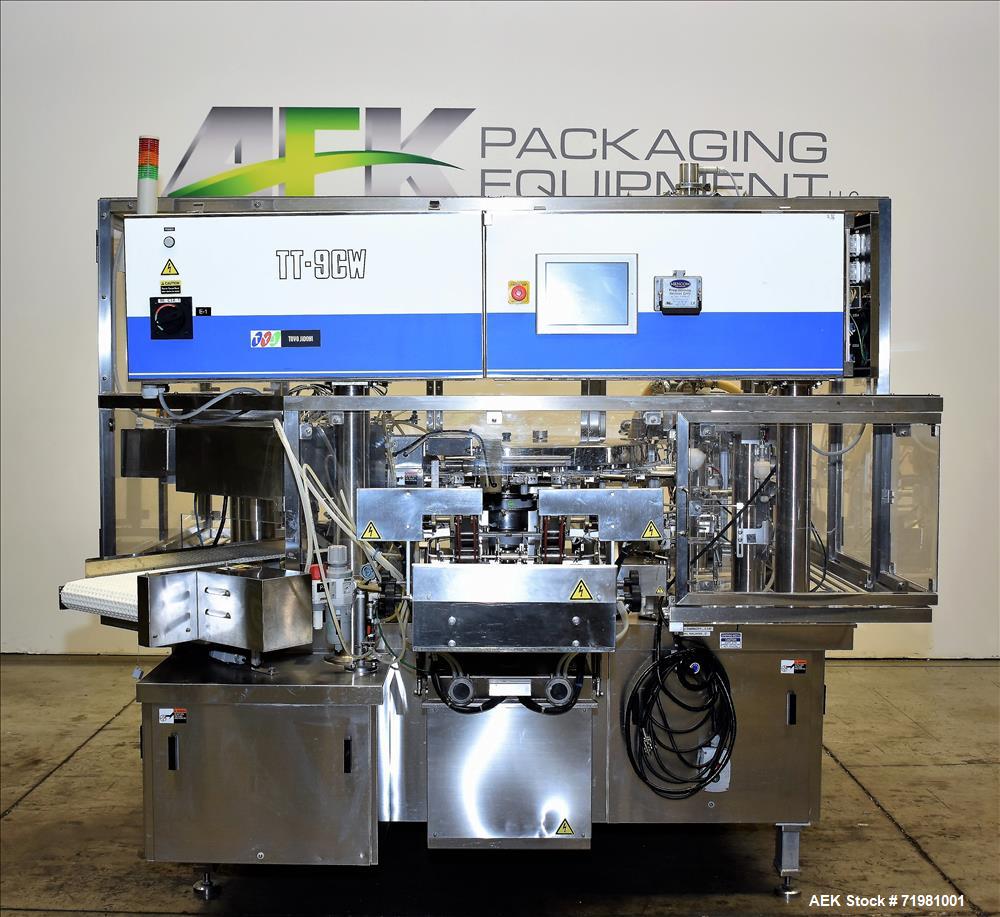

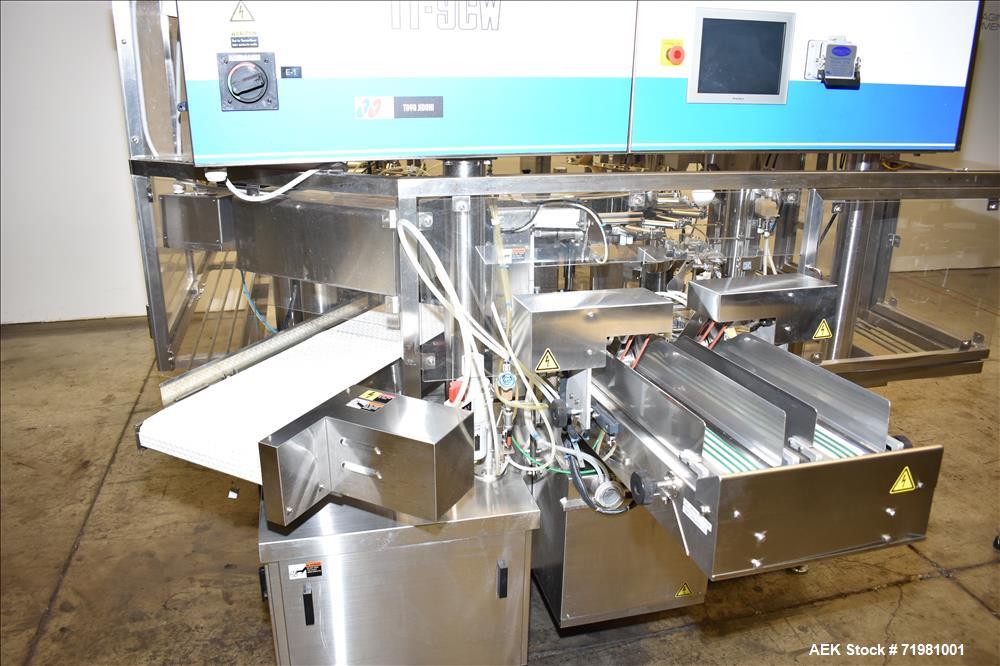

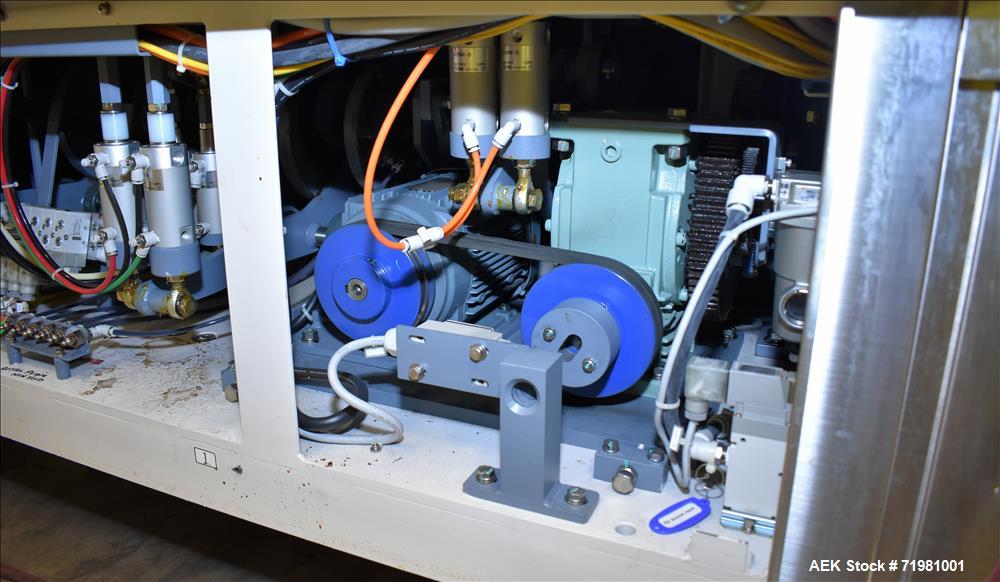

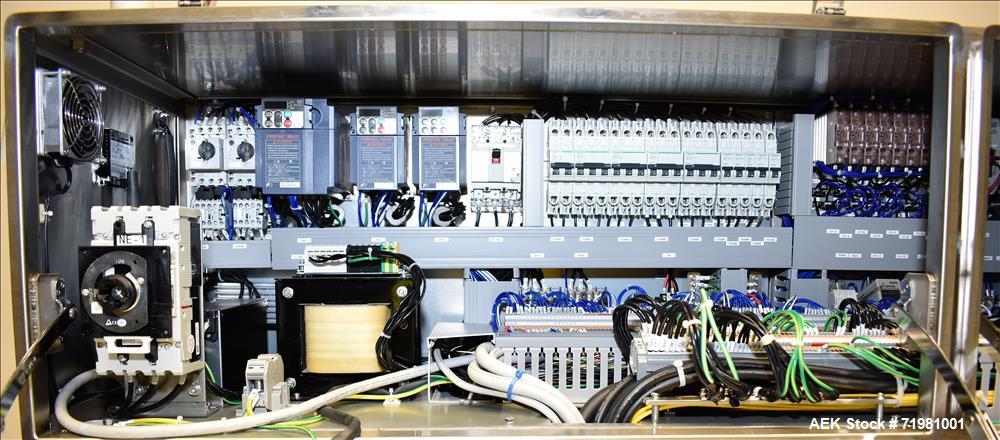

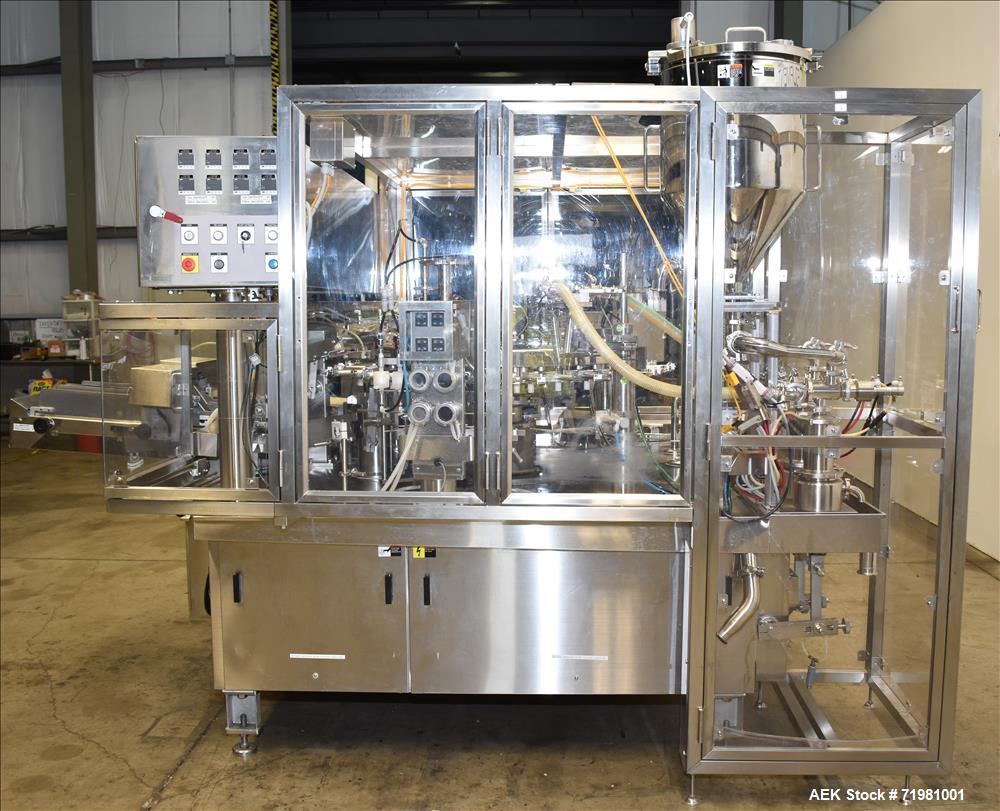

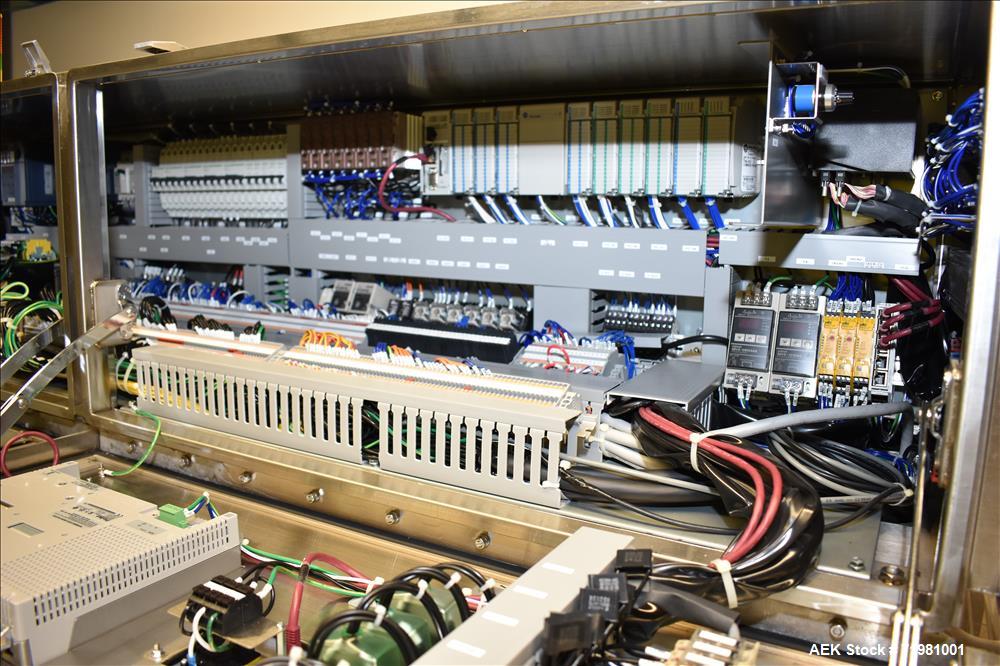

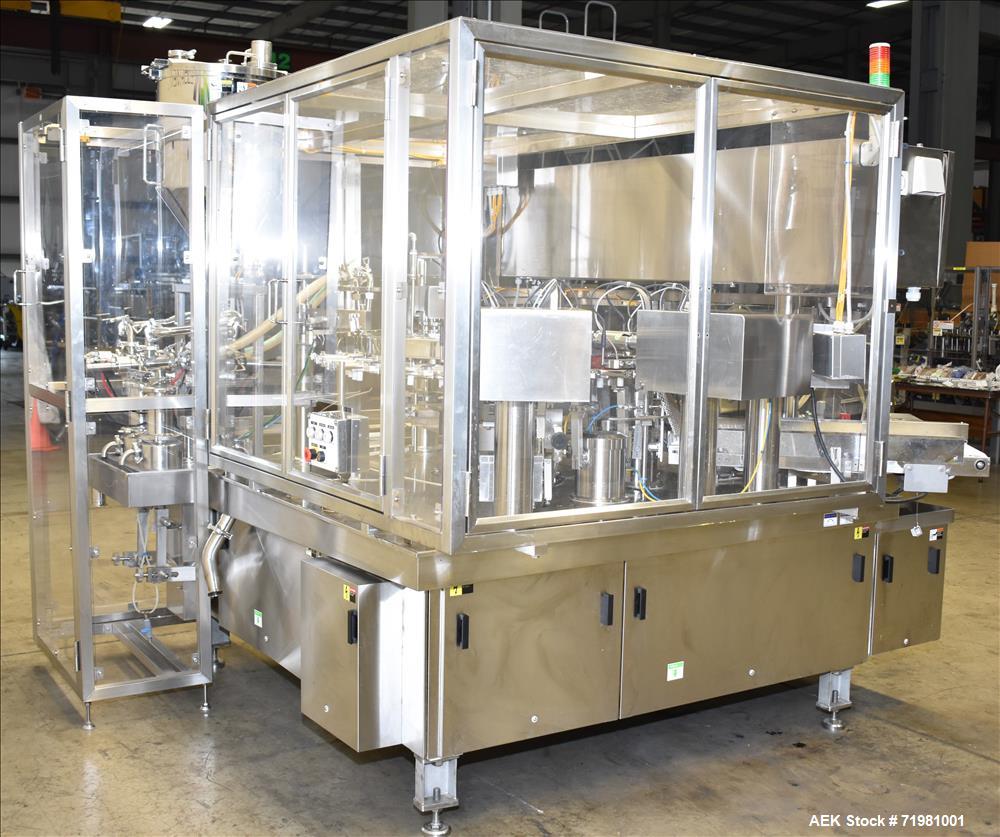

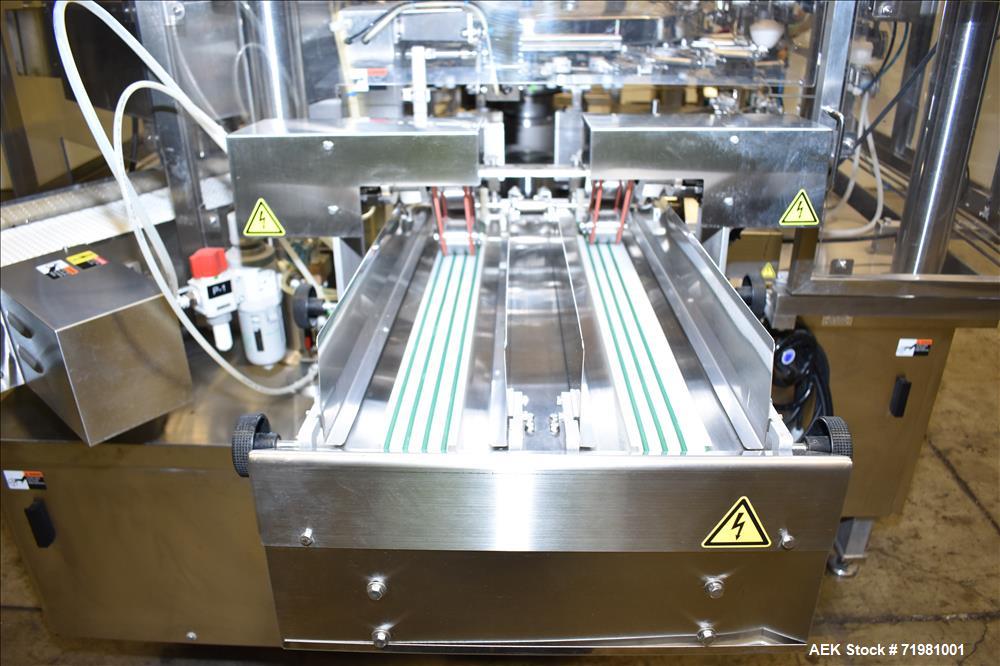

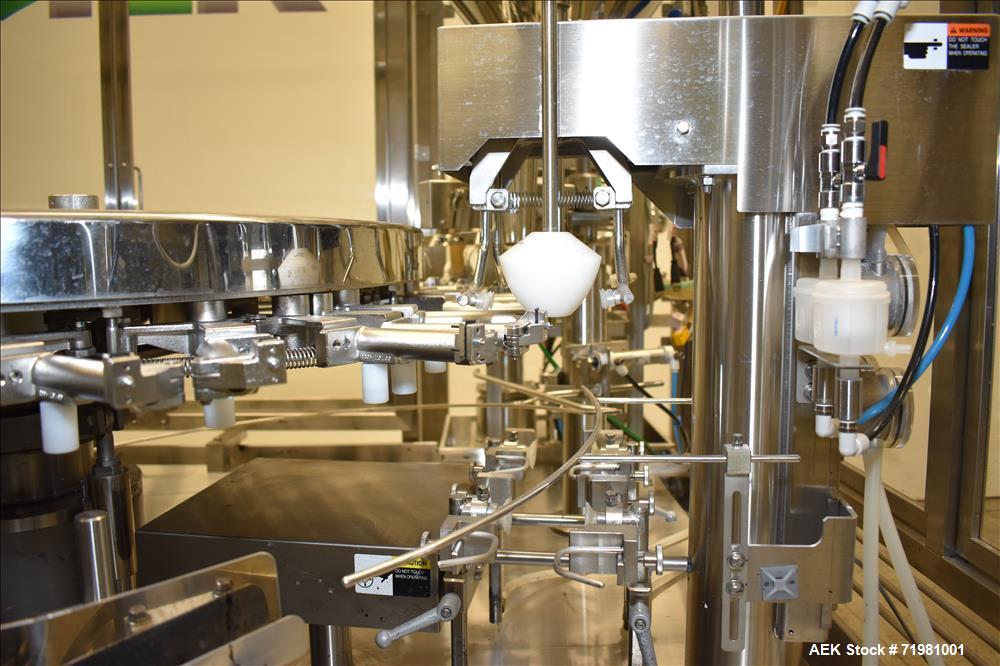

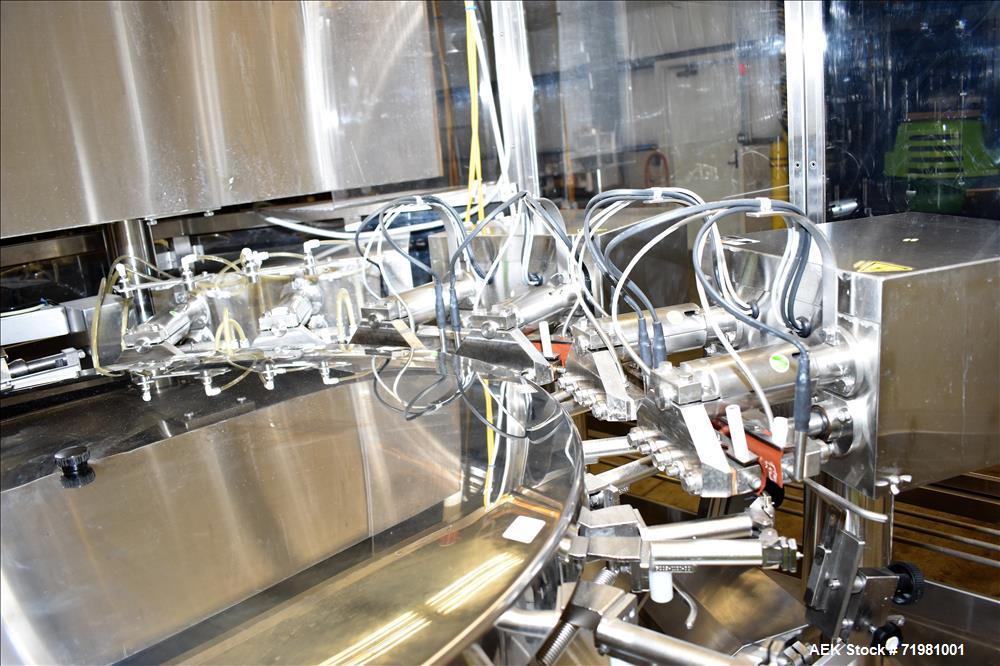

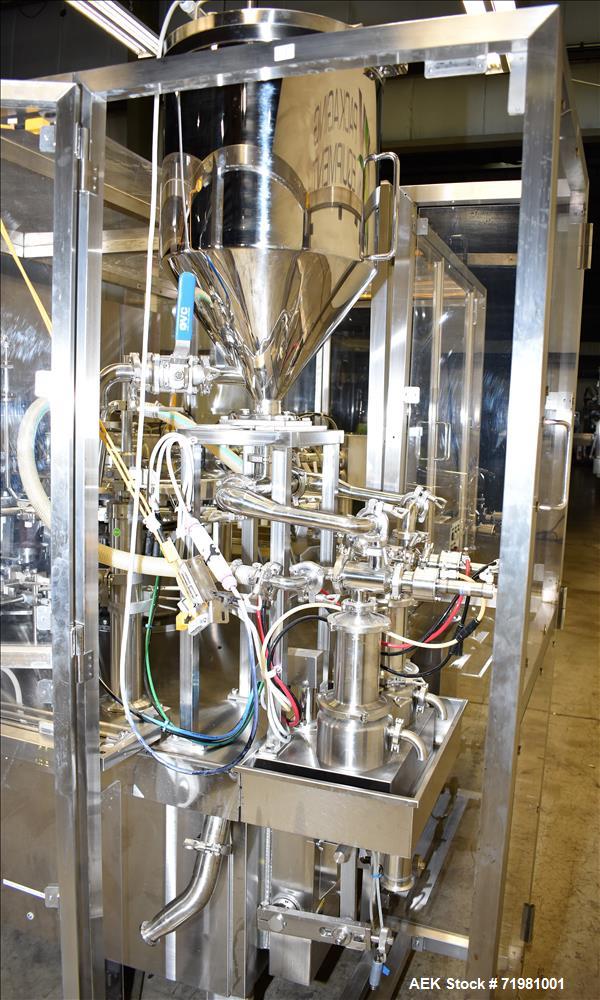

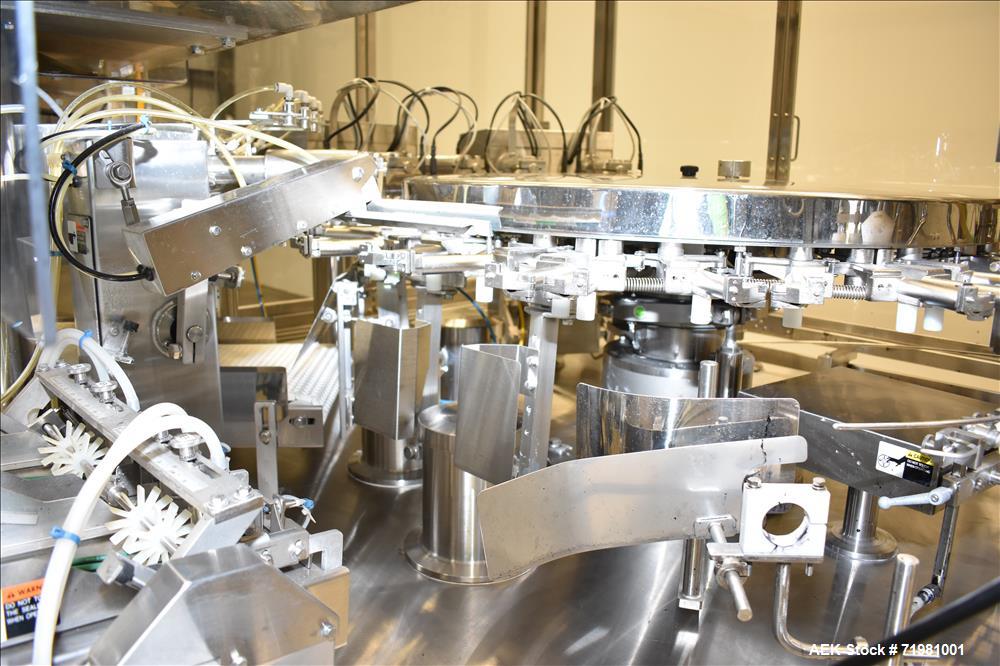

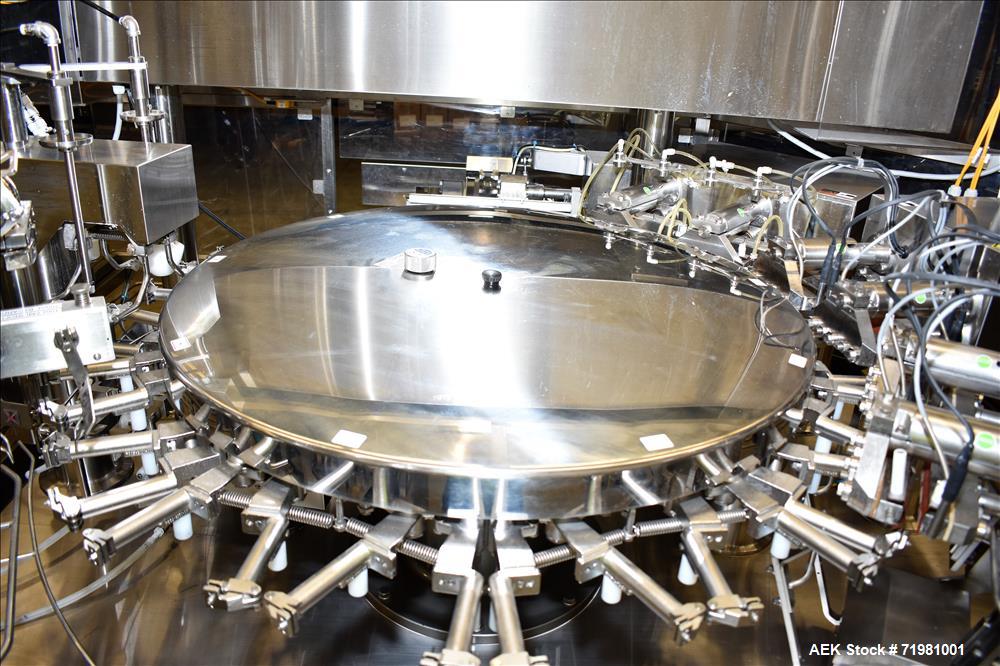

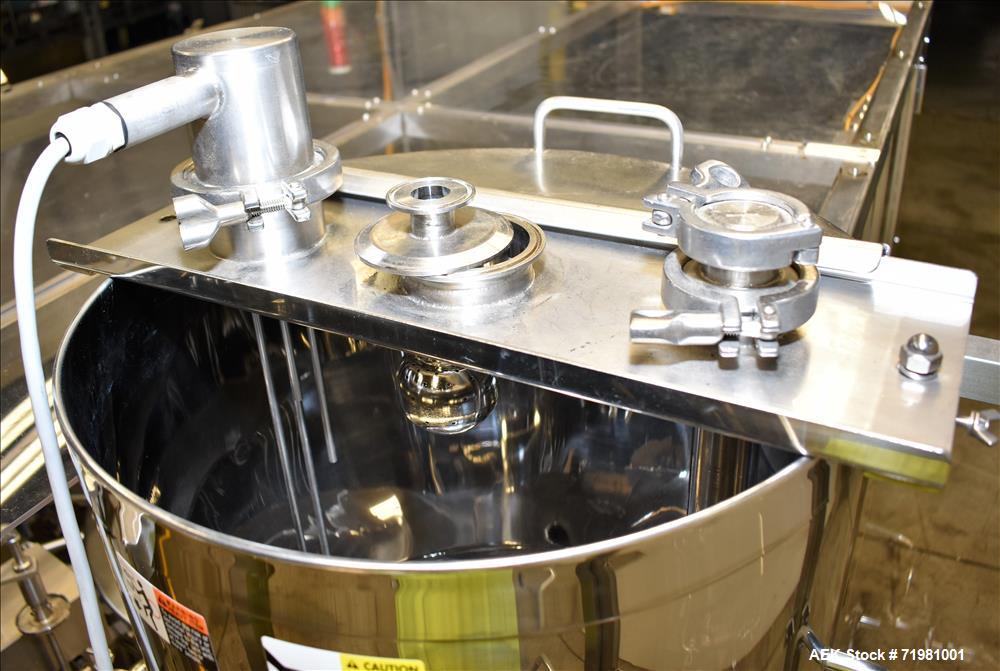

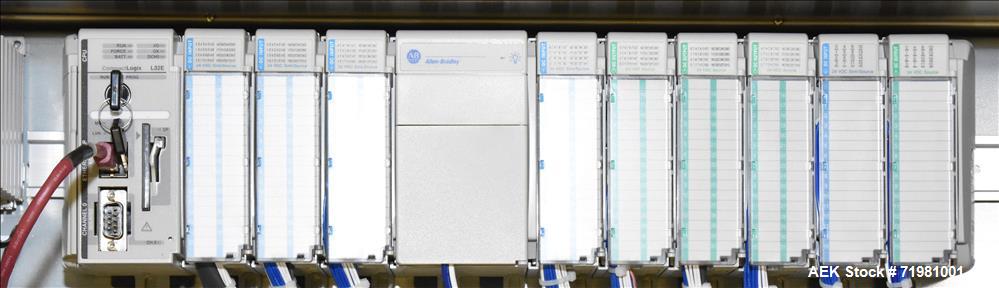

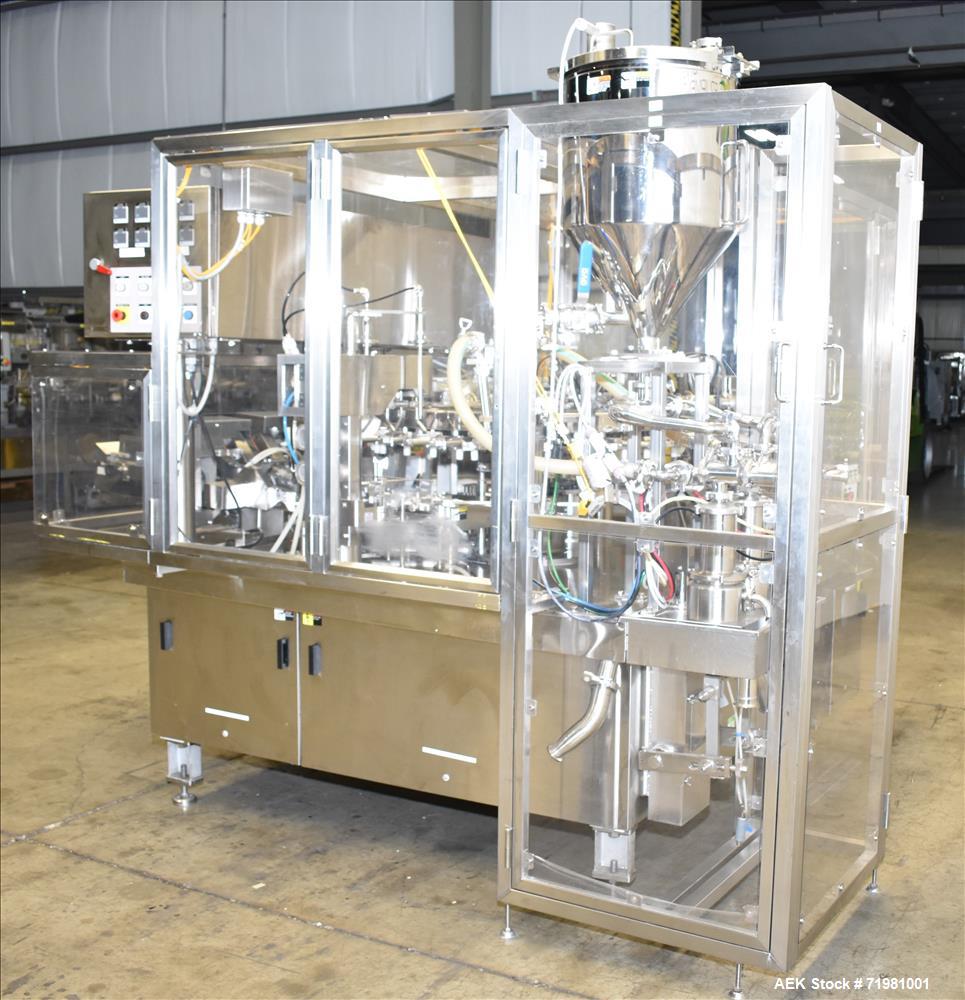

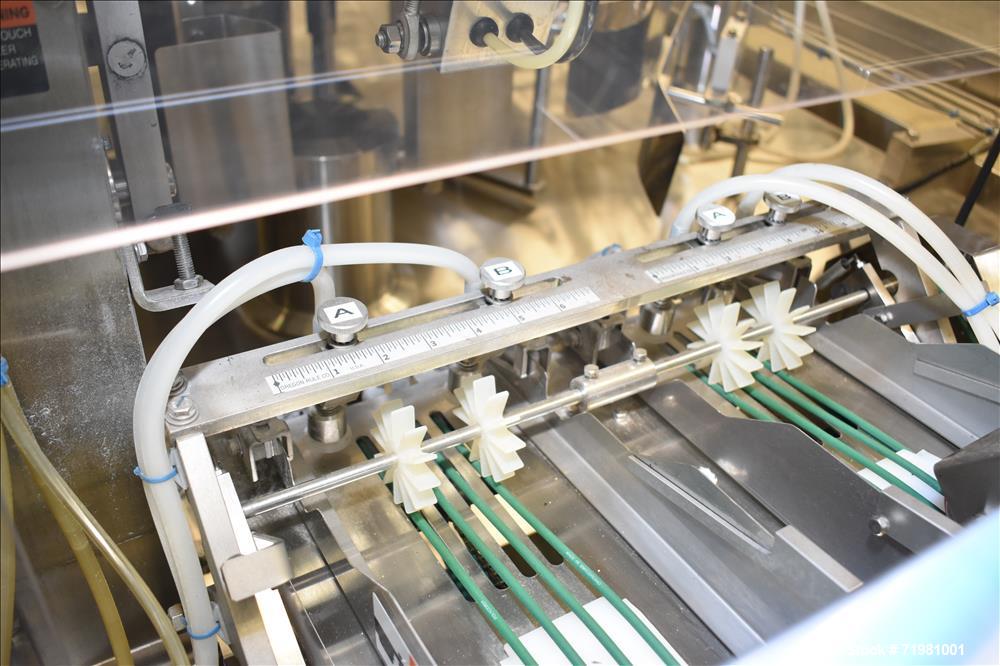

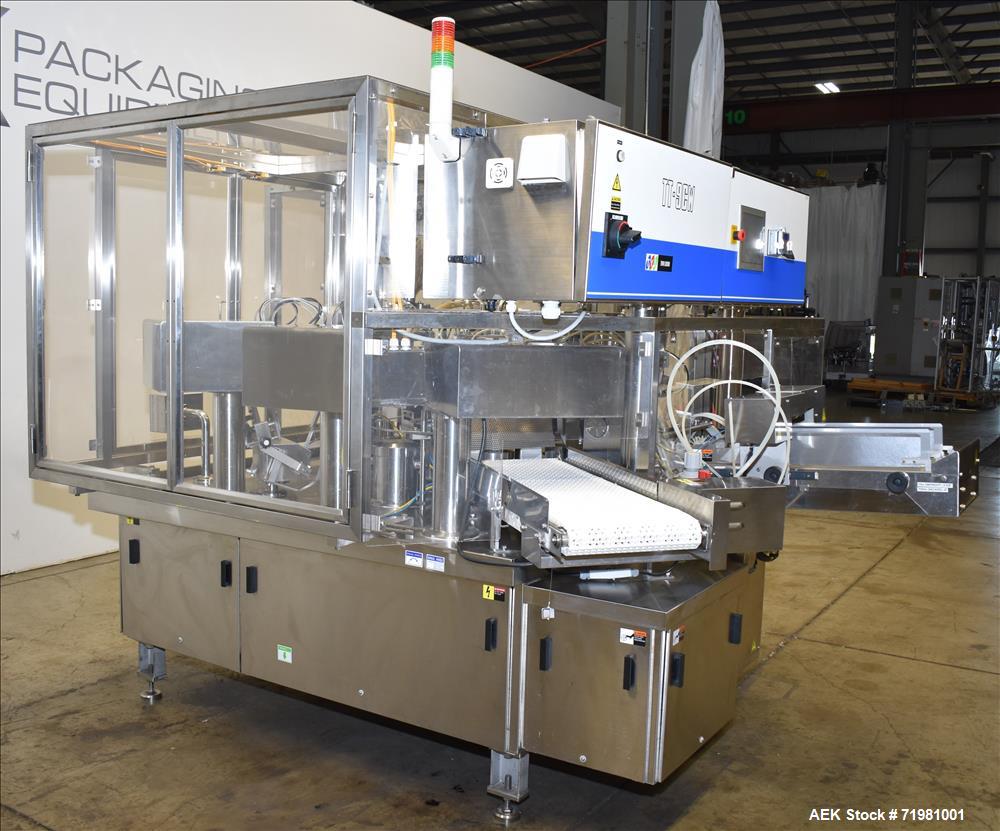

Used Toyo Jidoki Model TT9CW Preformed Pouch Machine. Capable of speeds from 30-80 pouches per minute, speeds are dependent on fill volume and pouch material. Pouch size range: Width - 80mm - 150mm or 3.15" - 5.9" , Length - 130 mm - 255 mm or 5.12" - 10.0" . Fill volume range: up to 500cc. Capable of running flat or stand up pouches, Duplex 2-up operation. Turret stations consist of: pouch pick and place into turret clips, pouch top opener, pouch bottom opener, pressure product fill with piston pump fills using 19mm diameter nozzles, two stage heat seal stations, seal quench and pouch discharge. Last used on beverage mixed cocktail products.Allen Bradley CompactLogix PLC controls, serial number A01156, mfg 2102. Requires 90 ps air and 3/60/480V.
