Used Horizontal Pouch Form and Fill

Stock# 71614001

Used- Bartelt (Klockner) Model IM7-14 Servo Horizontal Form Fill and Seal Machine. Rated for speeds up to 100 cpm. Has pouch size range: width 2" - 5-3/4"; height 2" - 9" (change parts may be required). Now tooled for 5-1/2" wide x 4-5/8" tall pouch. Has 2 product fill stations. Now equipped with desiccant bead filler and laboratory med device inserter, other fillers can be retrofitted as needed, consult AEK Sales Department. Equipped with servo film feed and servo indexer, has film feed with web tracking and splice table, film registration, pre-heat, final heat and quench vertical seal stations, 2 fill stations with air knife openers, pre-heat, final-heat and quench top seal stations, and dual front-and-back alternate pick and place pouch discharge. 6" core, Power Unwind, Splice Table, Versatec Web Tension Control, Web Tracking Control, Automatic Web Alignment. Cluster Lube. Uses Schneider Elec PLC Controls and Eco Drive Servos. 3/60/480V.

Stock# 71614002

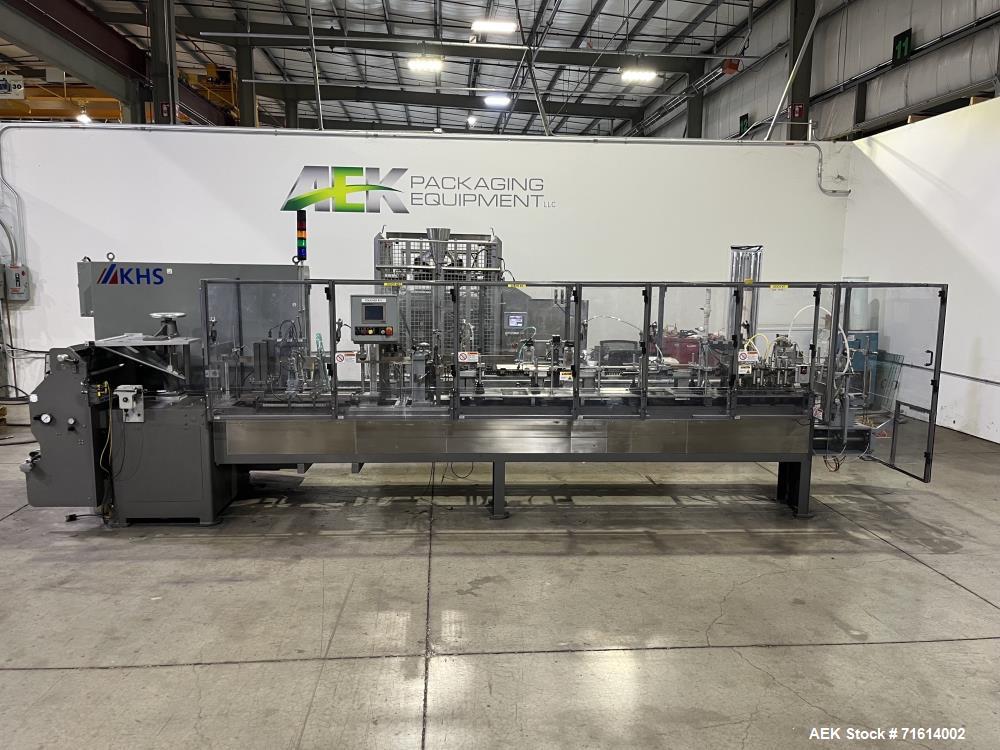

Used- Bartelt (KHS) Model IM7-16 Servo Horizontal Form Fill and Seal Machine. Rated for speeds up to 100 cpm. Has pouch size range: width 2"-5-3/4", height 2"-9" (change parts may be required). Now tooled for 5-1/2" W x 4-5/8" pouch. Uses Schneider Modicon Quantum PLC Controls and Eco Drive Servos. Has 2 product fill stations. Now equipped with desiccant bead filler and laboratory med device inserter, other fillers can be retrofitted as needed, consult AEK Sales Dept. Equipped with servo film feed and servo indexer, has film feed with web tracking and splice table, film registration, pre-heat, final heat and quench vertical seal stations, 2 fill stations with air knife openers, pre-heat, final-heat and quench top seal stations, and dual/front and back alternate pick and place pouch discharge. Uses a 6-inch core, features Power Unwind, Splice Table, Versatec web Tension Control, Web Tracking Control, Automatic Web Alignment. Cluster Lube. 3/60/480V. Serial #3628. mfg 2007

Stock# 71614003

Used- Bartelt (Klockner) Model IM7-16 Servo Horizontal Form Fill and Seal Machine. Rated for speeds up to 100 cpm. Has pouch size range: width 2" - 5-3/4", height 2"-9" (change parts may be required). Now tooled for 5-1/2" W x 4-5/8" pouch. Has 2 product fill stations. Now equipped with desiccant bead filler and laboratory med device insterter, other fillers can be retrofitted as needed, consult AEK Sales Dept. Equipped with servo film feed and servo indexer, has film feed with web tracking and splice table, film registration, pre-heat, final heat and quench vertical seal stations, 2 fill stations with air knife openers, pre-heat, final-heat and quench top seal stations, and dual/front and back alternate pick and place pouch discharge. 6-inch core, Power Unwind, Splice Table, Versatec web Tension Control, Web Tracking Control, Automatic Web Alignment. Cluster Lube. Uses Schneider Elec PLC Controls and Eco Drive Servos. 3/60/480V. sn 3633 mfg 2007

Stock# 71614004

Used- Bartelt (Klockner) Model IM7-14 Servo Horizontal Form Fill and Seal Machine. Machine is capable of speeds up to 100 cpm (200 with optional splitter). Has pouch size range: width 2" - 5-3/4", height 2"-9" (change parts may be required). Has 2 Fill Stations. Is equipped with Film Registration; Perf Station; Cooling station; Servo film feed; Vacuum opening stations; Vacuum Pump; 14 station. 7.25" centers. 12" tall heat knife. Roll dimensions: Core diameter 3", Roll Diameter 22" wide, Roll Width 22" maximum. Uses Allen Bradley controls with Indramat drives. Has volumetric feeder and robotic card feeder.

Stock# 71614005

Used- Bartelt Klockner Model IM7-16 Servo Horizontal Form Fill and Seal Machine with All Fill B-300 Powder Auger Filler. Speeds up to 100 pouches per minute. Pouch size range: width 2" - 5-3/4"; height 2" - 8.5" (change parts may be required). Equipped with: Servo film feed, film web tracking, film splice table, tear notch, dual vertical sealers with quench, 2 fill positions, dual top sealers with quench, and product detection sensor and discharge system to reject empty pouches separately from filled pouches. Accepts print registered structured resistance sealed film with 6" core diameter, 22" outer diameter, 21" web width. Bartelt has Schnieder Elect 140 CPS PLC & Indramat servo drives. 3/60/480, 90 psi Comp air. All Fill filler has Cerebus II controls. sn 3685 mfg 2011 Retooling, set-up and testing services are available. Contact AEK for more information.

Stock# 70342016

Used Bartelt Horizontal Form Fill Seal; Model IM9; dual All Fill B400 auger fillers; Cerebus controllers. Previously used in an Oatmeal application.

Stock# 72029001

Used- KHS Bartelt Model IM/S 9-12 Horizontal Form Fill Seal Machine. Poucher is capable of speeds up to 70 ppm. Has pouch size range: 2" - 7-3/4" (width) x 2" - 9" (height). Has dual vacuum opening stations, splice table, Indramat PLC controls with Allen Bradley Panelview Plus 1000 HMI, Rexroth Servo controllers, print registration and vacuum discharge. Has two top seal stations, second with cooling. Has bottom seal, two side seal stations, bottom cooling station. Splice table, tear notch, round hole punch, gas flush, vacuum bag openers, top seal and top seal cooling. Has servo product plunger that was last used for beef jerky and ideal for pet treats or chews. Set up and testing available upon request and receipt of product samples. AEK can integrate with auger, scale, volumetric or liquid fillers per application.

Stock# 72163001

Used- Bartelt Klockner Model IM7-16 Servo Horizontal Form Fill and Seal Machine. Machine is capable of speeds up to 100 ppm. Pouch size range: width 1" - 5-3/4"; height 2" - 9" (change parts may be required). Has 2 fill stations with vacuum openers. Equipped with auto web tracking, film registration, servo film feed, 16 stations. 7" centers, water circulated side and top cooling jaws, auto clutch jam detection and release, and vacuum pick-off. Accepts structured film roll dimensions: Core diameter 6", 22" OD, 22" maximum width. Utilizes Schneider Telemechaniques PLC with Maple Sys HMI. Last used in medical device. 3/60/460V power feed with required 90psi compressed air, vacuum and chilled water. Serial Number 3729, mfg 2013

Stock# 72163002

Used- Bartelt Klockner) Model IM7-16 Servo Horizontal Form Fill and Seal Machine. Machine is capable of speeds up to 100 ppm. Pouch size range: width 1" - 5-3/4"; height 2" - 9" (change parts may be required). Has 2 fill stations with vacuum openers. Equipped with auto web tracking, film registration, servo film feed, 16 stations. 7" centers, water circulated side and top cooling jaws, auto clutch jam detection and release, and vacuum pick-off. Accepts structured film roll dimensions: Core diameter 6", 22" OD, 22" maximum width. Utilizes Rexroth servo film feed, Schneider Telemecanique PLC with Quick Panel Maple Sys HMI. Last used in medical device. 3/60/460V 45a power feed with required 90psi compressed air, vacuum and chilled water. Serial Number 3654, mfg 2009

Stock# 71875001

Used- Bodolay Model C-50 Form Fill Seal Machine. Rated 50 bags per minute. Bag size range: 2" x 3" up to 12" x 16". Has registration. Electric 3/60/240V.

Stock# 71898002

Used- Bossar Model BL3000 STU3 Horizontal Form Fill Seal Machine for Liquid Stand Up Pouches with Time Pressure Liquid Filler.. Capable of speeds up to 150 ppm. Has Allen Bradley PLC 5550 Compact Logix PLC and servos ultra 5000 in devicenet. Allen Bradley Panelview 1250 HMI. Form & Fill Horizontal Pouch, Model BL-3000/STU 3, Serial. Has all stainless steel contact parts, top datum line for quick size changes. Film Unwind: Maximum (diameter) 900mm x (width) 850mm. Photo eye registration, no pouch no fill system, film edge alignment, central lubrication system, three magnetic flow meters with heated and jacketed hopper temperature probe and agitation. Three filling nozzles, triplex punch die cut unit. Triplex embosse date coder. Last running a 3 oz (88.7ml) hot fill at 80 degree celcius in a stand up pouch with shape in top seal at 150 ppm. Pouch was 86mm w x 171mml x 47mm bottom gusset. 3/60/480v.

Stock# 71808001

Used- Bossar B3000 Stand Pouch Duplex Horizontal Form Fill Seal Machine (corner spout application). Maximum working capacity up to 110 pouches per minute. Duplex machine set up. Pouch volume up to 750 ml (0.198 gallon) per pouch. Currently set up for pouch of 130 mm width x 210 mm high (5.07" width x 8.19" high) with gusset 45.5 mm (1.75"). Maximum pouch size according manual up to 150 mm width x 220 mm high (5.85" width x 8.58" high) (duplex pouch). Includes flowmeter filling system, cap elevator and sorting units. Visual plastic protection covers. On legs. Includes PLC control panel 3/50/380V. Mfg 2005. Last running Juice.

Stock# 72129001

Used- Effytec Intermittent Motion Horizontal Pouch Machine with Top Spout Applicator, Model HB404 (GP-40). Rated up to 50 cycles per minute, real production for existing pouch with cap format recommended at 160-180 ppm. Pouch size range: 75mm x 100mm (3” x 4”) up to 100mm x 175mm (3.9” x 6.9”). 4-up indexing pouch transport. Features: parallel motion side sealing, quadruple “inverted T” sealing technology (patented), machine set up recipe storage, low inertia dual cam roller drive train (patented), sanitary stainless steel construction, Allen Bradley controls. Equipped with 4 mass flow meter fillers for dosing open pouches, fitment sorting bowls and fitment sealers designed for Menshen brand choke proof or mushroom cap style spout (can be converted to other spout/cap styles). Last ran applesauce type product in a 3.17 oz, 90 gram, stand-up, gusset bottom pouch measuring 3.25” x 4.5” with 12mm cap. Machine built 2013. 3/60/460V, FLA 63 amps/KVA 52.4 amps/6 bar.

Stock# 71805001

Used- Enflex Model F11T Horizontal Form Fill Seal Pouch Machine with Liquid Piston Filler. Capable of speeds up to 110 indexes per minute (depending on application). Set-up for 1-Up / Simplex with pouch size range: 40mm - 110mm width x 40mm - 130mm height. Equipped with piston filler with 60cc maximum volume of pouch. Omron SysQ1 PLC coontrols. Film reel dimensions: 260mm - 450mm with a core diameter of 75/70mm. Has film registration. 3/60/230V.

Stock# 71899009

Used- HMC Products, Inc. Horizontal Pouch Form, Fill and Seal Machine, Model IM 6-14. Machine is capable of speeds up to 100 pouches per minute (200 if run in tandem). Has a package size range of 2" to 4-3/4" in width, 2" to 9-1/2" in height, and gussets up to 2". Has a 6" indexing length with 14 stations. Includes an Accuweb "Micro 1000" web tracking system and vacuum pouch openers. Has an Allen Bradley SLC 5/04 programmable control system with an Allen Bradley PanelView 550 HMI. 25 amp. 3/60/480V.

Stock# 71130001

Used- Jones Model PK2000 Stand Up Pouch King, 44-Station High-Speed Continuous Horizontal Form Fill and Seal Machine, with granular powder fill turret. Indramat Servo motion, AB PLC controls. Now set-up for 4-3/4" wide x 6-1/2" tall pouch with approximately 1" Delta Bottom Stand Up Gusset. System consists of Film Unwind module, Film Splice module with Marsh LCP/ML4 coder, 44 Station main pouch Form Fill and Seal module, Accumulation Festoon conveyor, Rotary Knife module, and discharge conveyor. Film feed includes Fife web alignment, printed film registration and delta bottom gusset hole punch options. Also includes Rietchle Zephyr VLR-500 15 hp Vacuum Pump. Allen Bradley 555 PLC controls. Built 2002. Serial # S-5928. Electric: 3/60/400V. Set up, retooling, PLC/HMI and Servo Control upgrades available upon request. Ask your AEK sales representative for details.

Stock# 71753004

Used- Klockner Bartelt RPM-100 Rotary Horizontal Form Fill & Seal Pouch Machine. Capable of speeds up to 100 pouches per minute on single pouches (200 pouches per minute on tandem pouches). Single pouch size range: 3.75" - 7.25" or 95mm - 184mm (width) x 3.75" - 10" or 95mm - 254mm (height). Duplex/Tandem pouch size range: 2.00" - 3.50" or 51mm - 90mm (width) x 2.00" - 10.00" or 51mm - 254mm (height). Delta Bottom Pouch range: 3.125" - 7.25" or 79mm - 184mm (width) x 4.50" - 10" or 114mm - 254mm (height) x 1.50" - 4.00" or 38mm - 101mm (gusset). Maximum roll Diameter: 24" on 3" core. Maximum roll width: 24" or 610mm. Has Allen Bradley PLC 2 controls, Xycom Model 2050t HMI, splice table, film registration and bottom gusset attachment. Was last running spices in a food seasoning operation. Set to size, retooling and PLC upgrades available upon request at an additional cost. Fillers can be added per application. ** SALE SUBJECT TO SELLER'S APPROVAL **

Stock# 71753005

Used- Klockner Bartelt RPM-100 Rotary Horizontal Form Fill & Seal Pouch Machine. Capable of speeds up to 100 pouches per minute on single pouches (200 pouches per minute on tandem pouches). Single pouch size range: 3.75" - 7.25" or 95mm - 184mm (width) x 3.75" - 10" or 95mm - 254mm (height). Duplex/Tandem pouch size range: 2.00" - 3.50" or 51mm - 90mm (width) x 2.00" - 10.00" or 51mm - 254mm (height). Delta Bottom Pouch range: 3.125" - 7.25" or 79mm - 184mm (width) x 4.50" - 10" or 114mm - 254mm (height) x 1.50" - 4.00" or 38mm - 101mm (gusset). Maximum roll Diameter: 24" on 3" core. Max roll width: 24" or 610mm. Has Allen Bradley PLC 2 controls, Xycom model 2050t HMI, splice table, film registration and bottom gusset attachment. Last running in a food ingredient operation. Set to size, retooling and PLC upgrades available upon request at an additional cost. Fillers can be added per application. ** SALE SUBJECT TO SELLER'S APPROVAL **

Stock# 71899007

Used- KHS Klockner Bartelt Model RPM-950 Rotary Turret Horizontal Form, Fill and Seal Pouch Machine. Capable of speeds up to 75 ppm on simplex pouches as noow equipped (up to 150 ppm duplex pouches with required tooling). Pouch size range: 4-1/2" - 9-1/2" (width) x 4-1/2"- 14" (height). Include Top Zipper, round hole punch, film registration, tear notch, one shot lubrication system. Has Allen Bradley PLC 5 controls with Indramat servos, and Ann Arbor Technologies INX 9500 HMI. Last running beef jerky and includes and rotary pocket feeder with servo driven plunger. PLC/HMI and Servo control upgrades available upon request. Retooling and set to size quotes specific to your project needs available upon receipt of product sample and pouches. Serial # 5912. Mfg. 2001.

Stock# 70342006

Used- Prodo-Pak Form/Fill/Seal Machine. Currently set for 3-sided seals on pouches. Package size ranges from 1.5" x 1.5" to 5" x 5.25" with a maximum capacity of 110 PPM. Unit is capable of running powders as well as granular products. Unit includes AMS auger filler. Previously used in nutraceutical application (protein powder). Mfg. 2016. Low use, excellent condition.

Stock# 71624001

Used- Ropak Model V High Speed Rotary Pouch Machine with Volumetric Screw Product Feeder. Is capable of running at speeds up to 300 cpm, subject to product and package. Was last running 2 oz, 5" wide x 3.5" high size pouches, set up on 5" centers. System includes a floor level bulk feed hopper, bucket elevator product feeder and inline Met Lock metal detector. Uses Allen-Bradley SLC 5/02 PLC Controls and a Panelview 1000e HMI. Equipped with an embossed date coder and Ropak R7025 registration system. Can be converted with retooling for powder filling, consult AEK. Line was previously running sugar coated chocolate/hard candy type products. 3/60/240V.

Stock# 71843001

Used- System Packaging Model 9000-24-8 Cold Seal Horizontal Wrapper. Capable of speeds up to 35 packages per minute (Based on 6" length package). Has a package size range: 10" - 24" Width x 10" - 20" Length x 0 - 8" Thick. Has a Direct Logics 205 PLC controls. Has a 30" Wide x 184" Long lugged infeed conveyor on 24" centers with dual belts measuring 13" Wide. Discharge conveyor is 26" Wide x 116" Long with dual belts measuring 20" Wide. Seal jaw is 24" Wide. OAD: 33' Long x 76" Wide x 103" High. The 9000 random length machine is equipped with indexing feed fingers to speed the handling and loading of rectangular items such as books, CDs, etc. It accepts a continuous stream of products varying in length, and adjusts the package length accordingly. Speed will vary by length of package and by the feed rate of products. Long or irregular shaped products can be accommodated with an optional belted infeed conveyor. The system uses paper, polyethylene, single-face corrugate, and paper microfoam laminate in any combination. Form and Fill Horizontal Pouch Model 9000-24.

Stock# 87621

Used- Volpak Horizontal Pouch Machine, Type S-140 Duplex. Pouch Size Range: (Length) 50mm to 140mm or 70mm as Duplex (Height) 70mm to 200mm. maximum volume 300cc or 50cc as a duplex pouch, manimum 100 pouches per minute capacity (200 on duplex fill). Volpak Type DS303 double head filler. Unit includes (1) Autotherm Model AKL90 heating/cooling unit, rated 2.5 kg at 25 bar, uses R22 medium. (1) DCE Type UMA40MMDA dust collector and (1) DCE Unimater Type MM20A dust collector. (1) Lumonics Model 942 Lasermark printer, (1) Fordertechnik 300 kg capacity bowl lifter/inverter. 3/50/380V
