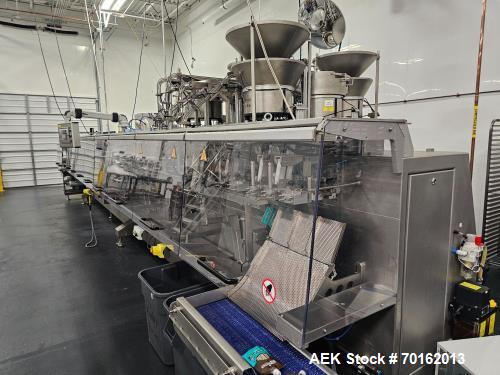

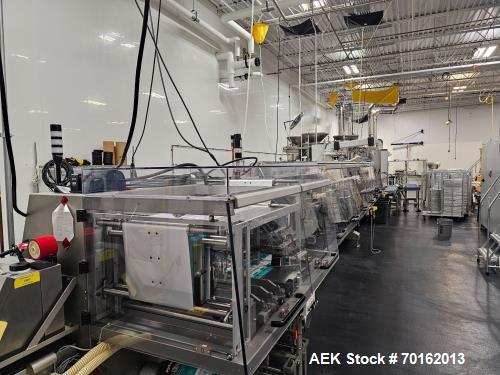

Effytec HB 403 Triplex Horizontal Sachets & Pouch Sealer
Used Effytec HB 403 Triplex Horizontal Sachets & Pouch Sealer. Features front reel loading, Continuous unwinding. Formats memory programmed in recipes. Includes an STU Triplex Top Valve. Equipped with cap/fitment sorting bowls. 500mm outside reel diameter. Produces up to 100 pouches per minute. Stainless steel construction. 480V/3PH/60Hz. 63 Amps. Requires 6 bar compressed air
| Manufacturer | EffytecEffytec |
| Model | HB-403 |
| Category | Packaging EquipmentPackaging Equipment |
| Subcategory | Form & Fill Horizontal - Horizontal PouchForm & Fill Horizontal - Horizontal Pouch |
| Make | Effytec |
| Model Number | HB-403 |
| Speed Range CPM | 100 |
| Current Voltage | 480 |
-
Description
This used Effytec HB 403 Triplex Horizontal Sachets & Pouch Sealer is a high-speed, automated packaging solution designed for efficient pouch and sachet sealing in food, pharmaceutical, and industrial applications. It features front reel loading with continuous unwinding, enabling seamless operation with formats memory programmed in recipes for quick changeovers.
The unit includes an STU Triplex Top Valve and is equipped with cap/fitment sorting bowls, optimizing sealing and packaging efficiency. Constructed from stainless steel, it ensures durability, hygiene, and compliance with industry standards. This machine is capable of producing up to 100 pouches per minute, making it ideal for high-volume production.
Specifications
- Machine Type: Horizontal Sachets & Pouch Sealer
- Front Reel Loading: Yes
- Unwinding System: Continuous
- Programmable Formats: Yes (Stored in recipes)
- Sealing Mechanism: STU Triplex Top Valve
- Sorting System: Equipped with cap/fitment sorting bowls
- Maximum Reel Diameter: 500 mm
- Production Speed: Up to 100 pouches per minute
- Construction: Stainless Steel
- Power Requirements: 480V / 3PH / 60Hz
- Amperage: 63 Amps
- Compressed Air Requirement: 6 Bar
Applications
This Effytec HB 403 Triplex Pouch Sealer is ideal for:
- Food & Beverage Packaging – Sealing pouches for sauces, condiments, powders, and liquids.
- Pharmaceutical & Nutraceutical Packaging – Sachets for medicines, supplements, and health products.
- Cosmetic & Personal Care – Packaging lotions, creams, and gels in flexible pouches.
- Chemical & Industrial Packaging – Sealing pouches for detergents, lubricants, and industrial liquids.
Compatible Products
This sachet & pouch sealer is suitable for sealing:
- Liquid, semi-liquid, and powdered food products
- Pharmaceutical and medical-grade sachets
- Personal care products in flexible packaging
- Industrial chemicals and lubricants in pouches
- Flexible packaging applications requiring high-speed production
