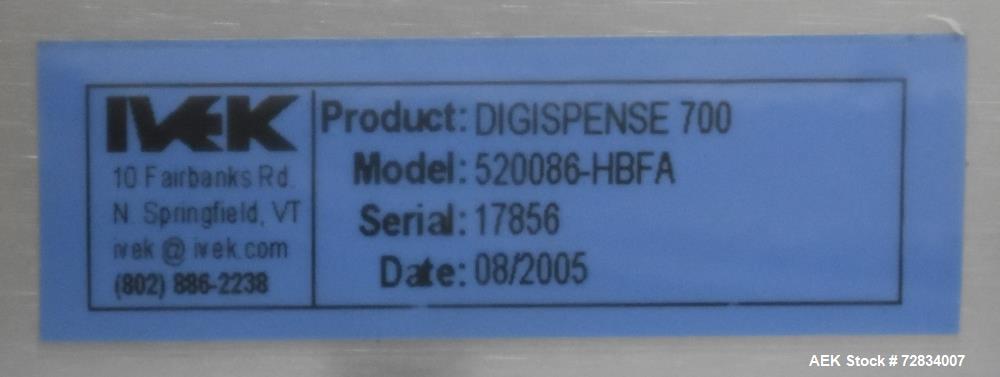

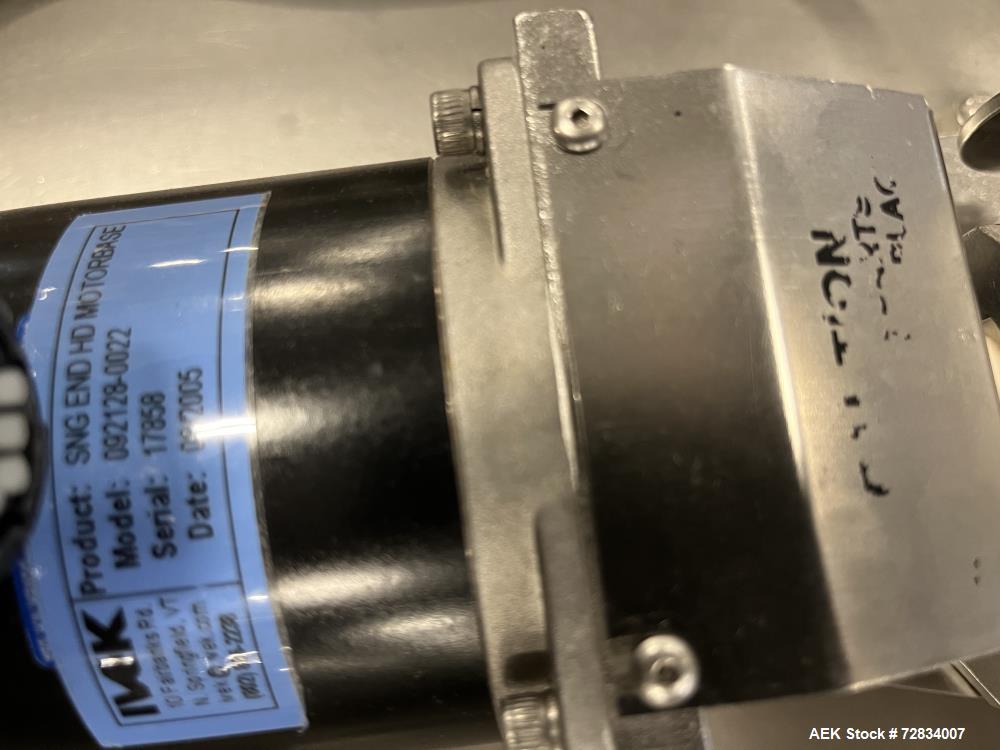

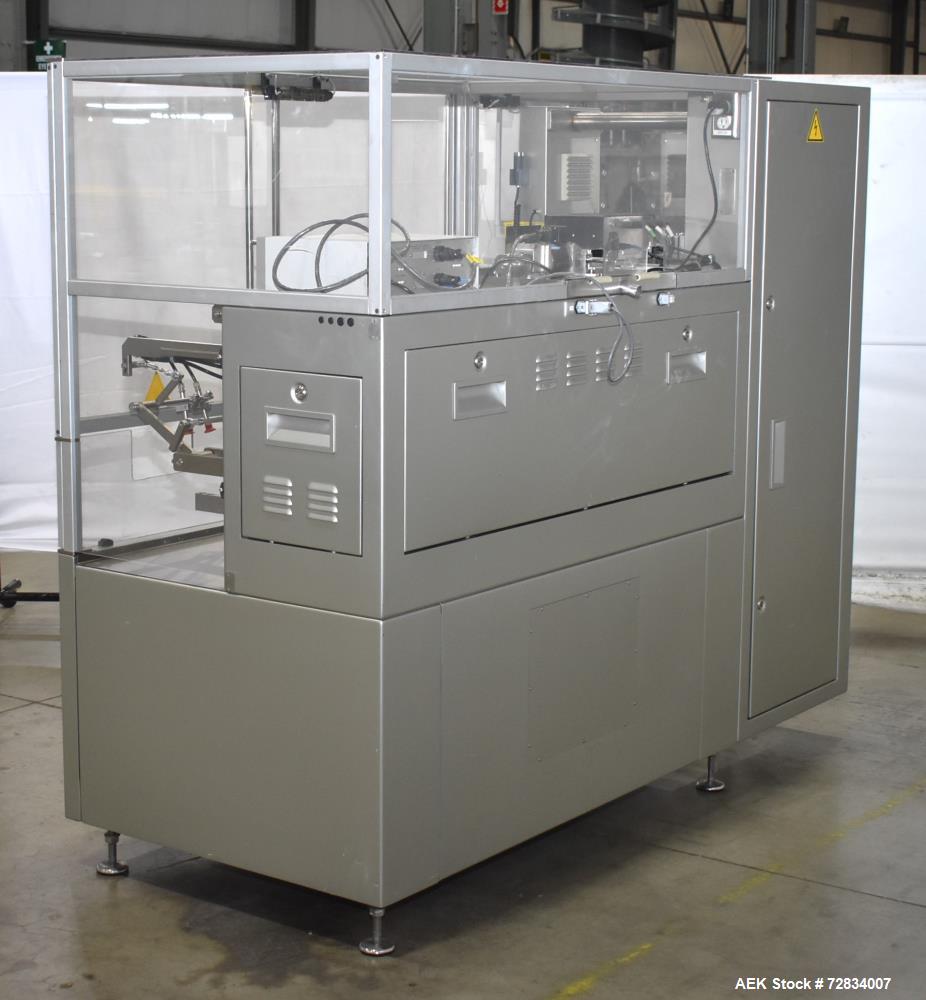

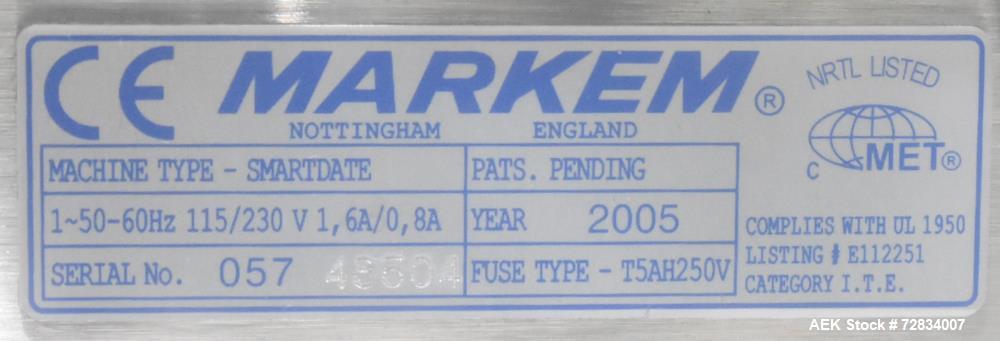

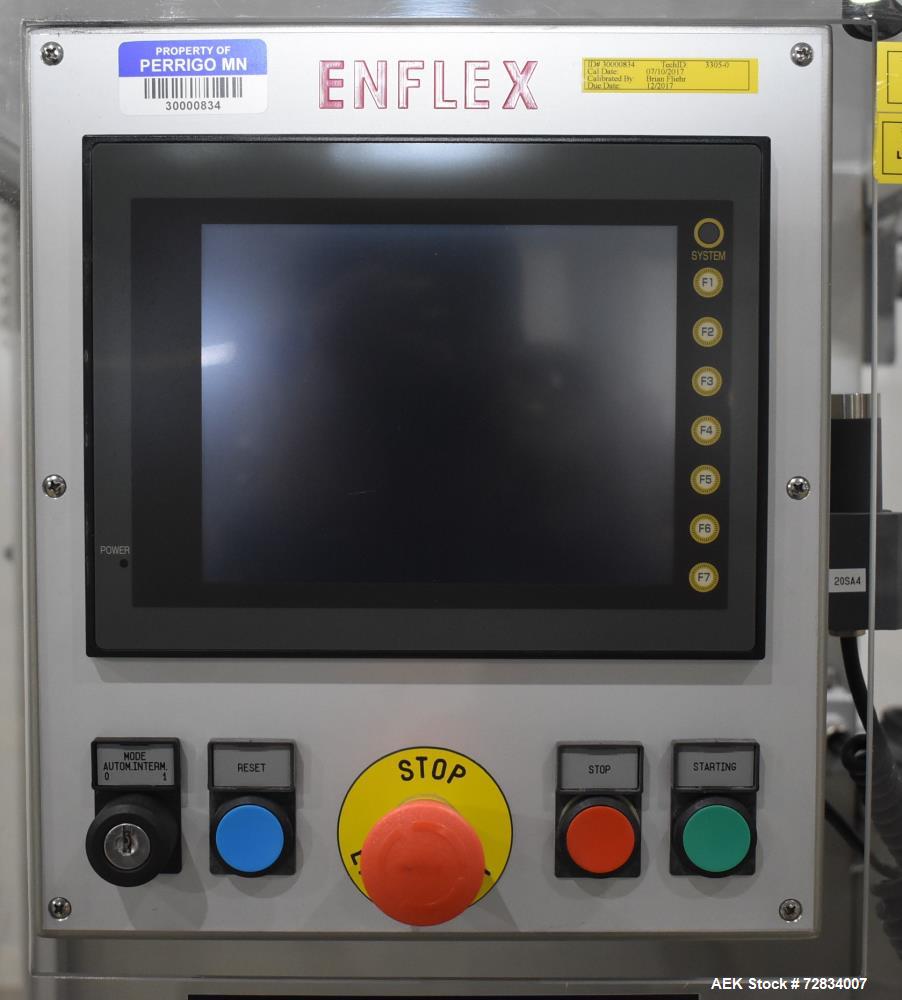

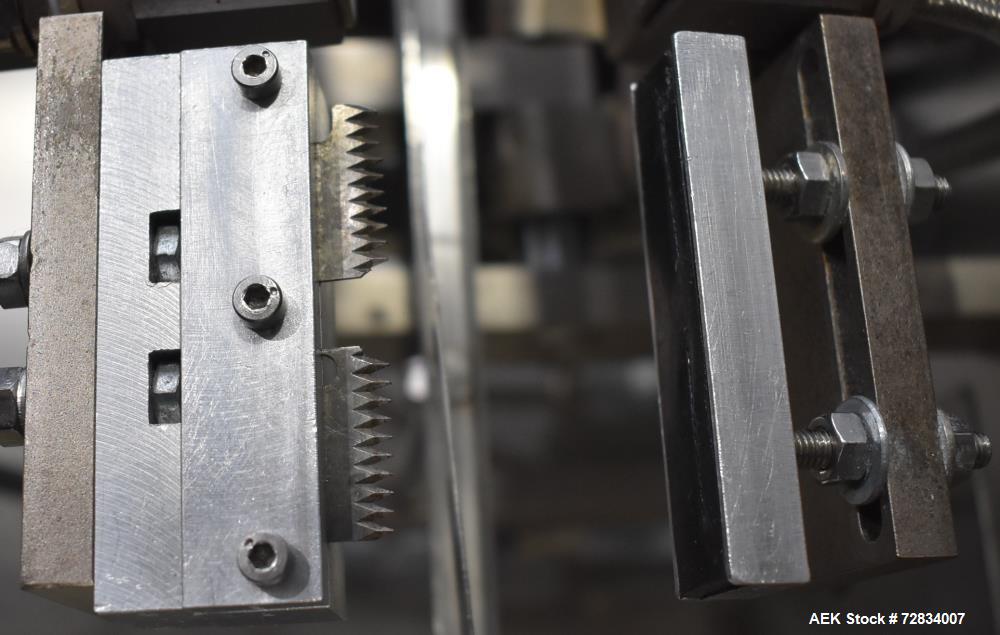

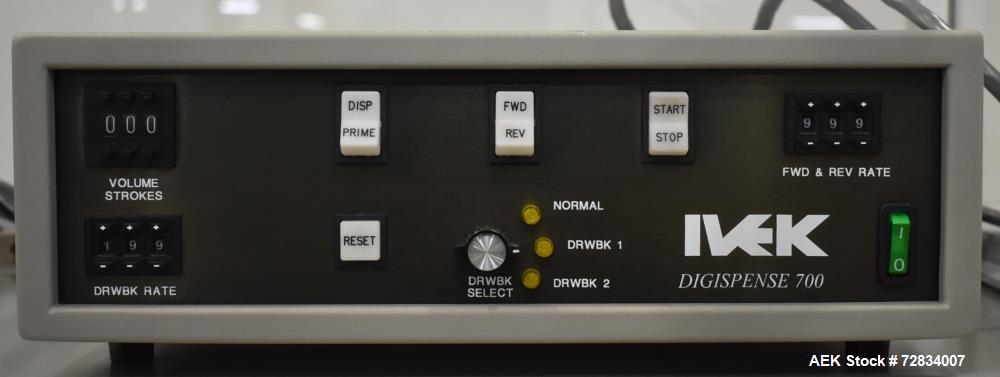

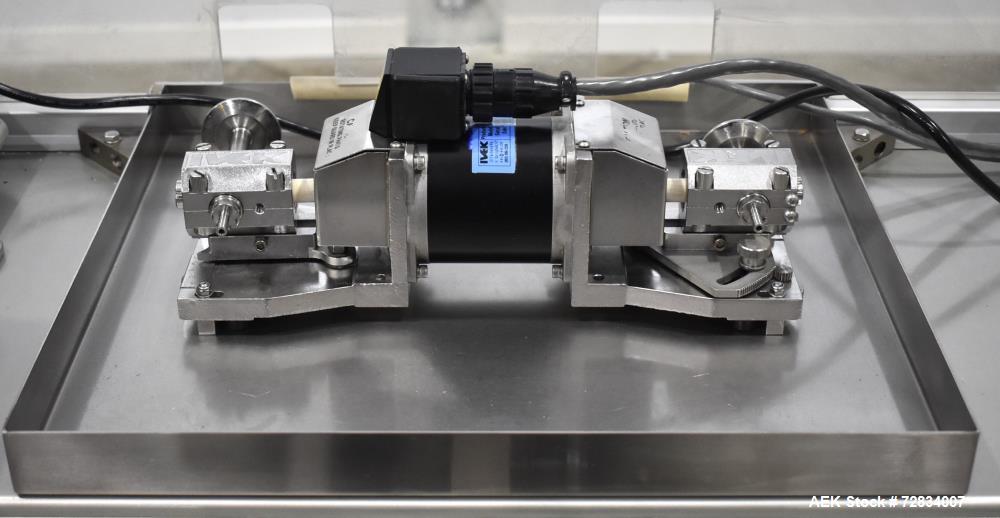

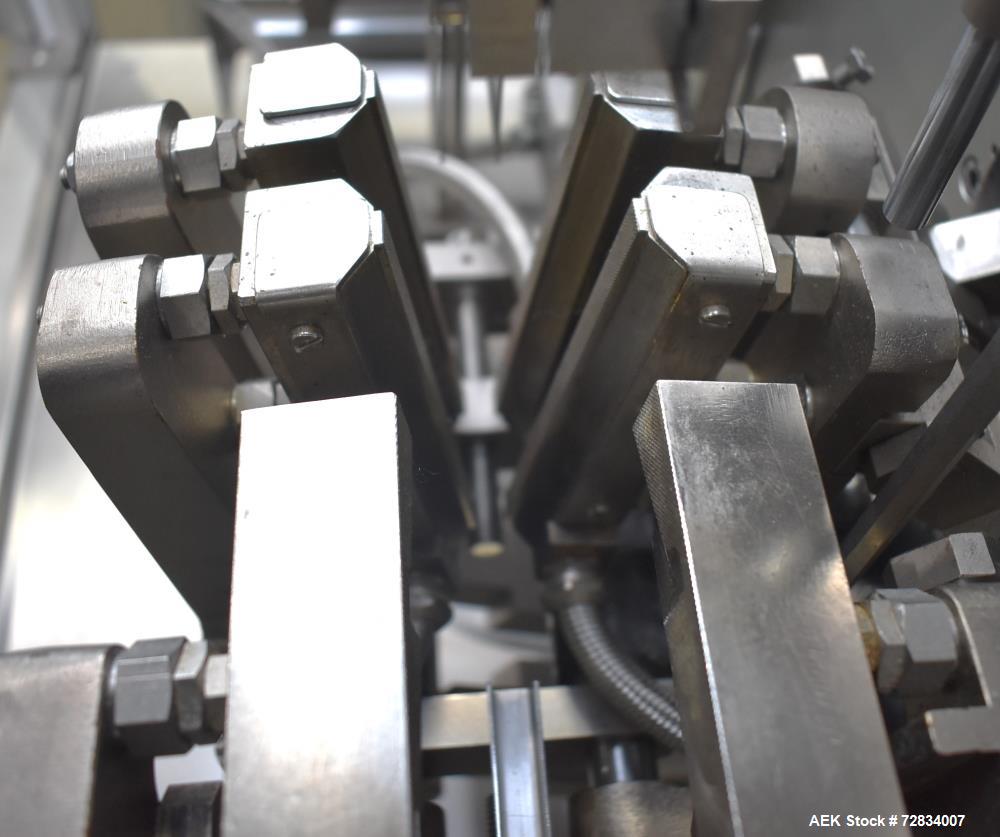

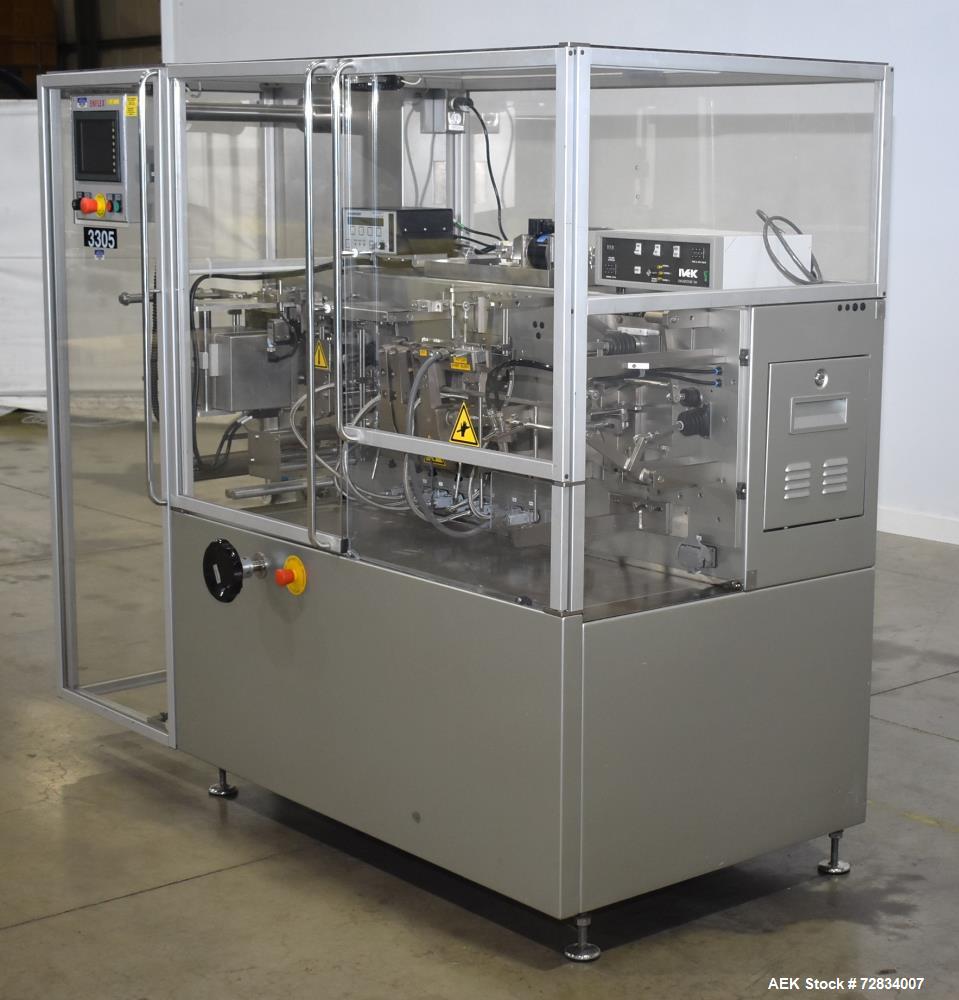

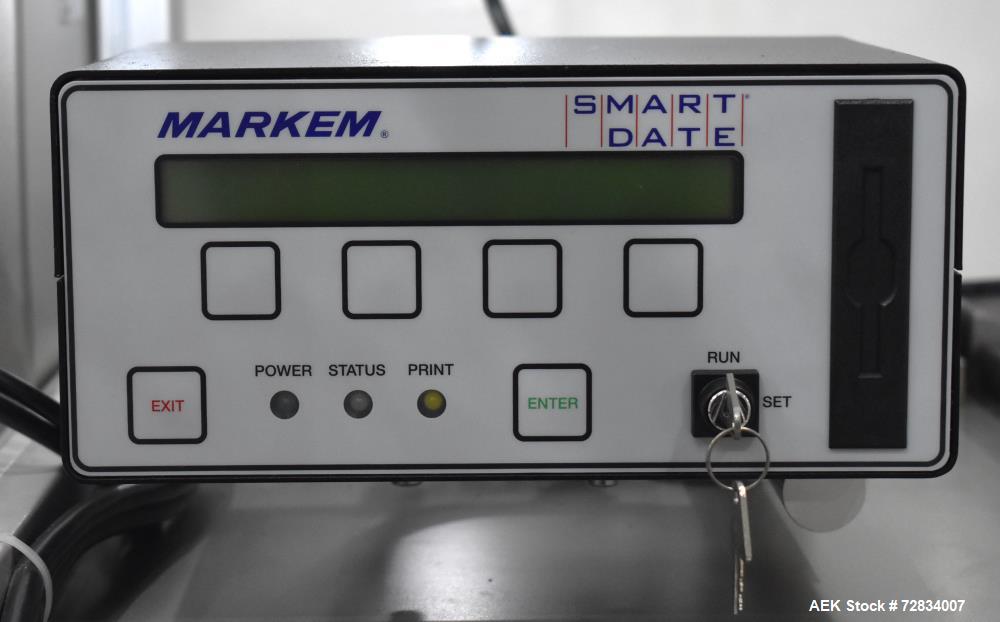

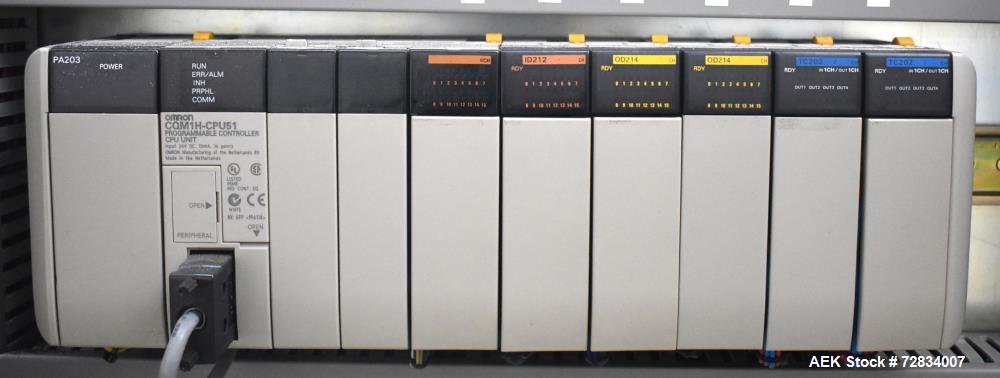

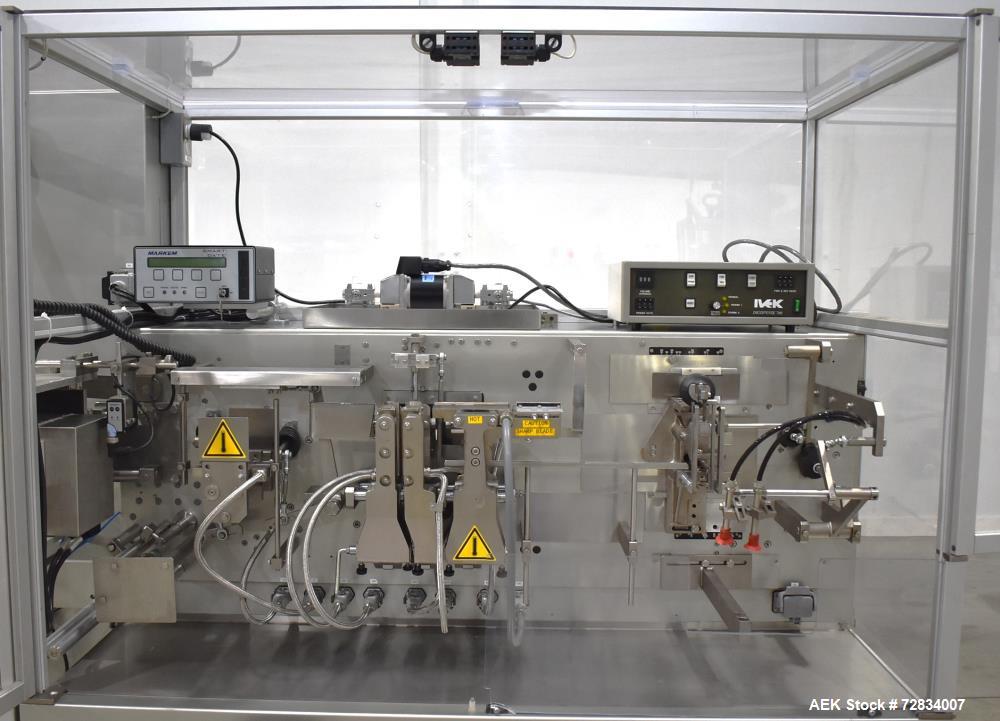

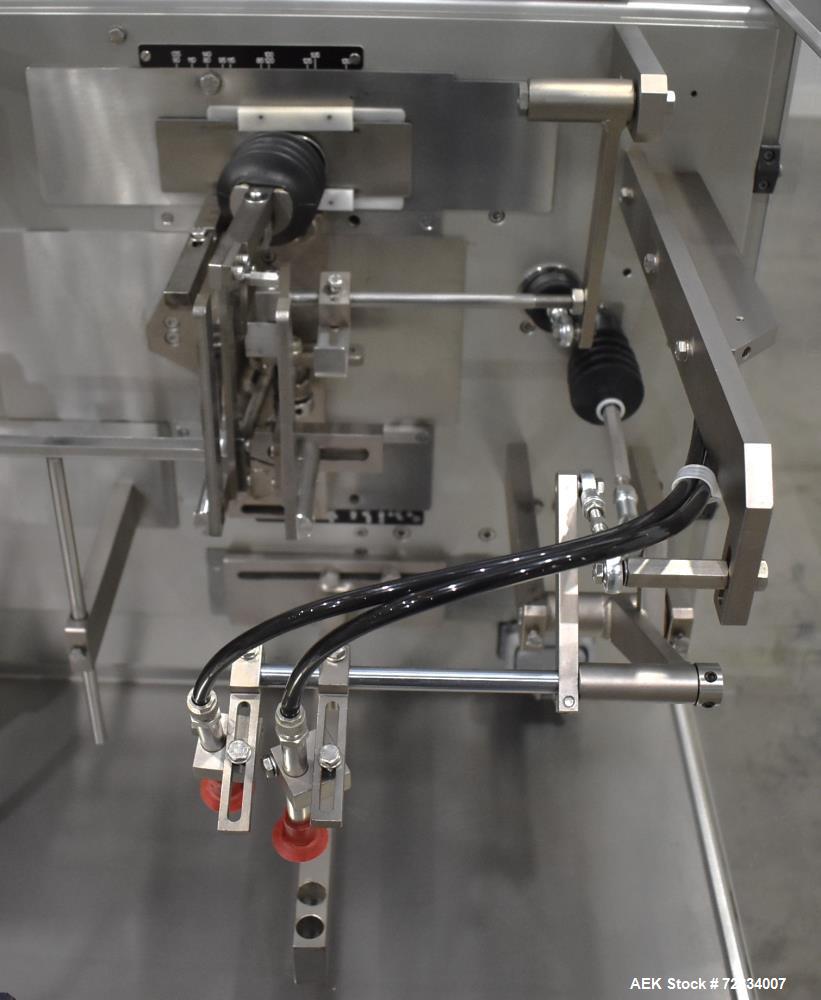

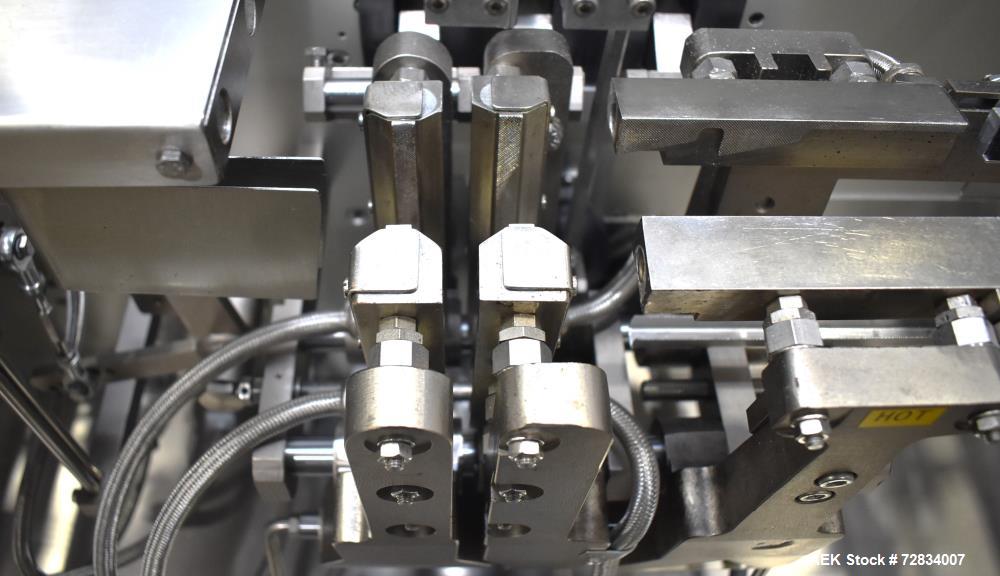

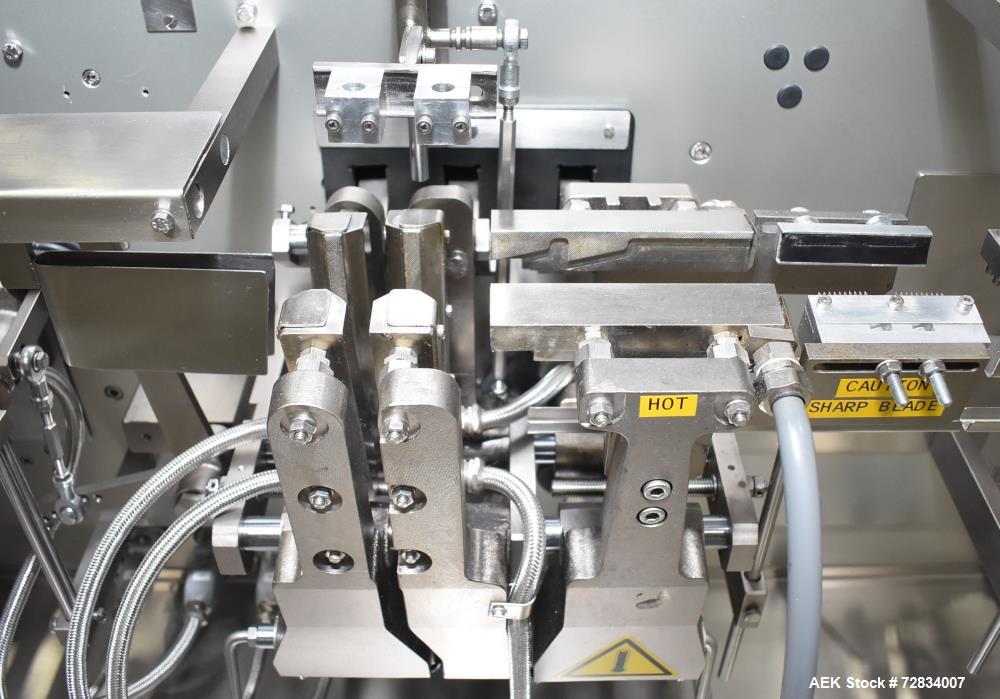

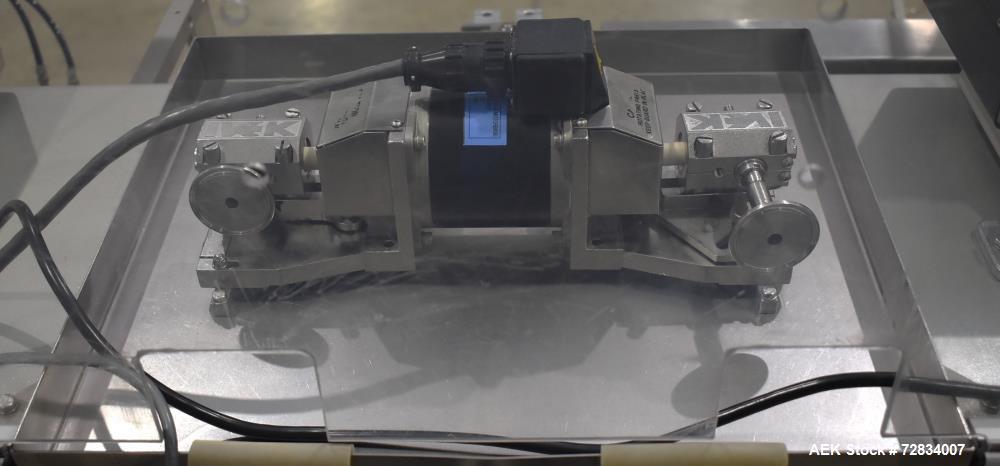

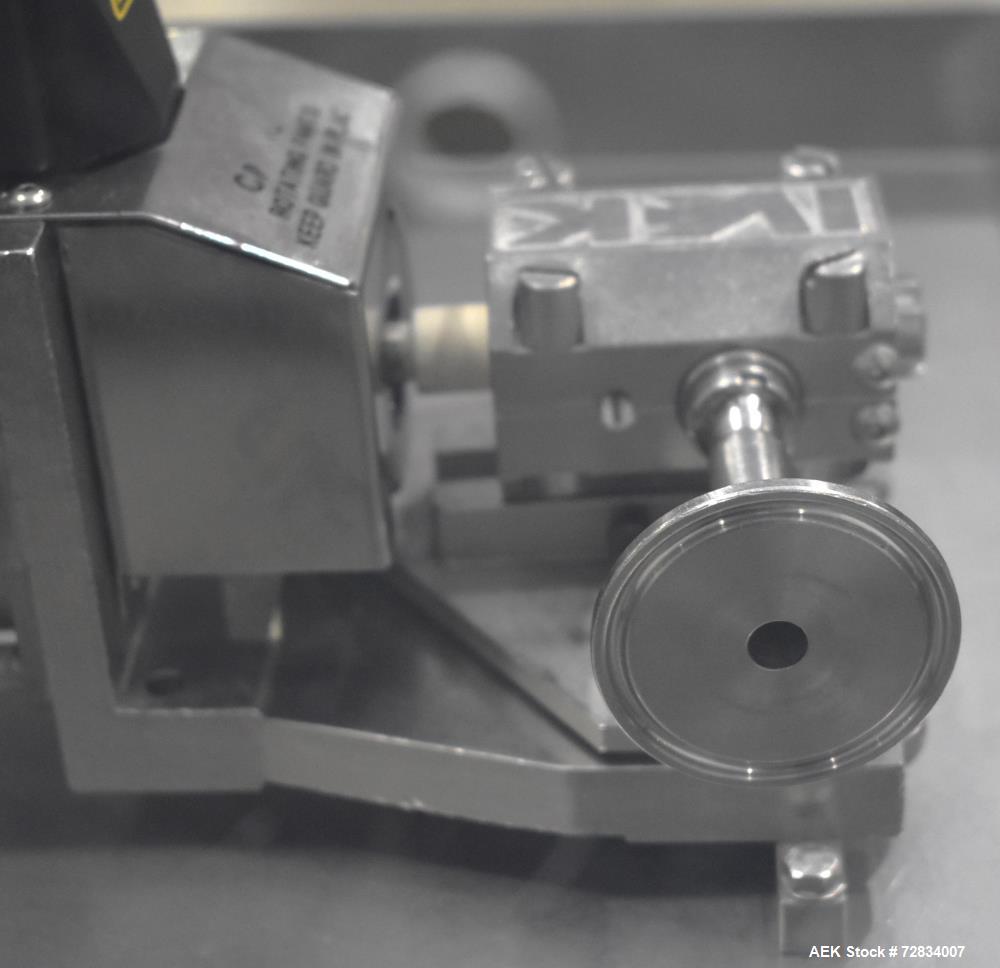

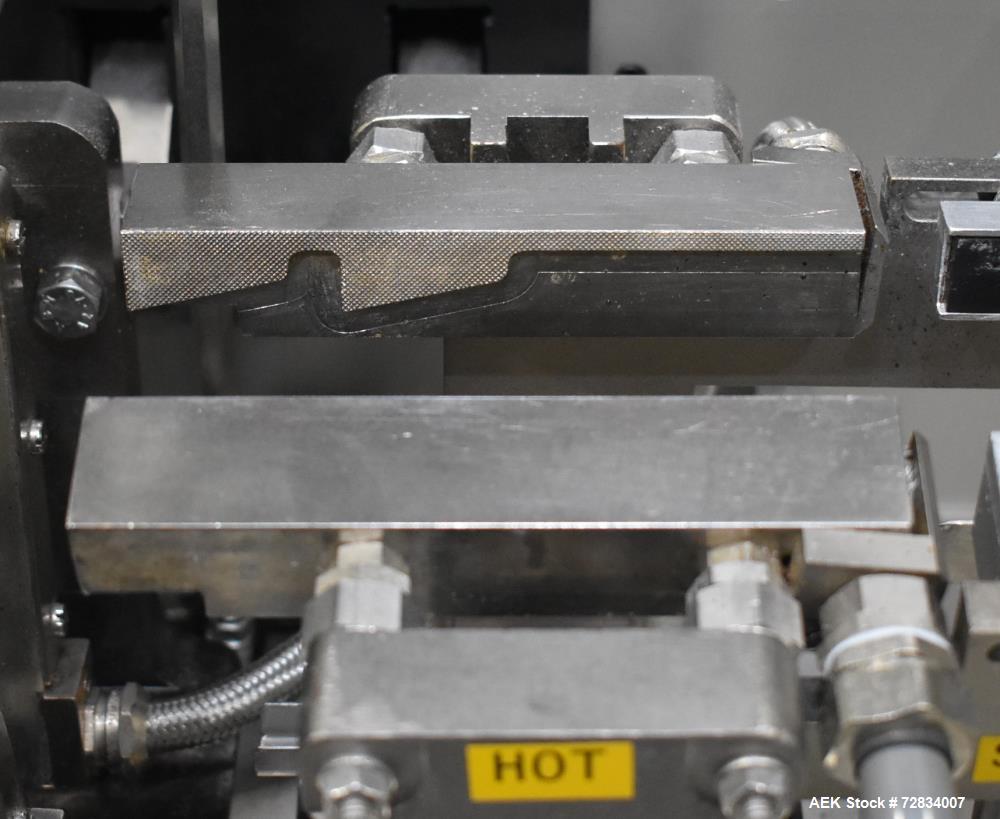

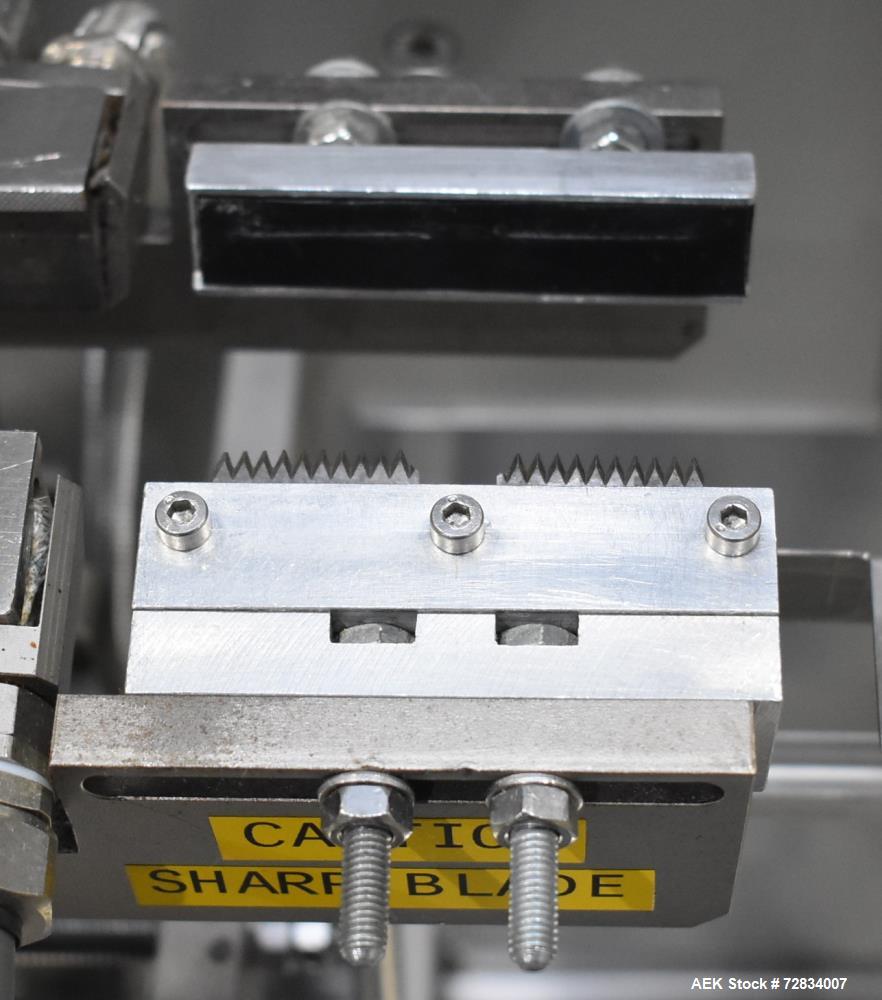

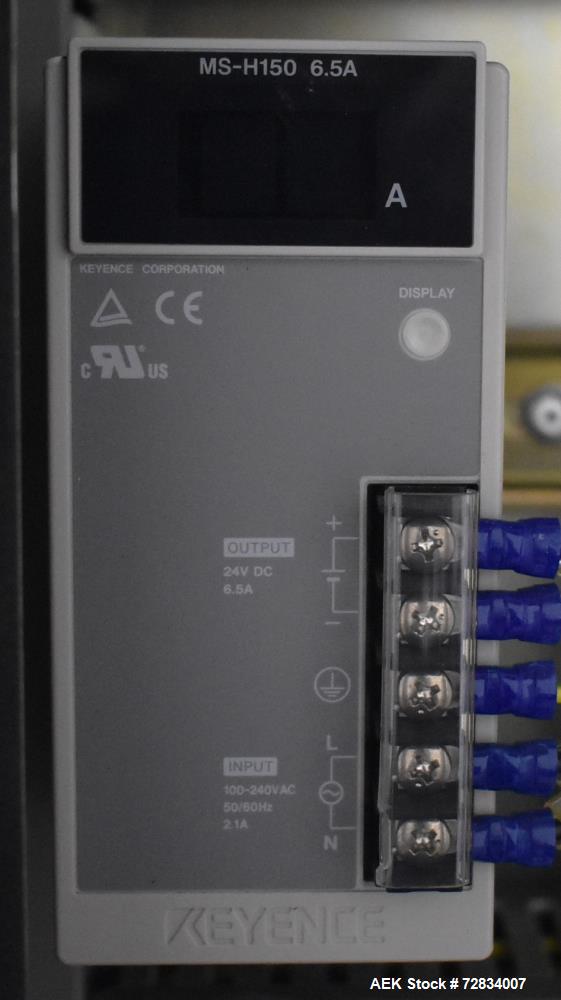

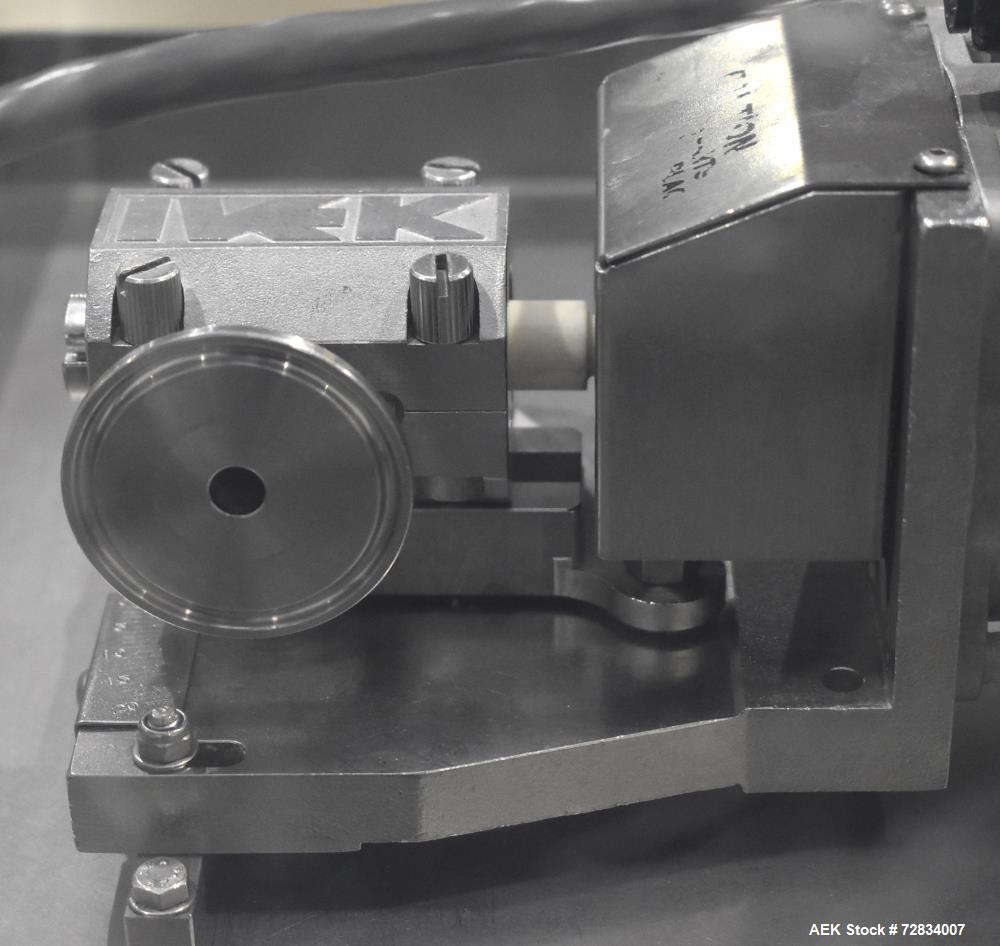

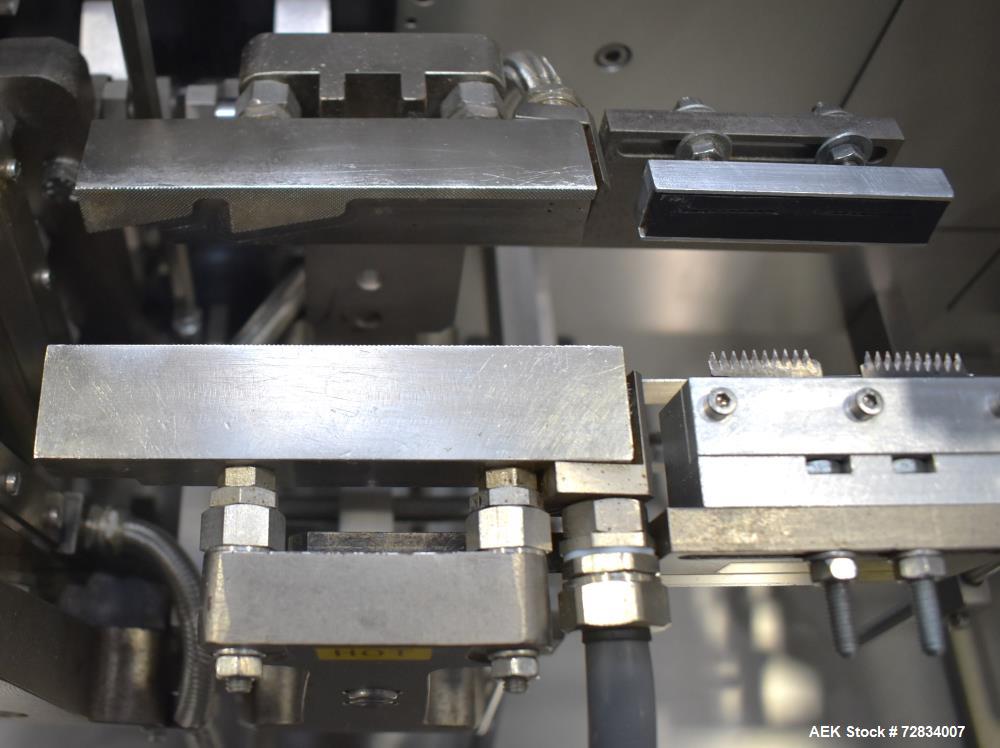

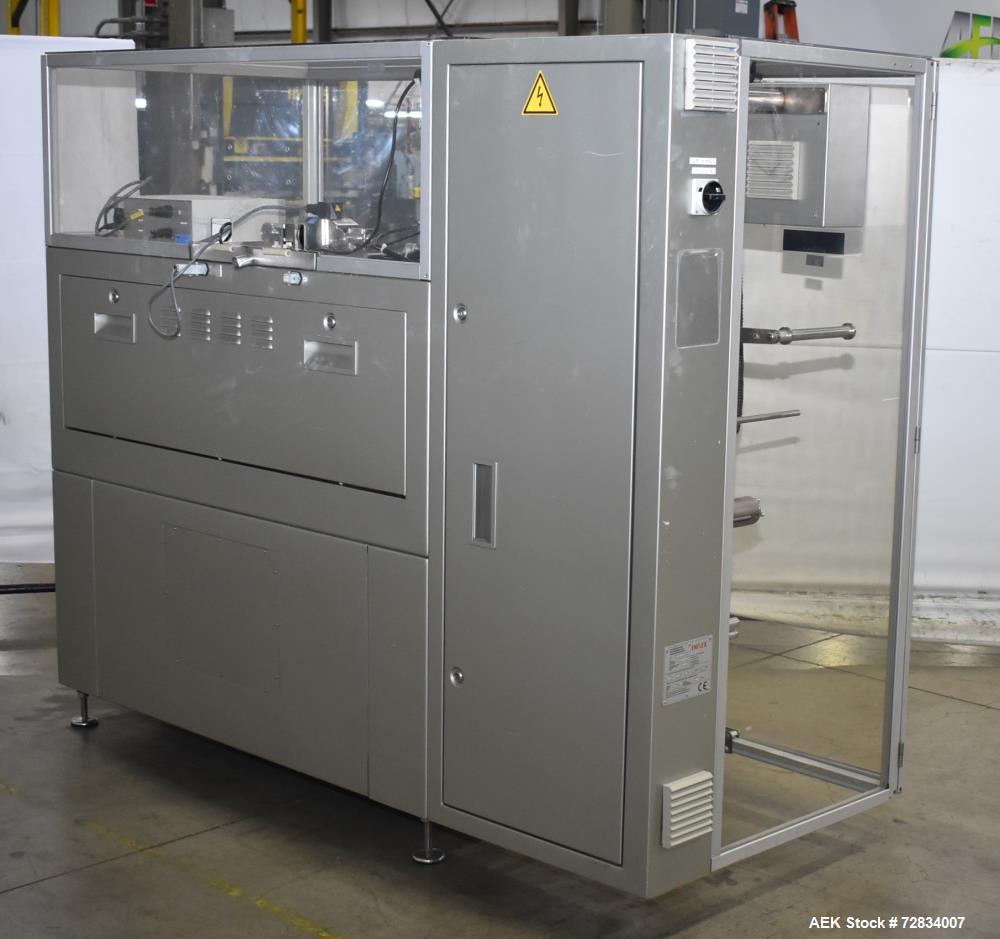

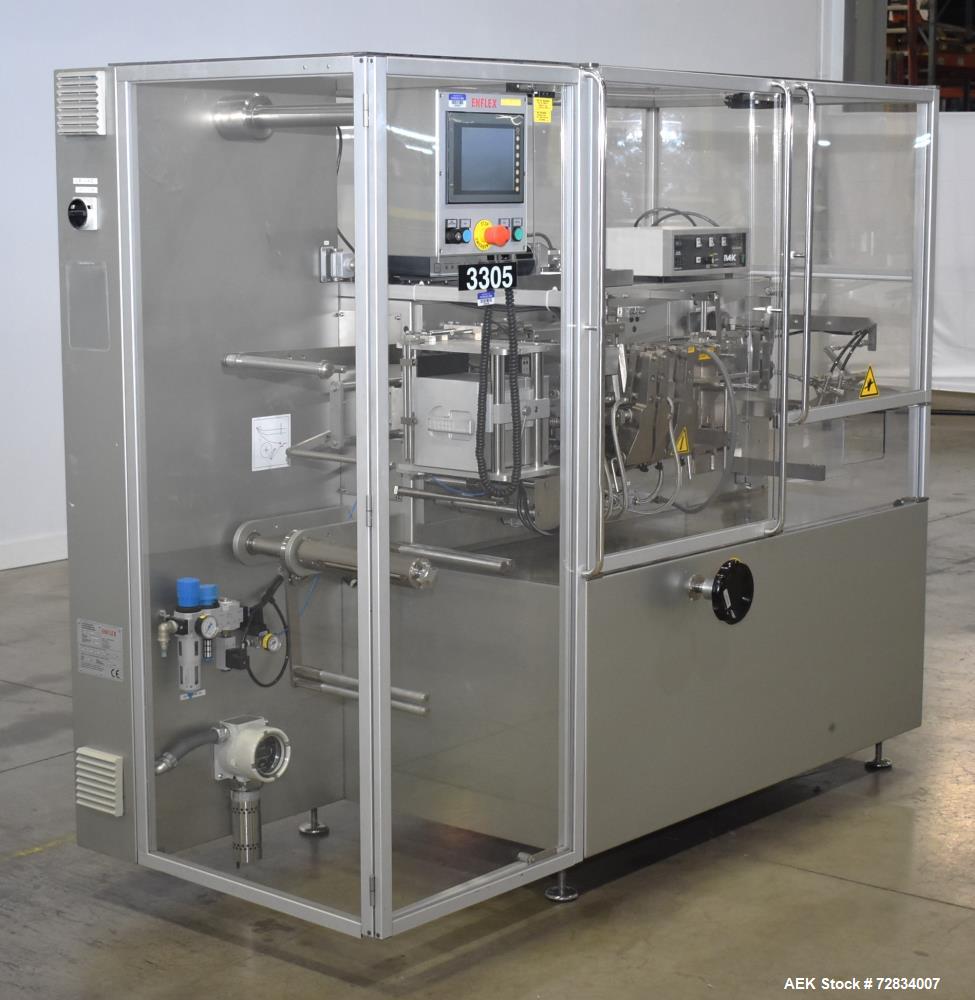

Used Enflex Model F11DX Duplex Horizontal Form and Fill Seal Machine. Capable of speeds up to 220 pouches per minute (depending on application). Pouch size range: 40mm - 70mm (Width) x 40mm - 130mm (Length). Includes Ivek Rotary positive displacement pump with dual nozzles for tandem pouches. Max volume per pouch: 30cc, Max film reel diameter: 450mm. Omron CQM1H-CPU51 PLC, Enflex/Fuji Electric HMI, Keyence MS-H150 drive. Includes Markem smart date coder. Registration. Seal bars: 1st (bottom)- 5-3/8" long, 2nd (side)- 5-1/2", 3rd (top)- 5-3/8", 4th (cutting) 3-1/4". Last used in pharmaceutical ointment application.
Model | F11DX |

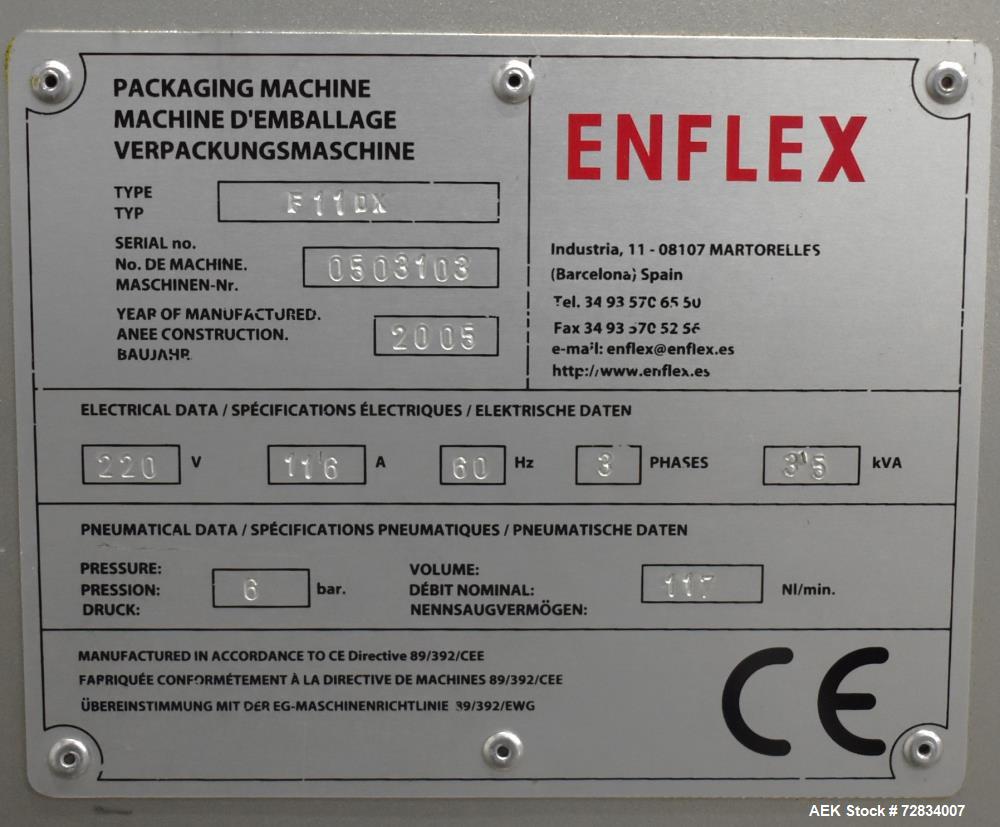

Serial # | 0503103 |
Category | Packaging EquipmentPackaging Equipment |
Subcategory | Form & Fill Horizontal - Horizontal PouchForm & Fill Horizontal - Horizontal Pouch |
Make | Enflex |
Model Number | F11DX |
Serial # | 0503103 |
Speed Range CPM | up to 220 |
Package Size Range (Length) | 40mm - 130MM |
Package Size Range (Width) | 40mm - 70MM |
Fill Type | Liquid |

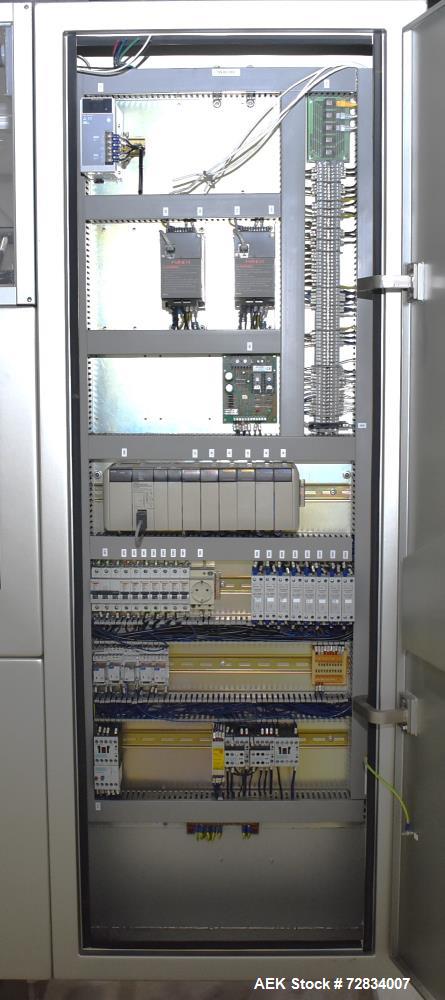

Make and Model of PLC | Omron CQM1H |

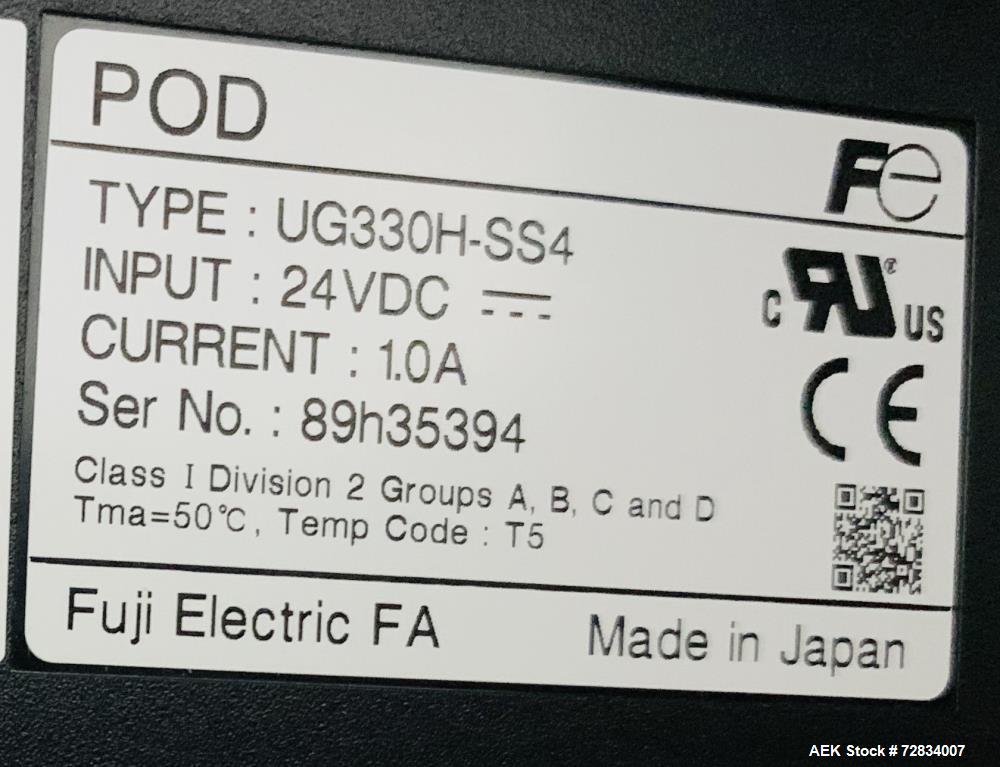

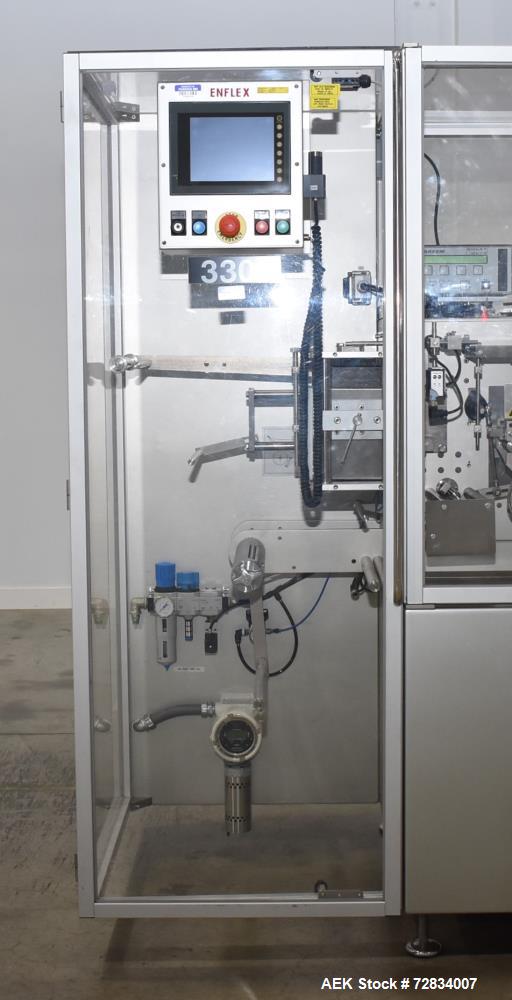

Make and Model of HMI | Enflex/Fuji Electric |
Maximum Roll Diameter | 450mm |
OAD (Height) | 72" |
OAD (Length) | 85" |
OAD (Width) | 38" |
Manual | Yes |
Date Coder | Markem Smart Date |
The Enflex Model F11DX Duplex Horizontal Form Fill Seal (HFFS) Machine is a high-speed packaging system, designed for efficient pouch forming and filling in pharmaceutical, food, and personal care industries.
With a speed of up to 220 pouches per minute, this duplex machine features:
Used Enflex Model F11DX Duplex Horizontal Form and Fill Seal Machine. Capable of speeds up to 220 pouches per minute (depending on application). Pouch size range: 40mm - 70mm (Width) x 40mm - 130mm (Length). Includes Ivek Rotary positive displacement pump with dual nozzles for tandem pouches. Max volume per pouch: 30cc, Max film reel diameter: 450mm. Omron CQM1H-CPU51 PLC, Enflex/Fuji Electric HMI, Keyence MS-H150 drive. Includes Markem smart date coder. Registration. Seal bars: 1st (bottom)- 5-3/8" long, 2nd (side)- 5-1/2", 3rd (top)- 5-3/8", 4th (cutting) 3-1/4". Last used in pharmaceutical ointment application.
The Enflex Model F11DX Duplex Horizontal Form Fill Seal (HFFS) Machine is a high-speed packaging system, designed for efficient pouch forming and filling in pharmaceutical, food, and personal care industries.
With a speed of up to 220 pouches per minute, this duplex machine features:
Model | F11DX |
Serial # | 0503103 |
Category | Packaging Equipment |
Subcategory | Form & Fill Horizontal - Horizontal Pouch |
Make | Enflex |
Model Number | F11DX |
Serial # | 0503103 |
Speed Range CPM | up to 220 |
Package Size Range (Length) | 40mm - 130MM |
Package Size Range (Width) | 40mm - 70MM |
Fill Type | Liquid |
Make and Model of PLC | Omron CQM1H |
Make and Model of HMI | Enflex/Fuji Electric |
Maximum Roll Diameter | 450mm |
OAD (Height) | 72" |
OAD (Length) | 85" |
OAD (Width) | 38" |
Manual | Yes |
Date Coder | Markem Smart Date |
