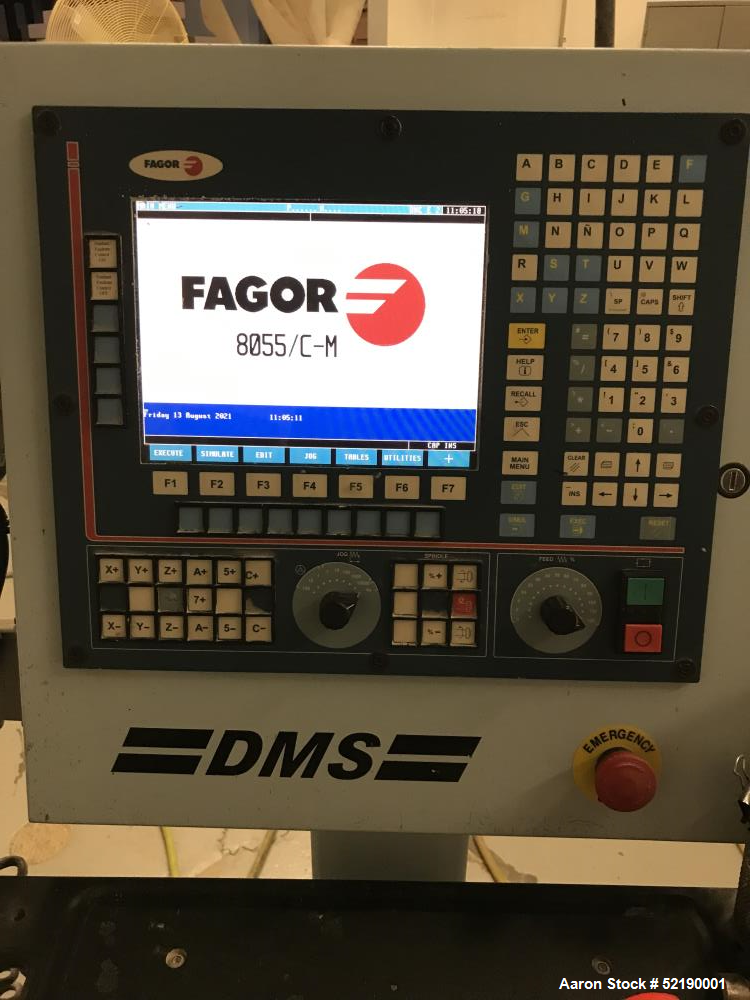

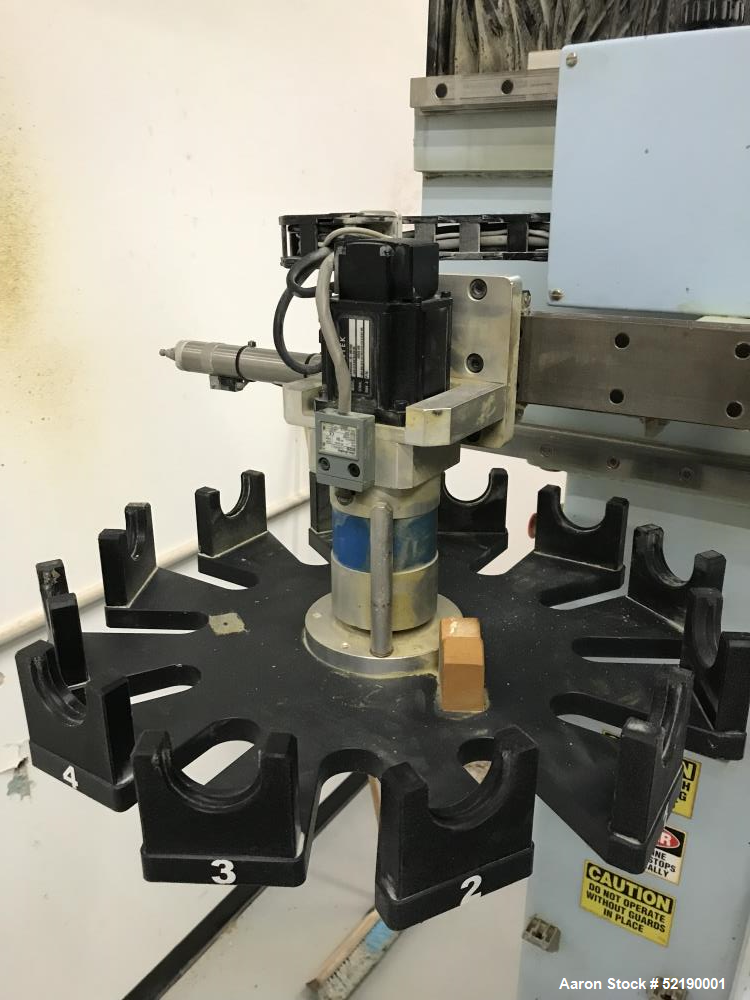

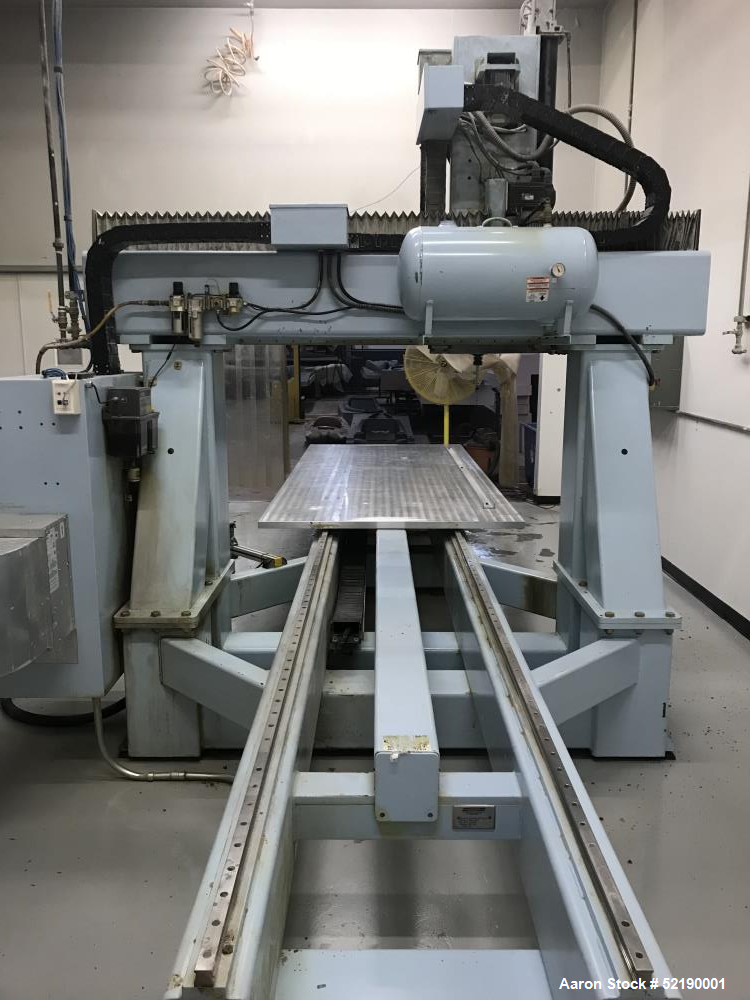

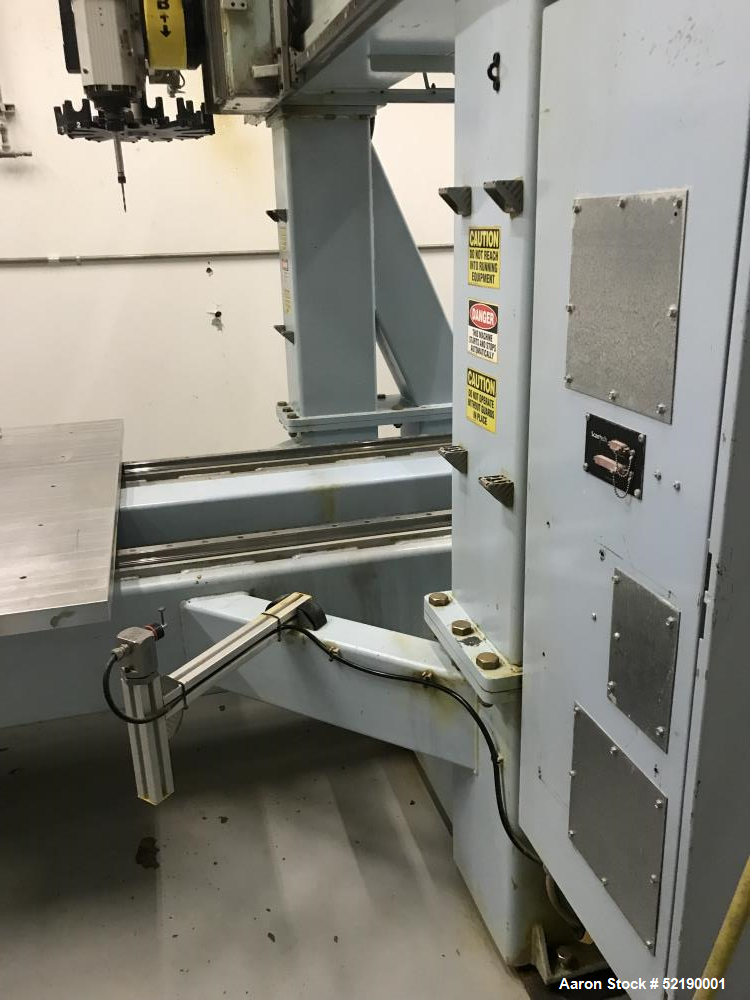

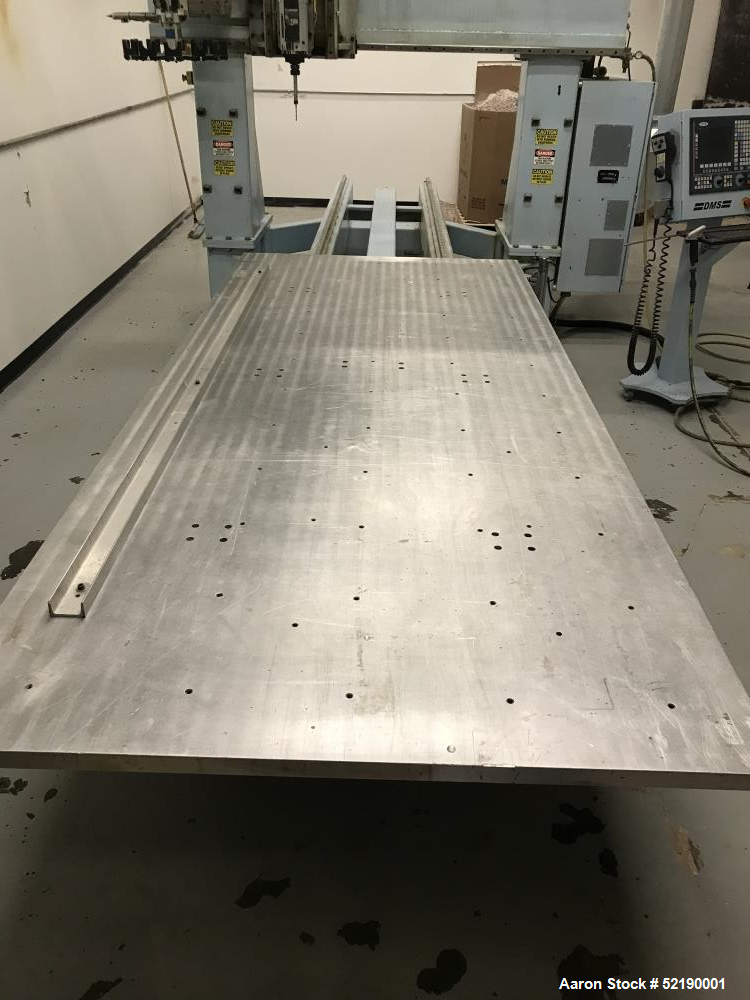

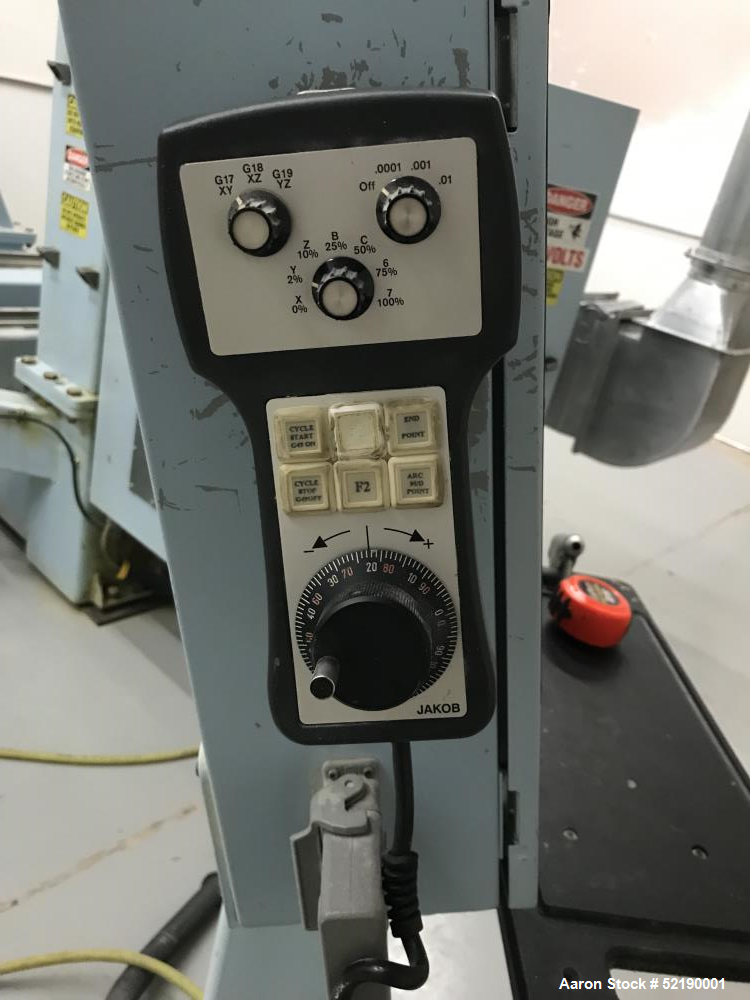

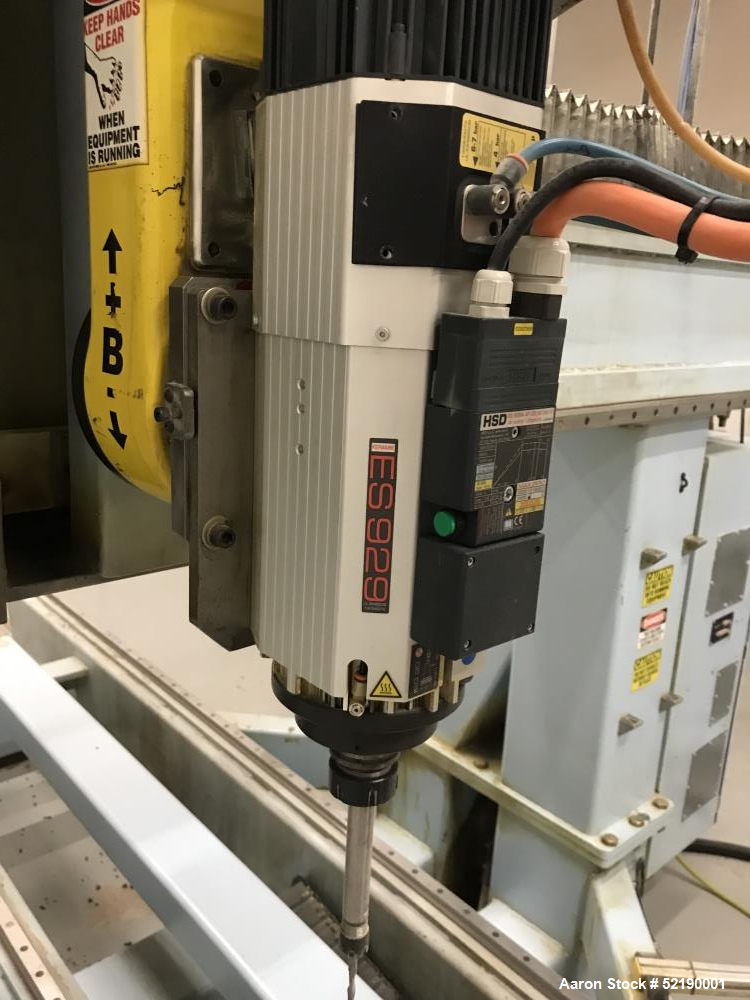

Used DMS 5-Axis, Moving Table, Short-Bridge CNC Router; Model 5T5-5-12-36SCOLxx; X-axis will span the 60-inch dimension of the table; Approximate travel of X-axis is 72 inches; 60-inch x 144-inch, 1.5-inch thick Aluminum tooling surface; 3/8"-16 threaded inserts on 12" centers in a square grid pattern; Y-axis is the moving table axis; Y-axis spans the 144-inch dimension of the table; Approximate travel of Y-axis is 156 inches; Z-axis travel is 36 inches; 8055 CNC in a Modular 8055 CNC Control System; Glentek Digital Drives and Glentek AC brushless servo motors; 12 HP, HSD Fan-cooled, Quick-Change Spindle; 12-position tool change carousel; Tool Length Setter; Teach Pendant; Mfg. 2005.
Used DMS 5-Axis, Moving Table, Short-Bridge CNC Router; Model 5T5-5-12-36SCOLxx; X-axis will span the 60-inch dimension of the table; Approximate travel of X-axis is 72 inches; 60-inch x 144-inch, 1.5-inch thick Aluminum tooling surface; 3/8"-16 threaded inserts on 12" centers in a square grid pattern; Y-axis is the moving table axis; Y-axis spans the 144-inch dimension of the table; Approximate travel of Y-axis is 156 inches; Z-axis travel is 36 inches; 8055 CNC in a Modular 8055 CNC Control System; Glentek Digital Drives and Glentek AC brushless servo motors; 12 HP, HSD Fan-cooled, Quick-Change Spindle; 12-position tool change carousel; Tool Length Setter; Teach Pendant; Mfg. 2005.
