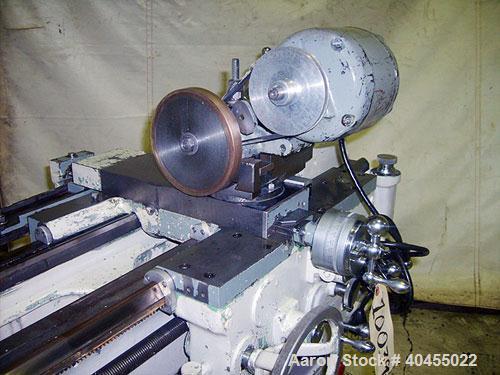

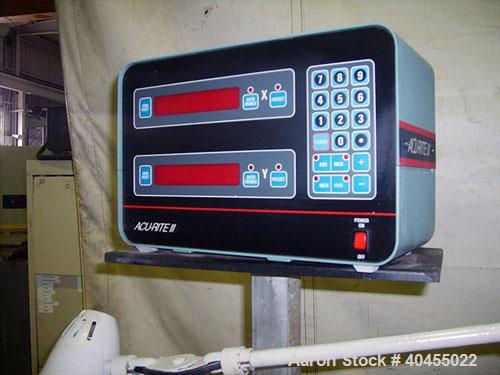

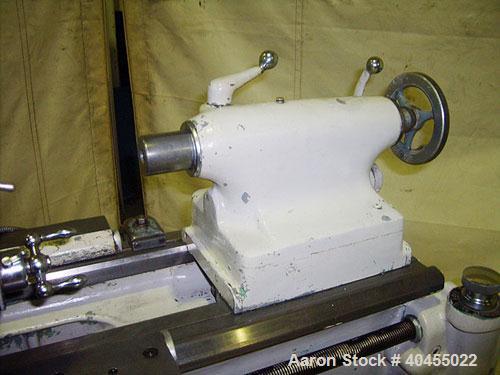

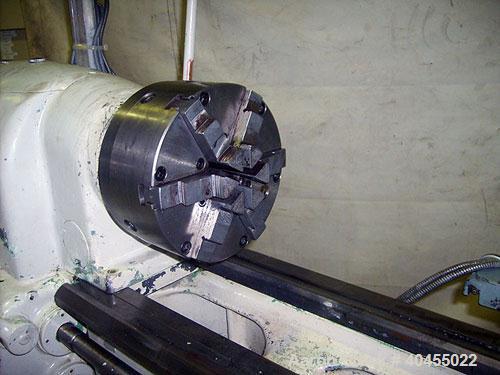

Used Monarch 12 1/2" x 30" Precision Toolmaker's engine lathe, model 10EE. Swing over bed 12 1/2", swing over cross slide 7 1/4". Distance between centers 30". Distance spindle center to floor 43 1/2". Floor space 29" W x 64" L. Headstock: Hole through spindle 1 13/32", center Morse taper No 2, spindle bearings, ball Precision. American Standard camlock spindle nose 3"- D-1. Gear box: Leadscrew diameter and threads per inch 1" - 8 thd, range of threads 3 to 184, range of feeds through endless belt .0005" to .016", number of thread changes 60, number of feed changes 50, actual threads cut 3-184 TPI. Tailstock: Tailstock spindle diameter 1 1/4", tailstock spindle traverse 3 1/2". Steady rest: Steady rest opening 3". Carriage and compound: Carriage length 20 1/2", carriage bridge width 5". Compound rest top slide travel 2". Size of lathe tool 3/8" x 7/8". Bed: Width of bed 10 1/2", depth of bed 10 1/4". Motor size 3 hp. Equipped with: Electric leadscrew reverse, variable reverse speed control, multiple positive length stop, micro-gauging dial, collet attachments and collets, chucks and metric transposing gears, 8" 6-jaw chuck, 2-Axis Accu-rite III digital readouts, collet attachment with assorted collets, 8" 4-jaw chuck, taper attachment, face plate, steady rest, misc tooling, tool post grinder.
Used Monarch 12 1/2" x 30" Precision Toolmaker's engine lathe, model 10EE. Swing over bed 12 1/2", swing over cross slide 7 1/4". Distance between centers 30". Distance spindle center to floor 43 1/2". Floor space 29" W x 64" L. Headstock: Hole through spindle 1 13/32", center Morse taper No 2, spindle bearings, ball Precision. American Standard camlock spindle nose 3"- D-1. Gear box: Leadscrew diameter and threads per inch 1" - 8 thd, range of threads 3 to 184, range of feeds through endless belt .0005" to .016", number of thread changes 60, number of feed changes 50, actual threads cut 3-184 TPI. Tailstock: Tailstock spindle diameter 1 1/4", tailstock spindle traverse 3 1/2". Steady rest: Steady rest opening 3". Carriage and compound: Carriage length 20 1/2", carriage bridge width 5". Compound rest top slide travel 2". Size of lathe tool 3/8" x 7/8". Bed: Width of bed 10 1/2", depth of bed 10 1/4". Motor size 3 hp. Equipped with: Electric leadscrew reverse, variable reverse speed control, multiple positive length stop, micro-gauging dial, collet attachments and collets, chucks and metric transposing gears, 8" 6-jaw chuck, 2-Axis Accu-rite III digital readouts, collet attachment with assorted collets, 8" 4-jaw chuck, taper attachment, face plate, steady rest, misc tooling, tool post grinder.
