Used Niro Fluidized Spray Dryer, Model FSD-0050-N-FV

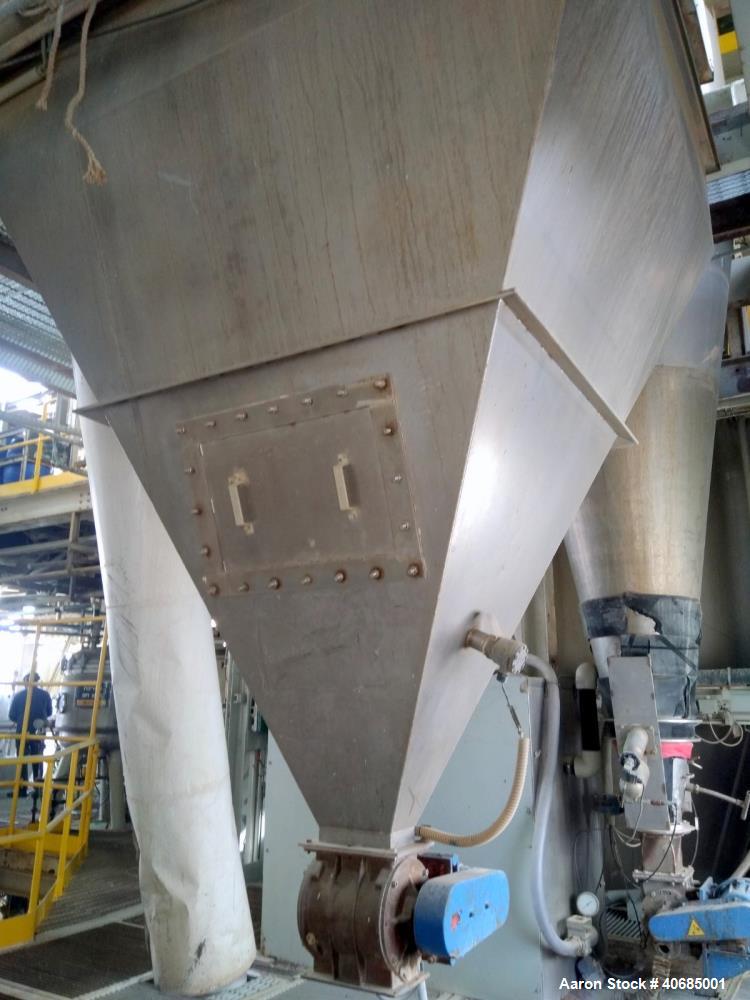

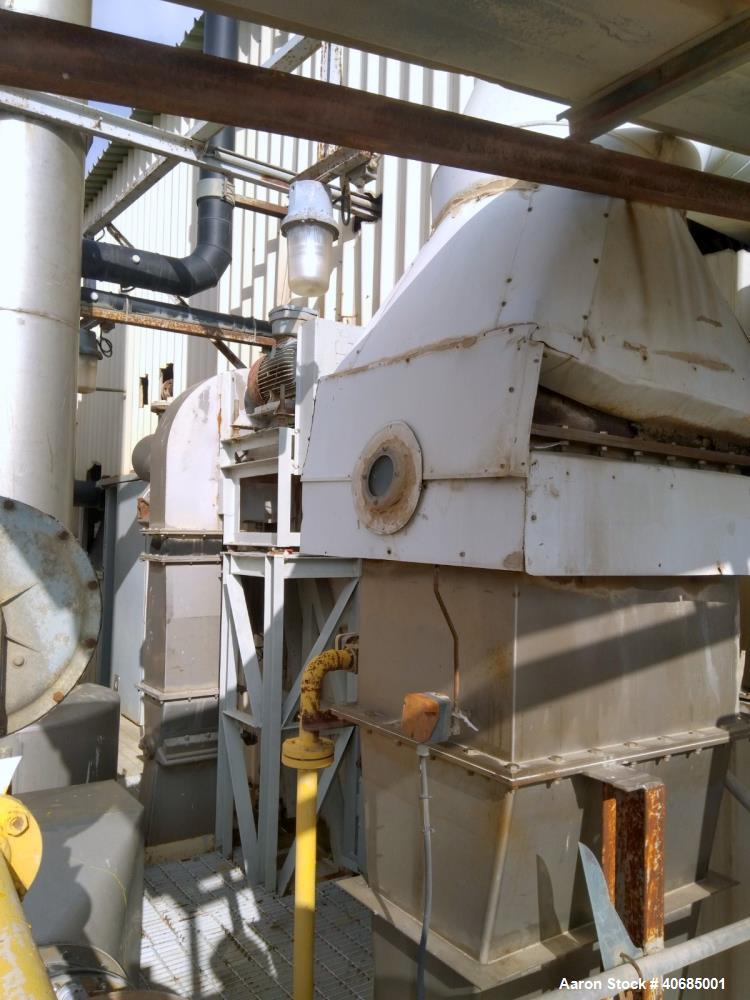

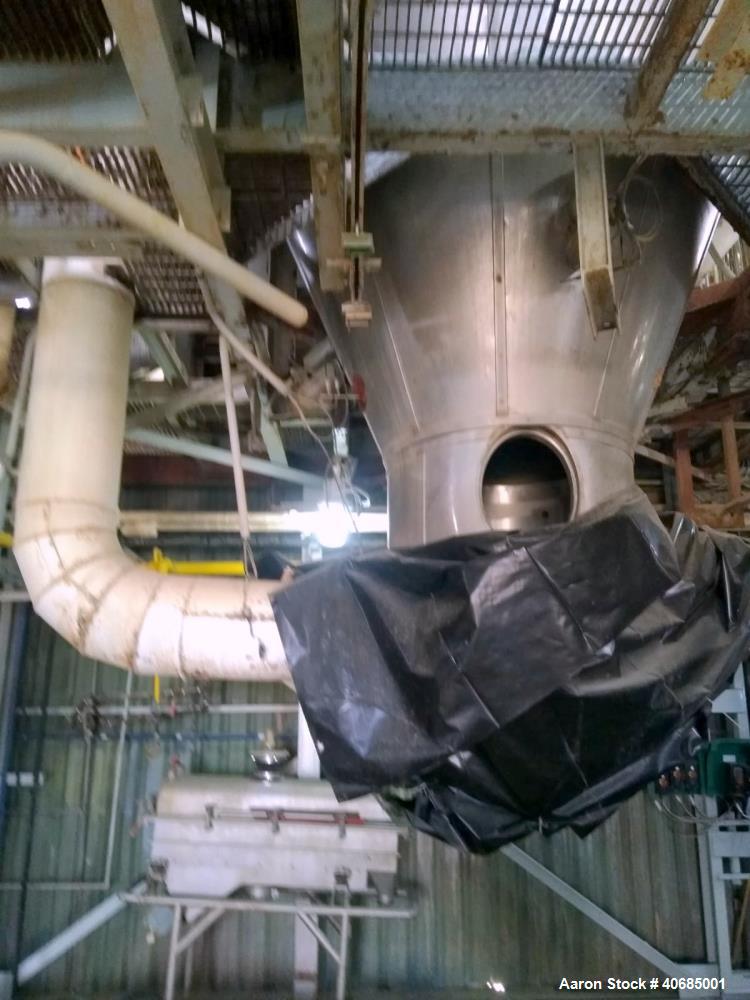

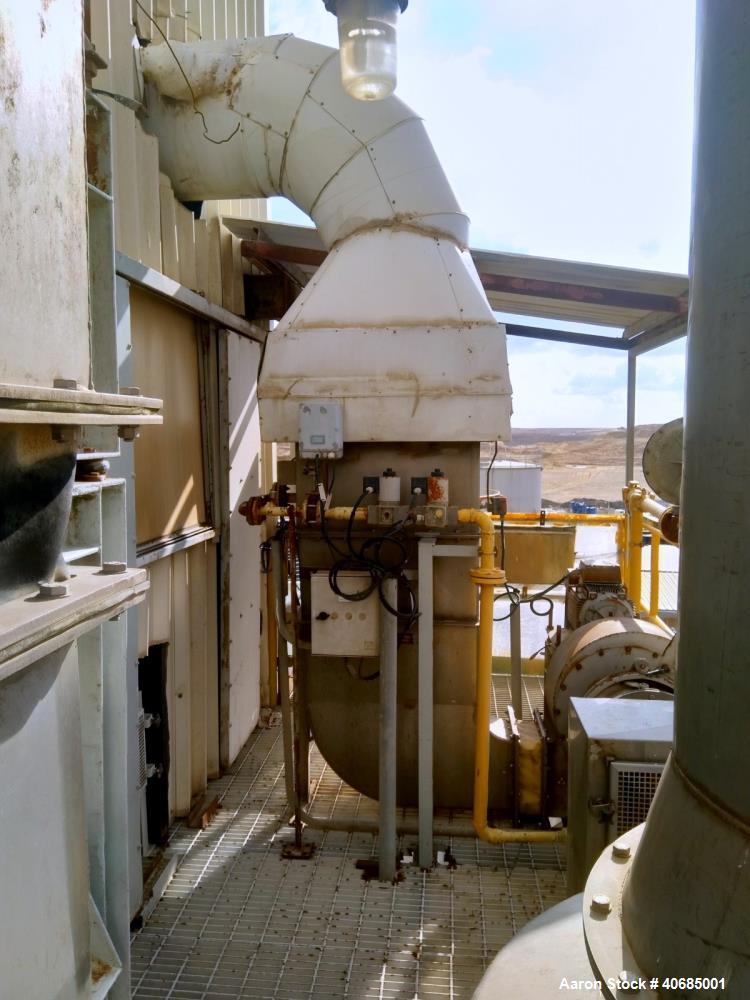

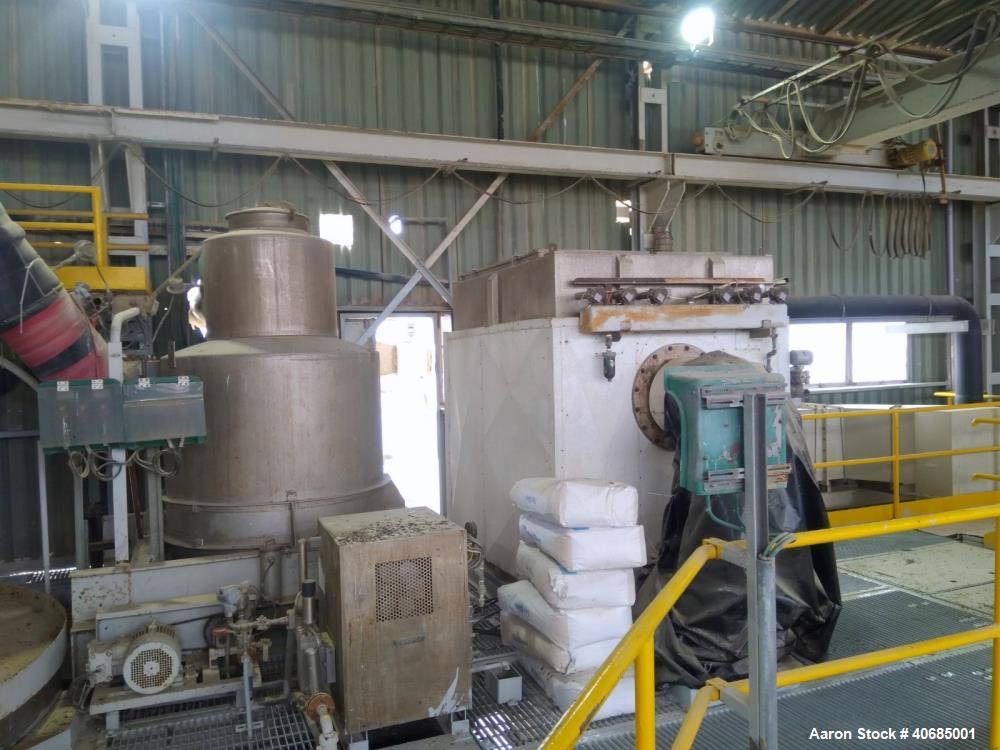

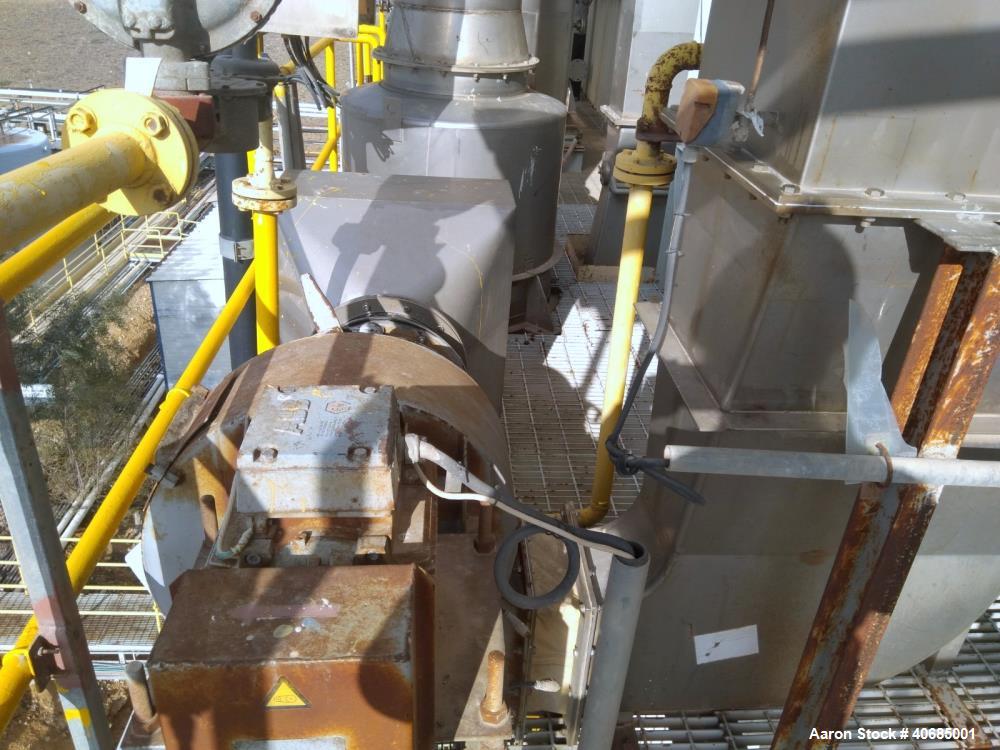

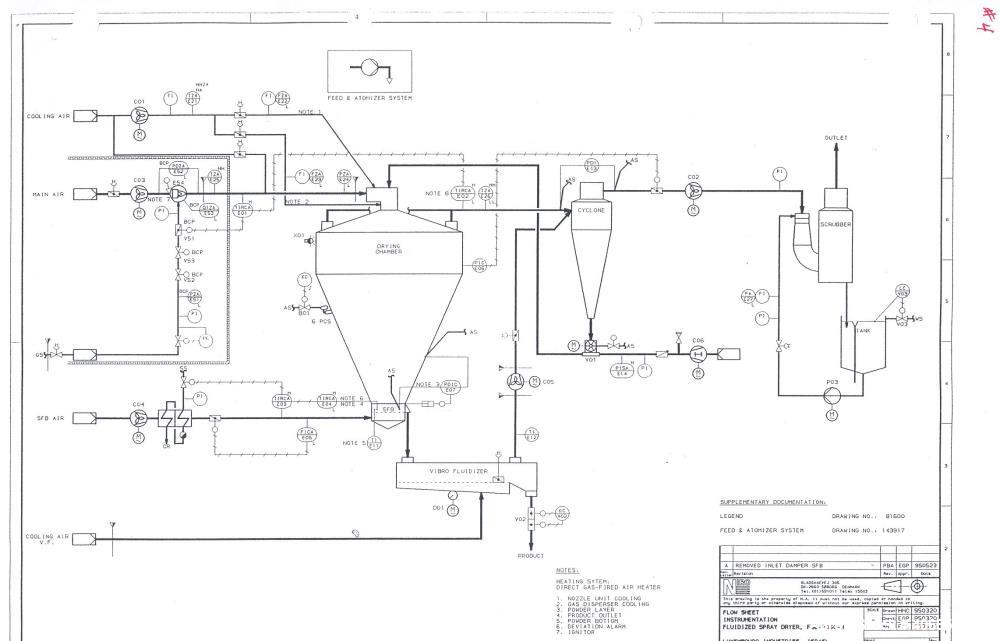

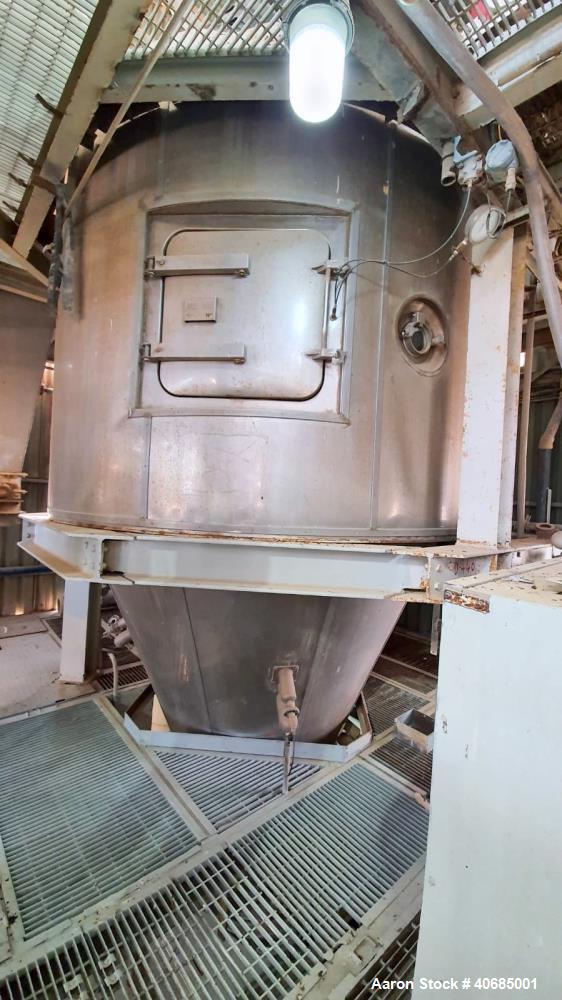

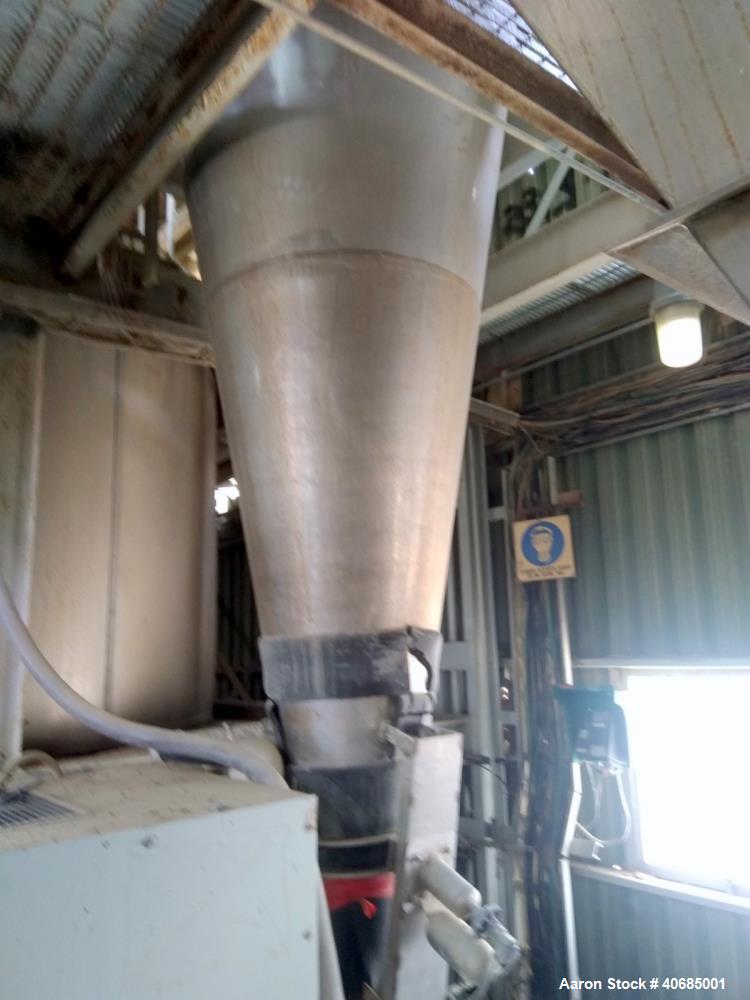

Used- Niro Fluidized Spray Drying Plant, type FSD-0050-N-FV with a 726 lbs./330 kgs water evaporation and an output capacity 440 lbs./200 kgs at 35% solid content, 550 lbs./250 kgs at 40% solid content herbicide or equivalent powder per hour consisting of: (1) Niro spray dryer incl. pressure nozzle atomizer assembly, 316 (1.4401) stainless steel construction on product contact parts. Incl. integrated fluid bed dryer. Direct gas fired air heater at 572 deg F. (300 deg. C). (1) Niro Vibro Fluidizer, 316 (1.4401) stainless steel construction on product contact parts, steam heated, frame mounted on legs, (1) Feeding system incl. filter and pumps, (1) Main hot air system incl. air filter, damper, supply fan, gas fired air heater, (1) Hot air SFB system incl. air filter, damper, supply fan, steam heater, (1) Exhaust system incl. cyclone, wet scrubber, liquid recirculating system, liquid pump, exhaust fan, stack. Power supply characteristics 380volt/50cycle/3Ph-220volt/50cycle/3ph. Incl. connecting pipes, additional infrastructure, interlock/alarm system and control panel. Last used in an herbicide application. New 1994-1995.
