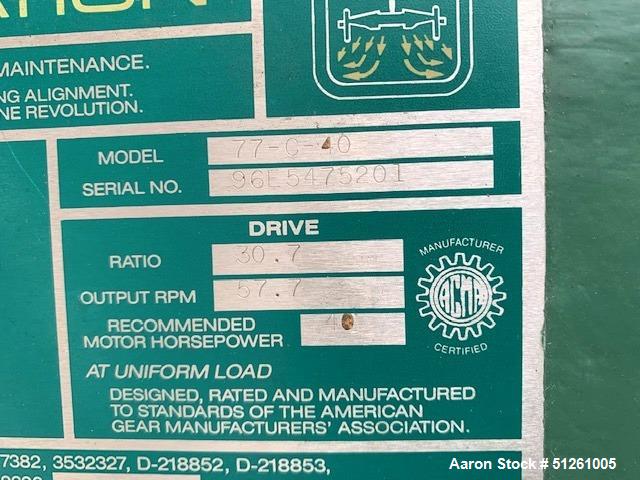

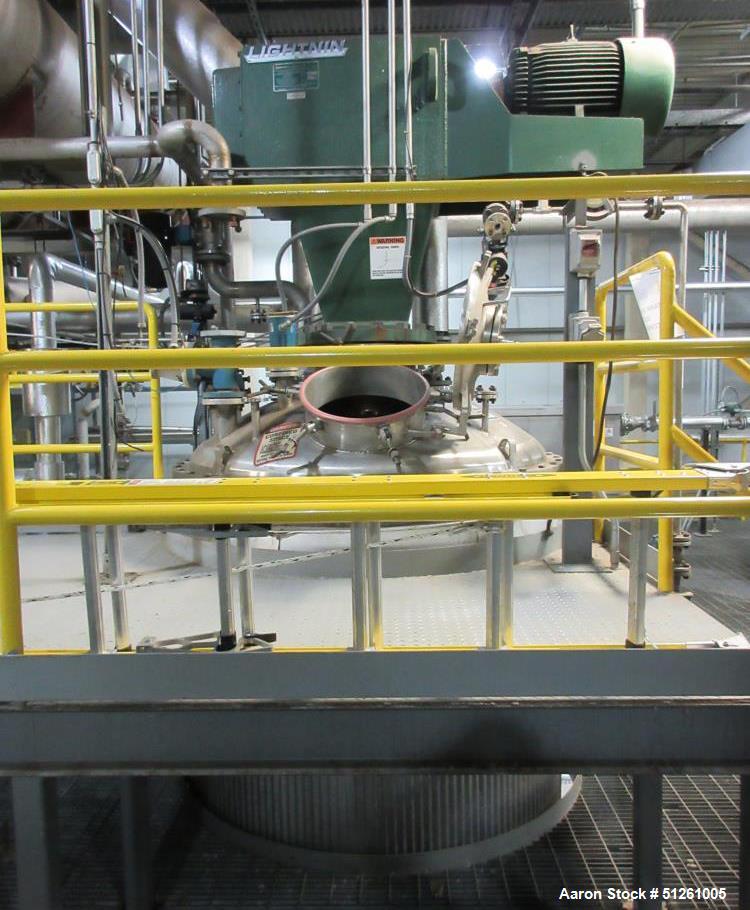

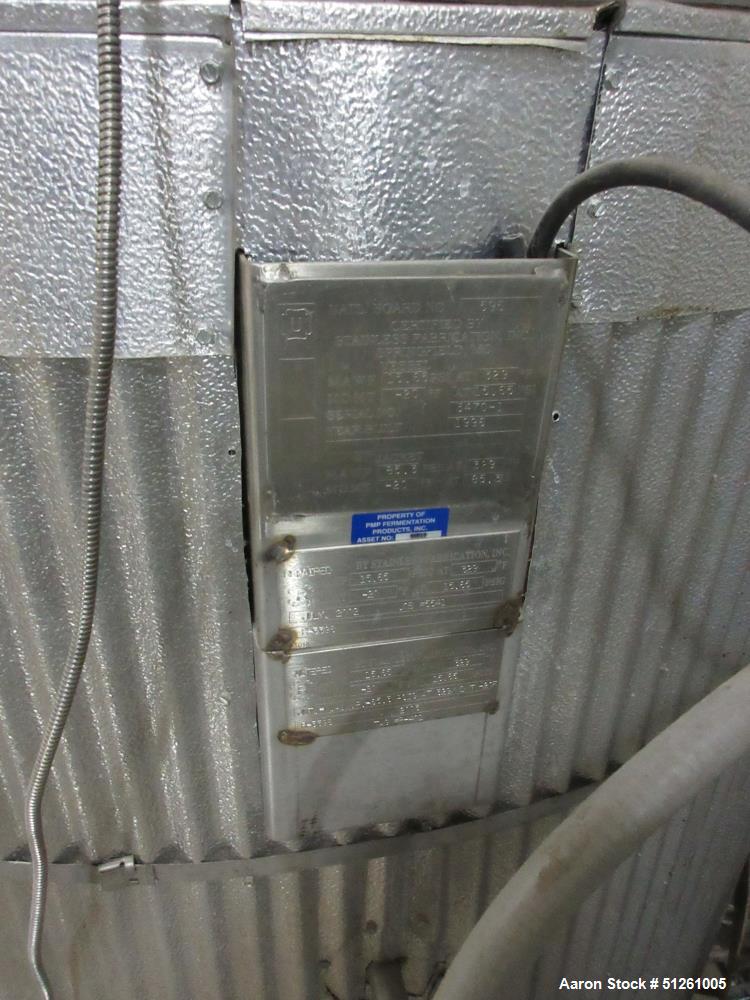

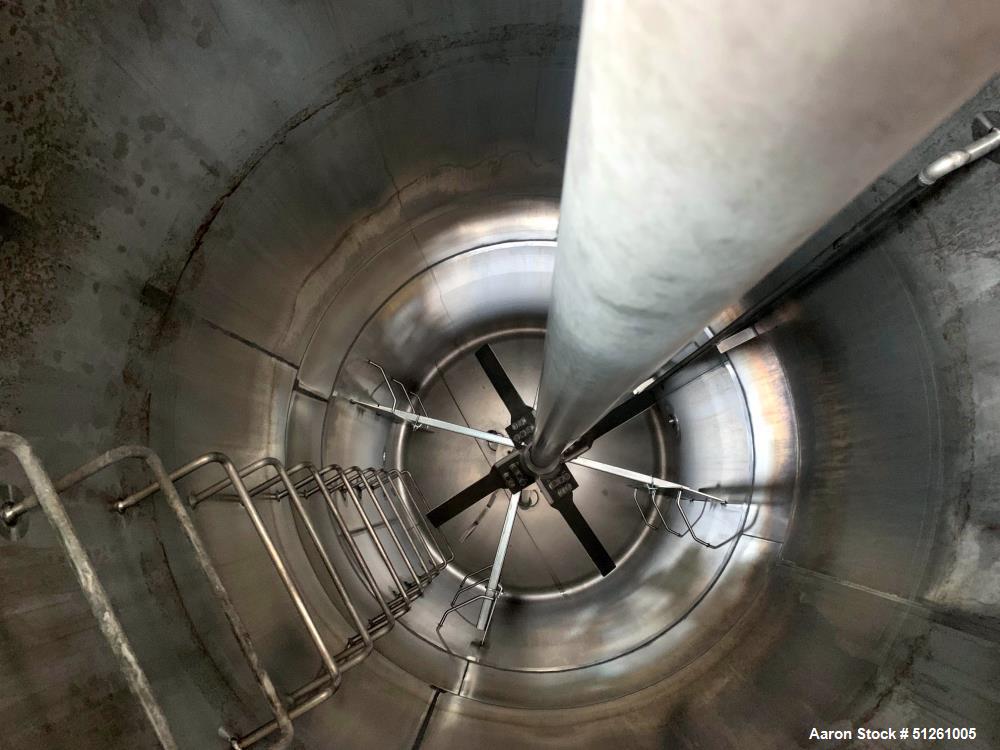

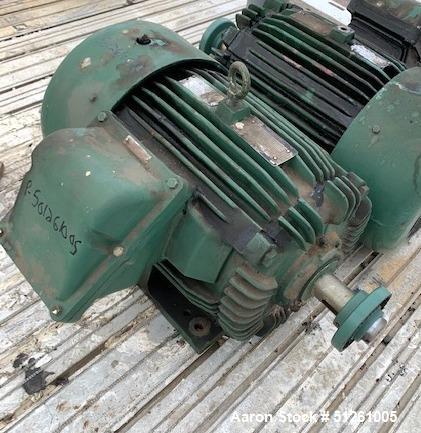

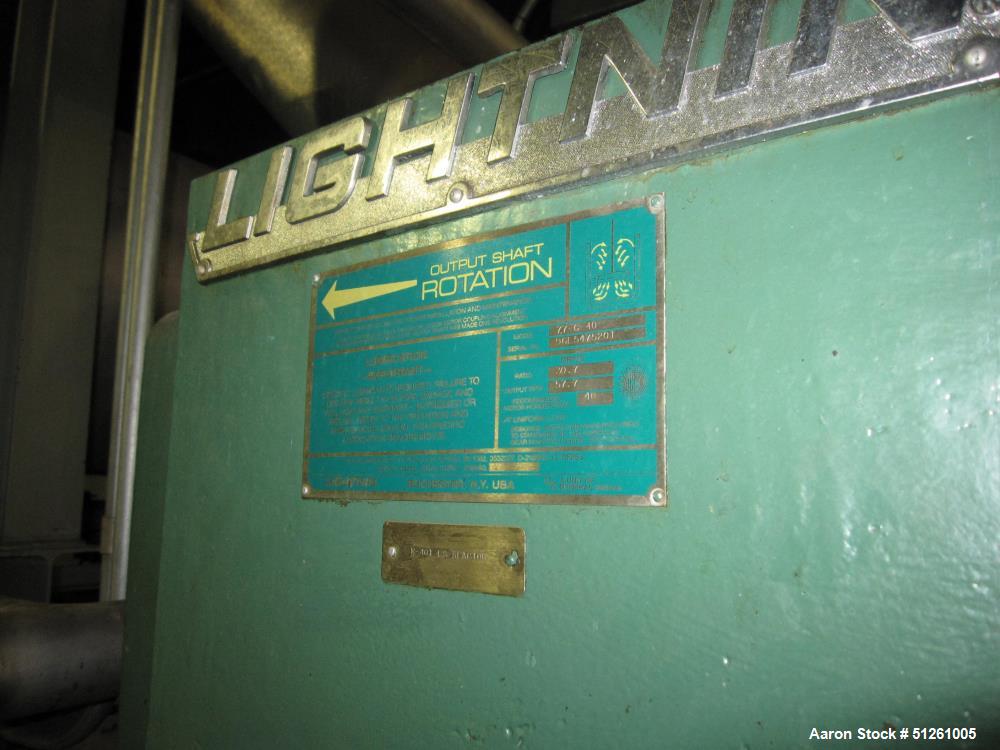

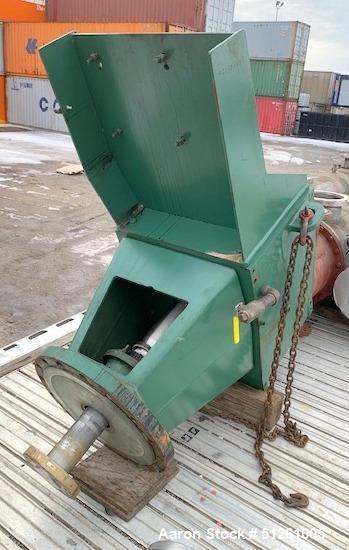

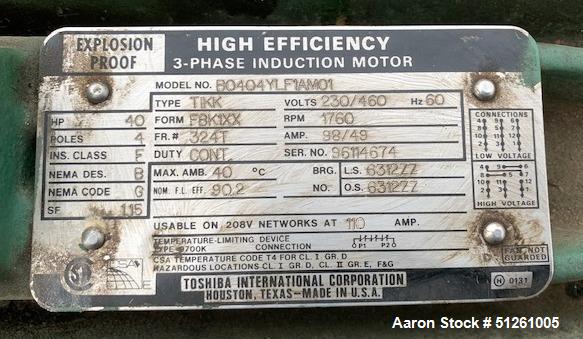

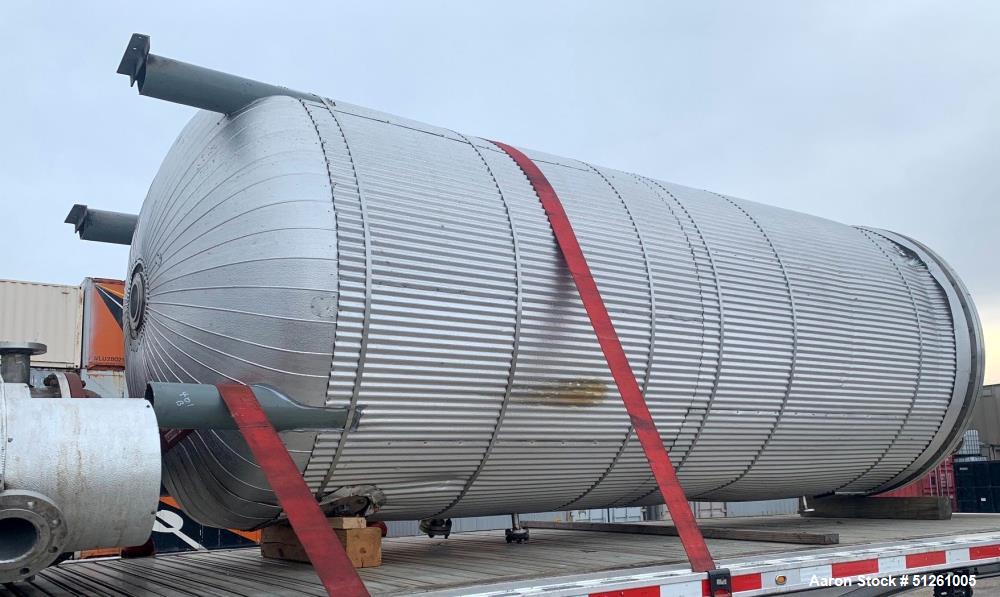

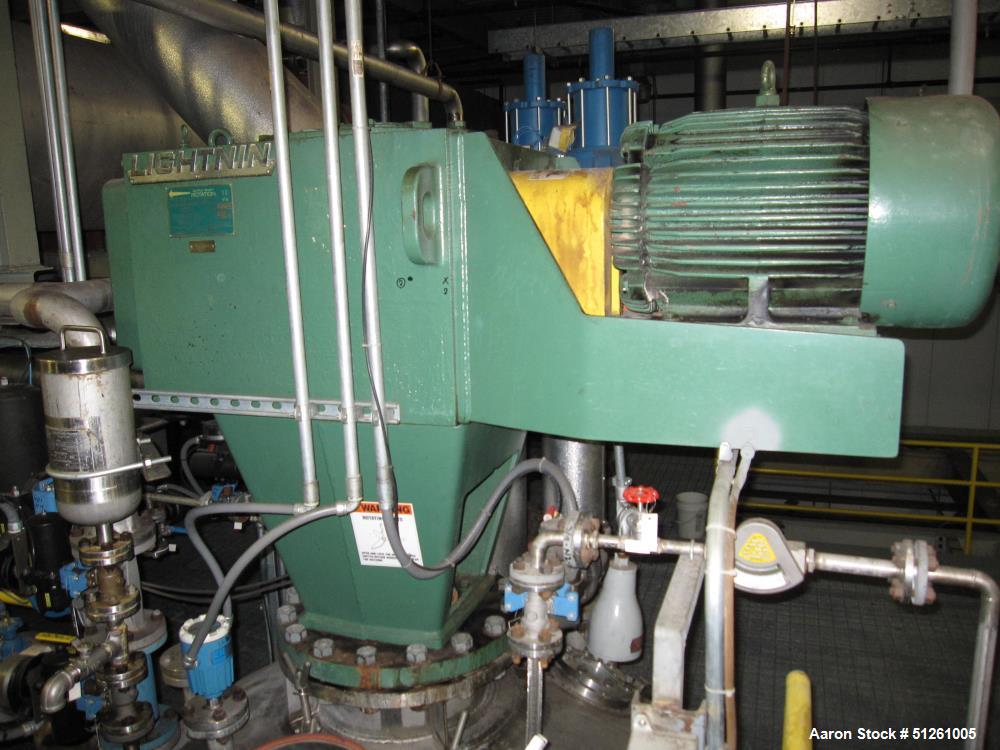

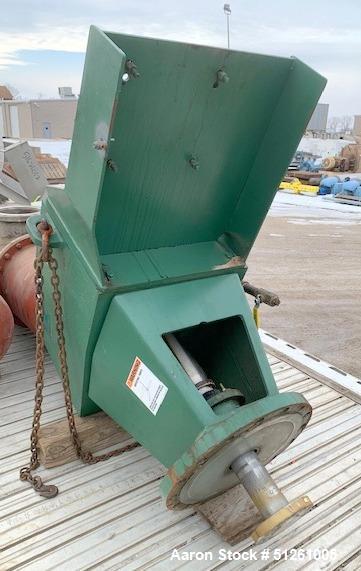

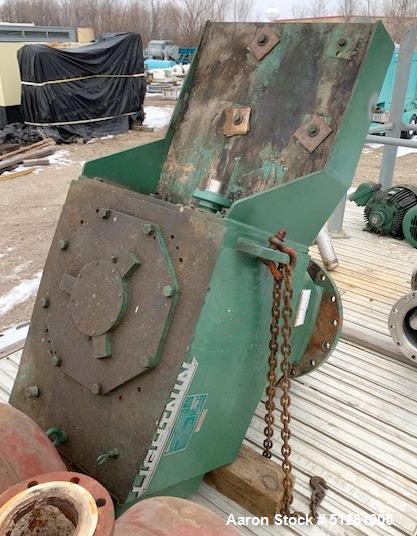

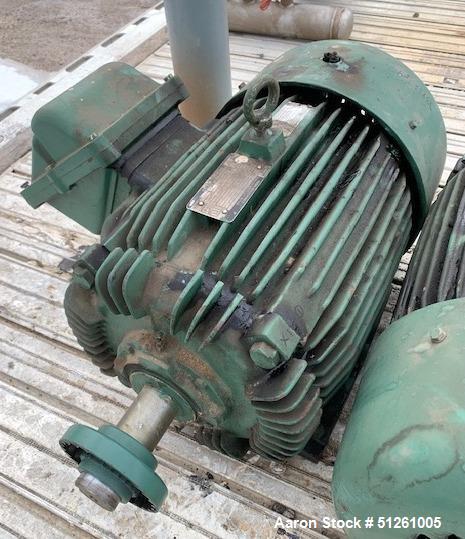

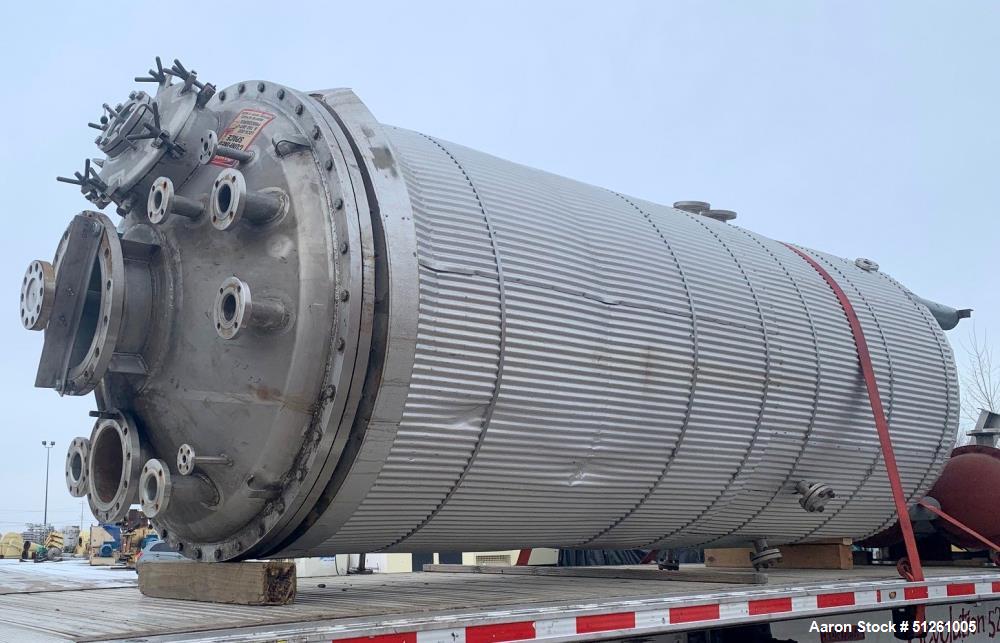

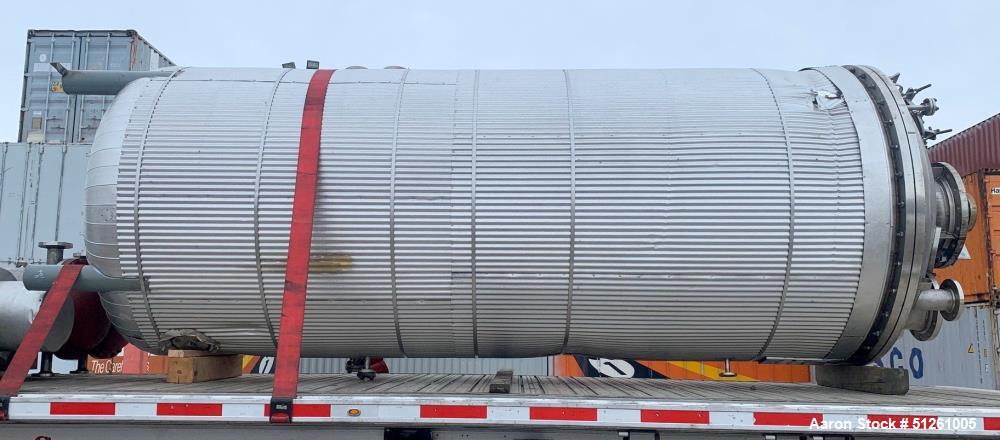

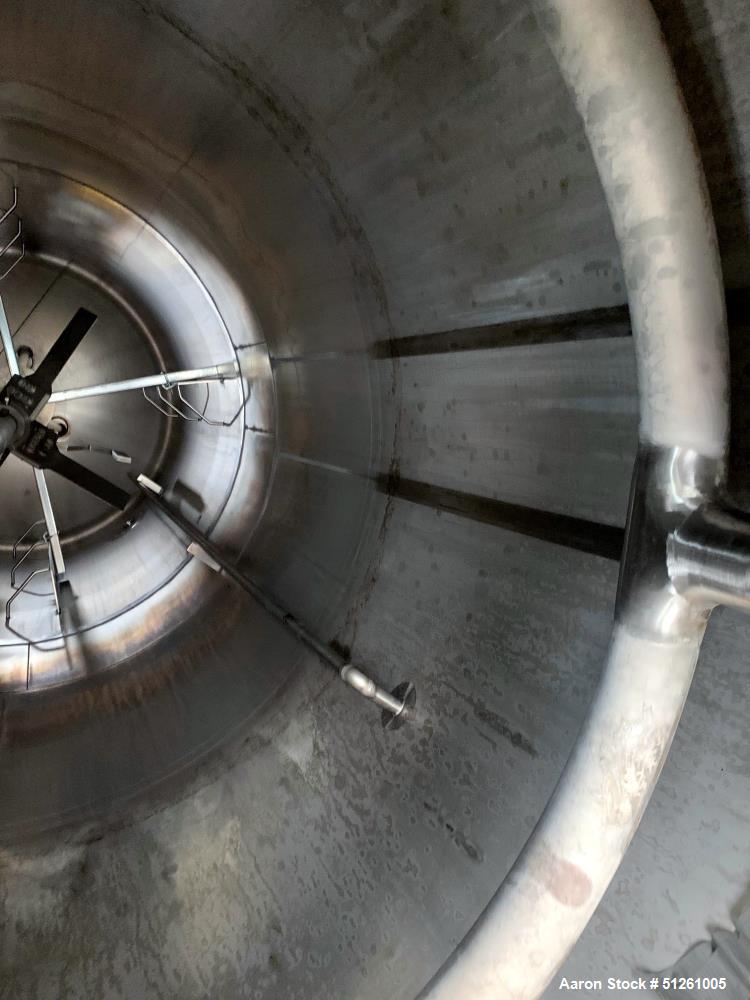

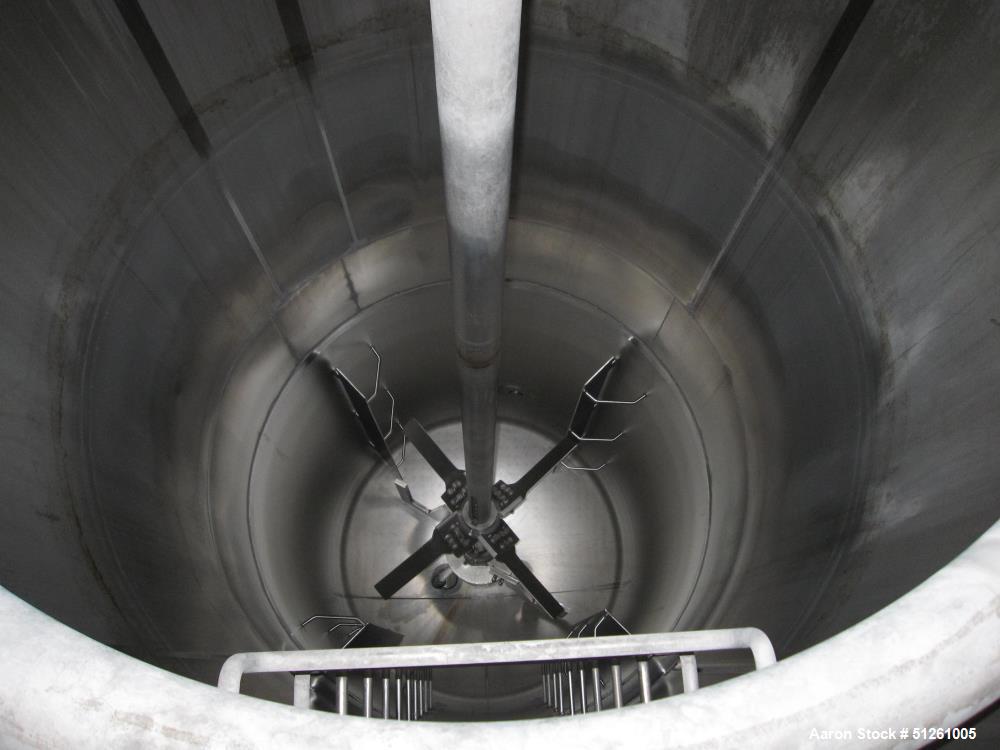

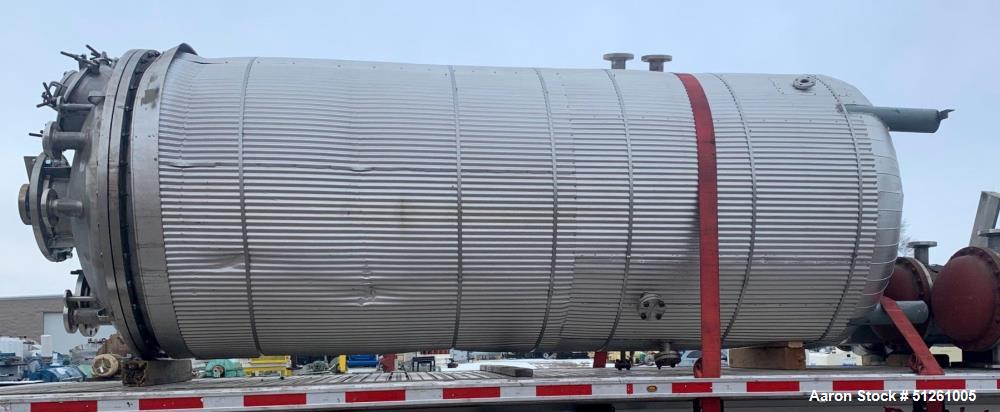

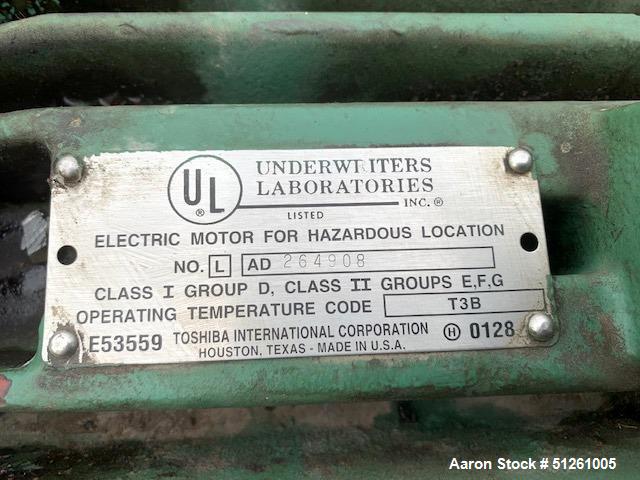

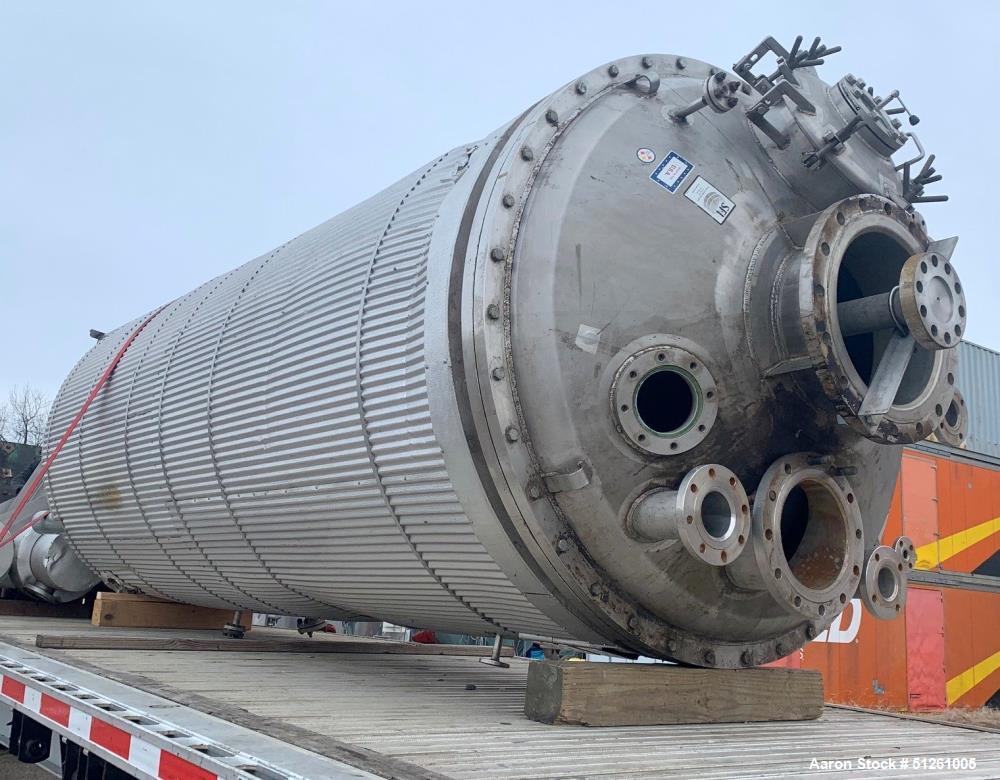

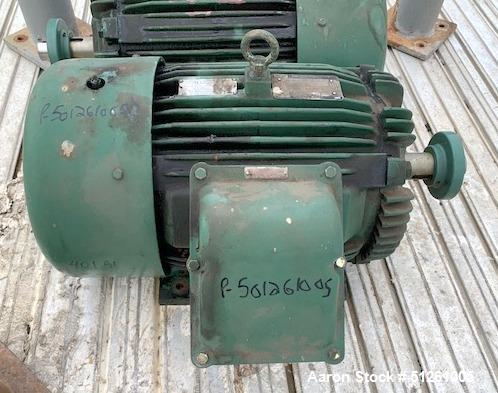

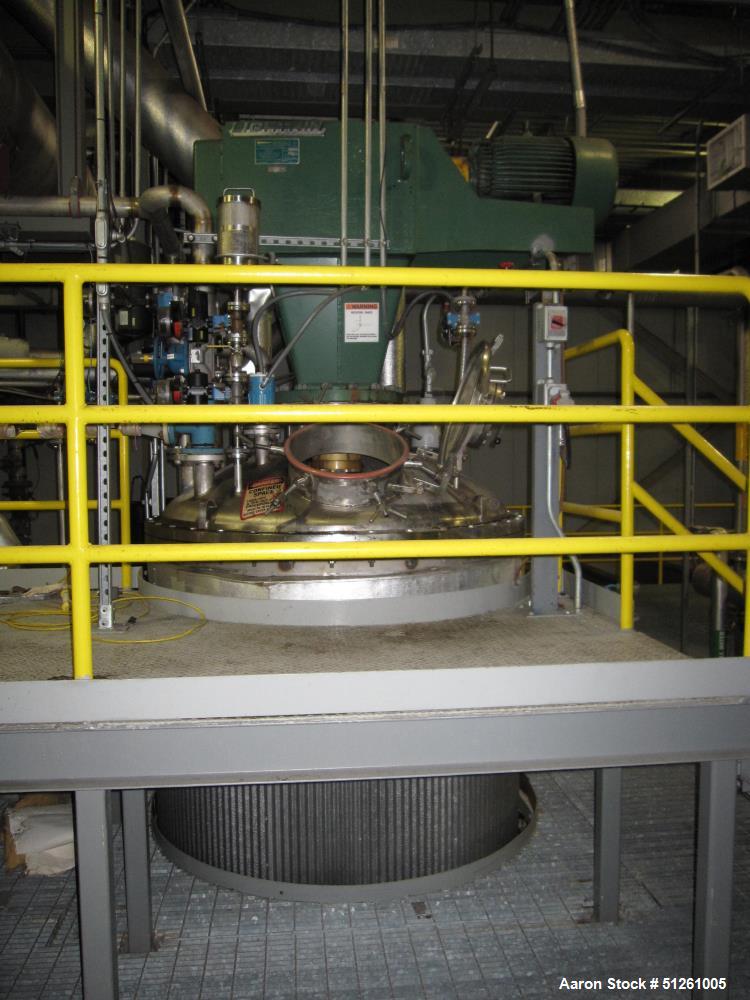

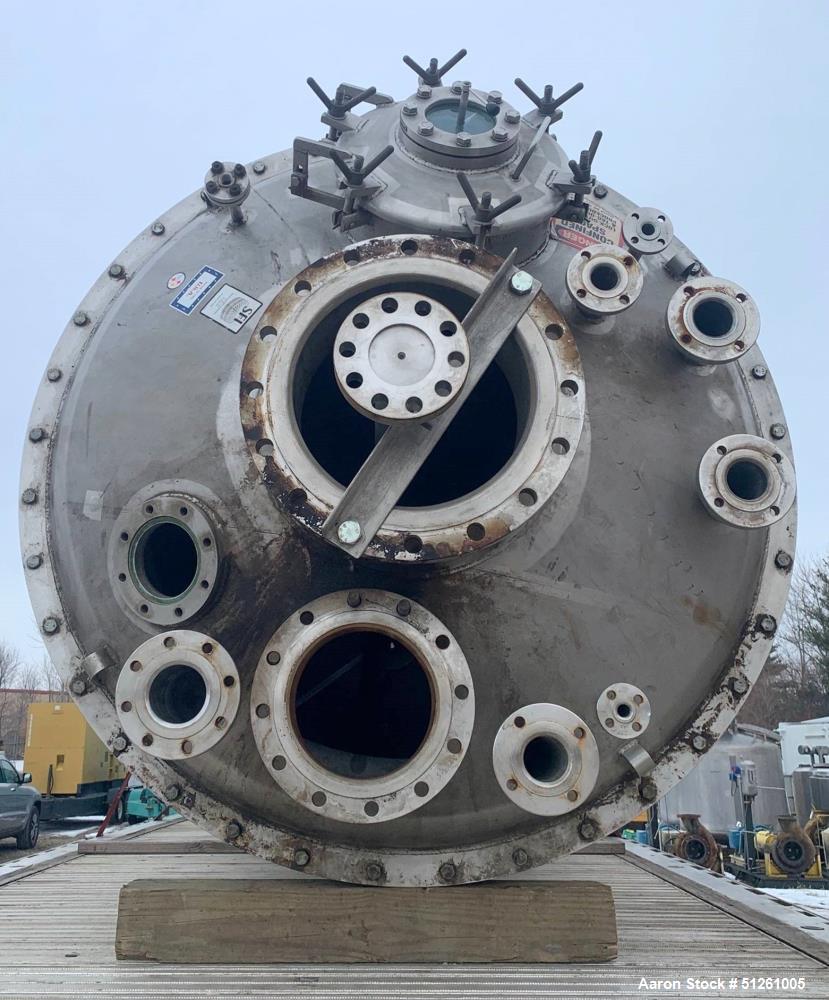

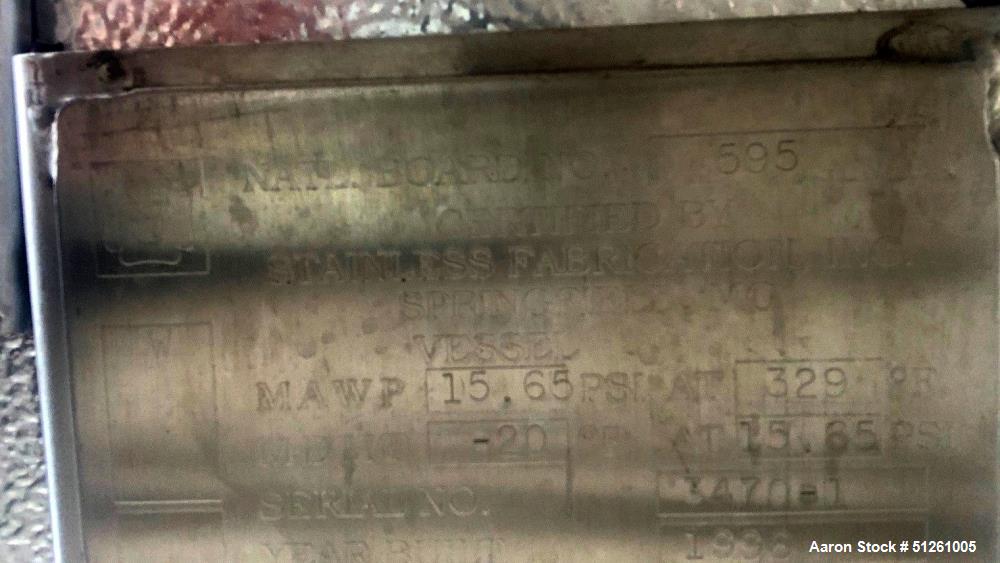

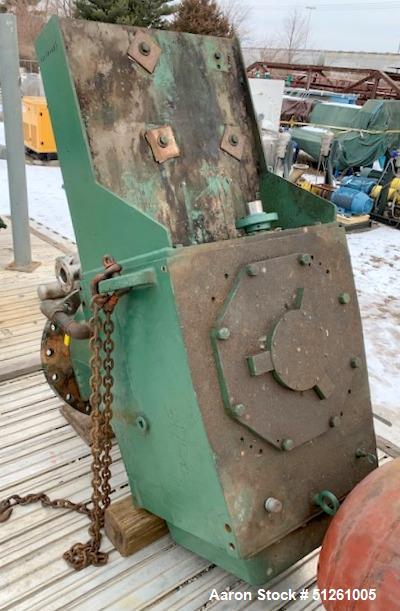

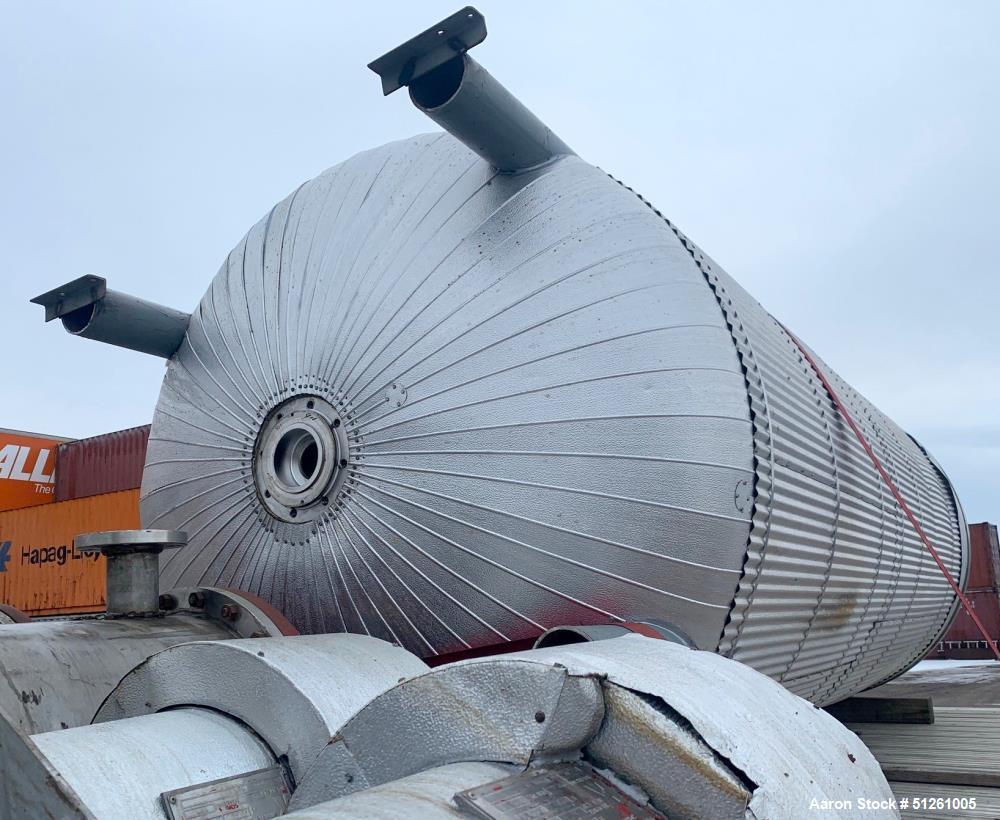

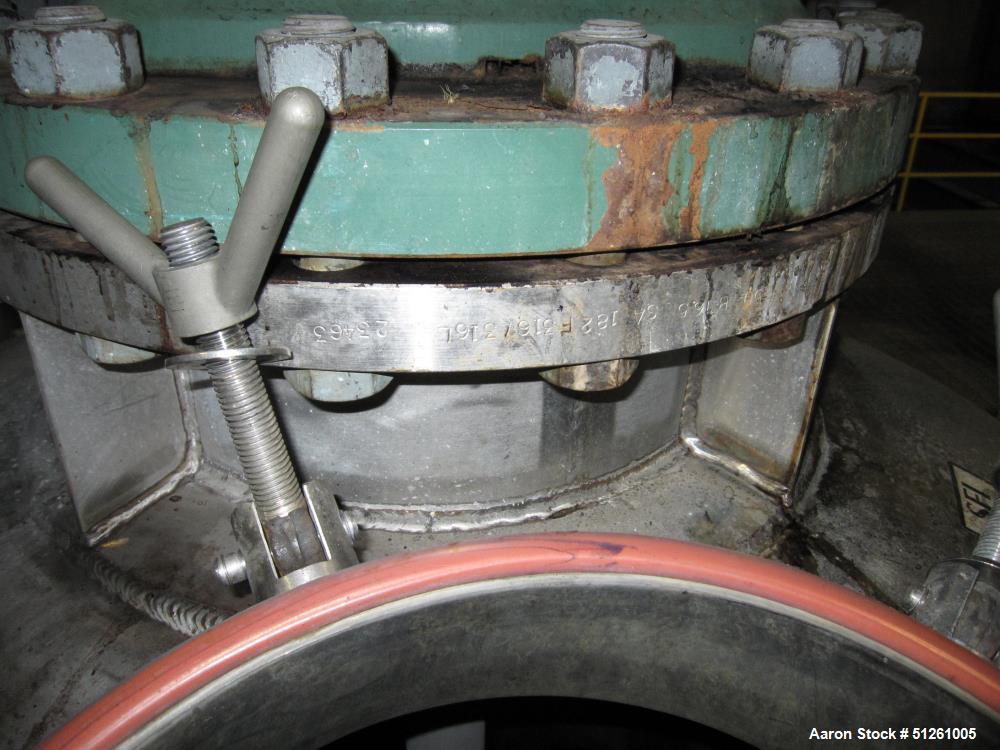

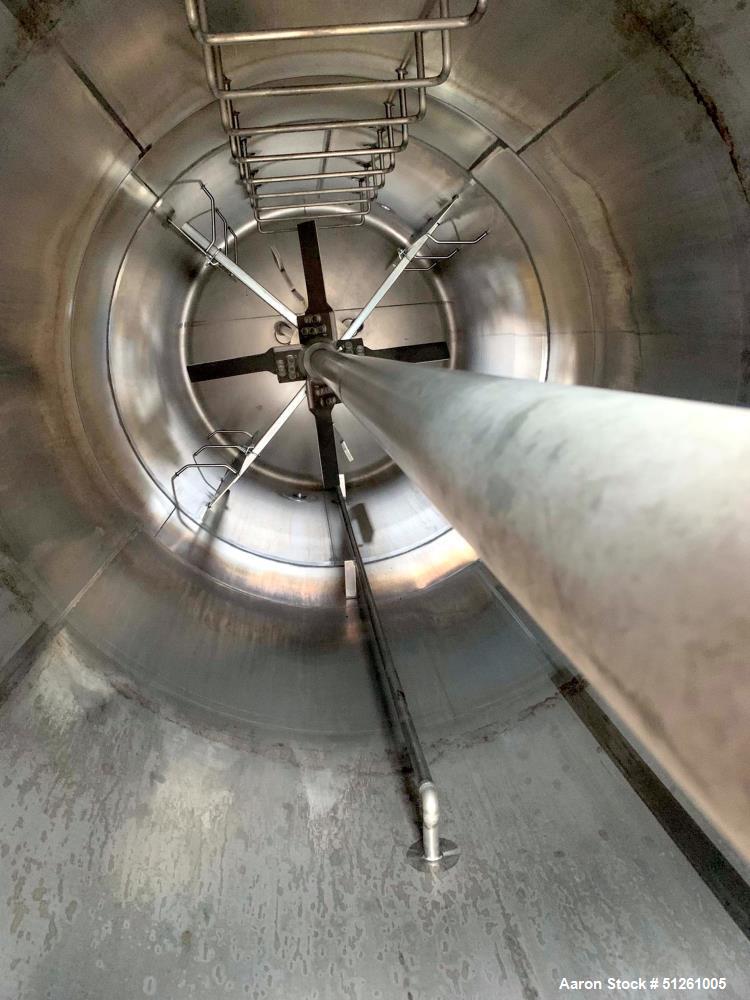

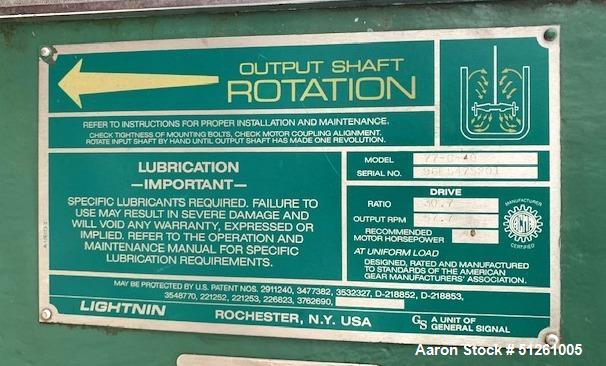

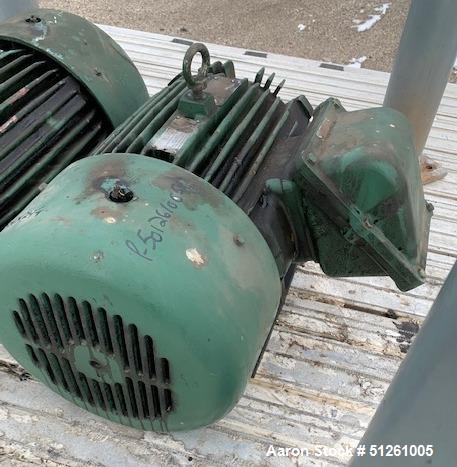

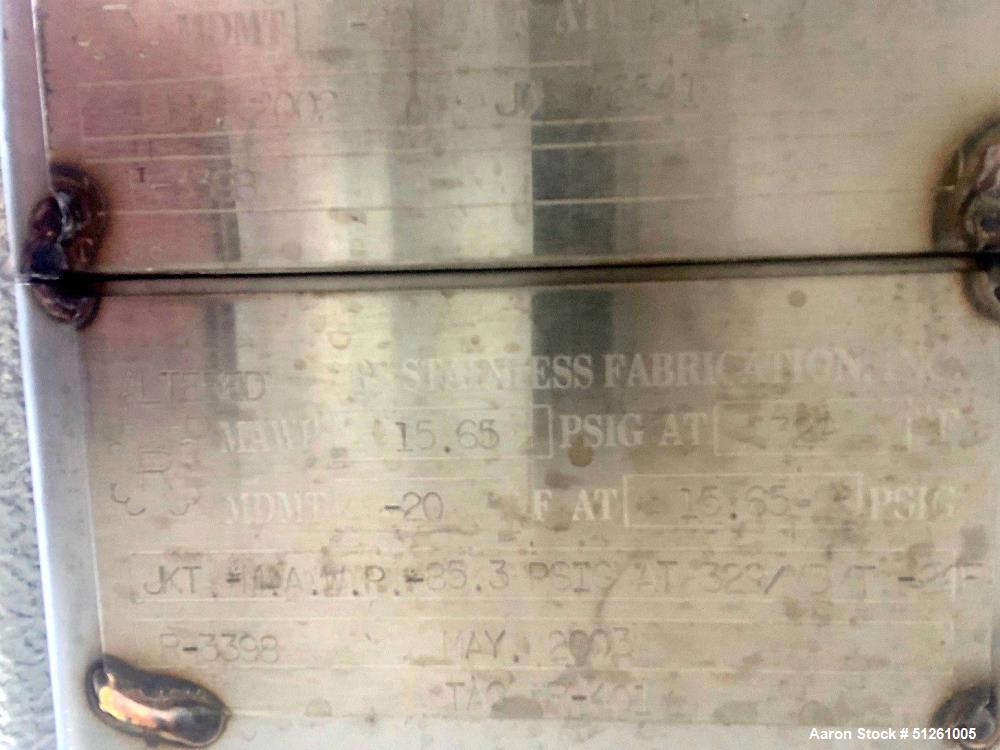

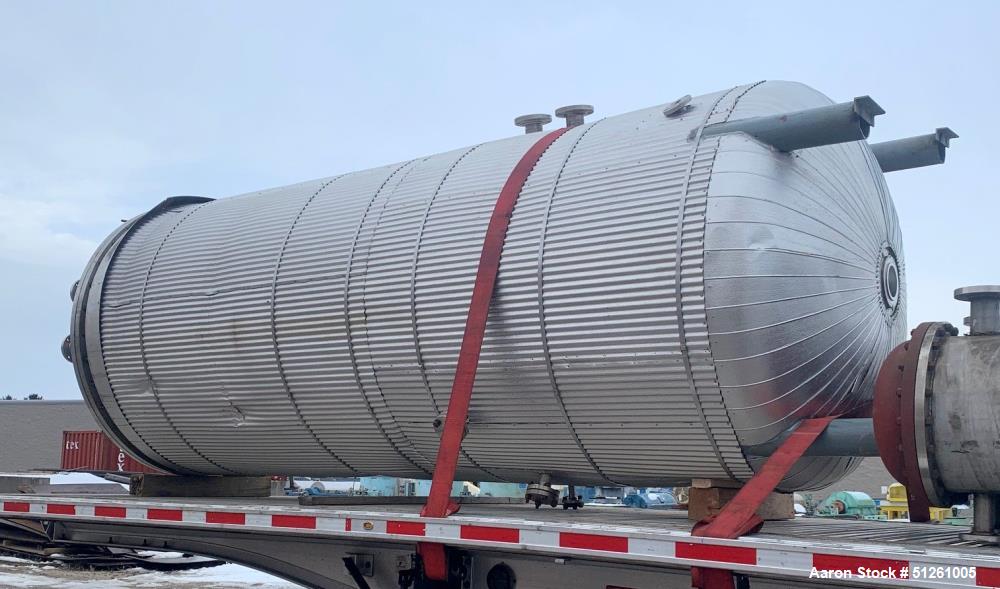

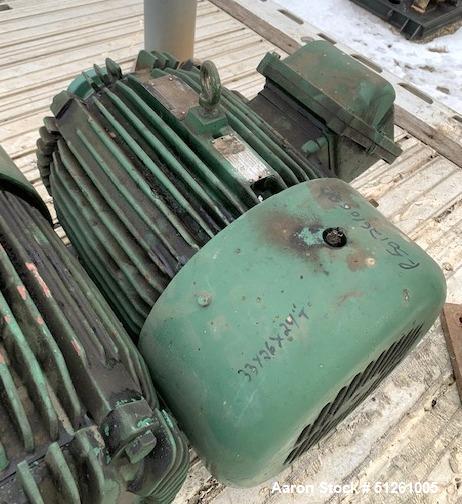

Used Stainless Steel Fabrication Inc. Reactor 2,000 Gallon, Vertical. Approximate 64" diameter x 158" straight side, elliptical 80:10 top and bottom head. Shell 316L stainless steel, bottom 59-1/2" of shell and bottom head are hastelloy C-276. Internal rated 15.65 psi at -20 to 329 degrees F. 316L Stainless steel dimple jacket rated 85.3 psi at -20 to 329 degrees F. Top entering Lightnin agitator, model 77-C 20, Stainless Steel Shaft with turbine type agitation, driven by a 40 hp motor, 30.7 ratio, output rpm 57.7. Openings: 18" manway, (2) 6" sight glass. Approximate 6" bottom outlet. (4) Internal baffles and (1) ladder. Serial# 3470-1, National Board# 595, Built 1996.
Used Stainless Steel Fabrication Inc. Reactor 2,000 Gallon, Vertical. Approximate 64" diameter x 158" straight side, elliptical 80:10 top and bottom head. Shell 316L stainless steel, bottom 59-1/2" of shell and bottom head are hastelloy C-276. Internal rated 15.65 psi at -20 to 329 degrees F. 316L Stainless steel dimple jacket rated 85.3 psi at -20 to 329 degrees F. Top entering Lightnin agitator, model 77-C 20, Stainless Steel Shaft with turbine type agitation, driven by a 40 hp motor, 30.7 ratio, output rpm 57.7. Openings: 18" manway, (2) 6" sight glass. Approximate 6" bottom outlet. (4) Internal baffles and (1) ladder. Serial# 3470-1, National Board# 595, Built 1996.
