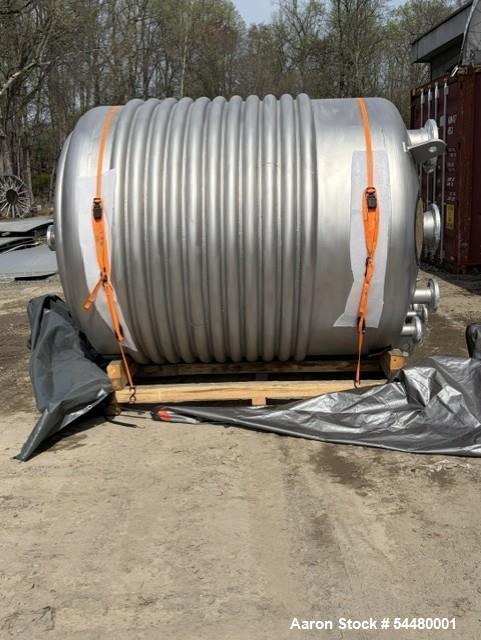

Unused Tolan Machinery 1,400 Gallon 316L Stainless Steel Reactor | FV/75 PSI Jacketed Vessel

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 1,400 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9484
Certification: National Board Certified

Description

Unused Tolan Machinery 1,400 gallon stainless steel reactor engineered for high-pressure, vacuum, and elevated temperature processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this reactor is ideal for pharmaceutical, chemical, food, and specialty process industries requiring corrosion resistance and sanitary construction.

The vessel is internally rated for full vacuum to 75 PSI at 400°F and features a half-pipe jacket on both the shell and bottom head rated for full vacuum to 150 PSI at 400°F, providing efficient thermal transfer for heating and cooling applications.

Additional features include a #4 internal polish, bead blast external finish, four internal baffles for enhanced mixing efficiency, an 8” agitator nozzle, and an 18” top manway for operator access and inspection. Mounted on four leg supports and National Board certified, this reactor is designed for demanding industrial processing environments.

Specifications

• Manufacturer: Tolan Machinery
• Capacity: 1,400 gallons
• Type: Jacketed reactor / pressure vessel
• Year Built: 2024
• Serial Number: 9484
• Certification: National Board certified

Vessel Construction

• Wetted Material: 316L stainless steel
• Non-Wetted Material: 304L stainless steel
• Internal Finish: #4 polish
• External Finish: Bead blast

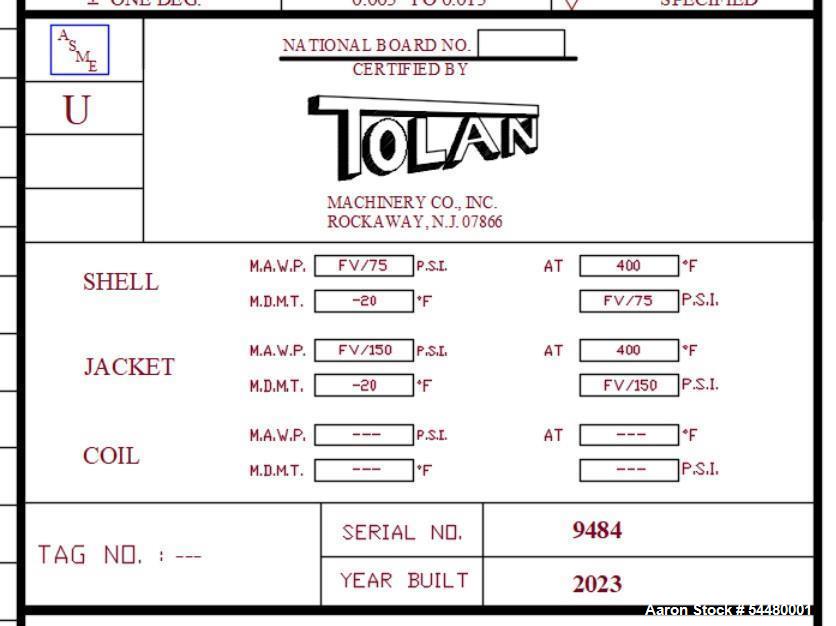

Pressure & Temperature Ratings

Internal Vessel

• Rating: Full vacuum / 75 PSI
• Temperature Rating: 400°F

Jacket

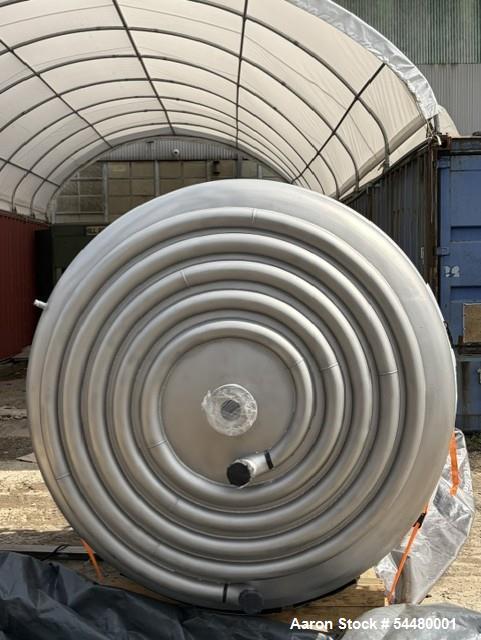

• Type: Half-pipe jacket (shell and bottom head)
• Rating: Full vacuum / 150 PSI
• Temperature Rating: 400°F

Dimensions

• Overall Diameter: 72”
• Vessel Height: 75”

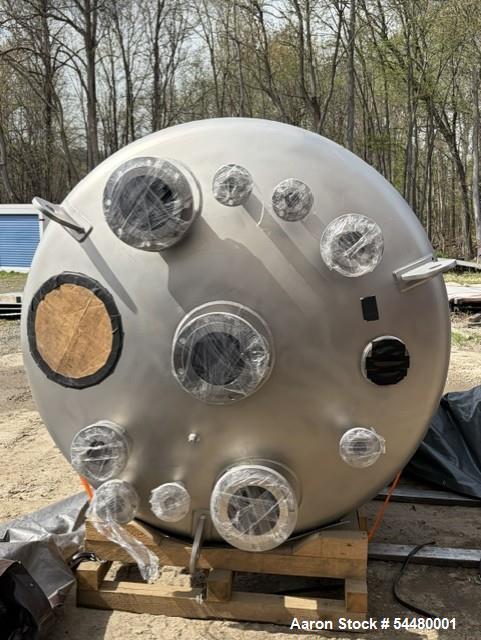

Features

• 18” top manway
• 8” agitator nozzle
• (4) internal baffles
• (4) leg mounts

Applications

Ideal for pressure reactions, blending, heating, cooling, and vacuum processing in sanitary and industrial environments.

Products This Equipment Would Be Used For

• Pharmaceutical formulations
• Chemical reactions
• Cosmetic creams and lotions
• Food ingredients
• Nutraceutical products
• Specialty chemicals
• Adhesives and resins
• Emulsions
• High-purity liquids
• Biotech processing materials
