Unused Tolan Machinery 1,150 Gallon 316L Stainless Steel Reactor | FV/75 PSI Jacketed Vessel

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 1,150 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9489
Certification: National Board Certified

Description

Unused Tolan Machinery 1,150 gallon stainless steel reactor engineered for high-pressure, vacuum, and elevated temperature processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this vessel is ideal for pharmaceutical, chemical, cosmetic, and food-grade processing operations.

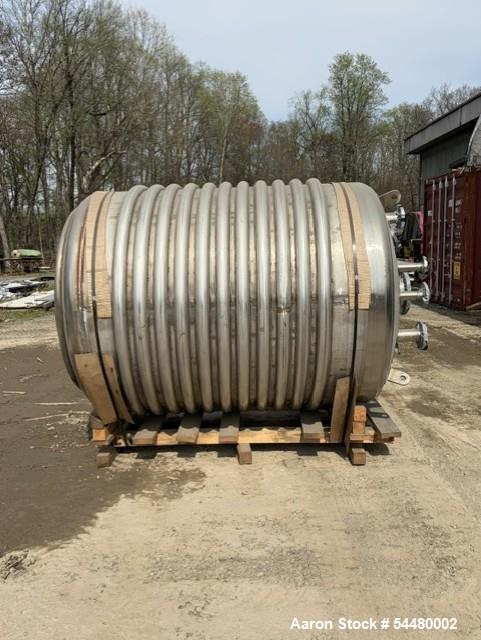

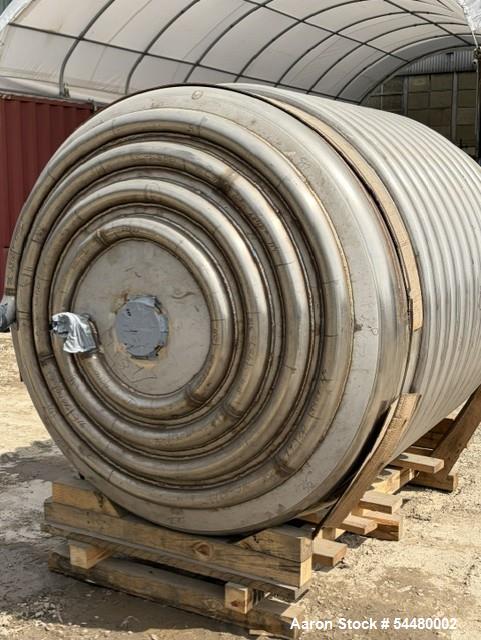

The reactor features a half-pipe jacket on both the shell and bottom head, rated for full vacuum to 150 PSI at 400°F, providing efficient heat transfer for heating and cooling processes. The internal vessel is rated for full vacuum to 75 PSI at 400°F, allowing operation under demanding process conditions.

Additional features include a #4 polished interior finish, mill finish exterior, 18” top manway, 8” agitator nozzle, and four internal baffles for enhanced mixing efficiency. Mounted on four legs and National Board certified, this reactor is built for reliable performance in sanitary and industrial environments.

Specifications

• Manufacturer: Tolan Machinery
• Capacity: 1,150 gallons
• Type: Jacketed reactor / pressure vessel
• Year Built: 2024
• Serial Number: 9489
• Certification: National Board certified

Vessel Construction

• Wetted Material: 316L stainless steel
• Non-Wetted Material: 304L stainless steel
• Internal Finish: #4 polish
• External Finish: Mill finish

Pressure & Temperature Ratings

Internal Vessel

• Rating: Full vacuum / 75 PSI
• Temperature Rating: 400°F

Jacket

• Type: Half-pipe jacket (shell and bottom head)
• Rating: Full vacuum / 150 PSI
• Temperature Rating: 400°F

Dimensions

• Overall Diameter: 66”
• Vessel Height: 74”

Features

• 18” top manway
• 8” agitator nozzle
• (4) internal baffles
• (4) leg mounts

Applications

Ideal for pressure reactions, heating, cooling, blending, and vacuum processing in sanitary and industrial applications.

Products This Equipment Would Be Used For

• Pharmaceutical formulations
• Cosmetic products
• Food ingredients
• Chemical reactions
• Nutraceutical processing
• Specialty chemicals
• Adhesives and resins
• Emulsions
• Biotech processing
• High-purity liquid products
