Used Sharpsville 2,000 Gallon Stainless Steel Jacketed Reactor – ASME Rated with Circulation System

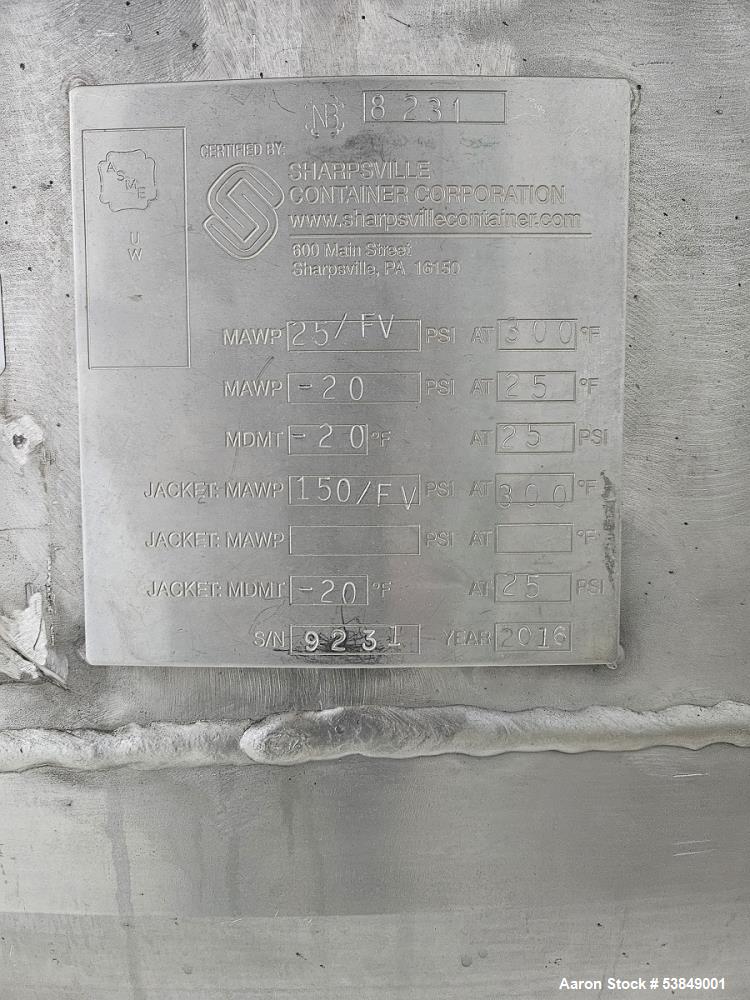

Manufacturer Information:

• Brand: Sharpsville Container
• Capacity: 2,000 Gallons
• Material: 316L Stainless Steel (Reactor), 304 Stainless Steel (Shroud)
• Year Built: 2016
• Serial #: 9231
• National Board #: 8231

Description:

This used Sharpsville Container 2,000-gallon vertical reactor (Model V700) is a high-quality processing vessel, designed for chemical, pharmaceutical, and food production applications. Constructed from 316L stainless steel, it ensures corrosion resistance and durability in demanding industrial environments.

The reactor features a dished top and bottom, with an internal rating of 25 PSI/FV at 200°F and a sidewall jacket rated for 50 PSI at 150°F, providing precise temperature control. The top head includes multiple access points, including a 24” manway, 12” center opening, and various inlet sizes (6”, 4”, (2) 3”, (7) 2”), ensuring flexibility for different processing needs. The 4” center bottom outlet allows for efficient discharge.

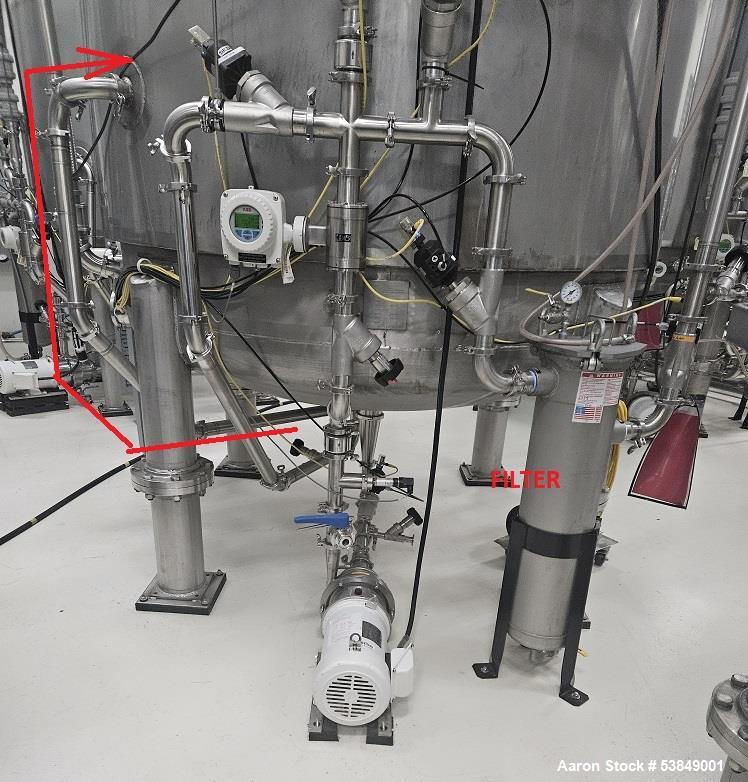

A 304 stainless steel shroud with a 12” annulus filler and chloride-free insulation enhances temperature stability. The reactor is mounted on four stainless steel legs for stability. This unit includes a circulation system with an APV pump, optimizing mixing and fluid movement within the system.

Specifications:

• Capacity: 2,000 Gallons
• Material: 316L Stainless Steel (Reactor), 304 Stainless Steel (Shroud)
• Tank Dimensions:
  • Outside Diameter: 78”
  • Straight Side Height: 78”
  • Top & Bottom: Dished
• Pressure Ratings:
  • Internal: 25 PSI/FV @ 200°F
  • Sidewall Jacket: 50 PSI @ 150°F
• Top Head Openings:
  • 24” Manway
  • 12” Center Opening
  • 6”, 4”, (2) 3”, (7) 2” Inlets
• Bottom Discharge:
  • 4” Center Bottom Outlet
• Insulation & Shroud:
  • 304 Stainless Steel Shroud with 12” Annulus Filler
  • Chloride-Free Insulation
• Mounting: 4 Stainless Steel Legs
• Included Equipment:
  • Circulation System
  • APV Pump

Applications:

• Chemical Processing – Reactor for controlled chemical synthesis
• Pharmaceutical & Biotech – Precision blending and reaction control
• Food & Beverage Processing – Ingredient mixing, fermentation, and temperature-controlled processing
• Cosmetics & Personal Care – Emulsification and formulation of skincare and beauty products
• Petrochemical & Industrial – Heat and pressure-controlled mixing for specialized applications

Common Uses for This Reactor:

• Controlled chemical reactions
• Heat-sensitive ingredient processing
• Pharmaceutical liquid and gel formulation
• Food and beverage mixing and fermentation
• Industrial liquid heating and circulation

• Sharpsville Container reactor
• Used 2,000-gallon jacketed reactor
• Stainless steel chemical reactor
• Used Sharpsville 2,000-gallon stainless steel reactor with circulation system
• ASME-rated jacketed reactor for pharmaceutical and chemical processing
• Stainless steel process vessel with APV pump and multiple top inlets
• Used Sharpsville Container V700 2,000-gallon stainless steel jacketed reactor with circulation system and APV pump
• High-performance stainless steel chemical reactor with 25 PSI internal rating and 50 PSI jacket rating
• Industrial stainless steel processing reactor with temperature control, circulation system, and multiple access ports
