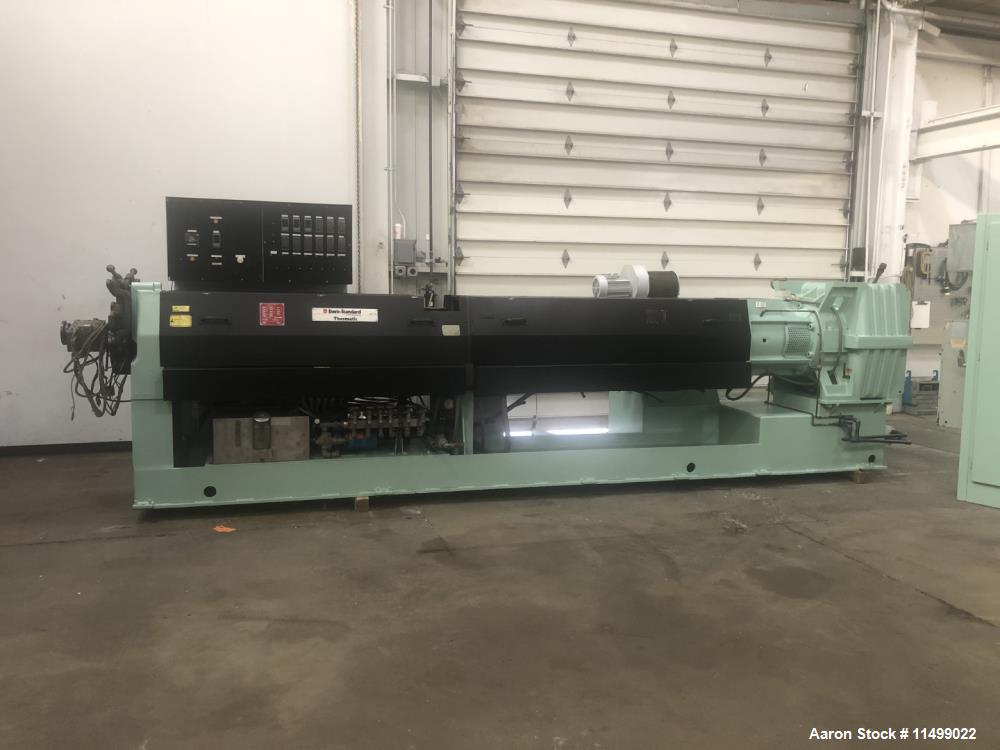

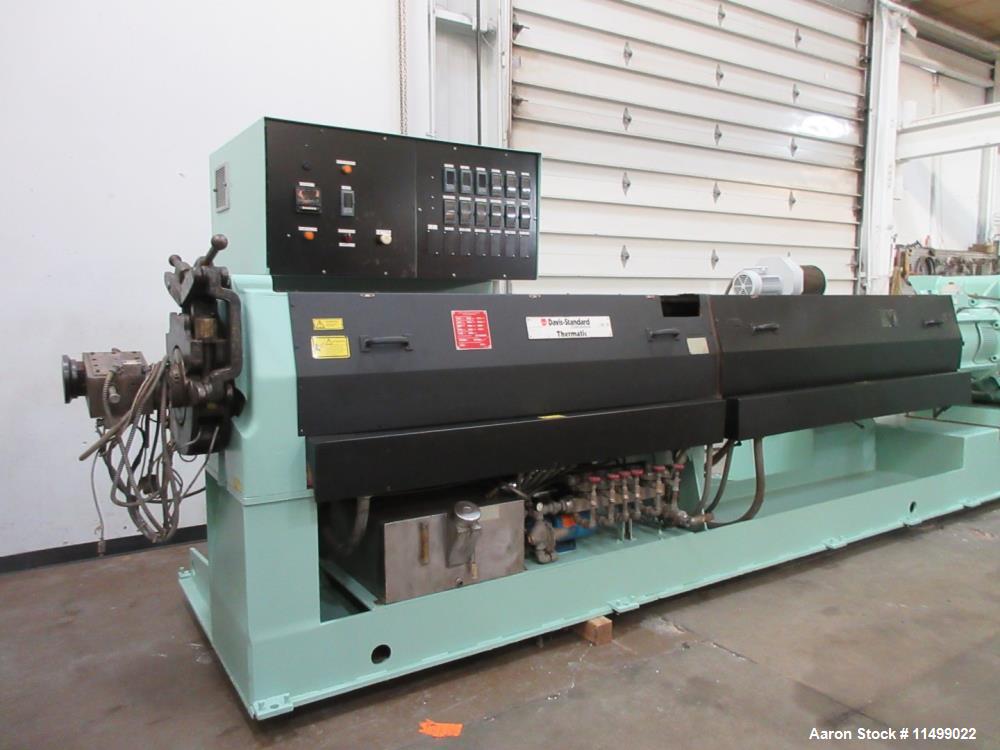

Used- 6" Davis Standard Extruder, Model 60IN60TPIH

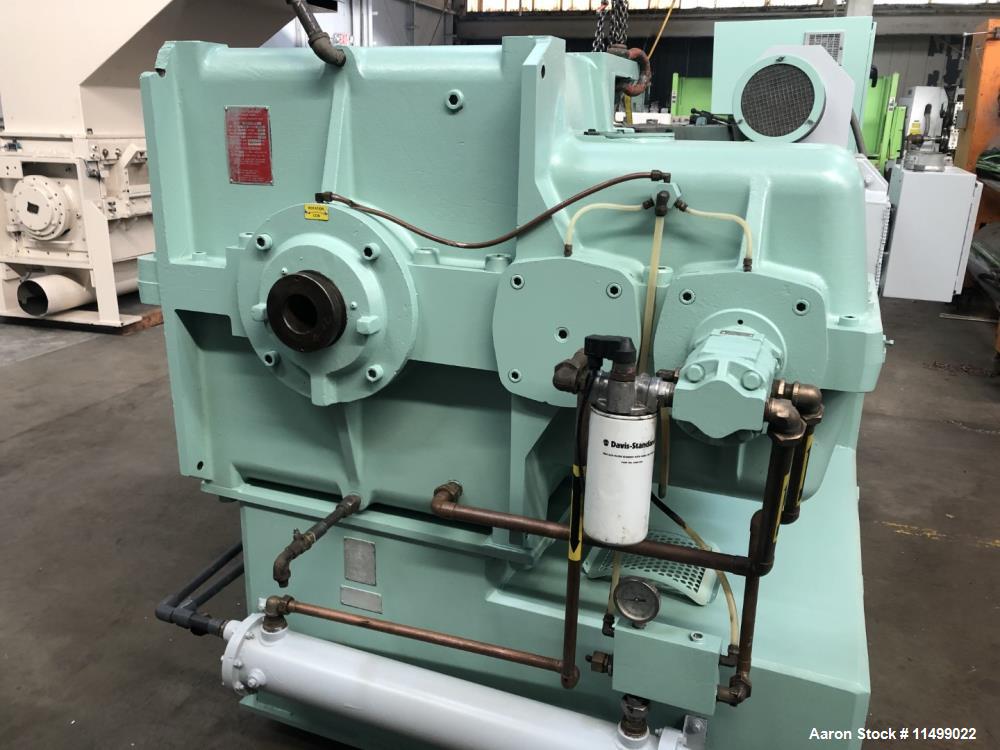

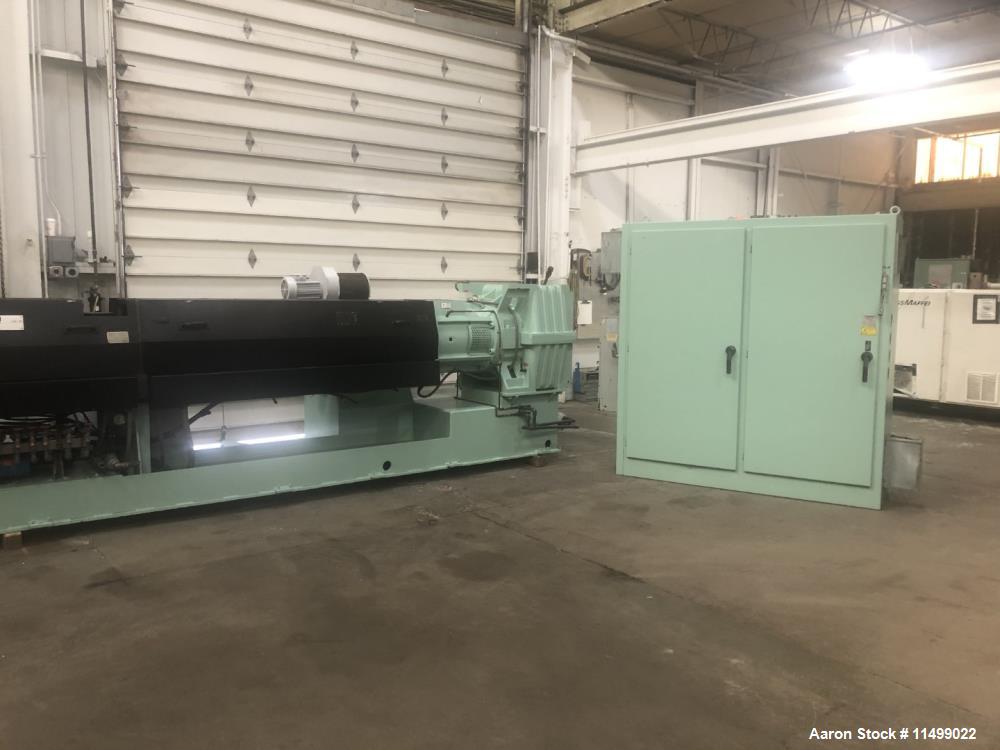

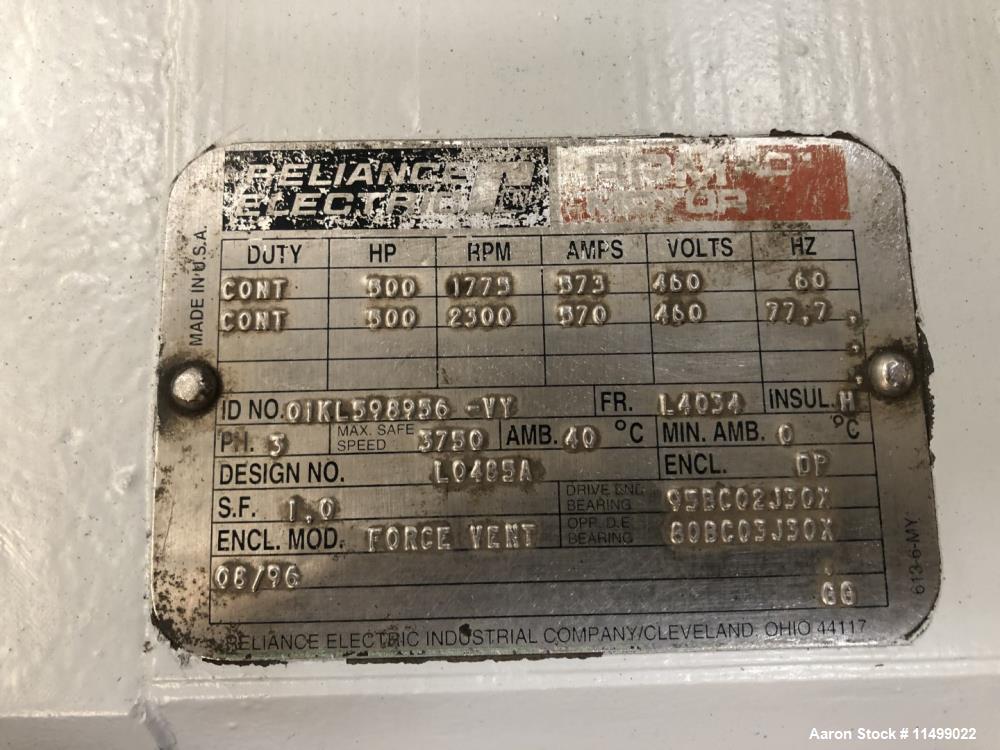

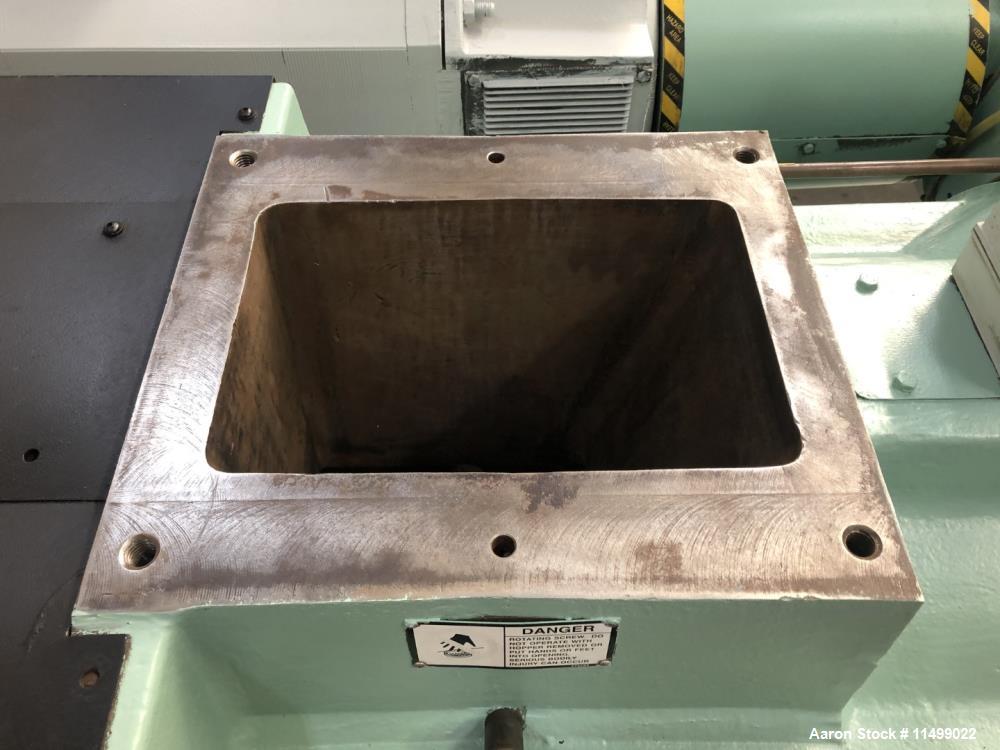

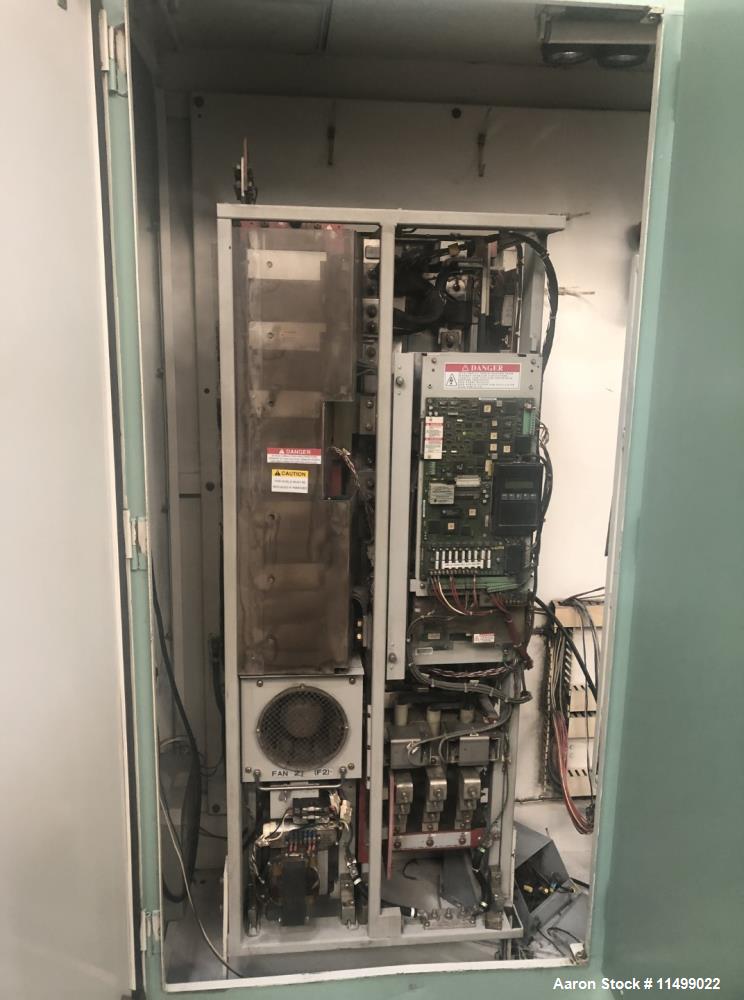

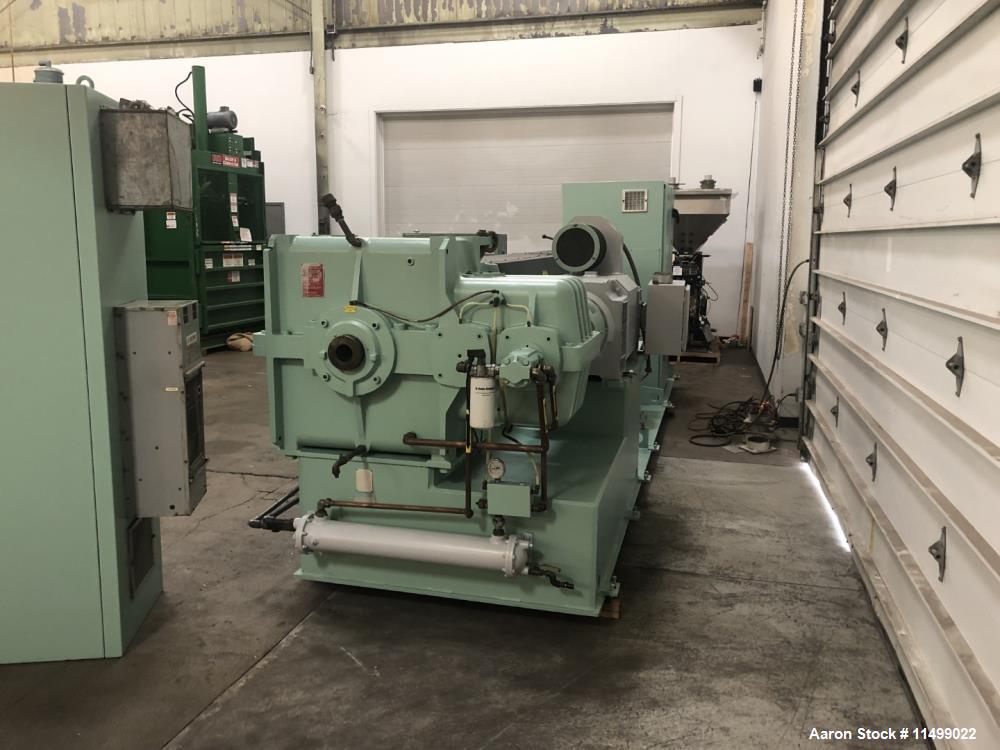

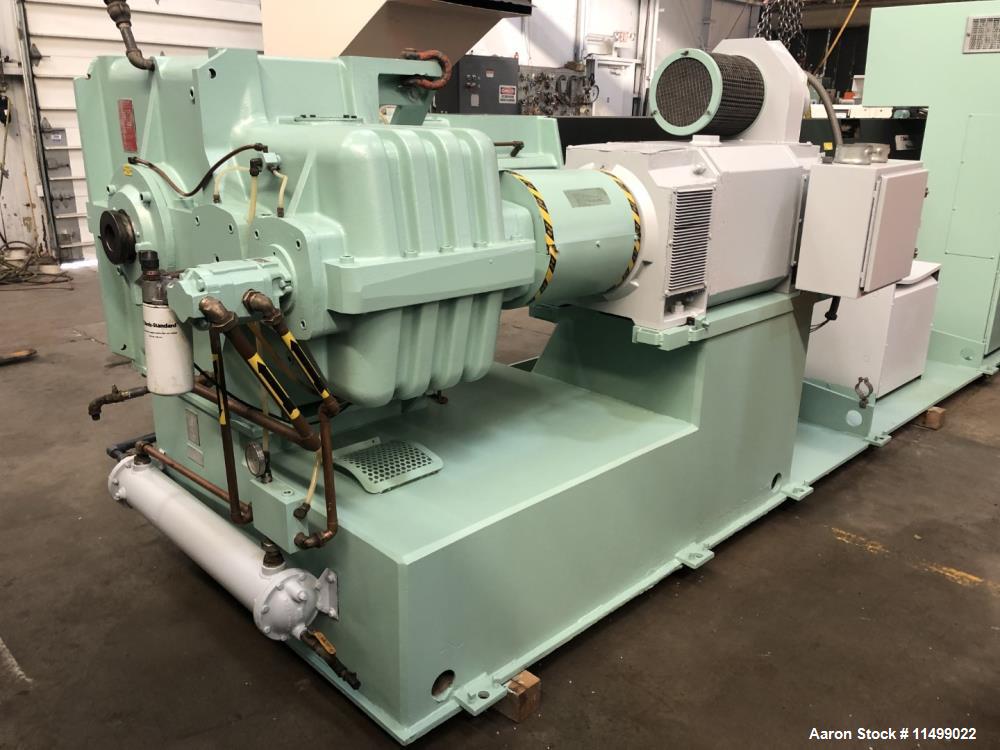

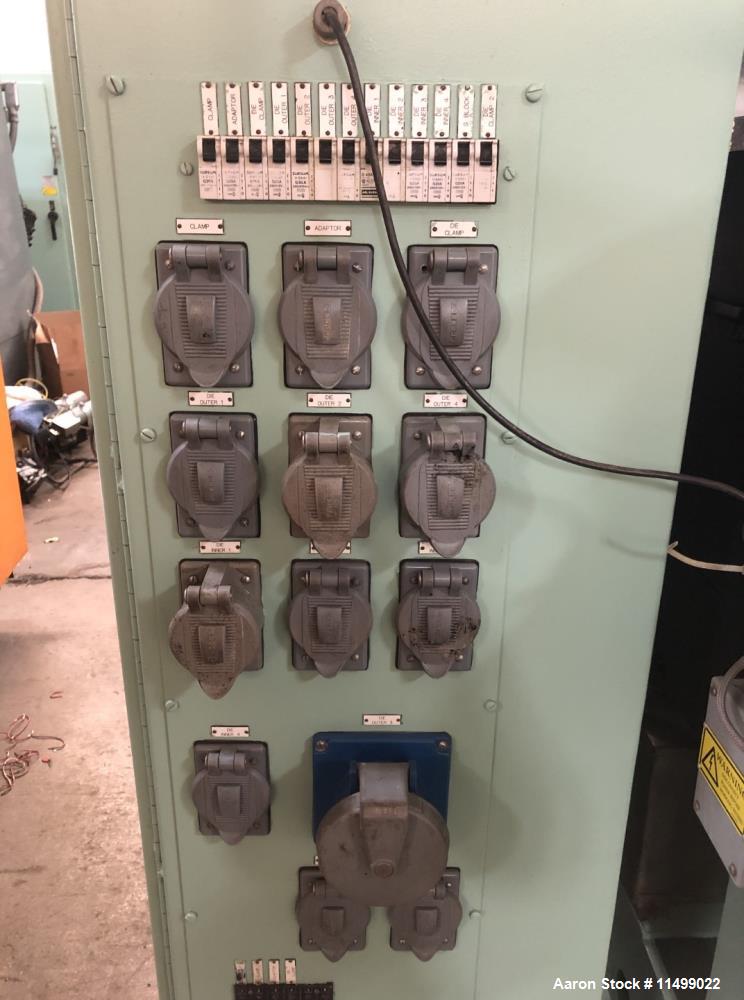

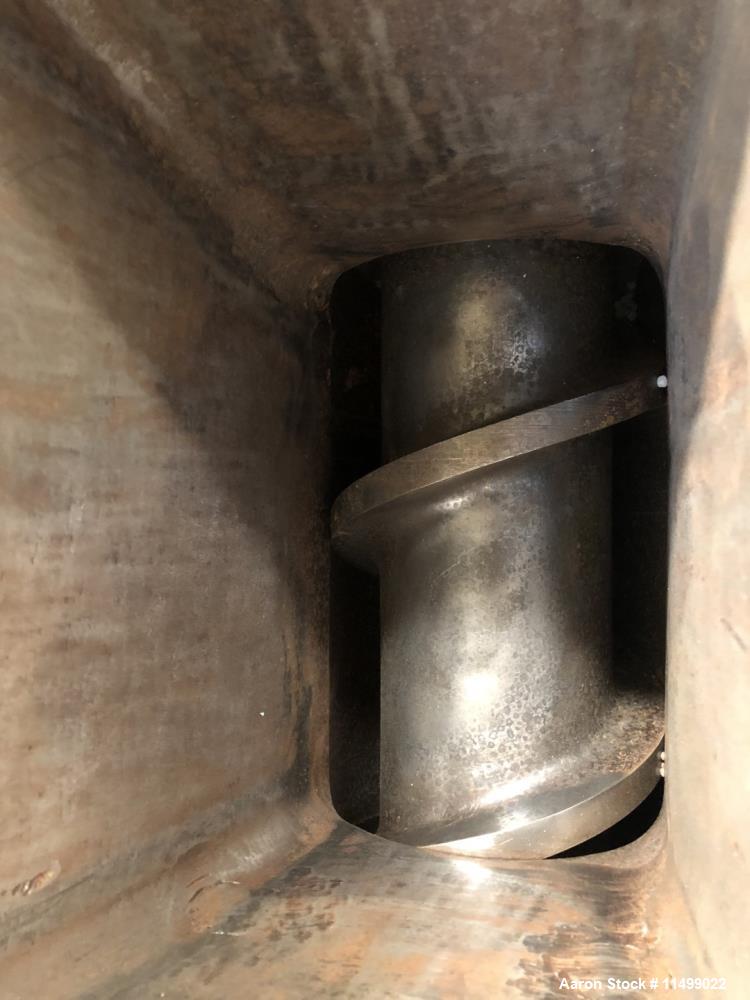

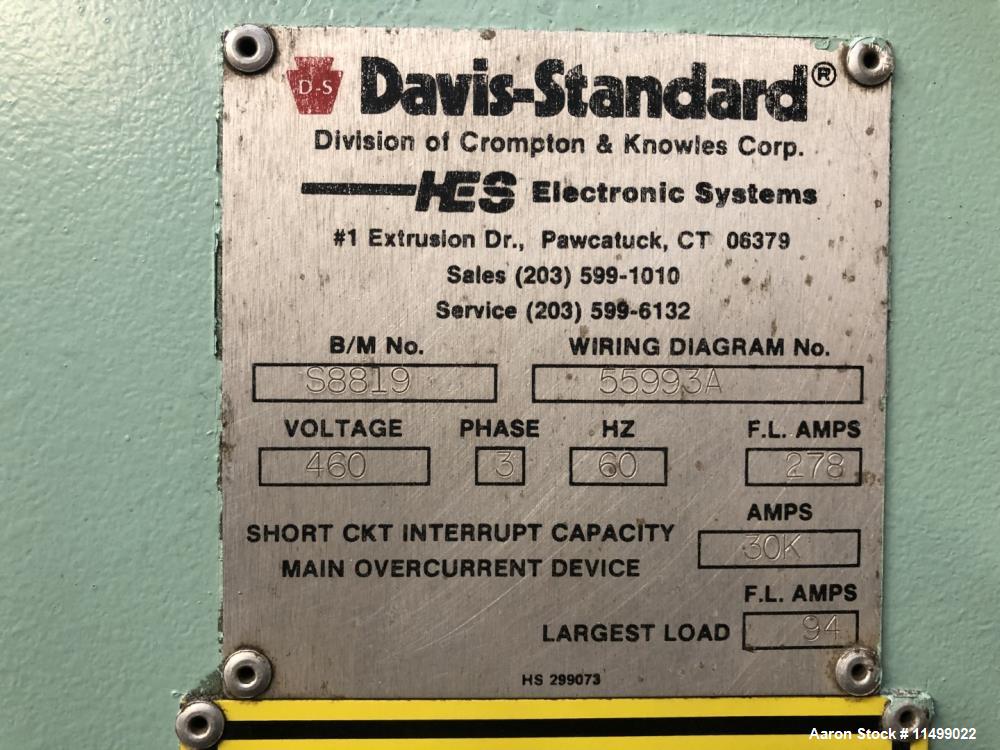

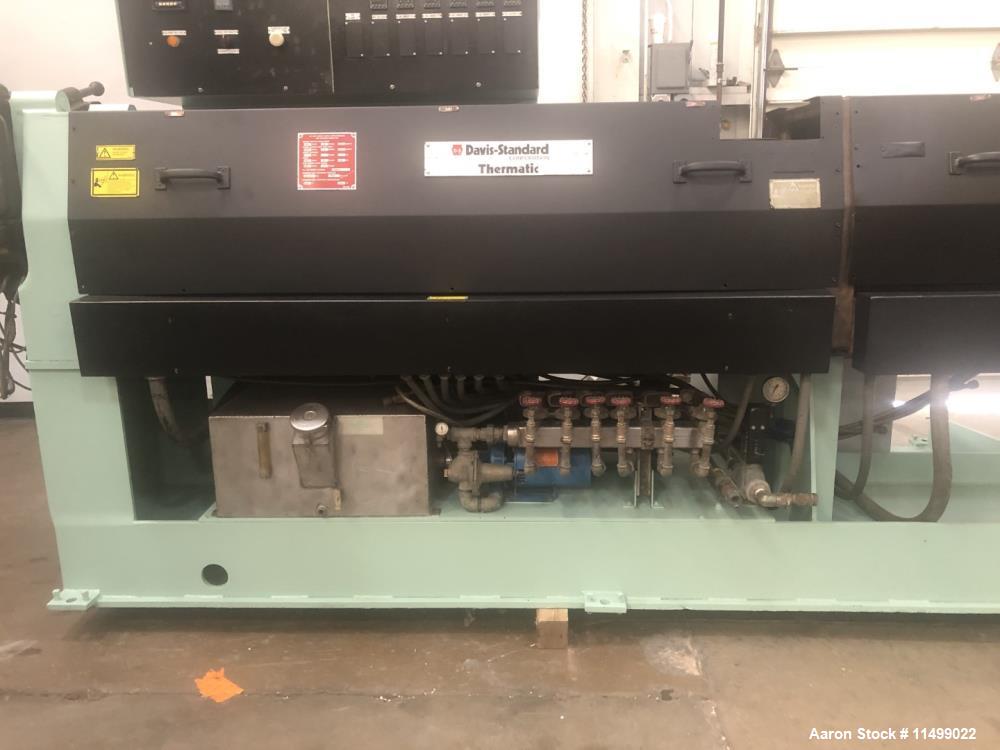

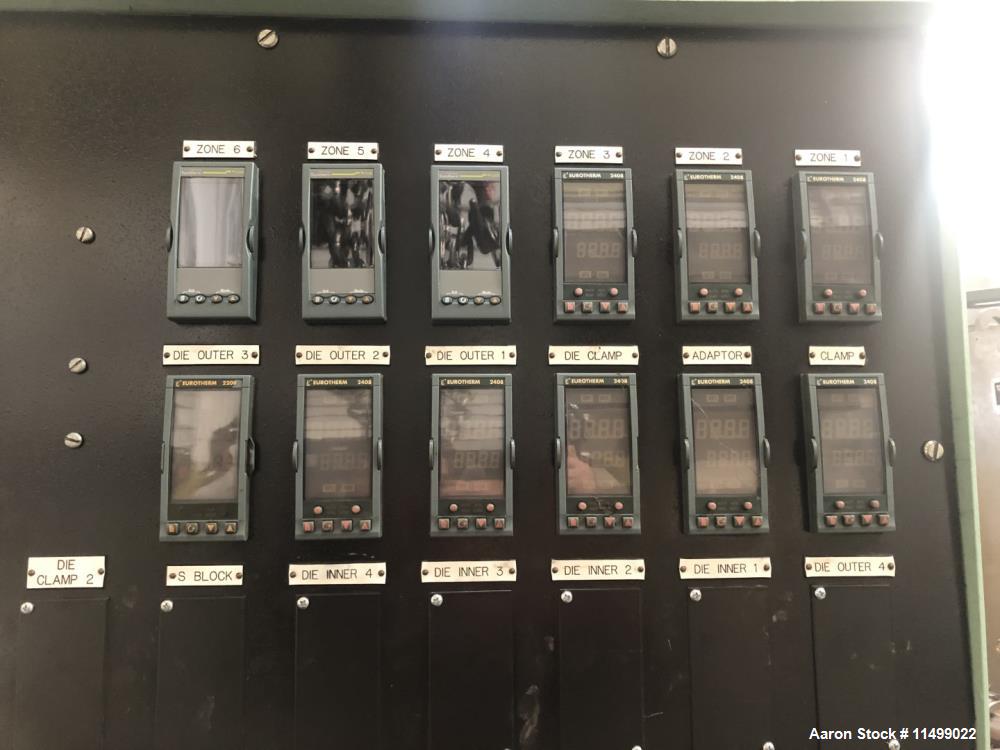

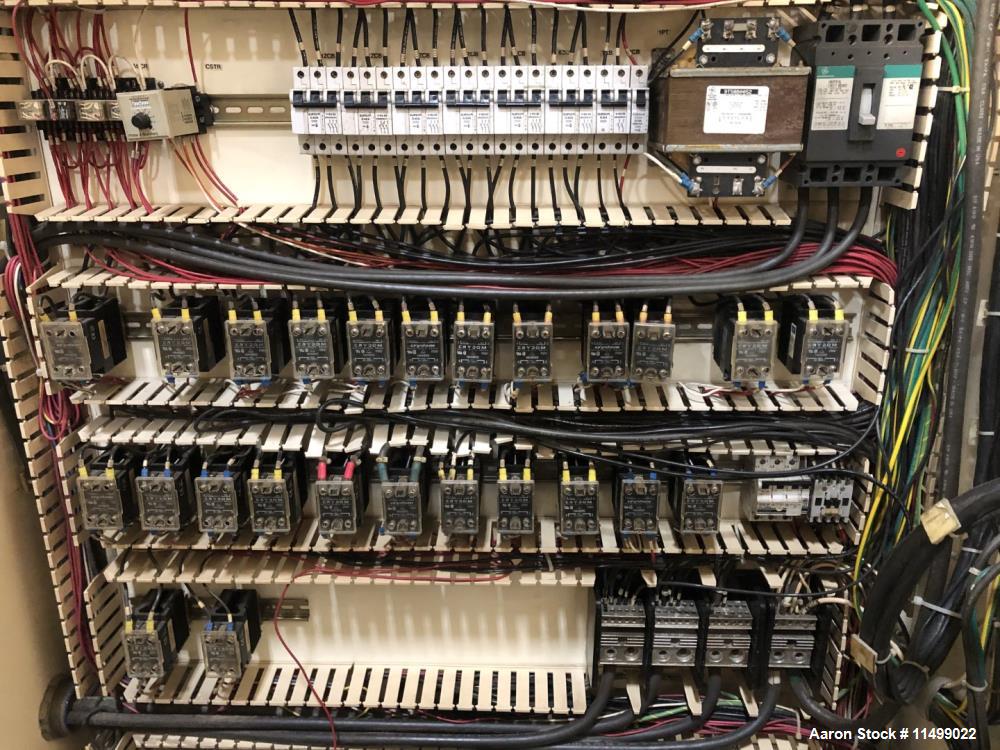

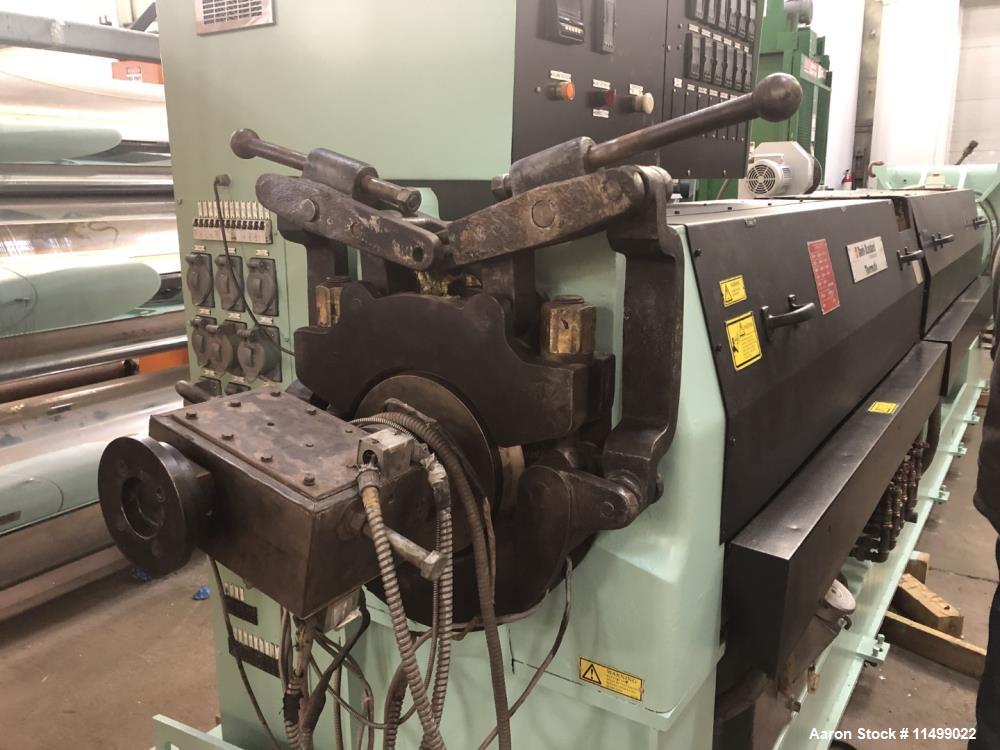

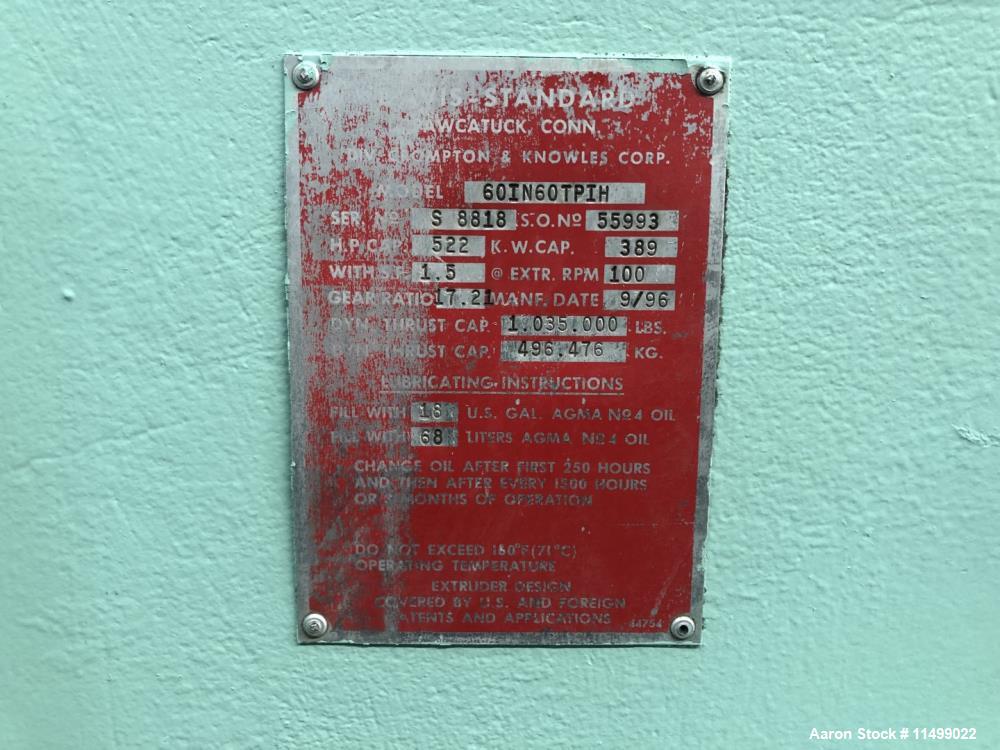

Used-6" Davis Standard Extruder, Model 60IN60TPIH. Water Cooled, 30:1, 500 HP Water Cooled Barrel Top Vented (Plugged) at 105" From Feed, 17.21:1 Gearbox Ratio, 522 hp Capacity With 1.5 SF Approximately 100 RPM Screw Speed 12" Long x 8" Wide Rectangular Feed Throat 500 HP 1750 RPM Reliance RPM-AC Motor, Allen Bradley AC Inverter Drive(Missing Line Reactor) Eurotherm 3208 And 2208 Temperature Controllers, 6 Barrel Zones, 6 Downstream Zones Solid State Relays, Breakers Davis Standard Barrel Clamp 42.5" Centerline Height. Was Previously Running Virgin PE. Drive Amperage - 595 AMPS; Temperature Panel Amperage - 278 AMPS 460/3/60; Extruder: 230" Long x 74" Wide x 80" High. Drive Panel: 90" Long x 30" Wide x 90" High. Approximately 23,000 pounds. Mfg. 1996.
