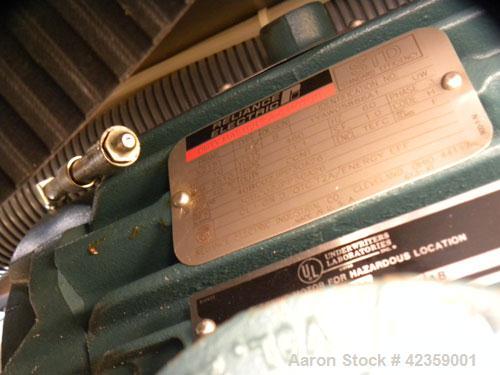

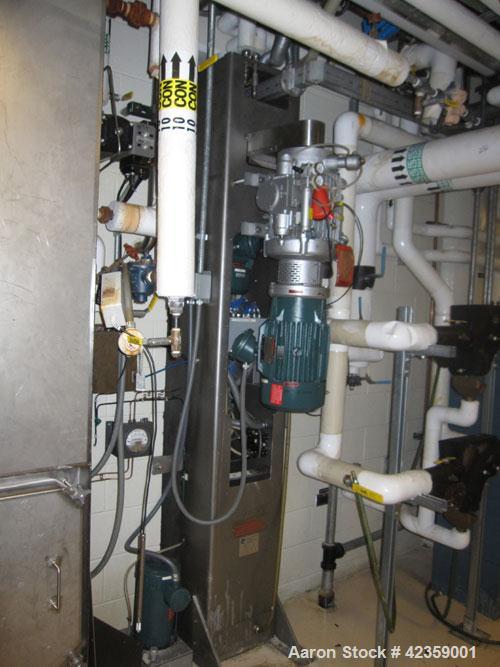

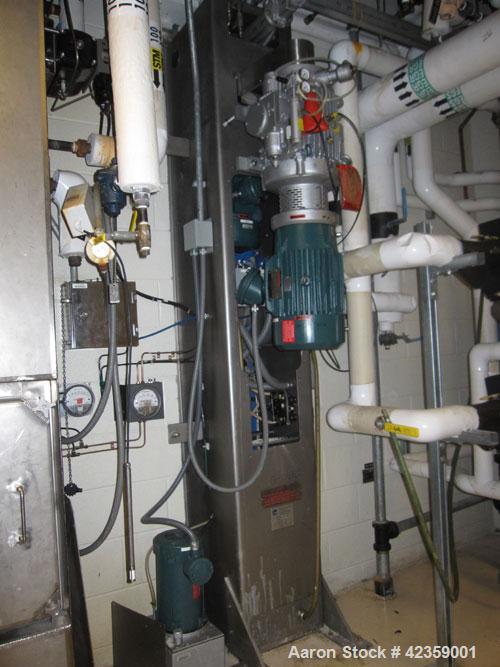

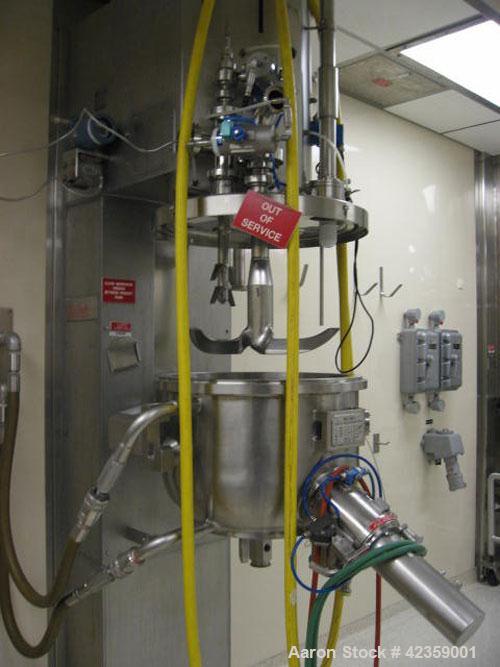

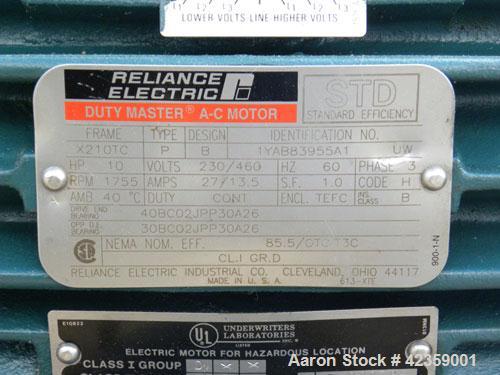

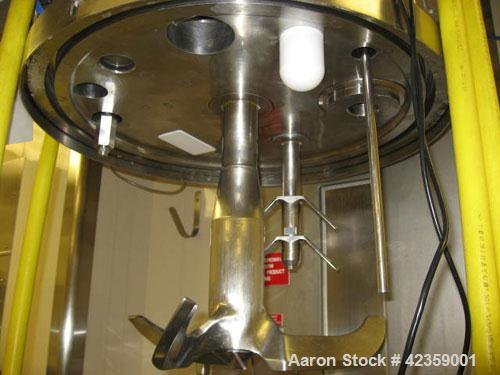

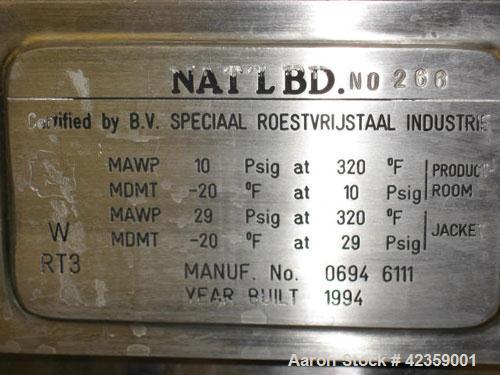

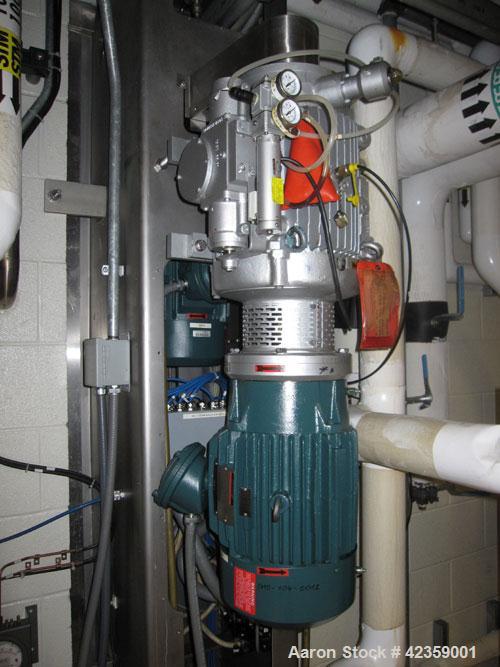

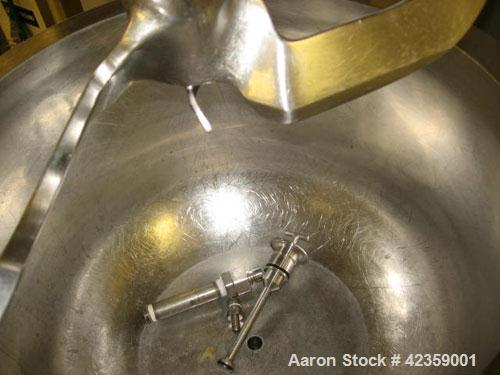

Used Collette 75 Liter High Shear Granulator, Model VACTRON 75, 316L polished stainless steel contact parts. Jacketed bowl 20-1/2'' diameter x 15'' deep. Internal rated 10 psig at -20 to 320 deg F, 304L stainless steel jacket rated 29 psig at -20 to 320 deg F. Has a high speed chopper and a mixing blade. This system is a combined mixer and high shear granulator with vacuum construction and drying capabilities; it also has microwave vacuum drying capabilities. The system utilizes top driven mixer and granulation arms with removable product bowl (fitted with flush discharge valve). The system is designed for “through the wall” mounting to comply with perfect CGMPs. When in use, Vactron offers a precision wet granulation mixing system capable of one step processing (e.g. spheres, controlled release, agglomeration/drying, etc). Microwave drying reduces drying time dramatically, but the unit also features a jacketed bowl for conventional drying.Maximum bowl capacity is 75 liters. Working capacity is typically 25-50 liters. Mixer speed variable 6 kW, 0-30 rpm; chopper 3 kW speed typical 600-3000 rpm. Microwave heating capacity variable: 3 kW. Machine motors are Class I, Group D explosion proof.Microwave generators (water cooled) vacuum and/or solvent recovery designed for remote mount in mechanical area outside process room.
Used Collette 75 Liter High Shear Granulator, Model VACTRON 75, 316L polished stainless steel contact parts. Jacketed bowl 20-1/2'' diameter x 15'' deep. Internal rated 10 psig at -20 to 320 deg F, 304L stainless steel jacket rated 29 psig at -20 to 320 deg F. Has a high speed chopper and a mixing blade. This system is a combined mixer and high shear granulator with vacuum construction and drying capabilities; it also has microwave vacuum drying capabilities. The system utilizes top driven mixer and granulation arms with removable product bowl (fitted with flush discharge valve). The system is designed for “through the wall” mounting to comply with perfect CGMPs. When in use, Vactron offers a precision wet granulation mixing system capable of one step processing (e.g. spheres, controlled release, agglomeration/drying, etc). Microwave drying reduces drying time dramatically, but the unit also features a jacketed bowl for conventional drying.Maximum bowl capacity is 75 liters. Working capacity is typically 25-50 liters. Mixer speed variable 6 kW, 0-30 rpm; chopper 3 kW speed typical 600-3000 rpm. Microwave heating capacity variable: 3 kW. Machine motors are Class I, Group D explosion proof.Microwave generators (water cooled) vacuum and/or solvent recovery designed for remote mount in mechanical area outside process room.
