Used Ross HDM-40 Gallon Double Planetary Mixer – Vacuum Rated, 316SS, 15 HP (Approx.)

Manufacturer Information

• Manufacturer: Charles Ross & Son Company

• Model: HDM-40

• Type: Double Planetary Mixer (Vacuum Rated)

• Year Manufactured: 1999/2000

• Condition: Used

• Previous Application: Oral care product manufacturing

Description

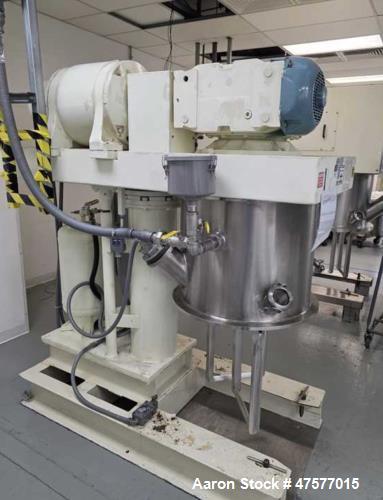

This Used Ross HDM-40 Double Planetary Mixer is a heavy-duty, vacuum-rated mixing system designed for high-viscosity formulations requiring intensive blending and deaeration. With a 5 to 40-gallon working capacity, the unit is engineered to mix under full vacuum up to –29½” Hg, making it ideal for products sensitive to air entrapment.

All product contact parts are constructed of 316 stainless steel with a 150-grit finish, while exterior surfaces feature an 80-grit stainless finish. Carbon steel components are coated with a two-component epoxy paint system for durability and corrosion resistance.

The mixer is powered by a 15 HP motor (to be confirmed) with a mechanical variable speed drive, allowing precise speed adjustment for different viscosity ranges. An air-over-oil hydraulic lift system raises and lowers the mix head and blades smoothly and safely.

The vacuum hood includes:

• 2” sight port

• Integrated light fixture

• Vacuum exhaust port

• 80W / 120V explosion-proof (EX-PROOF) light port

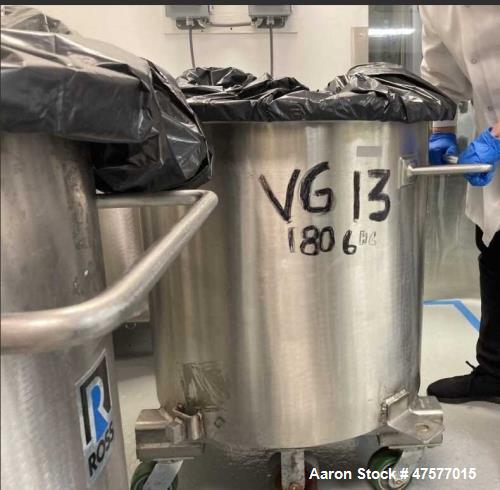

Included is one 316SS mix can (non-jacketed), internally machined for use with a discharge press, and fitted with a 4” Tri-Clover 316L stainless flush plug bottom outlet. The can is mounted on casters with a push-pull handle for easy movement.

Approximate mixer weight: 6,234 lbs.

Specifications

• Model: HDM-40

• Working Capacity: 5–40 gallons

• Vacuum Rating: –29½” Hg (Full Vacuum)

• Product Contact Material: 316 Stainless Steel (150-grit finish)

• Exterior Finish: 80-grit stainless

• Carbon Steel Surfaces: Epoxy painted

• Motor: 15 HP (to be confirmed)

• Drive: Mechanical variable speed

• Lift System: Air-over-oil hydraulic

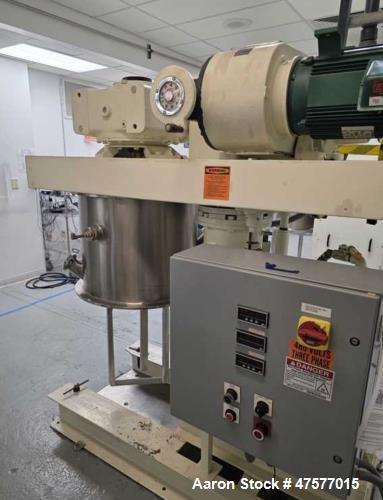

• Control Panel: 3 Phase / 60 Hz / 480V

• Vacuum Hood Features:

  • 2” sight port

  • Light fixture

  • Vacuum exhaust port

  • 80W / 120V explosion-proof light port

• Mix Can:

  • 316 SS construction

  • 150-grit interior / 80-grit exterior

  • Non-jacketed

  • 4” Tri-Clover 316L flush plug bottom outlet

  • Mounted on casters

• Approximate Weight: 6,234 lbs

• Year: 1999/2000

Applications

• High-viscosity paste mixing

• Vacuum deaeration processing

• Cosmetic and personal care manufacturing

• Adhesive and sealant production

• Pharmaceutical compounding

What Might This Be Used For

This Ross HDM-40 is commonly used for thick, high-viscosity products that require intensive mixing and vacuum deaeration, such as toothpaste, creams, gels, adhesives, and specialty compounds.

Products This Equipment Is Used For

• Toothpaste

• Oral care gels

• Cosmetic creams

• Ointments

• Adhesives

• Sealants

• Silicone compounds

• Epoxies

• Putty compounds

• Specialty chemical pastes
