Manufacturer Information

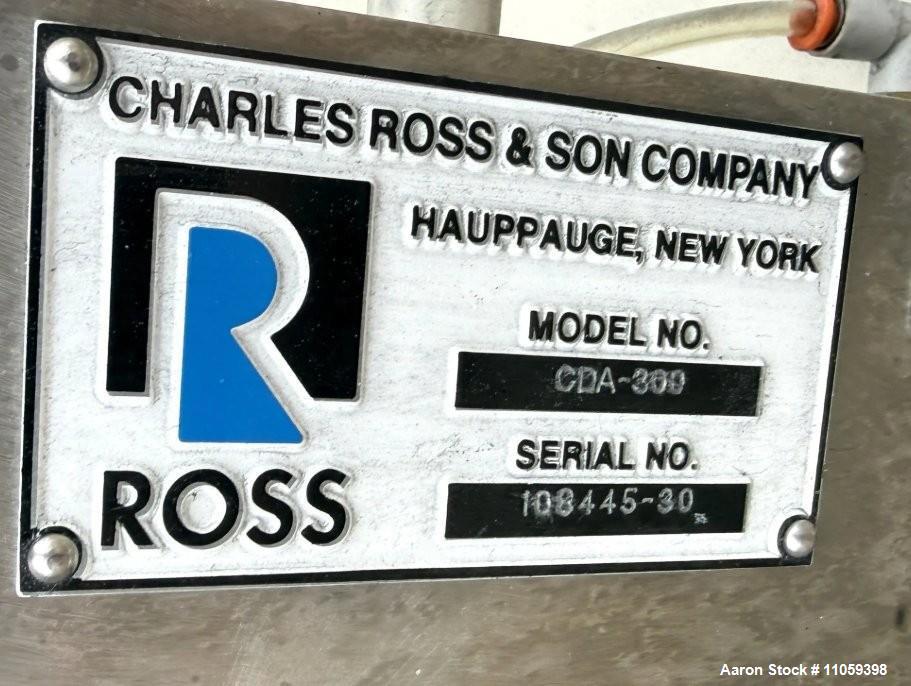

Manufacturer: Charles Ross & Son Company
Model: CDA-300
Equipment Type: Dual Shaft Vacuum Mixer
Capacity: 300 Gallons
Mixing Configuration: Anchor Sweep Agitator & High Shear Disperser
Condition: Used

Description

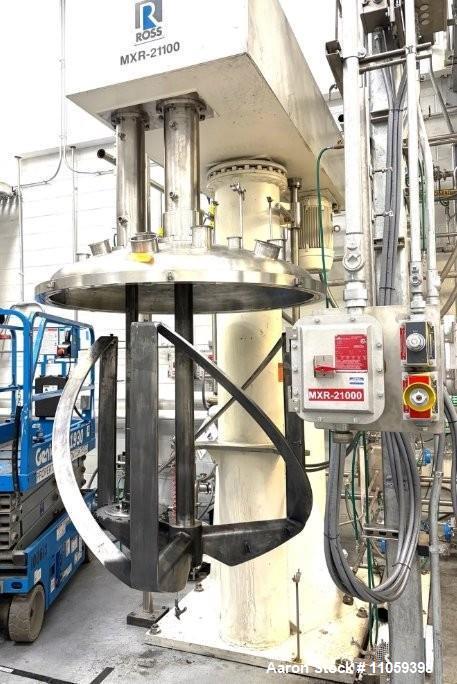

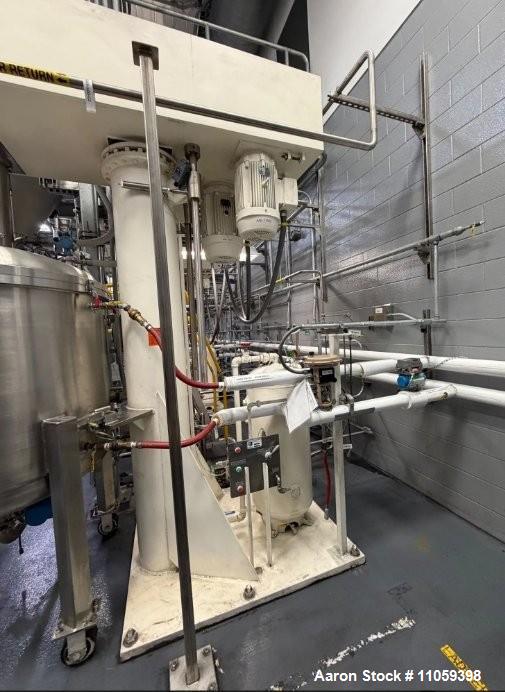

Available for sale is a used ROSS Model CDA-300 Dual Shaft Vacuum Mixer, engineered for demanding mixing, dispersing, homogenizing, and vacuum processing applications. This versatile system combines a high-speed disperser with a low-speed sweep agitator, providing excellent product turnover, efficient heat transfer, and superior mixing performance across a wide range of viscosities.

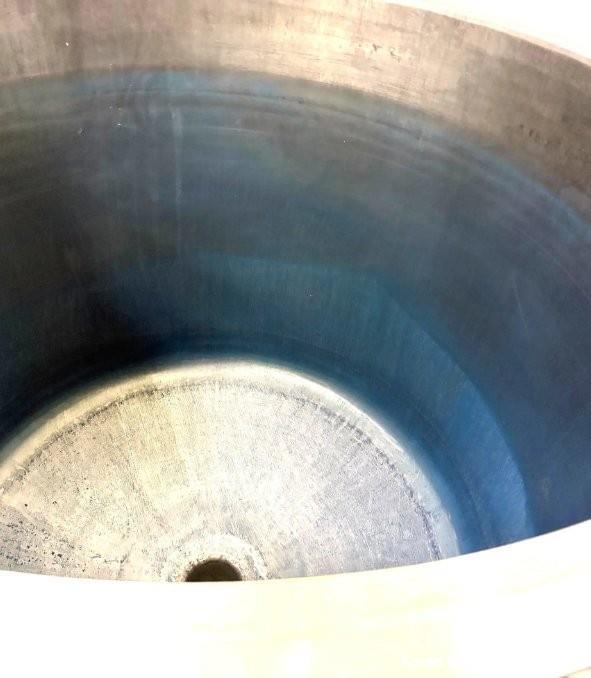

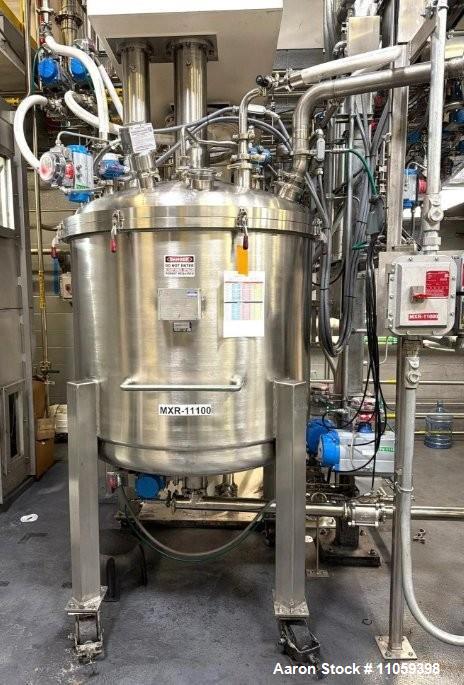

The mixer is supplied with a portable 300-gallon jacketed mixing vessel rated for full vacuum operation at 300°F and equipped with a heating/cooling jacket rated for 50 PSI at 300°F. The dual-shaft design allows simultaneous macro-mixing and high-shear dispersion, making it ideal for products requiring powder incorporation, pigment dispersion, emulsification, and vacuum deaeration.

Powered by explosion-proof motors, including a 30 HP high shear disperser drive and a 20 HP sweep agitator drive, this system is suitable for hazardous and solvent-based processing environments commonly found in chemical, coatings, adhesives, cosmetic, pharmaceutical, and specialty materials manufacturing facilities.

Specifications

General Information

• Manufacturer: Charles Ross & Son Company
• Model: CDA-300
• Equipment Type: Dual Shaft Vacuum Mixer
• Capacity: 300 Gallons
• Condition: Used

Vessel Specifications

Tank Capacity

• 300 Gallons

Vessel Type

• Portable Jacketed Mixing Vessel

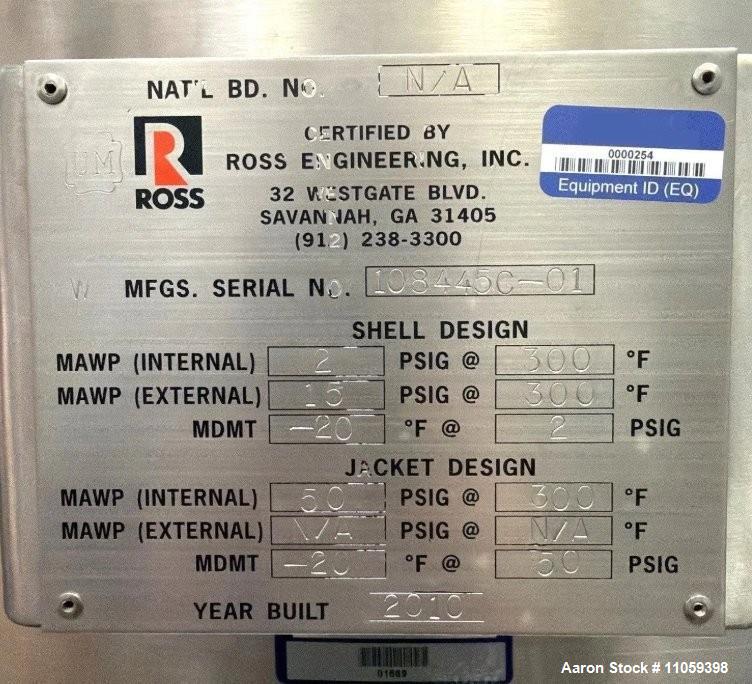

Vessel Rating

• Full Vacuum @ 300°F
• Internal Pressure Rating: 2 PSI @ 300°F

Jacket Rating

• 50 PSI @ 300°F

Mixing System

Primary Mixer

• High Shear Disperser

Secondary Mixer

• Sweep Agitator / Anchor Agitator

Mixing Functions

• High Shear Dispersion
• Product Homogenization
• Powder Incorporation
• Vacuum Mixing
• Emulsification
• Deaeration
• Heat Transfer Enhancement

Drive System

Sweep Agitator Motor

• 20 HP
• 1,775 RPM
• Explosion Proof (XP)

High Shear Disperser Motor

• 30 HP
• 1,775 RPM
• Explosion Proof (XP)

Electrical Requirements

• Voltage: 208-230/460 Volt
• Phase: 3 Phase
• Frequency: 60 Hertz

Dimensions

Overall Height

• Approximately 11 Feet 1 Inch

Safety Features

• Explosion Proof Motors
• Vacuum Rated Vessel
• Pressure Rated Jacket
• Industrial Processing Design

Applications

• Adhesive manufacturing
• Sealant production
• Paint manufacturing
• Coatings production
• Cosmetic processing
• Personal care products
• Pharmaceutical formulations
• Specialty chemical production
• Polymer blending
• Resin processing
• Ink manufacturing
• High-viscosity product mixing

Products This Equipment Would Be Used For

• Adhesives
• Sealants
• Epoxies
• Paints
• Coatings
• Inks
• Cosmetic creams
• Lotions
• Gels
• Resins
• Specialty chemicals
• Pharmaceutical suspensions

Frequently Asked Questions

• What is the capacity of the ROSS CDA-300?
  The mixer is equipped with a 300-gallon jacketed mixing vessel.
• What type of mixing system does this unit use?
  The system utilizes a dual-shaft design consisting of a high shear disperser and a sweep agitator.
• What is the advantage of a dual-shaft mixer?
  Dual-shaft mixers provide simultaneous high-shear dispersion and low-speed bulk movement for faster, more uniform mixing.
• Is the vessel rated for vacuum operation?
  Yes, the tank is rated for full vacuum service at temperatures up to 300°F.
• What is the jacket pressure rating?
  The vessel jacket is rated for 50 PSI at 300°F.
• What motors are installed?
  The system includes a 20 HP sweep agitator motor and a 30 HP high shear disperser motor.
• Are the motors explosion proof?
  Yes, both motors are explosion-proof (XP) rated.
• What products are commonly processed in this type of mixer?
  Adhesives, coatings, sealants, cosmetics, pharmaceuticals, inks, resins, and specialty chemicals are frequently processed in dual-shaft vacuum mixers.
• Why is vacuum mixing beneficial?
  Vacuum processing removes entrapped air, improves product consistency, enhances dispersion, and reduces foam formation.
• What industries commonly use ROSS dual-shaft mixers?
  Chemical, coatings, adhesives, pharmaceutical, cosmetic, personal care, and specialty materials manufacturers commonly utilize these systems.
